OKMX6ULL-C Single Board Computer
OKMX6ULL-C Single Board Computer(SBC) is based on NXP Cortex-A7 low power featuring processor i.MX6ULL @ 800MHz. Adopt SoM+Carrier Board structure, while SoM is only 40*29mm, suitable for application scenarios with a limited volume. Native support: 8 serial ports, 2 Ethernet ports, 2 CAN controller, 2 USB 2.0, LCD, etc.
Small but Complete
Cute little, compact size by 40*29mm.
Package: 2mm height board to board connector
Combines small size and easy disassembly.
Mature and Stable
This is the Third SOM launched by Forlinx based on NXP i.MX6U series processors.
Matured technical solutions.
Stable and reliable.
Comprehensive Functions
Natively support: 2x Ethernet, 2x CAN, 8x UART, 2x USB, RGB LCD, Audio, IIC, SPI, Camera, PWM, ADC, SDIO, GPIO,etc.
Meet the requirements of various application scenarios
Easy to Develop and Product
Separately update kernel
Batch flashing by OTG, SD/TF cards
Convenient for development and mass production.

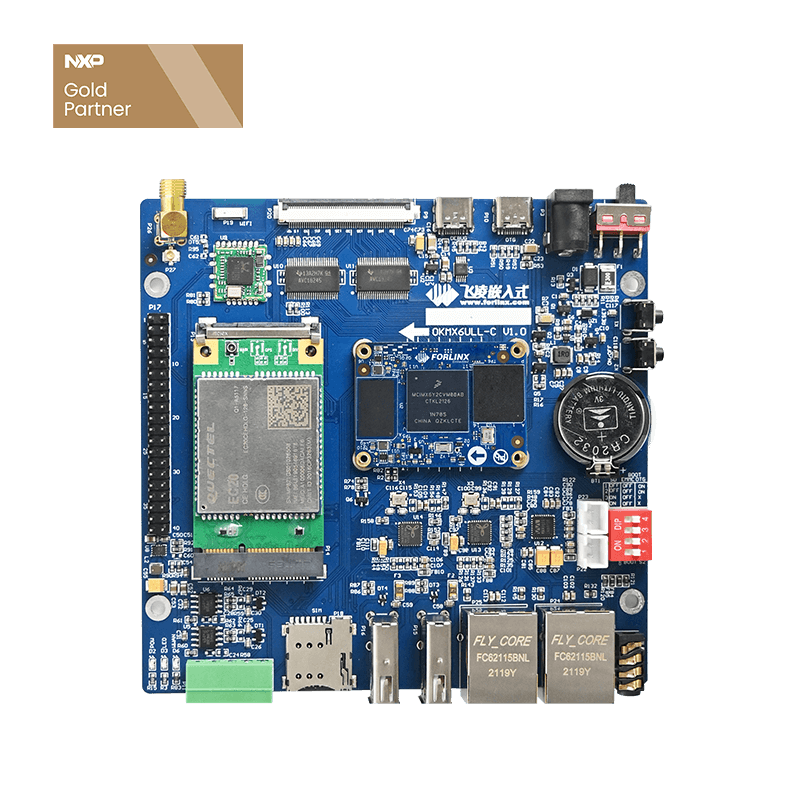

OKMX6ULL-C Single Board Computer
Matched Development Board, Integrates rich functional interfaces, Makes easy product evaluation.
Target Applications
The SoM could be widely used in electric power, healthcare,
industrial control and automation, environmental monitoring,
self-service terminal, security, vehicle transportation, communication, charging piles, smart home, consumer electronic, handheld device, gateway, HMI, etc.
▊ Product Video
Unboxing | OKMX6ULL-C SBC Based on NXP i.MX6ULL A7 Processor
▊ Hardware Features
|
FETMX6ULL-C SoM Basic Parameters |
|
|---|---|
|
CPU |
NXP i.MX6ULL |
|
Architecture |
Cortex-A7 |
|
Frequency |
800MHz |
|
RAM |
512MB DDR3 |
|
ROM |
8GB eMMC |
|
Voltage Input |
3.3V |
|
Working Temperature |
-40~85℃ |
|
Dimensions |
40mm*29mm |
|
Package |
board to board connector |
|
OS |
Linux4.1.15+QT5.6 |
|
FETMX6ULL-C SoM Function Parameter |
|
|---|---|
|
LCD |
RGB 24-bit, up to WXGA (1366 x 768) |
|
Audio |
3 |
|
I2C |
4 |
|
SPI |
4 |
|
CAN |
2 |
|
USB |
2 |
|
SD/MMC/SDIO |
2 |
|
Ethernet |
2x 10/100M |
|
UART/IrDA |
8 |
|
EINT/GPIO |
supported |
|
Video Coder |
software codec |
|
Camera |
1-ch, 8-bit(DVP), up to 5-Megapixel; |
|
PWM |
8 |
|
ADC |
10 |
|
eSAI |
1 |
|
Keypad Port |
8*8 |
|
SPDIF |
1 |
|
QSPI |
1 |
|
OKMX6ULL-C SBC Function Parameter |
|
|---|---|
|
Ethernet |
2x 10/100M, RJ45 |
|
USB Host |
2x USB2.0, Type-A |
|
4G |
Mini PCIe |
|
CAN |
2x CAN 2.0B |
|
LED |
3, Power, User, 4G signal |
|
Audio |
1x Phone, 1x MIC, 2x Speaker |
|
RTC |
supported |
|
Power input |
5V DC |
|
LCD |
1x RGB888, support touch function |
|
PWM |
1, for backlight control |
|
WiFi&Bluetooth |
1 |
|
USB OTG |
1x USB Type-C |
|
SD |
1 |
|
UART |
4x 3.3V TTL level, by pin headers with pitch of 2.54mm |
|
I2C |
2x 3.3V TTL level, by pin headers with pitch of 2.54mm |
|
SPI |
2x 3.3V TTL level, by pin headers with pitch of 2.54mm |
▊ Accessories
Provides the modules and accessories used in Forlinx's NXP i.MX6ULL SBC.
See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(OKMX6ULL-C reference manual), schematic documentations to help customer start their development rapidly.
Forlinx provides embedded hardware reference manual, embedded software reference manual, including NXP i.MX6ULL embedded software Android system reference manual, and Linux system reference manual.
For more details on solution design with OKMX6ULL-C SBC.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested.
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
