FETMX6ULL-C System On Module

CPU: i.MX6ULL

Architecture: Cortex-A7

Frequency: 800MHz

RAM: 512MB DDR3

ROM: 8GB eMMC

System: Linux4.1.15

Brief Message Compare

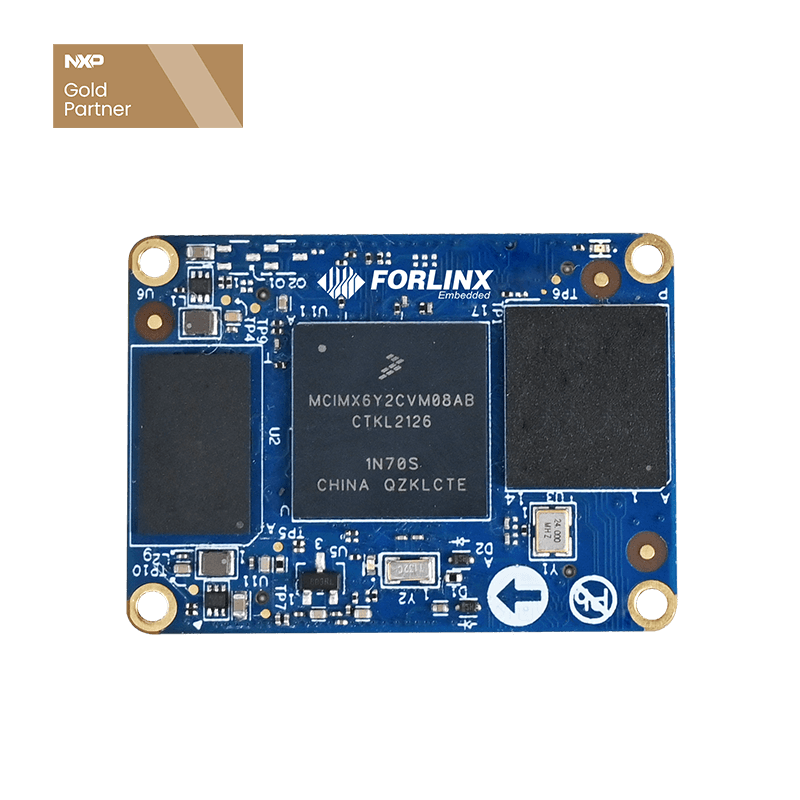

System on Module FETMX6ULL-C based on NXP i.MX6ULL

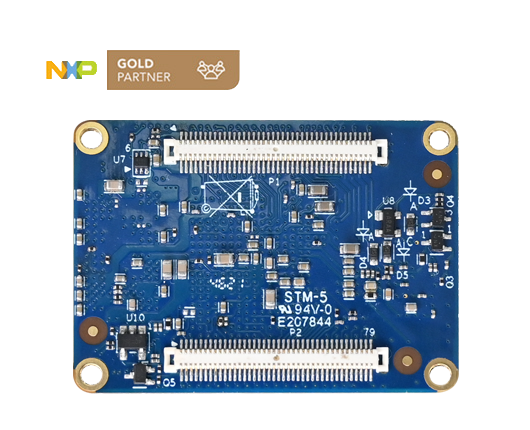

FETMX6ULL-C system on module(SoM) is based on NXP Cortex-A7 architecture, featuring the low-power i.MX6ULL processor running at 800MHz. Native support: 8 serial ports, 2 Ethernet ports, 2 CAN controllers, 2 USB 2.0, LCD, etc. Ultra-small size design, only 40*29mm, package: 2mm height board to board connector, easy disassembly. Suitable for application scenarios with a limited volume.


Cortex-A7 FETMX6ULL-C Linux system on module size
Cortex-A7 FETMX6ULL-C Linux system on module size

Mature and Stable

This is the third SOM launched by Forlinx based on NXP i.MX6U series processors.
Matured technical solutions.
Stable and reliable.

i.MX6U series processors SoM
i.MX6U series processors SoM

Comprehensive Functions

Native support: 2x Ethernet, 2x CAN, 8x UART, 2x USB, RGB LCD, Audio, IIC, SPI, Camera, PWM, ADC, SDIO, GPIO,etc.
Meet the requirements of various application scenarios

FETMX6ULL-C(iMX6ULL) Linux system on module functions
FETMX6ULL-C(iMX6ULL) Linux system on module functions

Easy to Develop and Product

Separate kernel update
Batch flashing by OTG, SD/TF cards
Convenient for development and mass production.

FETMX6ULL-C(iMX6ULL) Linux4.1.15+QT5.6 OS
FETMX6ULL-C(iMX6ULL) Linux4.1.15+QT5.6 OS

OKMX6ULL-C Single Board Computer

Matched Development Board, Integrates rich functional interfaces, Makes easy product evaluation.

OKMX6ULL-C(iMX6ULL) Single Board Computer
OKMX6ULL-C Single Board Computer
OKMX6ULL-C(iMX6ULL) Single Board Computer
OKMX6ULL-C Single Board Computer

Target Applications

The SoM could be widely used in electric power, healthcare, industrial control and automation, environmental monitoring,
self-service terminal, security, vehicle transportation, communication, charging piles, smart home, consumer electronic, handheld device, gateway, HMI, etc.

iMX6ULL SBC application
iMX6ULL SBC application

▊ Product Video


Unboxing | OKMX6ULL-C SBC Based on NXP i.MX6ULL A7 Processor

▊ Hardware Features


FETMX6ULL-C SoM Basic Parameters

CPU

NXP i.MX6ULL

Architecture

Cortex-A7

Frequency

800MHz

RAM

512MB DDR3

ROM

8GB eMMC

Voltage Input

3.3V

Working Temperature

-40~85℃

Dimensions

40mm*29mm

Package

board to board connector

OS

Linux4.1.15+QT5.6

FETMX6ULL-C SoM Function Parameter

LCD

RGB 24-bit, up to WXGA (1366 x 768)

Audio

3

I2C

4

SPI

4

CAN

2

USB

2

SD/MMC/SDIO

2

Ethernet

2x 10/100M

UART/IrDA

8

EINT/GPIO

supported

Video Coder

software codec

Camera

1-ch, 8-bit(DVP), up to 5-Megapixel;

PWM

8

ADC

10

eSAI

1

Keypad Port

8*8

SPDIF

1

QSPI

1

OKMX6ULL-C SBC Function Parameter

Ethernet

2x 10/100M,RJ45

USB Host

2x USB2.0, Type-A

4G

Mini PCIe

CAN

2x CAN 2.0B

LED

3, Power, User, 4G signal

Audio

1x Phone, 1x MIC, 2x Speaker

RTC

supported

Power input

5V DC

LCD

1x RGB888, support touch function

PWM

1, for backlight control

WiFi&Bluetooth

1

USB OTG

1x USB Type-C

SD

1

UART

4x 3.3V TTL level, by pin headers with pitch of 2.54mm

I2C

2x 3.3V TTL level, by pin headers with pitch of 2.54mm

SPI

2x 3.3V TTL level, by pin headers with pitch of 2.54mm

▊ Download


Catalog: Forlinx Catalog Manual

Product Brief: FETMX6ULL-C SoM and OKMX6ULL-C SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
