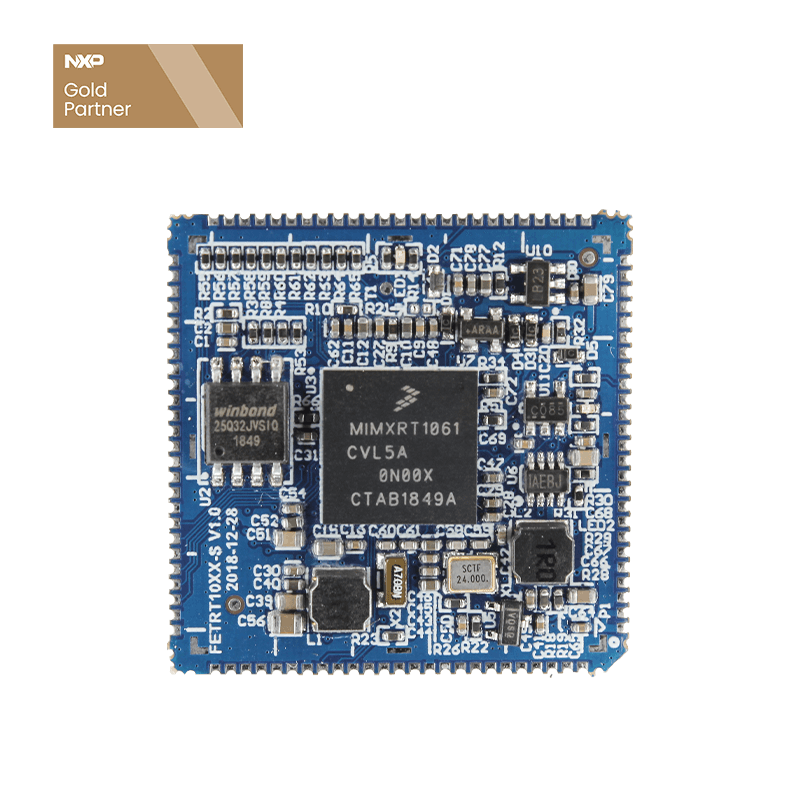

System on Module FET1061-S based on NXP i.MX RT1061
FET1061-S is a system on module designed based on NXP Cortex -M7 MCU i.MX RT1061@ 528MHz(commercial grade one 600MHz), it has on-chip SRAM up to 1MB, 512KB can be flexibly configured as TCM or general purpoes on-chip RAM, and it can support QSPI-NOR Flash with capability of 4MB.
It has a compact volume of 30x 30x 3mm with edge soldering package, 100 pins are available with pitch of 1.0mm. It integrates HS_GPIO, CAN-FD and NAND/ NOR/ PSRAM controllers. The SoM temp width ranges from -40℃ to +85℃. Meanwhile, various peripheral interface such as UART, 2x Ethernet, USB, CAN, CAN-FD, HS_GPIO and PWM, ADC are available on carrier board. Bare metal and Free RTOS are both supported.
Large capacity On-Chip SRAM
i.MX RT1061 doubles the capacity of the on-chip On Chip SRAM to 1MB while maintaining pin compatibility with i.MX RT1052
Fully implemented CAN protocol specification
It has a flexible data rate (CAN-FD) protocol specification and a CAN 2.0B protocol specification.
High-speed GPIO emulation of various serial/parallel communication protocols
Supports 32 high-speed GPIOs, and can simulate communication protocols such as UART, I2C, SPI, and PWM.
Communication Interface
The core board natively supports 2x10/100M adaptive Ethernet, 2 CAN2.0B, 7 UART .
Native data encryption
The internal integration of real-time encryption and decryption functions, the externally expanded ROM information is encrypted and then burned,
and the acceleration module inside the CPU chip can realize real-time decryption to ensure the efficiency of program execution.
Industrial grade quality
The board design fully considers the signal integrity to ensure the best electrical performance;
optimizes the power supply architecture and adjusts the power supply sequence to improve the robustness of the system.
Rich DEMO program
Provide a complete platform development kit, introductory tutorials, save software finishing time;
rich DEMO routines, rapid application development.
Interface Display
i.MX RT1061 development board interface display
▊ Hardware Features
| Overview of FET1061-S System on Module | |
|---|---|
| CPU | i.MXRT1061 |
| Arichitecture | Cortex-M7 |
| Frequency | 528MHz |
| RAM | On Chip SRAM 1MB |
| Flash | QSPI Nor Flash 4MB (16MB QSPI Nor Flash) |
| OS | bare metal, FreeRTOS, RT-Thread |
| Power In | 5V |
| Dimensions | 30×30mm |
| PCB | thickness: 1mm, 4-layer ENIG |
| Package | edge soldering, 4*25pin, pitch of 1mm |
| Working Temperature | -40℃~+85℃ |
| FET1061-S System on Module Features | ||
|---|---|---|
| Interface | QTY | Spec. |
| SD/MMC/SDIO | ≤2 |
Supports SD/ SDIO card 1-bit or 4-bit transfer modes |
| USB | 2 |
USB2.0(up to 480Mbps), integrated with HS USB PHY |
| SAI | ≤2 |
Up to 3-ch I2S audio |
| UART | ≤7 |
Each up to 5.0Mbps |
| eCSPI | ≤3 |
Full duplex enhanced serial interface, data rate up to 52Mbit/s. It's available for both host and slave modes, each SPI controller has four chip selection to support multiple prepherial |
| IIC | ≤4 | |
| Ethernet | ≤2 |
10/ 100Mbps auto-negotiation |
| PWM | ≤26 |
4x 16-bit PWM controller, each channel support up to 8 pins |
| SWD | supported | |
| KeyPad Port | supported | 8*8; |
| QSPI | ≤2 | QSPI NOR flash |
| CAN | ≤2 | CAN 2.0B |
| CAN FD | 1 | CAN FD |
| ADC | ≤20 |
two 12-bit ADC, up to 20 input channel |
▊ Software Features
| DEMO | |
|---|---|
| Demos under \boards\evkbimxrt1060\driver_examples | Demos under \boards\evkbimxrt1060\demo_apps |
| ADC | helloword |
| adc_etc | hello_world_virtual_com |
| bee | led_blinky |
| cache | power_mode_switch |
| cmp | sai |
| dcp | shell |
| edma | uart_gprs |
| enc | xbar_aoi |
| enet | Demos under \boards\evkmimxrt1060\lwip_examples |
| canfd | lwip_httpsrv |
| flexcan | lwip_iperf |
| flexio | lwip_ping：ping |
| flexio3 | lwip_ping_enet1_enet2: Dual network ports ping |
| flexram | lwip_tcpecho |
| flexspi: read and write Flash | lwip_tcpecho_enet1_enet2 |
| gpio: LED | lwip_udpecho |
| gpt | lwip_udpecho_enet1_enet2 |
| kpp | Demos under \boards\evkmimxrt1060\rtos_examples |
| lpi2c: (RTC, EEPROM) | freertos_event |
| lpspi | freertos_generic |
| lpuart (uart2) | freertos_hello |
| pit | freertos_lpi2c_eeprom |
| flexpwm | freertos_lpuart |
| qtmr | freertos_mutex |
| rtwdog | freertos_queue |
| sai | freertos_sem |
| sdcard | freertos_sem_static |
| snvs | freertos_swtimer |
| src | freertos_tickless |
| tempmon | Demos under \boards\evkmimxrt1060\usb_examples |
| trng | usb_device_hid_mouse |
| wdog | usb_host_hid_mouse |
| ewm | usb_host_hid_mouse_keyboard |
| xbara | |
| Demos under boards\evkmimxrt1060\fatfs_examples | fatfs_sdcard |
