FET1061-S System on Module

CPU: i.MXRT1061

Architecture: Cortex-M7

Frequency: 528MHz

RAM: 1MB on-chip SRAM

ROM: 4MB QSPI NorFlash(16MB optional)

System: FreeRTOS,RT-Therad,Bare Metal

Download Message Compare

Forlinx is a Gold Partner of NXP, focusing on designing and manufacturing of cost-effective ARM board solutions.

Choose Forlinx, you will get more than just an embedded board and NXP SoC based ARM board solutions are especially recommended.

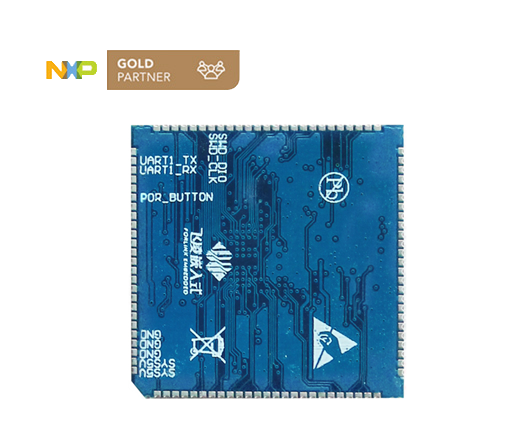

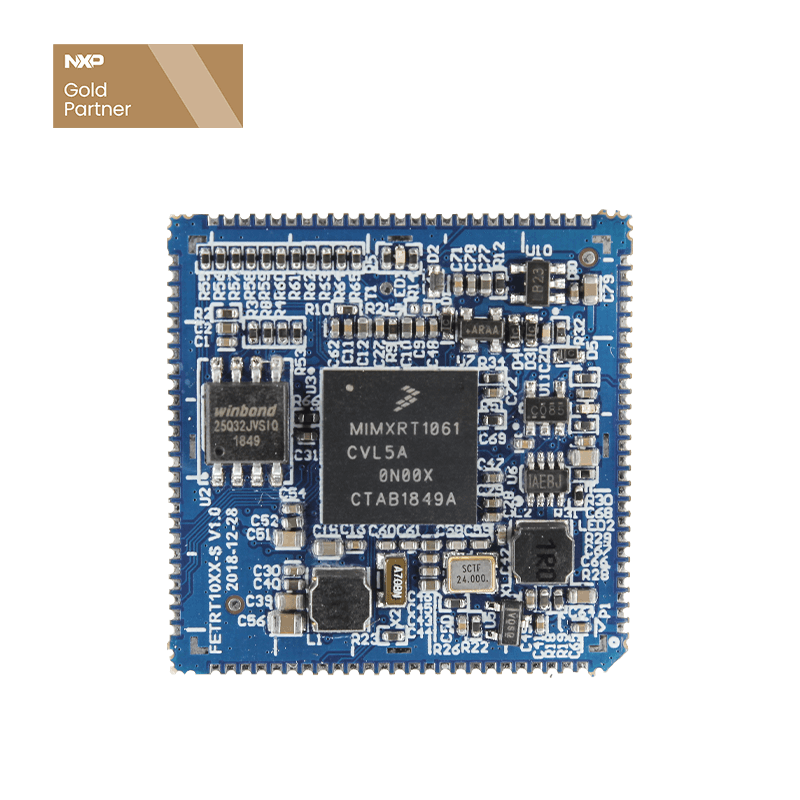

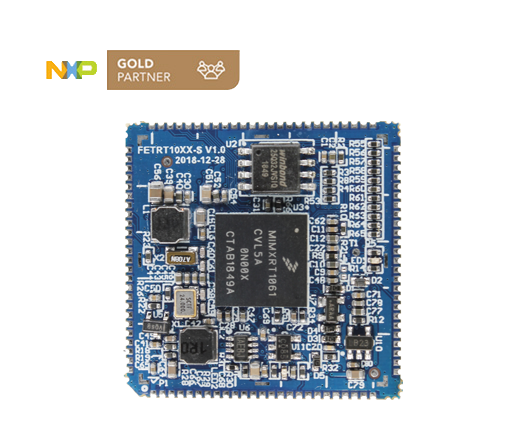

System on Module FET1061-S based on i.MX RT1061

FET1061-S is a system on module designed based on NXP Cortex -M7 MCU i.MX [email protected] 528MHz(commercial grade one 600MHz), it has on-chip SRAM up to 1MB, 512KB can be flexibly configured as TCM or general purpoes on-chip RAM, and it can support QSPI-NOR Flash with capability of 4MB.

It has a compact volume of 30x 30x 3mm with edge soldering package, 100 pins are available with pitch of 1.0mm. It integrates HS_GPIO, CAN-FD and NAND/ NOR/ PSRAM controllers. The SoM temp width ranges from -40℃ to +85℃. Meanwhile, various peripheral interface such as UART, 2x Ethernet, USB, CAN, CAN-FD, HS_GPIO and PWM, ADC are available on carrier board. Bare metal and Free RTOS are both supported.

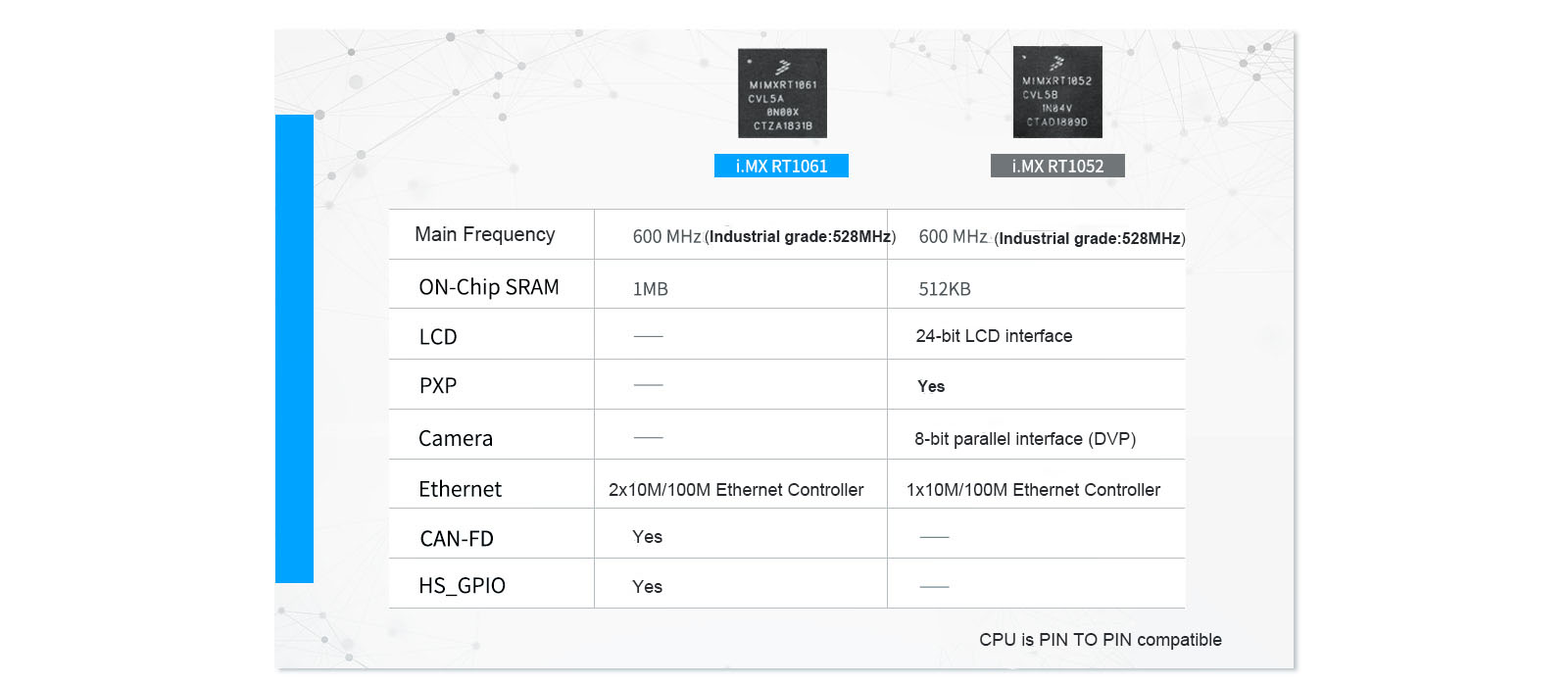

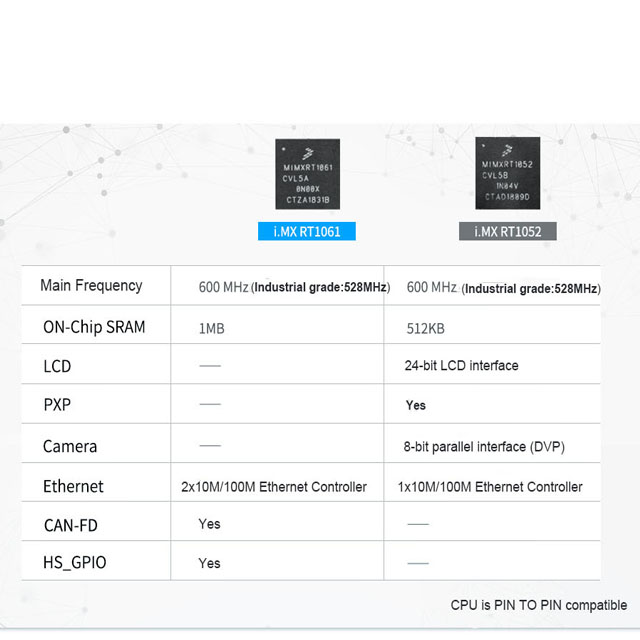

Large capacity On-Chip SRAM

i.MX RT1061 doubles the capacity of the on-chip On Chip SRAM to 1MB while maintaining pin compatibility with i.MX RT1052

i.MX RT1052 core board
i.MX RT1052 core board

Fully implemented CAN protocol specification

It has a flexible data rate (CAN-FD) protocol specification and a CAN 2.0B protocol specification.

i.MX RT1052 core board
i.MX RT1052 core board

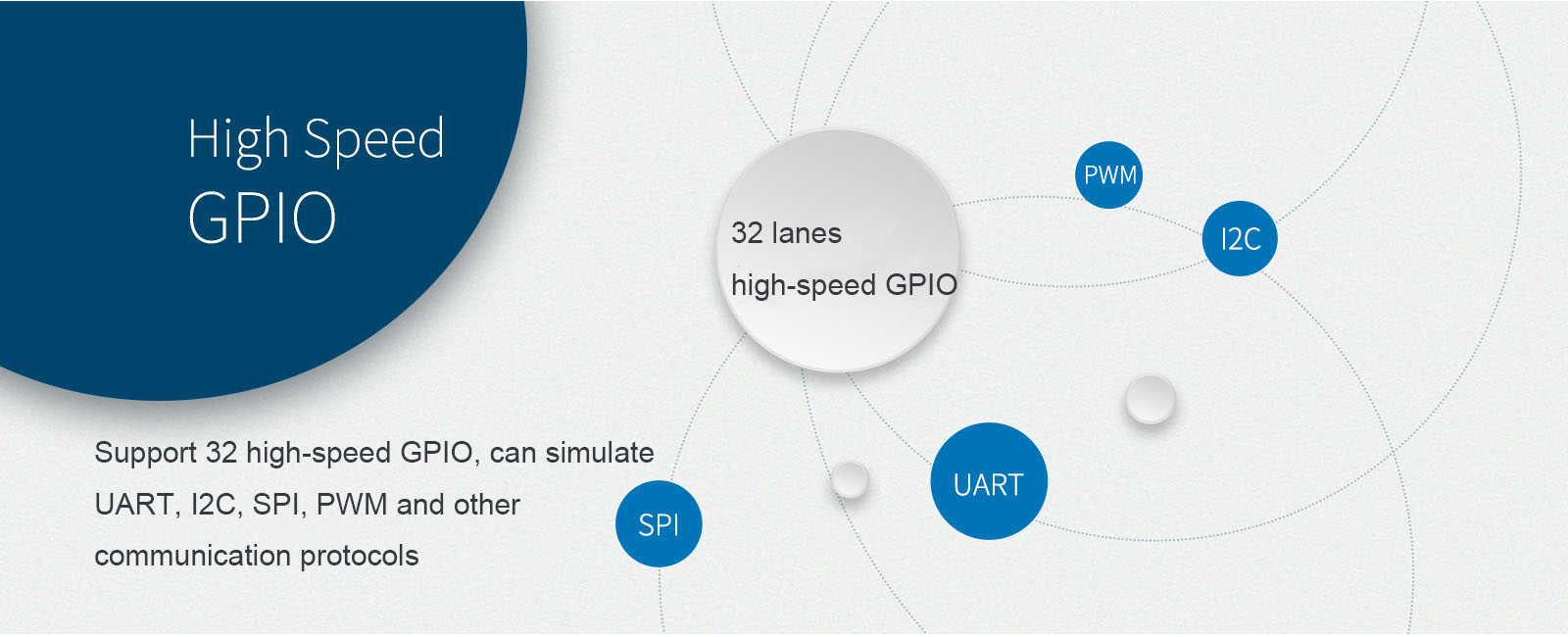

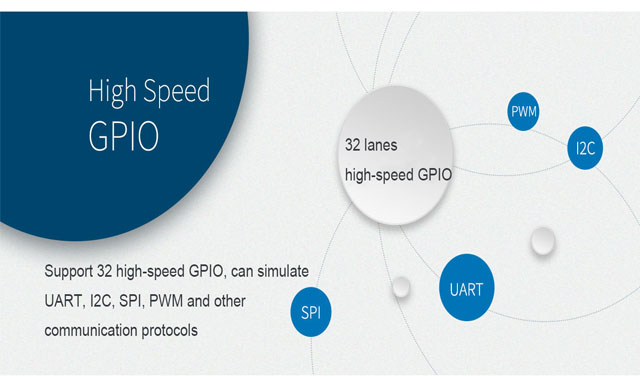

High-speed GPIO emulation of various serial/parallel communication protocols

Supports 32 high-speed GPIOs, and can simulate communication protocols such as UART, I2C, SPI, and PWM.

i.MX RT1052 core board
i.MX RT1052 core board

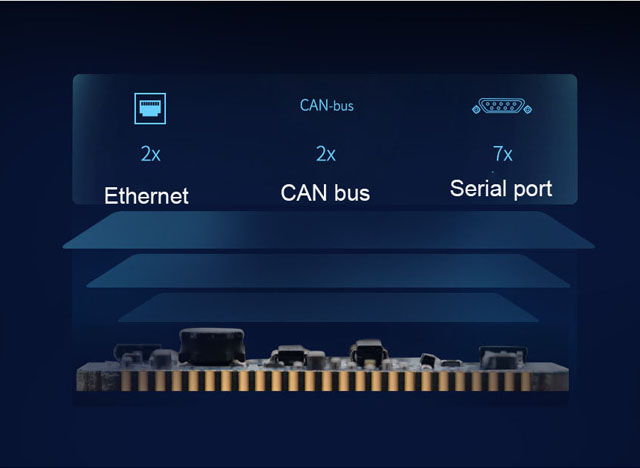

Communication Interface

The core board natively supports 2x10/100M adaptive Ethernet, 2 CAN2.0B, 7 UART.

i.MX RT1052 core board Communication Interface
i.MX RT1052 core board Communication Interface

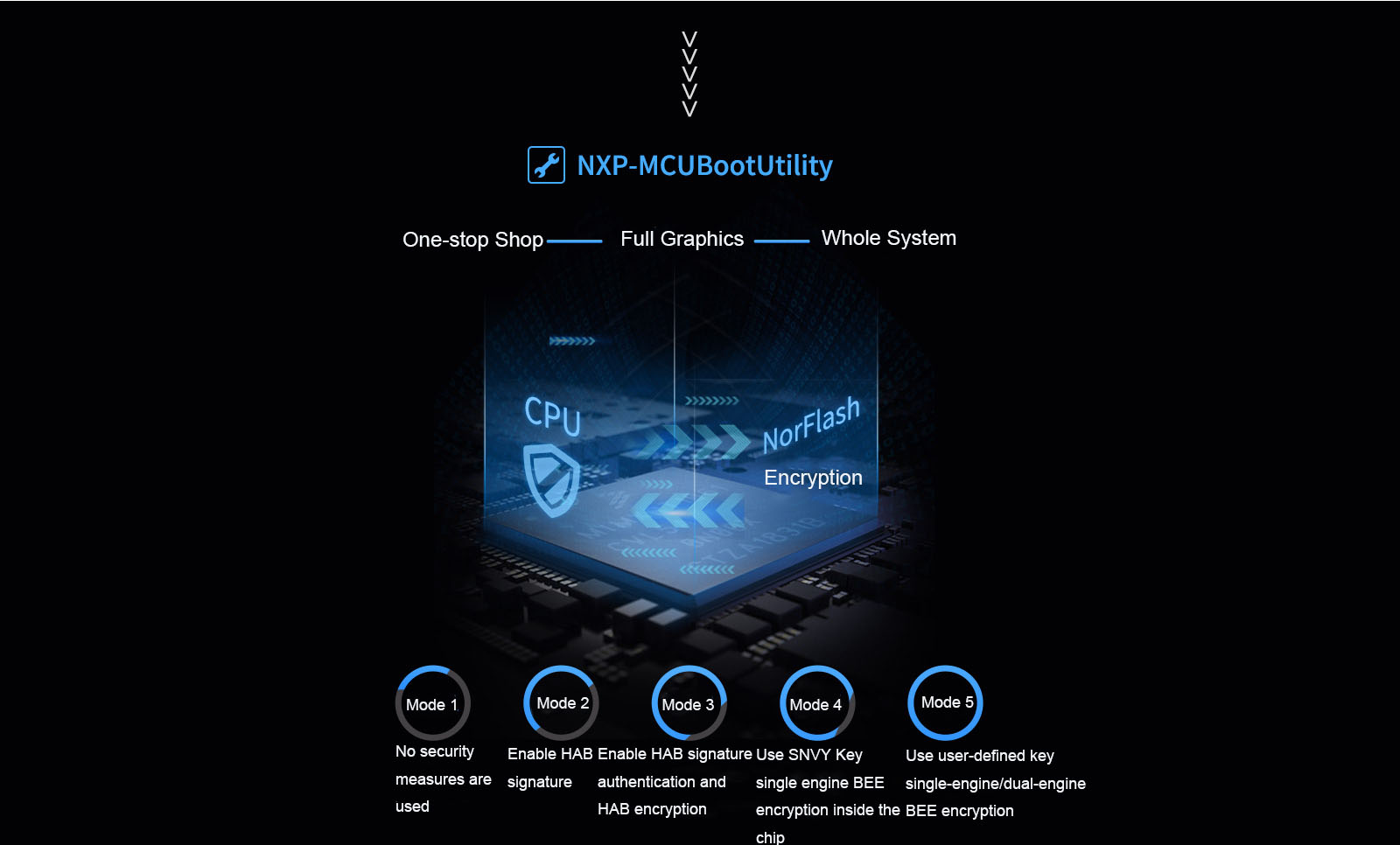

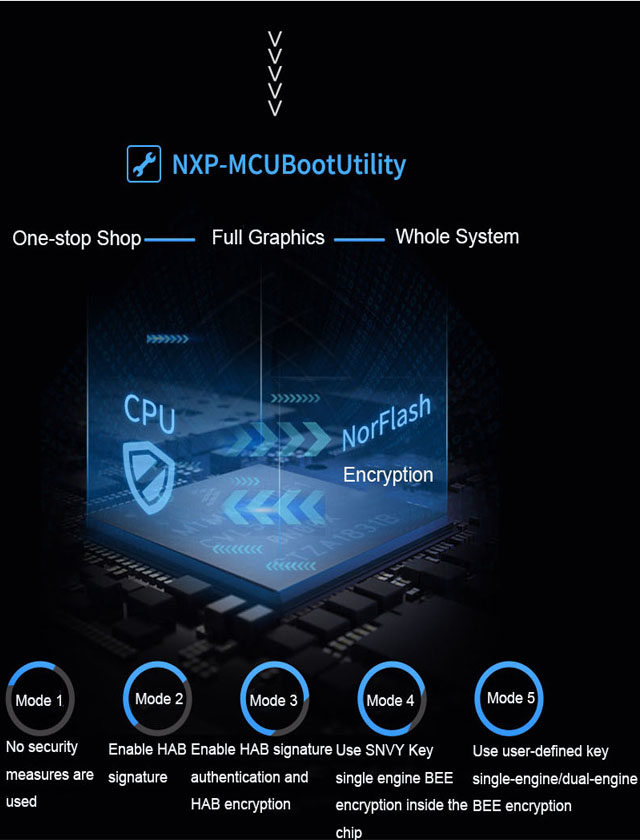

Native data encryption

The internal integration of real-time encryption and decryption functions, the externally expanded ROM information is encrypted and then burned,
and the acceleration module inside the CPU chip can realize real-time decryption to ensure the efficiency of program execution.

i.MX RT1052 core board Native data encryption
i.MX RT1052 core board Native data encryption

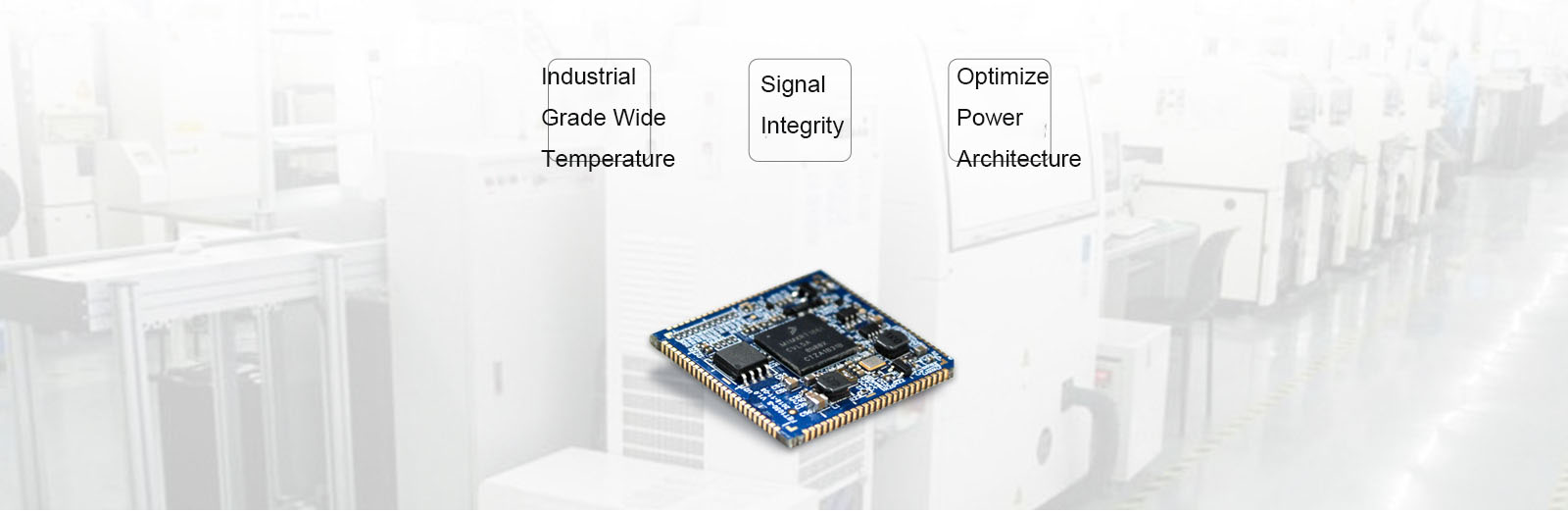

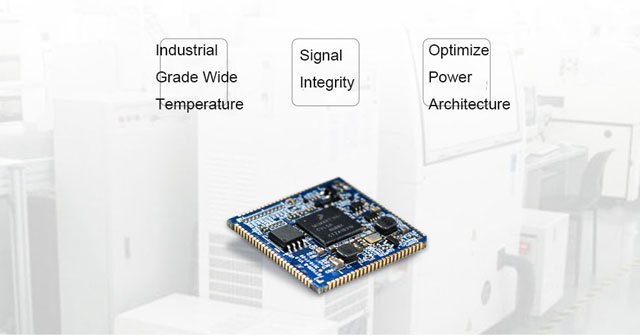

Industrial grade quality

The board design fully considers the signal integrity to ensure the best electrical performance;
optimizes the power supply architecture and adjusts the power supply sequence to improve the robustness of the system.

Industrial grade i.MX RT1052 core board
Industrial grade i.MX RT1052 core board

Rich DEMO program

Provide a complete platform development kit, introductory tutorials, save software finishing time;
rich DEMO routines, rapid application development.

i.MX RT1052 core board application
i.MX RT1052 core board application

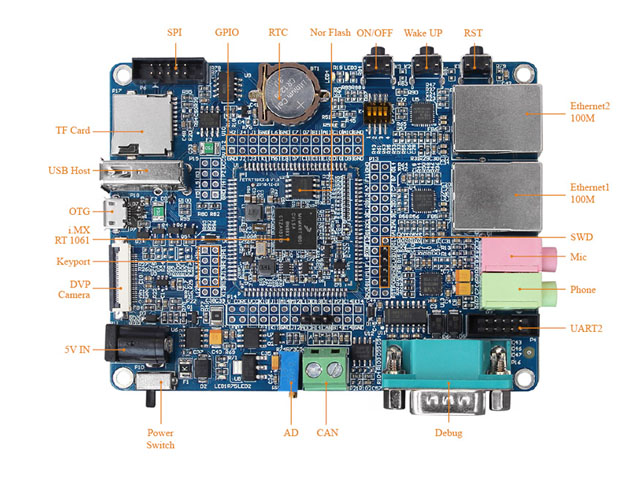

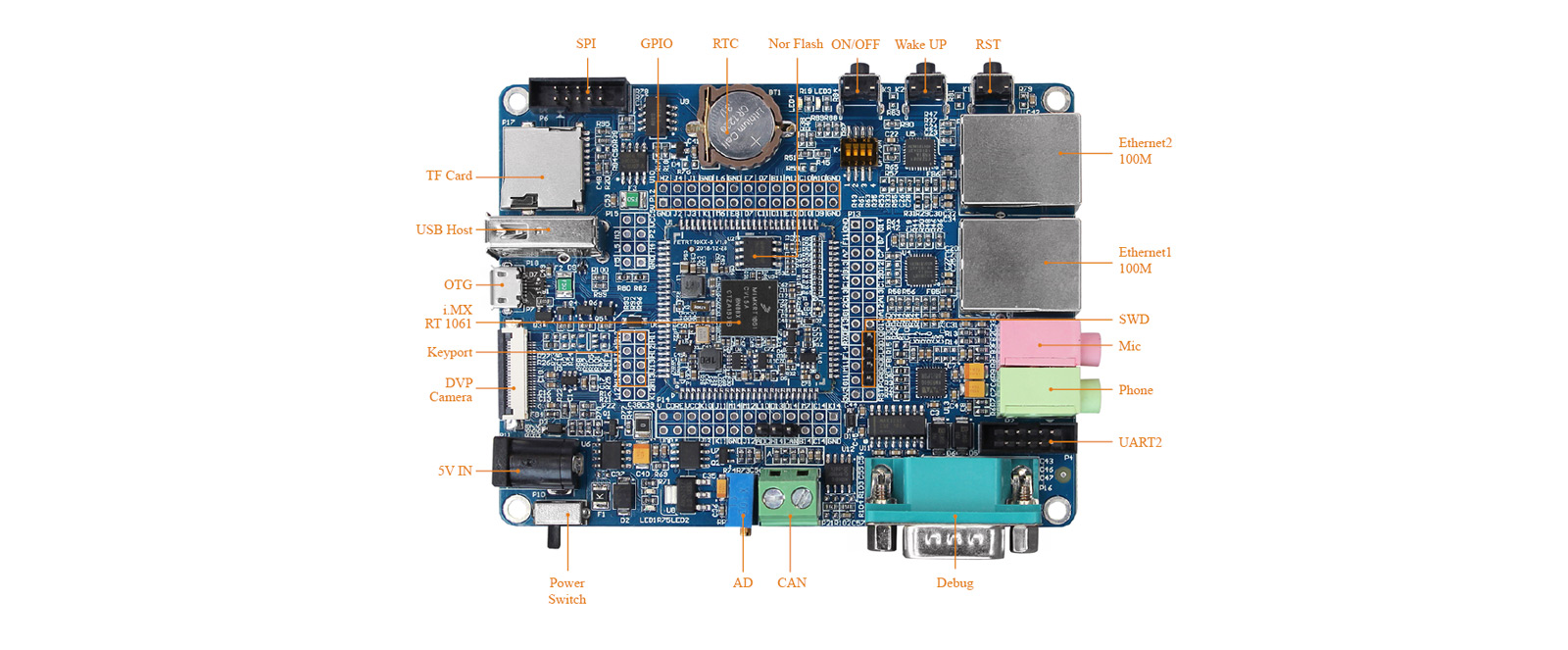

Interface Display

i.MX RT1061 development board interface display

i.MX RT1061 development board interface display
i.MX RT1061 development board interface display

▊ Hardware Features

Overview of FET1061-S System on Module
CPU i.MXRT1061
Arichitecture Cortex-M7
Frequency 528MHz
Flash QSPI Nor Flash    4MB
OS bare metal, FreeRTOS
Power In 5V
Dimensions 30×30mm
PCB thickness: 1mm, 4-layer ENIG
Package edge soldering, 4*25pin, pitch of 1mm
Working Temperature -40℃~+85℃

FET1061-S System on Module Features
Interface QTY Spec.

Supports SD/ SDIO card 1-bit or 4-bit transfer modes


USB2.0(up to 480Mbps), integrated with HS USB PHY

SAI ≤2

Up to 3-ch I2S audio


Each up to 5.0Mbps

eCSPI ≤3

Full duplex enhanced serial interface, data rate up to 52Mbit/s. It's available for both host and slave modes, each SPI controller has four chip selection to support multiple prepherial

IIC ≤4
Ethernet ≤2

10/ 100Mbps auto-negotiation

PWM ≤26

4x 16-bit PWM controller, each channel support up to 8 pins

SWD supported
KeyPad Port supported 8*8;
QSPI ≤2 QSPI NOR flash
CAN ≤2 CAN 2.0B
ADC ≤10

two 12-bit ADC, up to 10 input channel

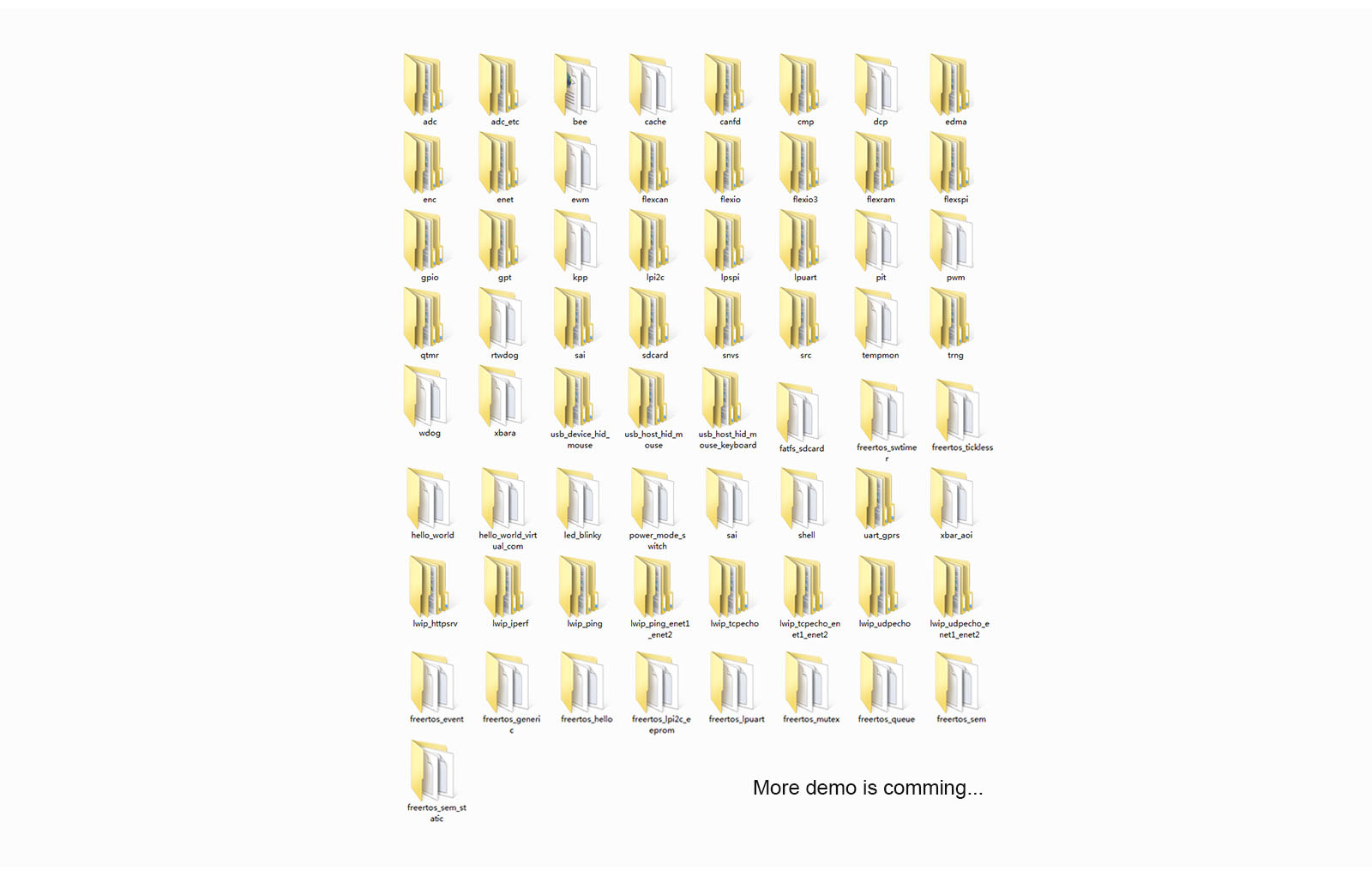

▊ Software Features

Demos under \boards\evkbimxrt1060\driver_examples Demos under \boards\evkbimxrt1060\demo_apps
ADC helloword
adc_etc hello_world_virtual_com
bee led_blinky
cache power_mode_switch
cmp sai
dcp shell
edma uart_gprs
enc xbar_aoi
enet Demos under \boards\evkmimxrt1060\lwip_examples
canfd lwip_httpsrv
flexcan lwip_iperf
flexio lwip_ping:ping
flexio3 lwip_ping_enet1_enet2: Dual network ports ping
flexram lwip_tcpecho
flexspi: read and write Flash lwip_tcpecho_enet1_enet2
gpio: LED lwip_udpecho
gpt lwip_udpecho_enet1_enet2
kpp Demos under \boards\evkmimxrt1060\rtos_examples
lpi2c: (RTC, EEPROM) freertos_event
lpspi freertos_generic
lpuart (uart2) freertos_hello
pit freertos_lpi2c_eeprom
flexpwm freertos_lpuart
qtmr freertos_mutex
rtwdog freertos_queue
sai freertos_sem
sdcard freertos_sem_static
snvs freertos_swtimer
src freertos_tickless
tempmon Demos under \boards\evkmimxrt1060\usb_examples
trng usb_device_hid_mouse
wdog usb_host_hid_mouse
ewm usb_host_hid_mouse_keyboard
Demos under boards\evkmimxrt1060\fatfs_examples fatfs_sdcard

▊ Accessories

Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(FETMX6Q-C reference manual), schematic documentations to help customer start their development rapidly.

For more details on solution design with FET1061-S SOM
