Forlinx Embedded launched FET3562J-C system on module(SoM), designed for industrial automation and consumer electronics equipment, to create a new intelligent engine in the era of intelligent industry.

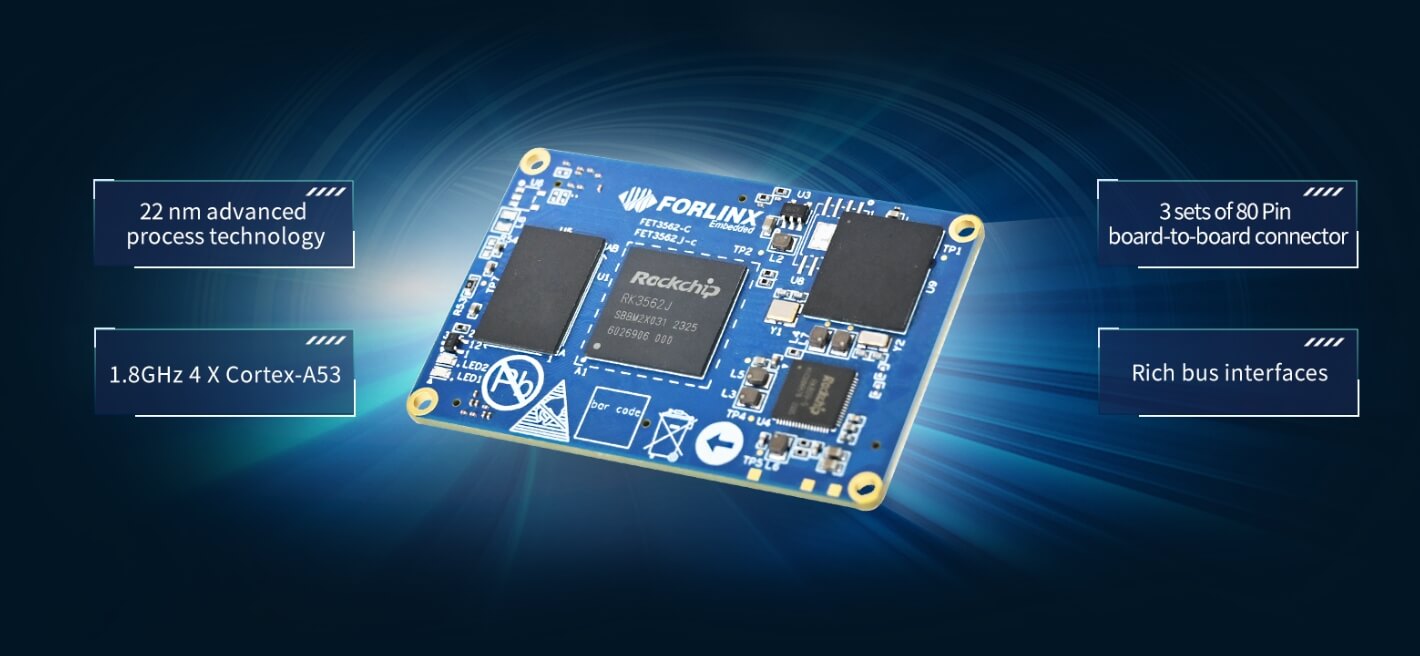

FET3562J-C SoM, powered by the Rockchip RK3562J processor, features advanced 22nm process technology and four high-performance ARM Cortex-A53 cores running at up to 1.8GHz. The board includes 3 sets of 80-pin board-to-board connectors, allowing easy installation and maintenance.

01 The Intelligent Engine of the Industrial Era

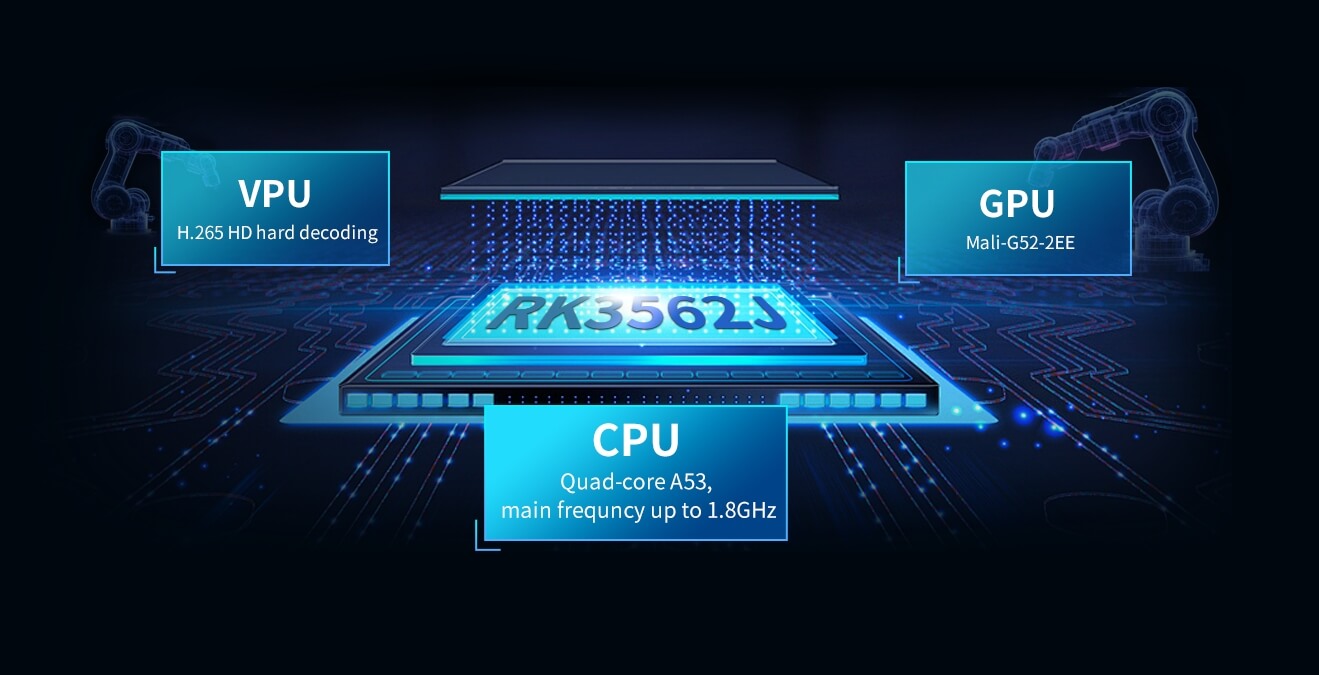

RK3562J is a high-performance, low-power application processor by Rockchip for industrial automation and consumer electronics. It features 4 x ARM Cortex-A53 cores, 1 x embedded 3D GPU compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1, along with a dedicated 2D hardware engine for enhanced display performance and smooth operation. It supports H.265 HD hardware decoding up to 4K resolution.

02 Rich Bus Interfaces for More Diverse Industrial Applications

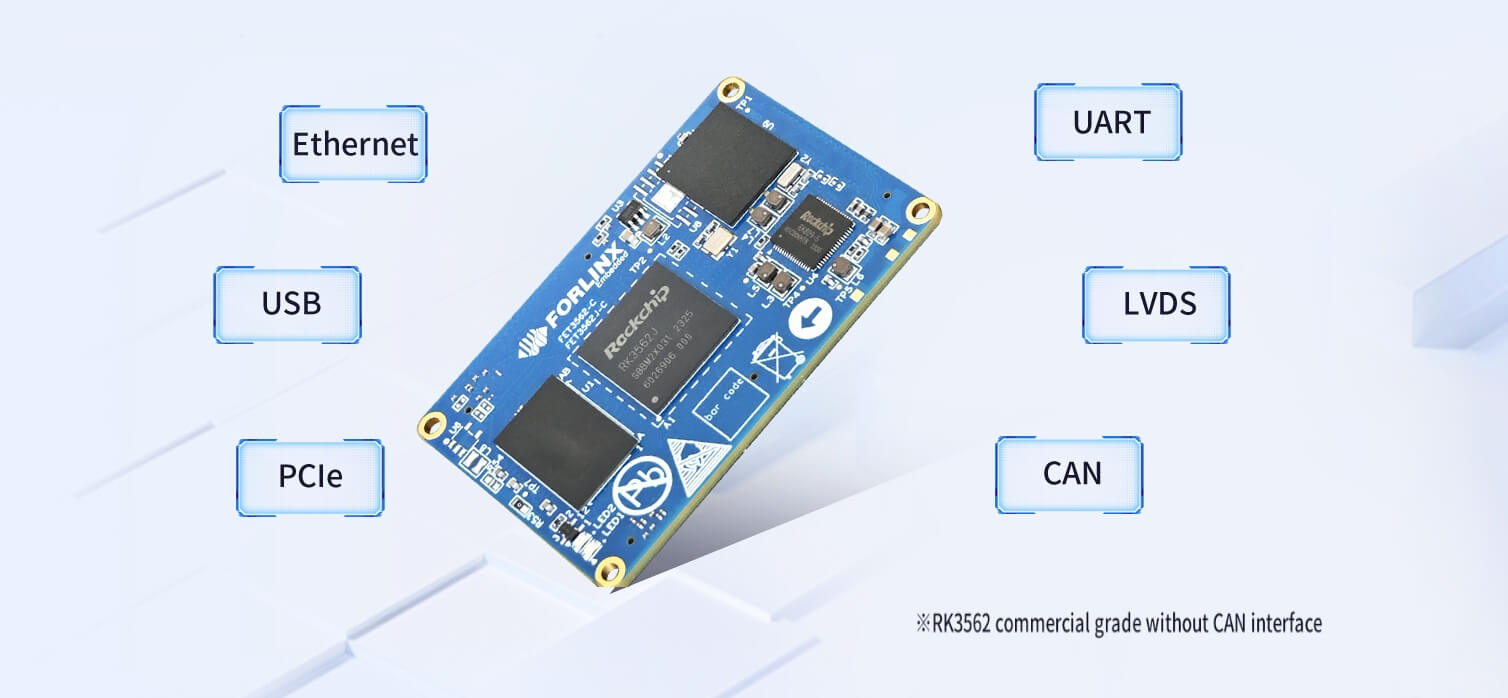

Rich industrial interfaces: 2 x Gigabit Ethernet (RGMII and RMII), 2 x CAN(CAN2.0B), 10 x UART(up to 4Mbps), 2 x USB(USB3.0 supported), 1 x PCIe port (5Gbps), and 1 x LVDS(VESA/JEIDA format).

03 Strict Quality Standards for More Reliable Industrial Products

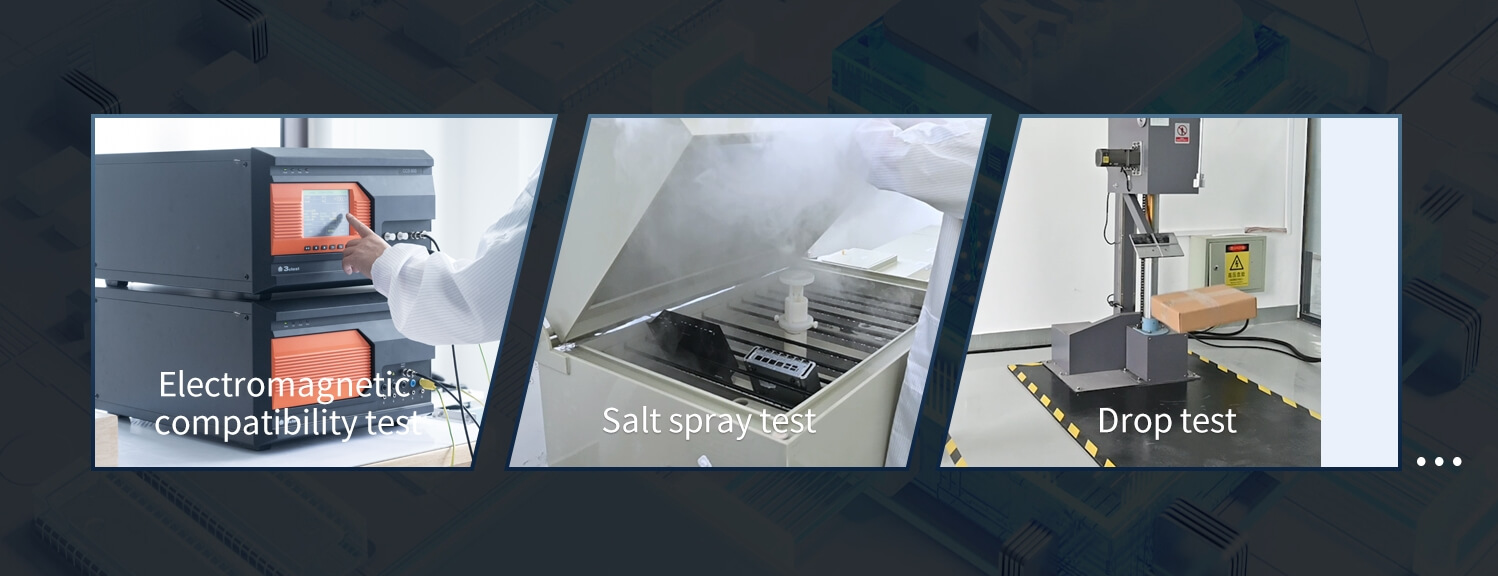

The product undergoes rigorous testing at Forlinx Embedded Laboratory, including temperature, thermal shock, EMC, drop, and salt spray tests, ensuring stability. Each unit undergoes 24-hour aging testing and AOI inspection before leaving the factory, ensuring reliability. With a 10-15 year life-cycle, it assures continuous supply.

04 Supercharge Your AI Applications With 1TOPS Computing Power NPU!

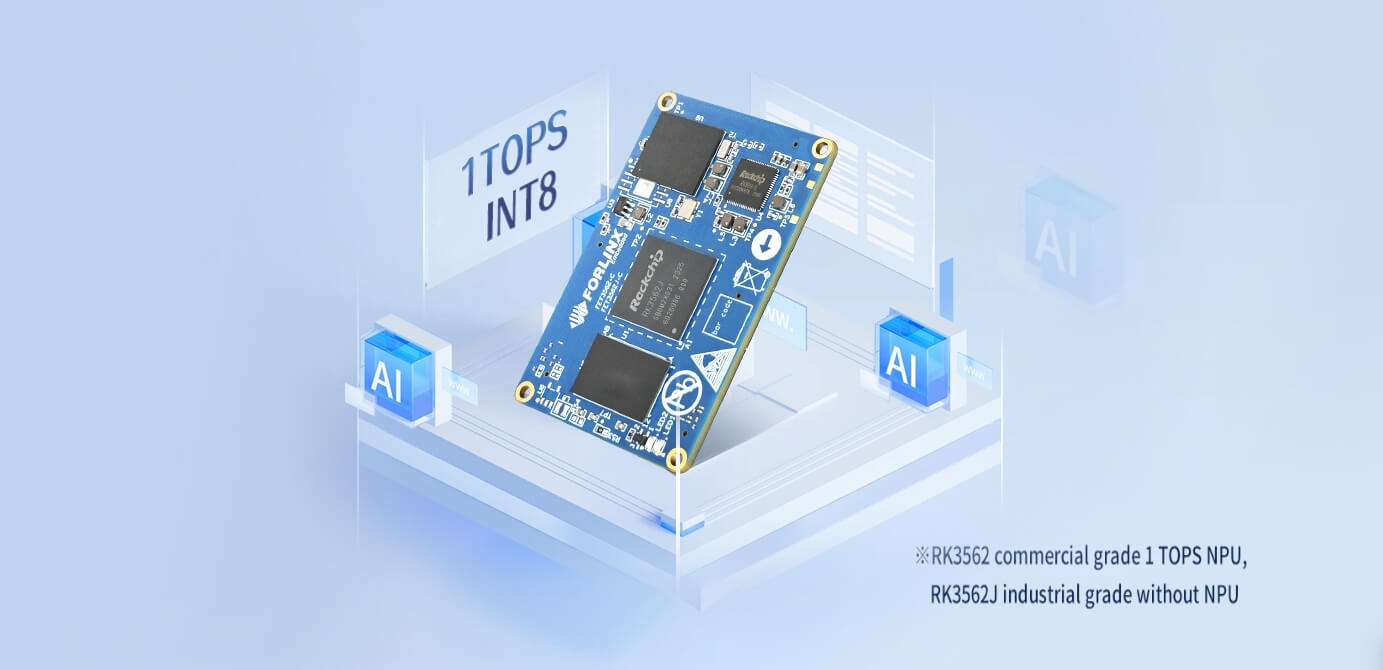

RK3562 processor with a built-in 1TOPS AI NPU! Powering your AI applications with seamless mixed operations in INT4/INT8/INT16/FP16 formats. Compatible with TensorFlow, MXNet, PyTorch, Caffe, and more, it offers effortless network model conversions and expands your AI possibilities. (Note: RK3562 commercial grade 1TOPS NPU, RK3562J industrial grade without NPU)

05 1080P Hardcoding + 4K HD Decoding

Seamlessly supporting H.264, H.265, and VP9 codecs, along with a premium JPEG encoder and decoder, it's your gateway to high-definition content. With compatibility across LVDS, MIPI DSI, and RGB interfaces, meet all your display needs effortlessly.

06 Continuously Updated User Profile

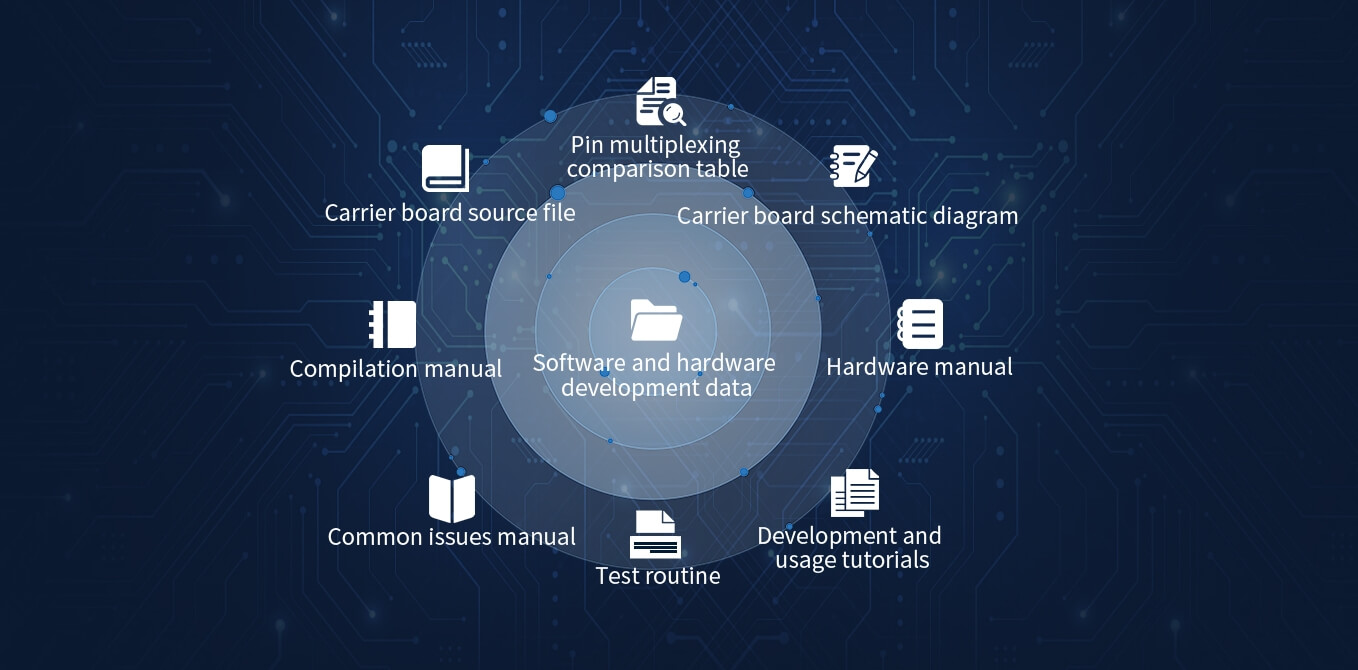

Comprehensive resources including carrier board schematics, software and hardware development data, common issues manual, pin multiplexing comparison table, hardware manual, test routine ensure simplified development and streamlined production processes for you.

07 Wide Range of Industry Applications

FET3562J-C SoM is versatile in industrial automation, consumer electronics, smart healthcare, power, new energy, communications, and related application fields. With Forlinx's robust technical support services, accelerate your product's time-to-market and seize the lead in your industry.

Forlinx Embedded FET3562J-C SoM is soon to be released.

You can consult our online customer service for an early insight into more product details.
