Performance Analysis of RK3568, Rockchip New Generation AIoT Processor

RK3568 quad core processor

Rockchip's new generation AIoT processor RK3568, a professional universal SoC based on advanced 22nm processing technology, could be widely used in Industrial Internet, HMI, NVR storage, vehicle central control, industrial gateway, etc.


All in one--CPU, GPU, NPU and VPU


01, CPU

quad-core 64-bit Cortex-A55

up to 2.0GHz

advanced 22nm processing technology


02, GPU

Mail-G52

Supports OpenGLES 1.1/2.0/3.2, OpenCL2.0, Vulkan1.1

Embedded high-performance 2D acceleration hardware


03, NPU

Integrated powerful AI accelerator RKNN NPU

Up to 1 TOPS

One button convert to TensorFlow//Caffe, etc.


04, VPU

Decode H.264 [email protected], H.265 [email protected]

Encode H.264/H.265 [email protected]

8M ISP, supports HDR


Function comparison between RK3568 VS RK3399

RK3399, also by Rockchip, is a low-power, high-performance application processor based on Big.Little architecture, which combines dual-core Cortex-A72 with quad-core Cortex-A53 by independent NEON co-processor. Target application in computers, personal Internet mobile devices, VR, advertising machines, etc.

Model RK3568 RK3399
CPU Quad-core Cortex-A55 2.0GHz Dual core Cortex-A72 + Quad-core Cortex-A53
GPU Mail-G52 Mail-T860
NPU Up to 1Tops None. But can connect to 1808 computing stick
Media H264,H265,VP8,VP9 video decode, up to [email protected] H265 JPEG decode. H264, H265, VP8, VP9 video decode, up to 4K VP9 and 4K 10bits H265/H264
Display Support, HDMI, MIPI/eDP, LVDS, three displays simultaneously output Support HDMI, DP, eDP, LVDS, MIPI, etc two of above displays simultaneously output
Network Ethernet*2, 4G/5G Ethernet*1, 4G/5G
Interface USB2.0*2, USB3.0, Type-C, PCIe3.0, PCIe2.1, SATA3.0, QSGMII, CAN, etc. USB2.0*4, USB3.0, Type-C, M.2 PCIe, etc.

From above comparison, you can see both RK3568 and RK3399 are quite excellent universal SoC. However, RK3568 has a high-performance 2D acceleration hardware, which supports JPEG decode, 2 Ethernet ports, three displays simultaneously output, multi PCIE\SATA interfaces. Coupled with the NPU, up to 1Tops, RK3568 has a impressed performance in image processing, storage, communication, and multi-function peripherals.

How to performance of RK3568?

Let’s test its functions on FET3568-C System On Module(SoM) of Forlinx to take a close look at its specific performance.

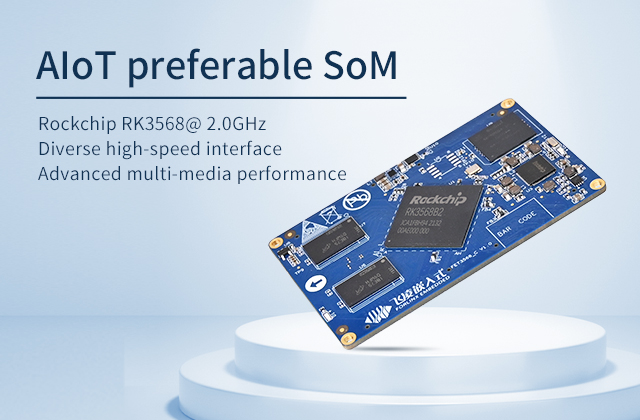

About FET3568-C SoM

It carries on RK3568 with rich functional interfaces, powerful multimedia performance, low power consumption, and stable quality. It can be widely used in Power, Medical, IoT, Industrial, Transportation, and AI.

AIoT preferable SoM


1. Display Test

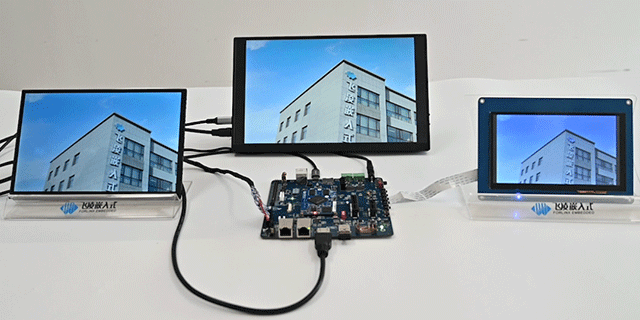

Same display on three screens

RK3568 SBC with three screens


Different display on three screens

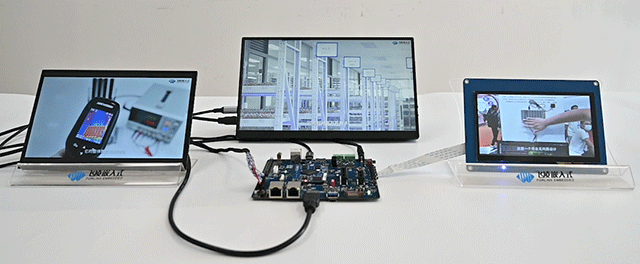

Simultaneous play on MIPI/LVDS/HDMI

Different display on three screens

Video hardware decode

Play 1024*600/1280*800/3840*2160 three resolution videos at the same time.

Type commands for H.264 video hard-decode play


[[email protected]:/]# gst-launch-1.0 filesrc location=/home/forlinx/video/1-B.mp4 ! qtdemux ! h264parse ! mppvideodec ! waylandsink "render-rectangle=<0,0,1280,800>" &

[[email protected]:/]# gst-launch-1.0 filesrc location=/home/forlinx/video/2-3001.mp4 ! qtdemux ! h264parse ! mppvideodec ! waylandsink "render-rectangle=<1280,0,3840,2160>" &

[[email protected]:/]# gst-launch-1.0 filesrc location=/home/forlinx/video/3-Q.mp4 ! qtdemux ! h264parse ! mppvideodec ! waylandsink "render-rectangle=<5120,0,1024,600>" &

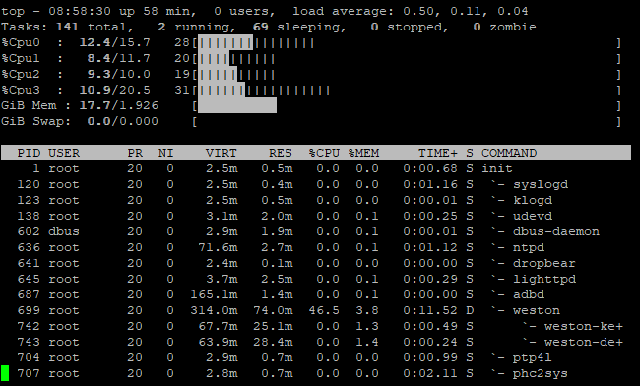

[[email protected]:/]# top



As shown above, when play under 1024*600/1280*800/3840*2160, the CPU usage is only about 30%, 70% left for other operations.

2. Hardware codec

Rockchip official mpp hardware decoding components, H.264\H.265\VP8\JPEG, etc.

Use the command to view the inspect as follows:

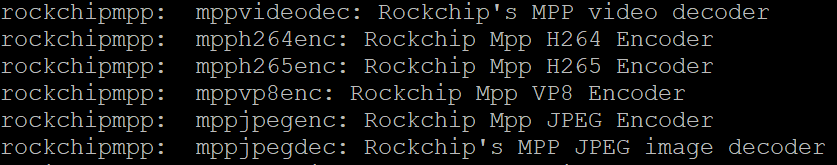

[[email protected]:/]#gst-inspect-1.0| grep rockchipmpp


For more details, you can refer to Forlinx User Manual.

RK3568 supports 4K60 frame video decoding, and can equivalently decode multiple video sources at the same time. The decoding efficiency is significantly improved. Besides, RK3568 has a dedicated hardware JPEG decoding processor, 240MPixels per second, and supports concurrent processing of multiple small images. Compared with most similar products by software decoding, RK3568 is more efficient.

3. AI


Built-in Tensorflow AI framework and Open CV3.43 basic library, convenient for users to use directly.

Test Tensorflow on FET3568-C SoM under Linux, like following:


[[email protected]:/]# cd /usr/local/tensorflow

[[email protected]:/usr/local/tensorflow]# chmod +x label_image_mobilenet

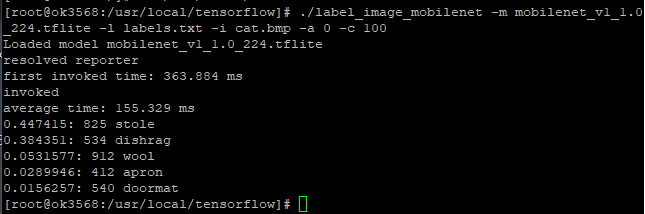

[[email protected]:/usr/local/tensorflow]# ./label_image_mobilenet -m mobilenet_v1_1.0_224.tflite -l labels.txt -i cat.bmp -a 0 -c 100



Target Detection


[[email protected]:/usr/local/tensorflow]# chmod +x label_image_mobilenet_ssd

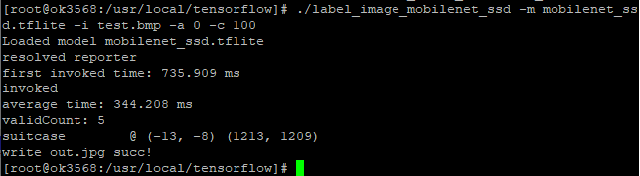

[[email protected]:/usr/local/tensorflow]# ./label_image_mobilenet_ssd -m mobilenet_ssd.tflite -i test.bmp -a 0 -c 100



OPENCV test

Run the face test DEMO by Forlinx Embedded

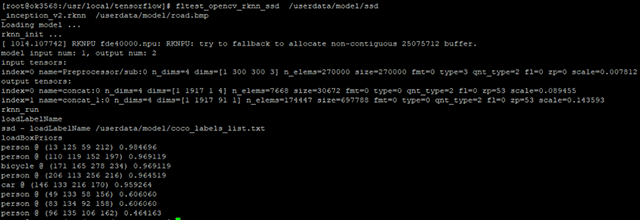

[[email protected]:/]# fltest_opencv_rknn_ssd /userdata/model/ssd_inception_v2.rknn /userdata/model/road.bmp



With up to 1Tops NPU and high-performance AI capacity, it can develop more intelligent applications at the edge and reconstruct edge value.


4. Multimedia Performance Test

Gstreamer audio and video playback platform, UVC Camera and MIPI OV13850 camera, support video recording and playback in various formats.


Camera takes picture


[[email protected]:/]# gst-launch-1.0 v4l2src device=/dev/video0 num-buffers=1 !video/x-raw,format=NV12,width=640,height=480 ! mppjpegenc !filesink location=pic.jpg


H.264 video recording


[[email protected]:/]# gst-launch-1.0 v4l2src device=/dev/video0 num-buffers=100 !video/x-raw,format=NV12, width=640,height=480 ! tee name=t ! queue !mpph264enc !queue !h264parse !qtmux !filesink location=13850_h264.mp4 t. ! queue !waylandsink


RK3568 has built-in 8MISP image signal processor, which support dual camera and HDR.

The video input interface can be connected to an external camera or expand the input capability of multiple cameras. Thus can meet users’ different requirements in multimedia.

5. Interfaces

RK3568 has GPIO interfaces, PCIe bus, CAN bus, RTC, onboard MIC, onboard MIPI CSI, headphone jack, HDMI, MIPI, LVDS, 4G/5G, 2 Ethernet ports, etc. Here take CAN bus as an example.

Test of CAN bus interface


2-ch CAN bus interface, connection method: connect H terminal of CAN to the H terminal of other CAN devices, and L terminal of CAN to the L terminal of other CAN devices. Short-circuit CAN0 and CAN1, and type the following command on development board:

CANFD supports up to 64 data bytes per data frame.

Set CAN0/CAN1, arbitration bit to 1M and data bit to 5M.


[[email protected]:/]# ifconfig can0 down

[[email protected]:/]# ifconfig can1 down

[[email protected]:/]# ip link set can0 up type can bitrate 1000000 sample-point 0.75 dbitrate 5000000 dsample-point 0.8 fd on

[[email protected]:/]# ip link set can1 up type can bitrate 1000000 sample-point 0.75 dbitrate 5000000 dsample-point 0.8 fd on

[[email protected]:/]# ifconfig can0 up

[[email protected]:/]# ifconfig can1 up

can0 The device is the server (the server first executes the following commands)

[[email protected]:/]# candump can0&

can1 The device acts as a client (the client sends data)

[[email protected]:/]# cansend can1 123#1aabbccddaabbccd

can0 123 [8] 1A AB BC CD DA AB BC CD


RK3568 has a more flexible IOMUX and pin multi-function combination application, to meet more diverse functional combination requirements. Users can select according to their product design.

Currently, FET3568-C SoM support application development on Linux system by Qt. Android is coming soon..
