Rockchip RK3399: Parameters, Performance, and Versatility

The CPU of Rockchip RK3399 adopts big.LITTLE large and small core architecture, dual Cortex-A72 large core + four Cortex-A53 small core structures, greatly optimized integer, floating point, memory, etc., in the overall performance, power consumption and core area three All aspects are revolutionary.

The GPU of RK3399 adopts Mali-T860, a new generation of quad-core arm high-end graphics processor, which integrates more bandwidth compression technologies: such as intelligent overlay, ASTC, local pixel storage, etc. It also supports more graphics and computing interfaces, and the overall performance is higher than that of the previous generation. One generation increased by 45%.

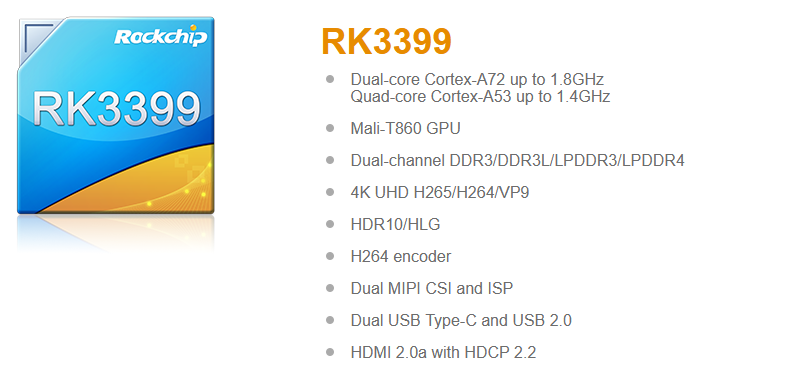

Rockchip RK3399 Parameters

RK3399's super compatibility and expansion capabilities make it applicable to multi-smart terminals such as VR, game boxes, and tablets:

  • For VR equipment: RK3399 has 20ms delay, 90Hz refresh, 4K UHD decoding, 2K low persistence (Low Persistence) screen, high-precision positioning and tracking system, super HDR camera technology, super 3D processing capability and super high definition The hardware advantage of H.265/H.264 video parsing capability.
  • For tablet PC and game box products: RK3399 relies on powerful CPU, CPU and faster interface standards, transmission speed, 4K@60fps10bit video playback and output capabilities that support H.265/VP9 encoding, and better image decoding. Rich game engine and 3D image processing capabilities, providing faster computing speed and visual effects for the terminal.
  • In addition to tablet computers, VR, TV-BOX, notebook computers, car devices, and communication fields, RK3399 can be applied to various terminals in the industrial and consumer fields with rich scalability, including smart home appliances, advertising machines/all-in-one machines, and financial POS machine, vehicle control terminal, VOIP video conference, security/monitoring/police and IoT fields.

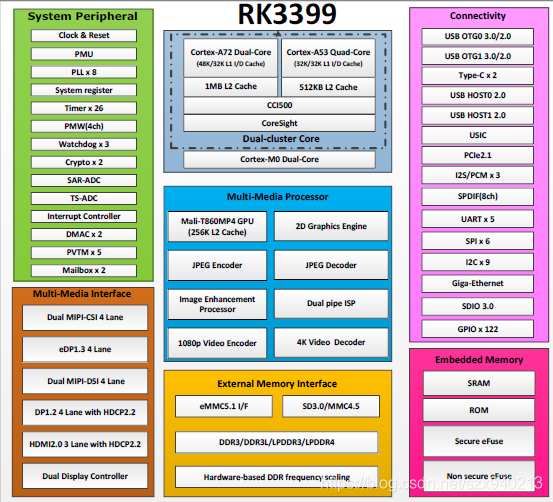

Rockchip RK3399 Parameters and Performance

As Rockchip's flagship new product, RK3399 is bound to become its strongest core competitiveness due to its strong compatibility and scalability. As a professional supplier of supporting materials, Forlinx Embedded provides the main control solution platform launched by Rockchip, such as box/flat RK series, car PX series, etc.

As Rockchip's flagship new product, RK3399 is bound to become its strongest core competitiveness due to its strong compatibility and scalability. As a professional development board supplier, Forlinx Embedded has launched based on Rockchip RK3399: FET3399-C SoM and OK3399-C SBC.

Seven performance advantages of RK3399

Not only is it more advanced in CPU and GPU, Rockchip RK3399 processor also has the following exclusive advantages:

  • Integrated dual USB3.0 Type-C interface, supports Type-C Display Port audio and video output.
  • Dual ISP pixel processing capability is up to 800MPix/s, supports simultaneous input of dual camera data, and supports high-level processing such as 3D and depth information extraction.
  • MIPI/eDP interface, support 2560×1600 screen display and dual-screen display.
  • HDMI2.0 interface, H.265/H.264/VP94K@60fps HD video decoding and display.
  • Built-in PCI-e interface, support PCI-e-based high-speed Wi-Fi and storage expansion.
  • Support 8-channel digital microphone array input
  • Comprehensive system support: compatible with Android, Linux and other operating systems
