Vending Machine Hardware Solution Based On s5p4418

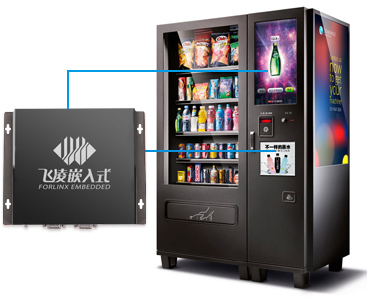

FCU1401 is an embedded computer specially designed for vending machine in controlling, communication and display. It helps vending machine developers finish the integration of the whole set of vending machine solution.
|
|

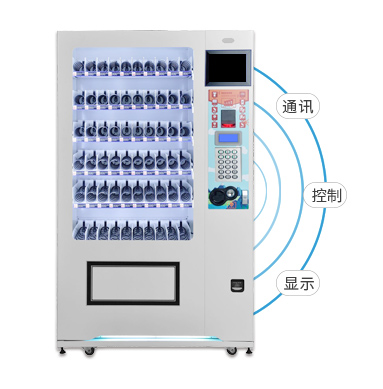

All-in-one |
| It intergrated with communication, controlling and dispplay all-in-one, which can help users to shortern their product time-to-market. |
Powerful Core, Excellent Performance |
|

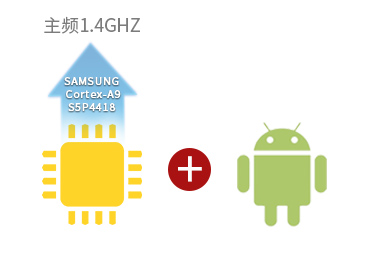

| FCU1401 is based on SAMSUNG Cortex-A9 S5P4418 processor with frequency up to 1.4GHz, takes users friendly Android HMI experience. |
|
|

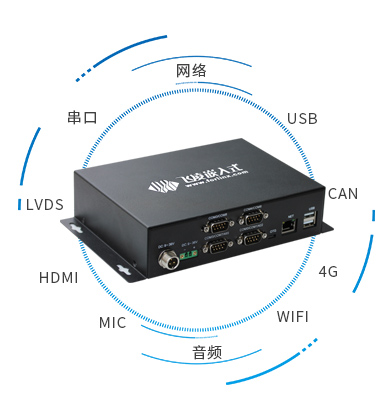

Various Peripheral Interfaces |
| Serial, Ethernet, audio, USB, 4G, WIFI, MIC and HDMI are all available and all with reliable performance. |
HD Display, Amazing Visual Experience |
|
|
FCU1401 is designed based on S5P4418 processor which can support hardware codec and Open GL, and designed with HDMI interface can support resolution up to 1080P which takes users friendly HMI experience. |
|
|
Robust Performance |
| ystem kernel and dirvers optimized by Forlinx experienced engineers, take users robust Android5.1.1 system performance. |
| CPU | Samsung Cortex-A9/A53 1.4GHz |
| RAM | 1GB/2GB DDR3 |
| Flash | 8GB eMMC |
| HDMI | up to 1080P |
| Serial |
8x RS232(one RS232 is multiplexed with RS48, and one RS232 is multiplexed with RS422) |
|
Ethernet |
10M/100M/1000M auto-negotiation |
|
4G |
all netcom supported |
| WIFI | supported |
|
USB HOST |
4x USB Host |
|
USB OTG |
1x USB OTG |
|
Audio out |
dual-channel output |
|
Audio in |
MIC input |
|
SD Card |
up to 128G |
| Watchdog | hardware watchdo |
| Voltage Input | 9~36V |
| Voltage Output | 9~36V, supply power for peripherals |
| OS | Android5.1 |
