OK3588-C Single Board Computer

CPU: Rockchip RK3588/RK3588J

Architecture: 4*A76+4*A55

Frequency: [email protected][email protected]

RAM: 4GB/8GB/16GB LPDDR4x

ROM: 32GB/64GB/128GB eMMC

System: Linux5.10.66, Android12.0, Forlinx Desktop 20.04/22.04

Brief Message Compare

OK3588-C Single Board Computer Based on Rockchip RK3588

Forlinx OK3588-C SBC( single board computer) is featured with Rockchip’s RK3588 one of the most anticipated processors, it consists of FET3588-C SoM and carrier board. All pin sources are available and easy-to-use on carrier board circuited from the SoM, which is much convenient to users. The board can support 8K HD display and can support quad screens playing with different content.

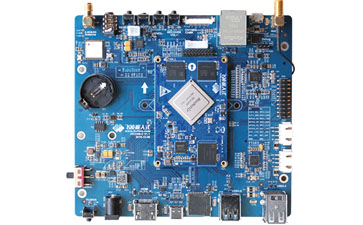

OK3588-C SBC


Rockchip RK3588 Single board computer

Rich Ready-to-use Peripheral Source


Rockchip RK3588 Single board computer Peripheral Source

8K Encoder/ Decoders Exploring

RK3588 supports 8K display output, supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps.
It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

Rockchip RK3588 Single board computer 8K Encoder/ Decoders Exploring

Various Display Interfaces: Quad-Screen Playback with Diverse Content

Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available.
Can support quad-screen playing together but with different content, up to 7680x4320@60Hz output, will take users fantastic visual experience.

RK3588 Single board computer Quad-Screen Playback with Diverse Content

Multiplied Isolation Circuits: Trusting the Board as a Secure Platform


RK3588 Single board computer Multiplied Isolation Circuits

User-Friendly Reference Files and Efficient After-Sale Technical Support


RK3588 Single board computer sbc datasheet

▊ RK3588 Video


OK3588-C Development Board

▊ Specifications


FET3588-C SoM Basic Parameters

Processor

Rockchip RK3588

CPU:
RK3588 quad-core [email protected] + quad-core [email protected];
RK3588J quad-core [email protected] + quad-core [email protected];


NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating;


GPU:

• Mail-G610 MP4

• OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2


VPU:

Decode:

• H.265, VP9: up to 8K@60fps

• H.264 up to 8K@30fps

• AV1 up to 4K@60fps

Encode:

• H.265/HEVC, H.264/AVC: up to 8K@30fps

RAM

4GB/8GB/16GB LPDDR4x

ROM

32GB/64GB/128GB eMMC

Power Input

DC 12V

Working Temperature

0℃ ~ +80℃ / -40℃ ~ +85℃

Package

Board to board connector(4*100pin, 0.4mm pitch, combined height 1.5mm)

OS version

Linux5.10.66, Android12.0, Forlinx Desktop 20.04/22.04

Dimension

50mm x 68mm

▊ RK3588 SoM Feature


FET3588-C SoM Function Parameter

Interface

Type

QTY

Spec.

Video Input

MIPI DC PHY(DPHY/CPHY)

2

· Supports DPHY or CPHY;

· 4-lane MIPI DPHY V2.0m, each line up to 4.5Gbps;

· 3-lane MIPI CPHY V1.1, each line up to 2.5Gsps

Supported MIPI-CSI combo:

2 MIPI DCPHY + 4 x 2 lanes MIPI CSI DPHY

2 MIPI DCPHY + 1 x 4 lanes MIPI CSI DPHY

2 MIPI DCPHY + 2 x 4 lanes MIPI CSI DPHY

MIPI CSI DPHY

4

· 2-lane MIPI DPHY V1.2, each line up to 2.5Gsps;

· two 2-lane DPHY can be combined to a 4-lane DPHY

DVP

1

· 8/10/12/16-bit standard DVP up to 150MHz input;

· Supports BT.601/BT.656 and BT.1120 VI

HDMI RX

1

· Supports 3.4Gbps~6Gbps HDMI 2.0;

· Supports 250Mbps~3.4Gbps HDMI 1.4b;

· Supports HDCP2.3 and HDCP1.4;

Video Output

HDMI/eDP TX

≤ 2

· HDMI/eDP TX are multiplexed, each interface supports x1, x2 and x4;

· HDMI up to 7680x4320@60Hz, supports 3, 6, 8, 10, 12Gbps band widths, supports HDCP2.3;

· eDP is up to 4K@60Hz, supports 1.62Gbps, 2.7Gbps and 5.4Gbps band widths, supports HDCP1.3.

DP TX

2

· Supports 2 DP TX 1.4a, which is available for USB3.1 Gen1, supports 1/ 2/ 4 lanes;

· Up to 8192x4320@30Hz;

· Supports HDCP2.3, HDCP 1.3.

MIPI DSI

2

· Supports 2 MIPI DPHY2.0 or CPHY 1.1, up to 4K@60Hz;

· Supports left/ right mode dual MIPI-DSI, available for RGB/ YUV up to 10-bit;

BT.1120

1

· Supports RGB up to 8-bit and rating up to 150MHz;

· Up to 1920x1080@60Hz;

Audio

I2S

≤ 4

· 8 lanes I2S0/I2S1: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz;

· 2 lanes I2S2/I2S3: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz.

SPDIF

2

· Supports 2x 16-bit data storing;

· Supports biphasic stereo output.

PDM

2

· Up to 8 channels, resolution 16~24 bits, sampling rate up to 192KHz;

· Supports PDM primary receive mode.

DSM PWM

1

Convert PCM data to bitstream digital directly to 1-bit data output, the output digital signal will be filtered to audio signal.

Network

Ethernet

2

2x GMAC by RGMII / RMII, 10/100/1000Mbps.

Others

USB3.1 Gen1

3x

· USB3.1 Gen1 up to 5Gbps;

· 2 USB3.1 OTG, multiplexed with DP TX(USB3OTG_0 and USB3OTG_1), USB3OTG_o and USB3OTG_1 support USB Type-C and DP Alt;

· 1 USB3.1 Host, multiplexed with PIPE PHY2(USB3OTG_2).

USB 2.0 Host

2

2x USB 2.0 Host

PCIe 2.0

≤3

Each PCIe2.1 can support 1 lane, up to 5Gbps

PCIe 3.0

2

· Supports RC and EP, up to 8Gbps;

· Support 4 combinations: 1 x4, 2 x2, 4 x1, 1 x2+ 2 x1

SPI

≤5

· Each controller supports two chip select output;

· Serial master mode and serial slave mode are configurable

I2C

≤9

· Support 7-bit and 10-bit address mode;

· Standard mode data transferring rate up to 100K bits/s, and high-speed mode up to 400K bits/s.

UART

≤10

· Built-in 2 64-bit FIFO, can be used for TX and RX respectively;

· Supports 5-bit, 6-bit, 7-bit and 8-bit serial data transceiving, baud rate up to 4Mbps;

· All 10 UART can support auto flow control.

SATA

≤3

· 3 SATA3.0 controllers, PIPE PHY0/1/2 is multiplexed by PCIe and USB_HOST2;

· Supports eSATA up to 6Gbps.

PWM

≤16

Up to 16 on-chip PWM, supports capturing mode.

ADC

≤8

8x 12-bit single-end input SAR-ADC, sampling rate up to 1MS/s.

▊ Order Options


Model

RAM

Flash

Status

FET3588-C+244GSE32GCC11

4GB

32GB

Small batch

FET3588-C+248GSE64GCD11

8GB

64GB

Small batch

FET3588-C+2416GSE128GCE11

16GB

128GB

Small batch

▊ Carrier Board

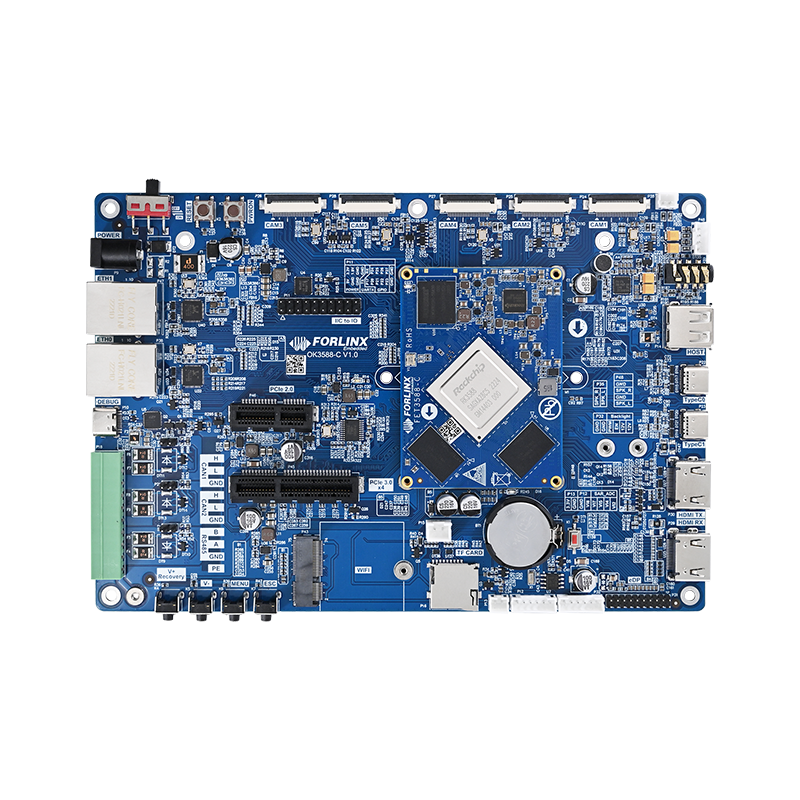

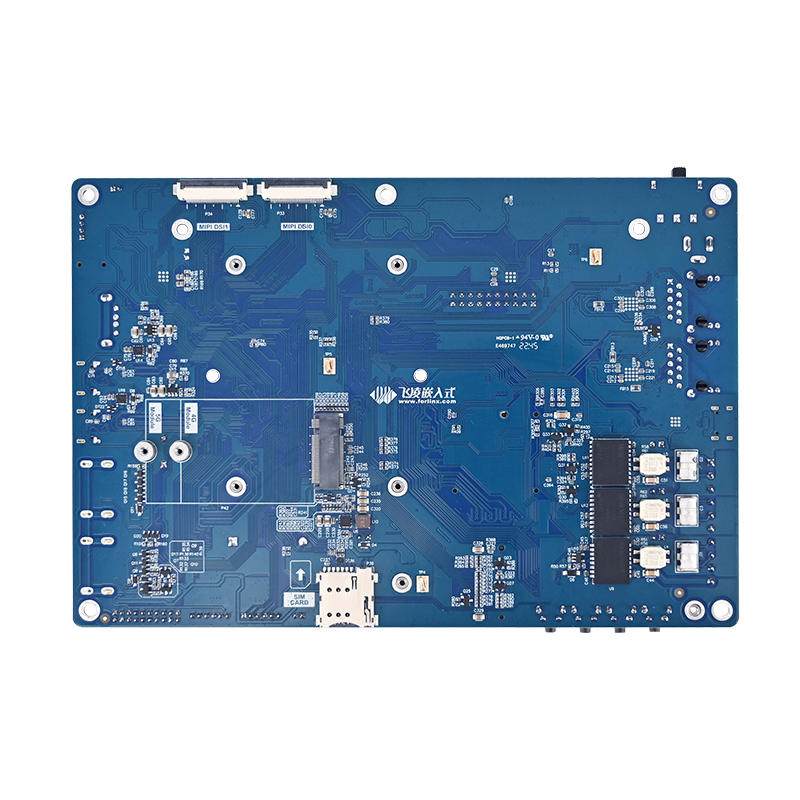

RK3588 development board front RK3588 development board back

OK3588-C Development Board Function Parameters

Interface

QTY

Spec.

MIPI CSI

5

· 2x MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; Available on carrier board by 2 26-pin FPC connectors, OV13850 is the default and recommended camera model;

· 2x MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; Available on carrier board by 3 26-pin FPC connectors, OV5645 is the default and recommended camera model;

· 1 x MIPI DPHY V1.2 4 lanes, each lane up to 2.5Gbps

MIP DSI

2

· Each MIPI-DSI supports 4 lanes output, up to 4K@60fps;

· Forlinx default option: 7’’ MIPI DSI module, 1024x 600@30FPS

HDMI RX

1

· Standard HDMI connector, up to 4K@60Hz

HDMI

1

· Standard HDMI connector, up to 7680x4320@60Hz

eDP TX

1

· Can fit 1080p@60Hz display;

· Up to 4K@60Hz

DP TX

2

· 2 DP used together with USB3.1 Gen1, available on carrier board by Type-C connector;

· up to 7680x4320@30Hz;

USB3.1 Gen1

2

· available on carrier board by Type-C connector;

· used together with DP TX, up to 5Gbps

USB2.0 Host

1

· available on carrier board by Type-A USB connector;

· supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps)

PCIe3.0

1

· 1x4 lanes PCIe signal is available on carrier board by PCIe x 4 slot;

· supports 2.5Gbps(PCIe1.1), 5Gbps(PCIe2.1), 8Gbps(PCIe3.0)

PCIe2.0

1

· By PCIe x 1 slot, up to 5Gbps

Ethernet

2

· RJ 45 connector, 10/100/1000 Mbps

TF Card

1

· Up to 150MHz, supports SDR104 mode

Audio

1

· On-board codec chip, supports earphone output, MIC input and Speaker

CAN

2

· CAN2.0B

RS485

1

UART

1

· Headers with pitch of 2.54mm, baud rate up to 4Mbps

4G/5G

1

· M.2 4G/ 5G module

WIFI&BT

1

· M.2, supports WI-FI 6 SU and MU-MIMO + Bluetooth 5.3

ADC

5

· PH2.0 connector, up to 12-bit resolution and 1MS/ s sampling rate

RTC

1

FAN

1

GPIO

9

· Pin headers with pitch of 2.54mm(3.3V) for 9 GPIO and power of 5V/ 3.3V/ 1.8V

▊ Downloads


Catalog: Forlinx Catalog Manual

Product manual: FET3588-C System on Module Brief


Android12

User manual, compiling guideline, kernel source code, file system, OS image, VM ubuntu image, TF card tool, USB OTG tool, QT demos and source code
Hardware User manual, carrier board schematic, carrier board PCB(AD), datasheet, carrier board and SoM DXF files, pinmux sheet

▊ Accessories


Please click here to get more information about the supported modules and accessories.

Optional Module
10.1 inch LVDS Screen
7.0-inch LCD Module with MIPI Display
MIPI OV13850(13.0MP) Camera Module
5G Module(RM500U)
4G Module(EM05)
MIPI OV5645 Camera Module

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.


Product Shipping List

FET3588-C System on Module 1
OK3588-C Carrier Board 1
Heat sink 1
Power adapter 1
PCIe to SATA converter 1
LCD expanding board 1
USB Type-C 1
WiFi antenna 1
