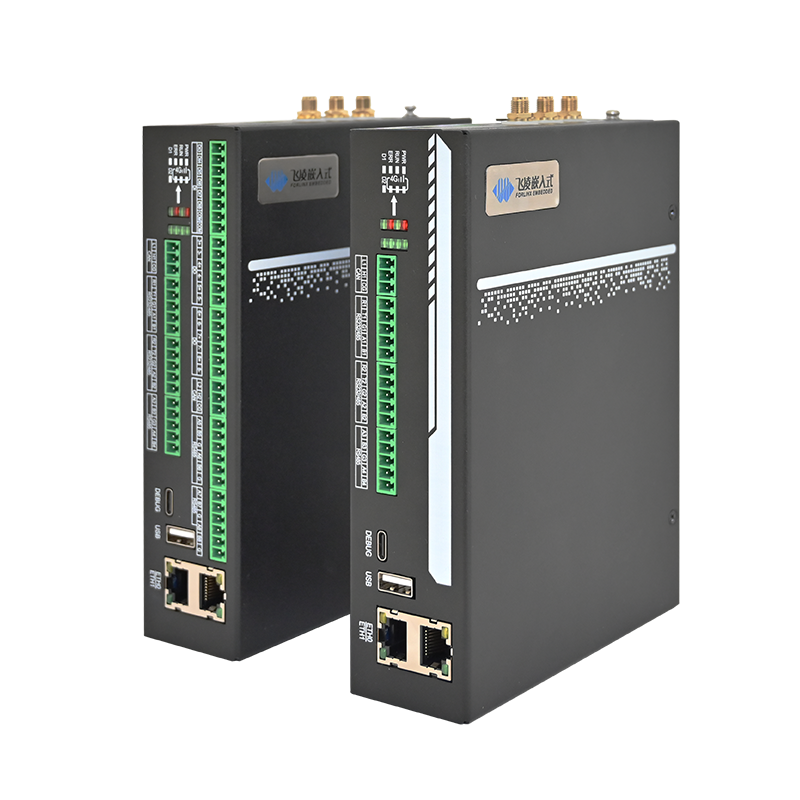

Amid the profound transformations of Industry 4.0 and the energy transition, core computing units are confronted with unprecedented challenges: harsh physical environments, complex protocol interoperability, and growing uncertainty in global material supply chains. Today, the FCU1501 Industrial Gateway is officially released. It is not only a high-performance communication hub but also a long-term supply commitment for global industrial customers. With deep control over underlying technology, the FCU1501 ensures stable delivery and reliable operation throughout the entire project lifecycle, safeguarding your business from external fluctuations.

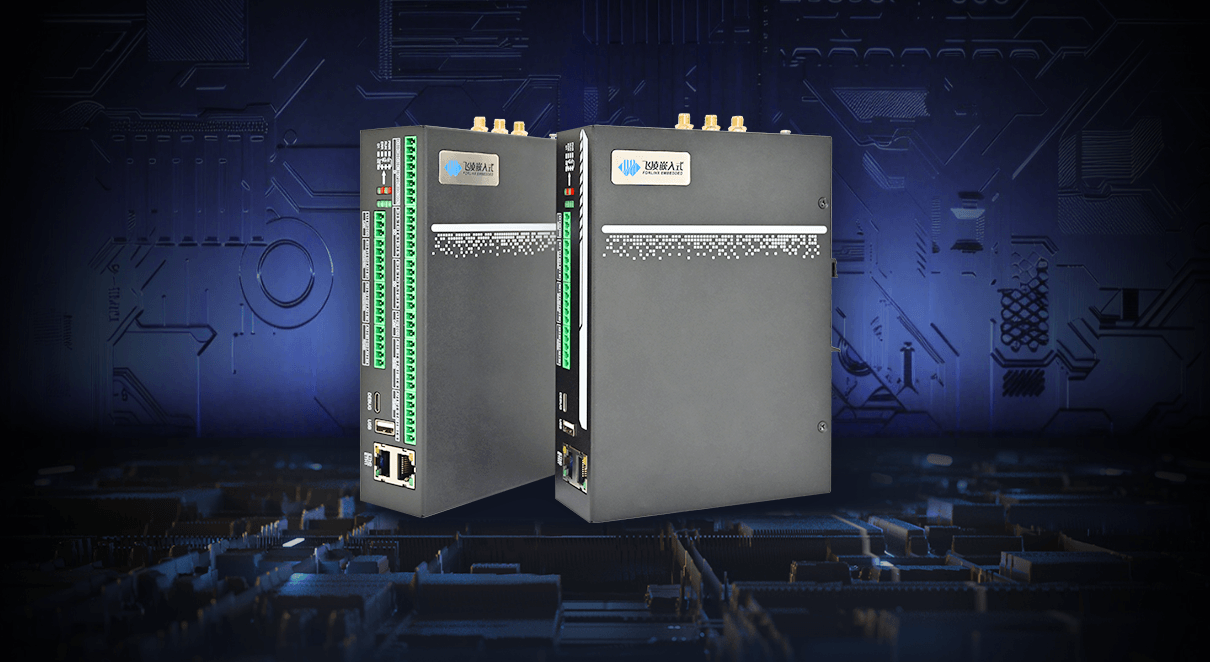

Underlying Architecture Resilience: High-Performance Industrial-Grade Hardware and Supply Assurance

The success of industrial projects often depends on 5-10 years of smooth operation. A highly controlled material system is established for the FCU1501, with each component rigorously evaluated for long-term supply, ensuring stability and eliminating risks of disruption due to external factors, providing vital business continuity for power, transportation, and other infrastructure projects.

• High-Performance Industrial Main Control: Equipped with Rockchip RK3506J processor, three-core Cortex-A7 architecture, up to 1.5GHz, low power consumption, and high computational capability, handling industrial protocol conversion, edge data cleaning, and local logic control tasks effortlessly.
• Flexible Storage Configuration: Available with 256MB/512MB DDR3 memory and 256MB NandFlash/8GB eMMC storage options, supporting large-scale historical log storage, offline data continuation, and frequent remote firmware upgrades (OTA).
• Electrical Safety and High Availability: Supports DC 9-36V wide voltage input with reverse and overcurrent protection, adapting to complex power environments in industrial sites. Built-in hardware watchdog and high-precision RTC ensure 24/7 stable operation.
• Latest Mainstream Kernel: Pre-installed with the stable Linux 6.1 operating system, providing enhanced security and broader hardware driver support, simplifying secondary development.

Industrial-Level Physical Protection: Full-Temperature and Extreme Environment Stability

Every design detail of the FCU1501 is built to withstand harsh industrial environments:

• Extreme Temperature Immunity: Passed full-temperature cycling tests from -40°C to +85°C, ensuring stable output in cold polar or hot desert environments.

• Triple Electromagnetic Protection: Follows industrial-grade EMC standards, maintaining stability in environments with high electromagnetic interference.

• Physical Lossless Cooling: Utilizes a fanless passive cooling solution, eliminating mechanical failures and dust accumulation, significantly reducing maintenance costs.

Flexible Interfaces: Architecture Consistency for Seamless System Upgrades

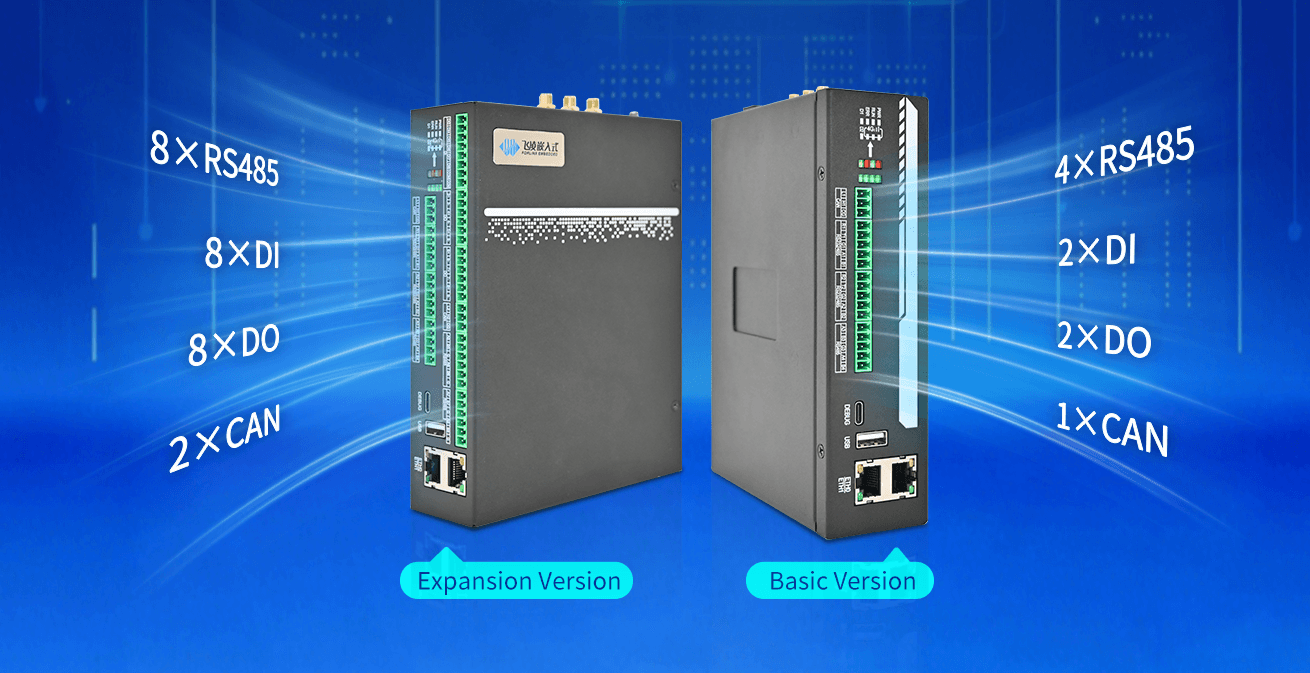

FCU1501 innovatively achieves "the same physical size, two interface configurations" architecture consistency.

• Basic Version: Efficient and suitable for standardized connection needs.
• Extended Version: Abundant interface resources, including 8x RS485, 2x CANFD, 8x DI/DO, etc.
• Seamless Evolution: Easily switch between models without altering the control cabinet structure, reducing system integration time.

Smart Operation and Maintenance System: Modern Software Ecosystem and Visual Management

The core value of industrial gateways lies in protocol conversion and convenient maintenance. The FCU1501 excels in this, bridging OT and IT data silos for easier device interconnectivity.

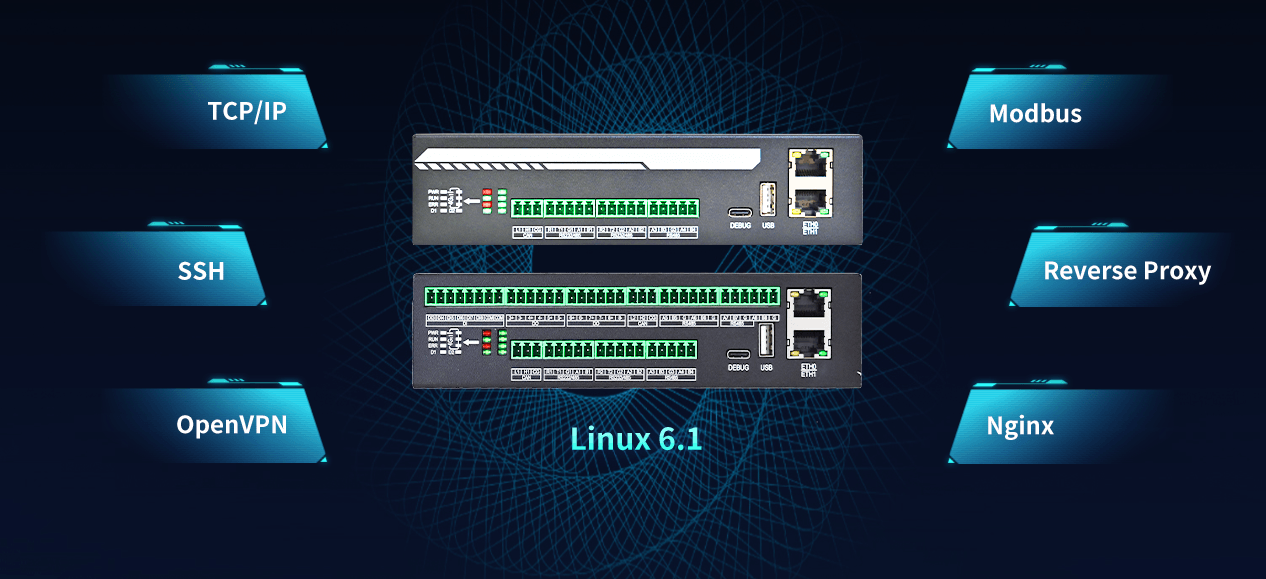

• Protocol Support: Built-in Modbus, MQTT, TCP/IP, SSH, OpenVPN, and other mainstream protocols, covering most industrial communication needs;

• Web Visual Management: Provides a web management interface that can be accessed via a browser to complete network setup, communication parameters, and system status monitoring, improving maintenance efficiency by 50%;

• Out-of-the-Box: Integrated functions such as one-click recovery, 4G status indicator, external power output, and USB flash write, allowing quick deployment without additional accessories, significantly shortening on-site implementation time.

Full-Scene Business Empowerment: Industrial Connectivity Hub Compliant with Global Standards

With powerful performance, rich interfaces, and high reliability, FCU1501 can be widely used in various industrial scenarios, becoming the core hub for digital upgrades.

• Power and Energy Storage: Energy Management Systems (EMS), battery monitoring, new energy site data forwarding.
• Rail Transportation: Roadside equipment monitoring, bridge health management.
• Smart Manufacturing: Production line data collection, PLC remote control, edge logic computing.

The CE, FCC, and RoHS certification process for the FCU1501 has commenced, ensuring compliance with global market safety and environmental standards. With its diverse installation options (such as DIN rail mounting and hanging brackets), it truly achieves "global compatibility, ready to use out of the box."

---
