i.MX6ULL IoT Edge Computing Gateway with Dual Ethernet, RS485, RS232, CAN, DI, DO

FCU1104 is a high-performance IoT edge computing gateway of Forlinx Embedded. It’s based on NXP i.MX6ULL, with dual Ethernet ports, applicable to 1 LAN, 1 WAN or 2 LAN scenarios.

It provides flexibility to deploy edge node applications by 4 or 8 RS485, enabling more connections to data from sensors, cameras, and control devices. It collects wireless data through LoRa, transmission distance up to 10KM.


i.MX6ULL IoT Edge Computing Gateway


1, FCU1104 embedded computer specifications:

  • SoC - NXP i.MX6ULL, ARM Cortex-A7 800MHz
  • RAM - DDR3 256MB (Nand), DDR3 512MB (eMMC)
  • ROM - NAND Flash 256MB (Nand), eMMC 4G (eMMC)
  • Network and Wireless Connectivity
    1. ● 2* 10/100Mbps Ethernet, ESD3
    2. ● WiFi, support STA, AP mode.
    3. ● 4G Quectel EC200S(don’t support GPS and audio)
      Note: WiFi/4G is alternative.
  • Serial port
    1. ● Up to 8 RS485, ESD 4, one of which can be multiplexed with RS232
    2. ● 1x CAN
  • LoRa - support E32-TTL-100 and E22 to transmit and receive data
  • Expansion
    1. ● 2x DI, dry contact input, isolation
    2. ● 2x DO, relay output, contact point capacity 5A 250VAC, 5A 30VDC
    3. ● TF Card - up to 32GB
  • Other
    1. ● RTC - supports NTP
    2. ● Watchdog - supports reset time setting
    3. ● 1x buzzer
  • Network Protocols - Support TCP/IP, UDP, DHCP, TFTP, FTP, SSH, Web, HTTP, IPtables, MQTT, SQLite
  • Working environment:
    1. ● Humidity: 5%~95%;
    2. ● Operating temperature: -25℃~85℃ (eMMC), -40℃~85℃ (NAND)
    3. ● Storage temperature: -40℃~85℃

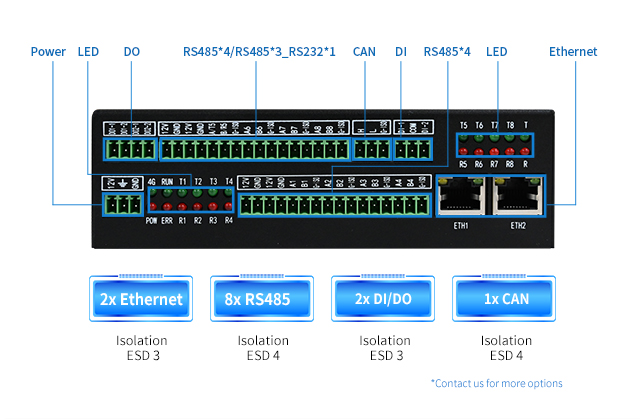

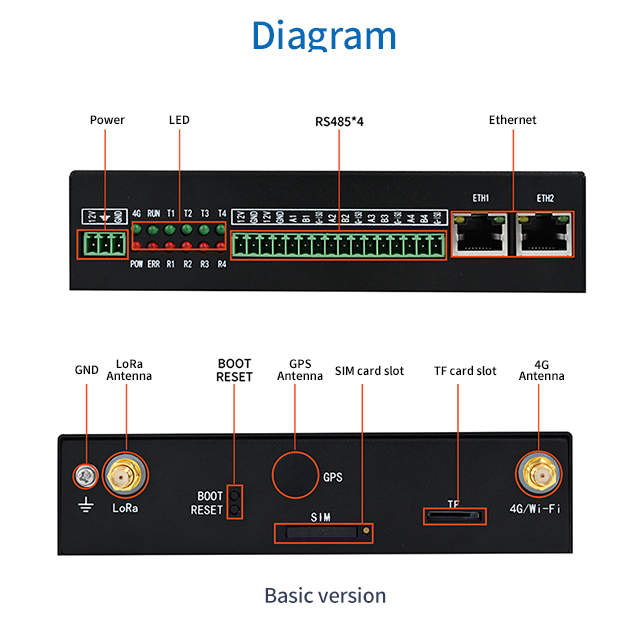

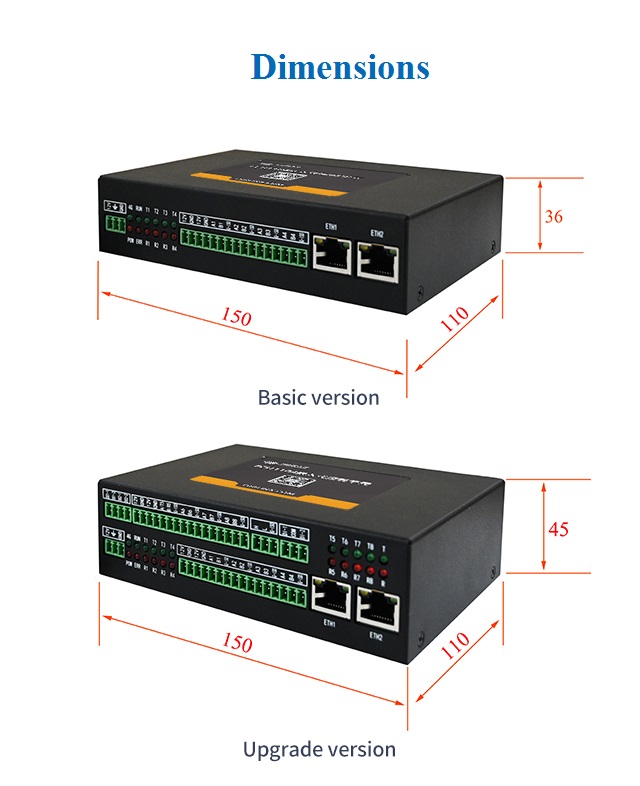

It has basic version and extended version. Please see difference in the following figure:



industrial FCU1104 gateway
industrial FCU1104 gateway
industrial FCU1104 gateway



2, Target Application

FCU1104 embedded computer application


Now FCU1104 is hot selling. Volume discounts are available for orders.

You can get details on the product page, or consult Forlinx sales online.
