Against the backdrop of the ever-increasing demand for efficient development platforms in the field of intelligent industrial applications, the Rockchip RK3506 series of chips have become a popular choice for scenarios such as industrial control, the Internet of Things (IoT), and edge computing, thanks to their high performance, low power consumption, and rich interfaces. Forlinx Embedded has keenly captured the market demand and launched the OK3506-S12 Mini development board, a powerful development tool designed specifically for high cost-performance.

First Unboxing Experience: Simple yet Sophisticated

The packaging of Forlinx Embedded's OK3506-S12 Mini development board uses a hard-paper box. The surface is printed with the product model, contact information, and Forlinx Embedded's brand logo. The overall design is simple and elegant. After opening the package, the development board and its accessories are fixed inside with a custom-made mold to ensure they are not damaged during transportation.

Inside the box, there are the main body of the development board, a Type-A to Type-C adapter cable, an accessory package, and a factory certificate.

Next, let's take a look at the appearance details.

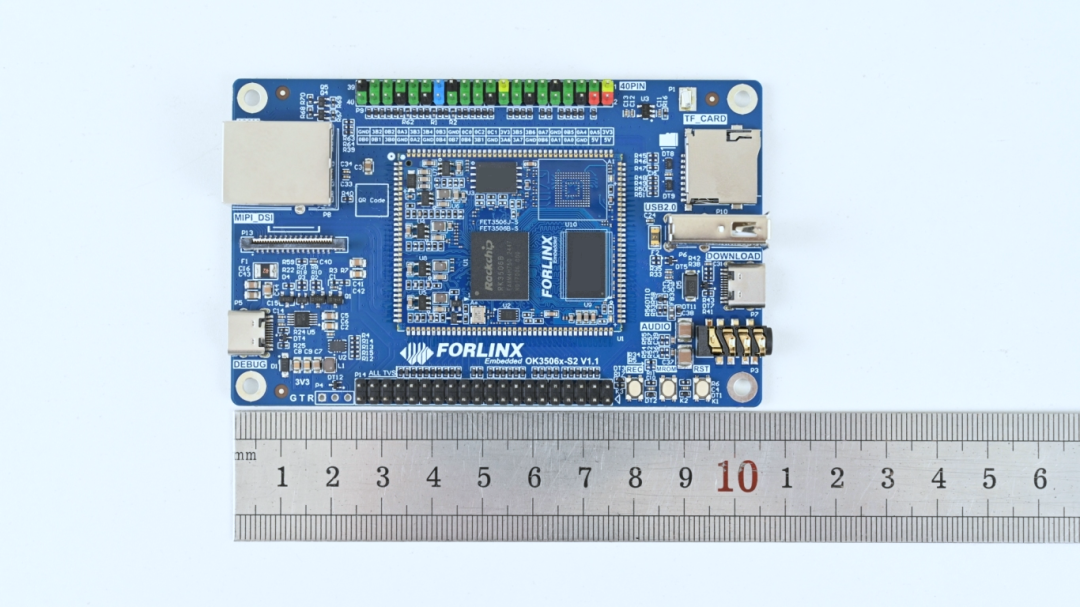

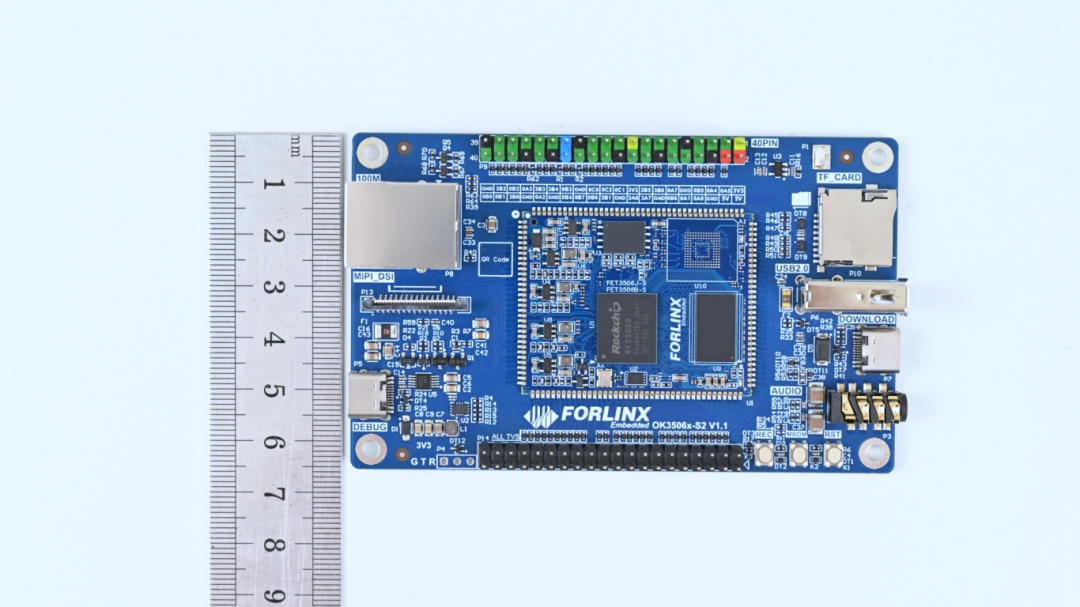

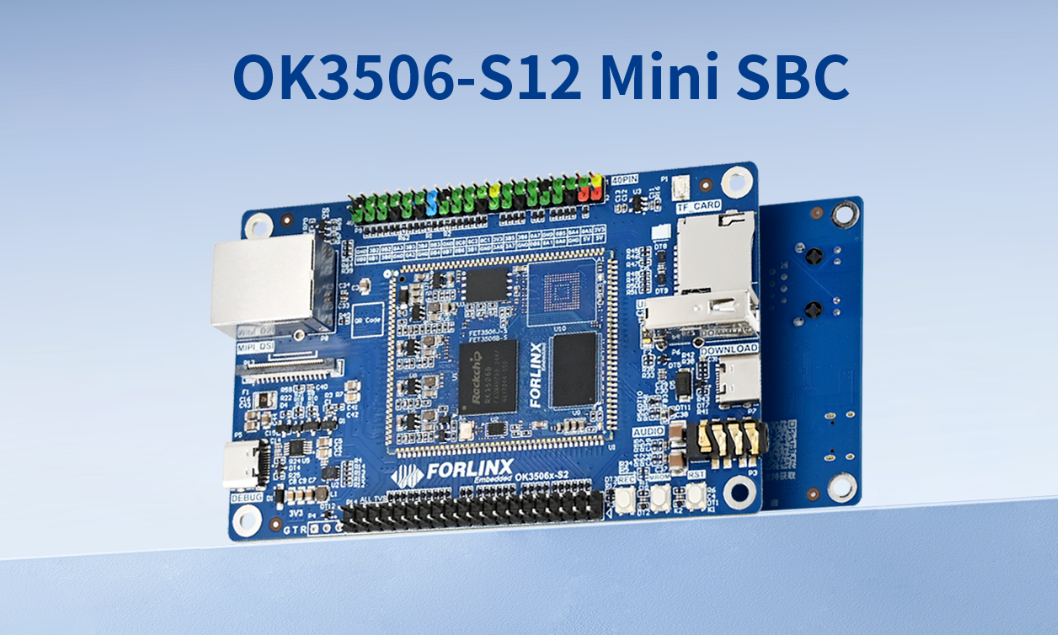

The OK3506-S12 Mini development board is very compact, measuring only 65mm x 105mm. It feels about the same size as the antique iPhone 4 in the author's drawer.

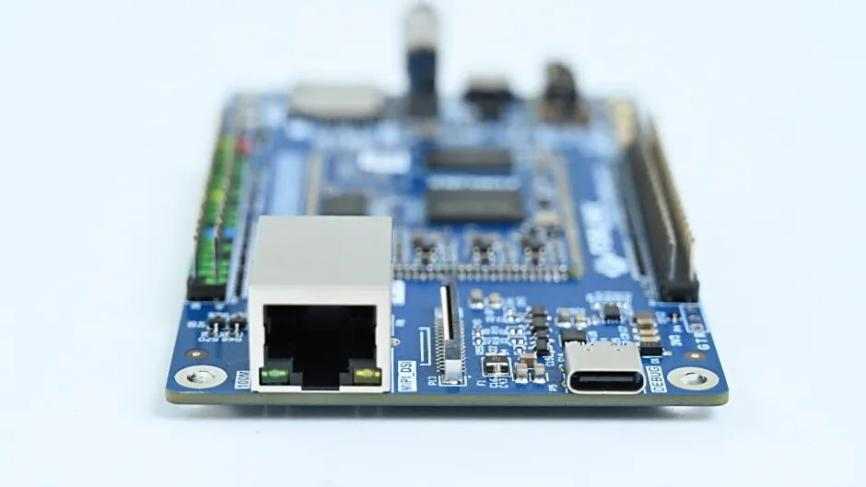

Despite its compact size, it integrates a rich variety of interfaces, including a Raspberry Pi 40-Pin GPIO interface, two native CAN-FD interfaces, RMII, UART, Display, and other interfaces, meeting the diverse development needs of engineers.

Hardware Configuration

1. Processor: RK3506B, Exclusive for Intelligent Industrial Applications

The Forlinx Embedded OK3506-S12 Mini development board is based on the Rockchip RK3506B processor. This is a high-performance triple-core Cortex-A7 application processor designed specifically for intelligent voice interaction, audio input/output processing, image output processing, and other digital multimedia applications. It has a 2D hardware engine and a display output engine to minimize CPU overhead and meet image display requirements.

2. Rich Interfaces: Flexible Configuration to Meet Diverse Needs

The OK3506-S12 Mini development board is equipped with a wide range of peripheral interfaces, such as SAI, PDM, SPDIF, Audio DSM, Audio ADC, USB2.0 OTG, RMII, CAN, etc., which can meet different application development needs and reduce the complexity and cost of hardware development.

• Raspberry Pi 40-Pin GPIO Interface: It is compatible with the Raspberry Pi ecosystem, making it convenient to connect various sensors and actuators and lowering the development threshold.
• Matrix IO Design: Through the matrix IO design, it supports the arbitrary mapping of 98 functional signals to 32 pin interfaces. The IO functions can be set according to the convenience of PCB wiring, such as crossing RX and TX, greatly enhancing the flexibility of hardware design.
• High-Speed Parallel Bus Interface DSMC: It supports high-speed communication between ARM and FPGA, with selectable master/slave modes. It is suitable for connecting ADC, DAC chips, DVP cameras, and QSPI LCD displays.

3. Storage Optimization: Health Diagnosis to Extend Lifespan

Forlinx Embedded provides in-depth storage driver optimization for users and is equipped with an eMMC health diagnosis tool to maximize the storage lifespan and reduce the risk of system crashes caused by storage failures.

Software Ecosystem: Comprehensive Support for Flexible Development

1. Operating System Compatibility

The OK3506-S12 Mini development board fully supports multiple software ecosystems, such as Linux 6.1, LVGL 9.2, AMP architecture, and Linux RT, demonstrating strong software compatibility and a flexible system architecture. It can easily handle both display control and real-time task processing.

2. Complete Development Tools

To facilitate the rapid development of engineers, Forlinx Embedded also provides comprehensive development materials, including software adaptation information, software user manuals, images and source codes, development tools, hardware user manuals, baseboard schematics, etc., helping developers get started quickly.

Conclusion: A High-Quality and Cost-effective Development Board Worth Owning

The OK3506-S12 Mini development board is based on a triple-core Cortex-A7 architecture, with rich interfaces and a comprehensive software ecosystem, capable of meeting the diverse needs of industrial and intelligent applications. Forlinx Embedded provides comprehensive after-sales technical support to help customers accelerate product development and achieve rapid market entry.
