FCU3011 AI Edge Computing Device Based on NVIDIA Jetson Orin Nano with Up to 40 TOPS Performance
Forlinx Embedded FCU3011 is a high-performance AI edge computing device based on the NVIDIA Jetson Orin NanoTM platform. It can provide up to 40 TOPS of AI computing power, perfectly meeting the high-performance AI computing requirements of embedded systems and edge computing scenarios. It features extensive expansion capabilities for peripherals like cameras, displays, sensors, and SSD, along with a built-in 4G/5G communication module for high-speed network connections. It's an ideal edge computing solution for intelligent manufacturing and smart city applications.
Key Highlights:
- Up to 40 TOPS AI Performance (Jetson Orin Nano)
- Fanless, Compact Design for stable 24/7 edge deployment
- Multi-Camera Support: 4× Gigabit Ethernet, 4× USB 3.0
- Industrial Interfaces: RS-485, CAN, dual storage (TF + SSD)
- Flexible Connectivity: Optional 5G / 4G / Dual-band Wi-Fi
- CUDA, cuDNN & TensorRT Ready for fast AI development
AI Edge Computing Box FCU3011

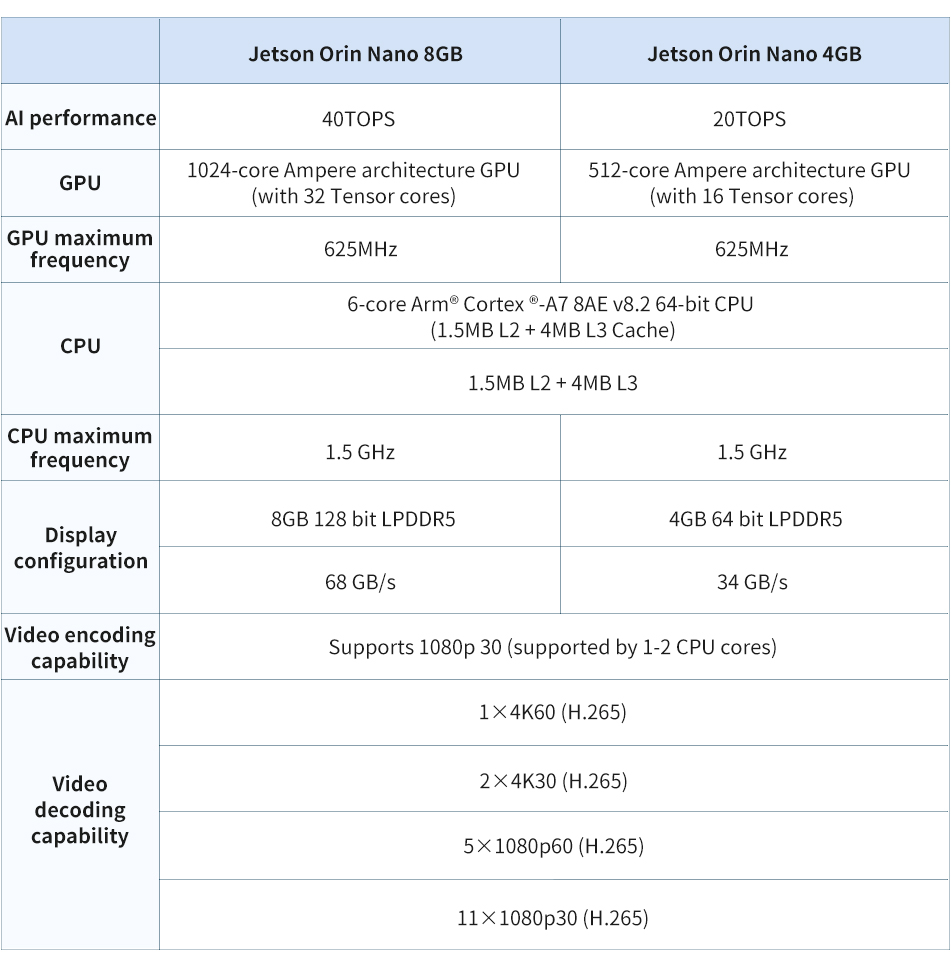

Jetson Orin Nano Technical Specification

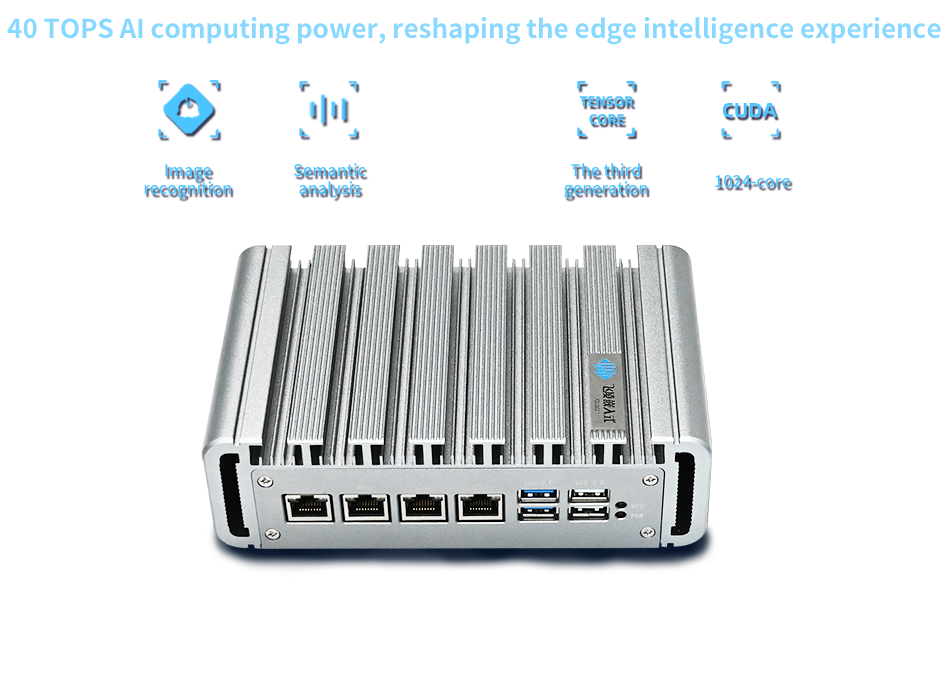

Powerful AI Performance
40 TOPS high-performance AI core, perfect for embedded & edge computing. Supports real-time tasks like recognition, analysis, inference & HD video codec for smart edge apps.
AI Empowered by 5G Connectivity
The AI edge computing terminal FCU3011 combines powerful AI computing power with 5G access capabilities, truly realizing the intelligent empowerment of the 5G + AI industry!

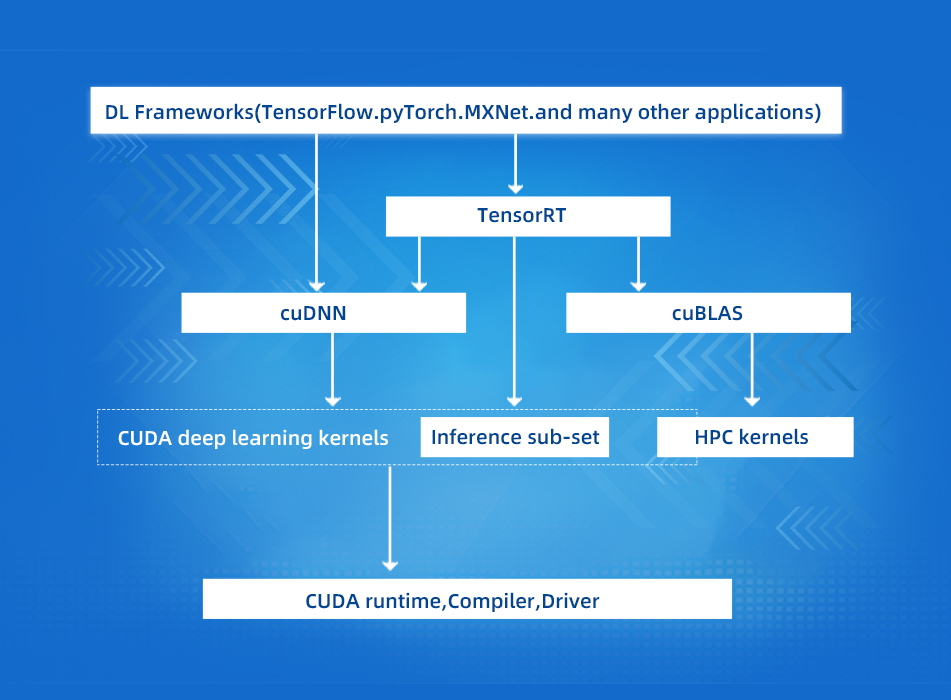

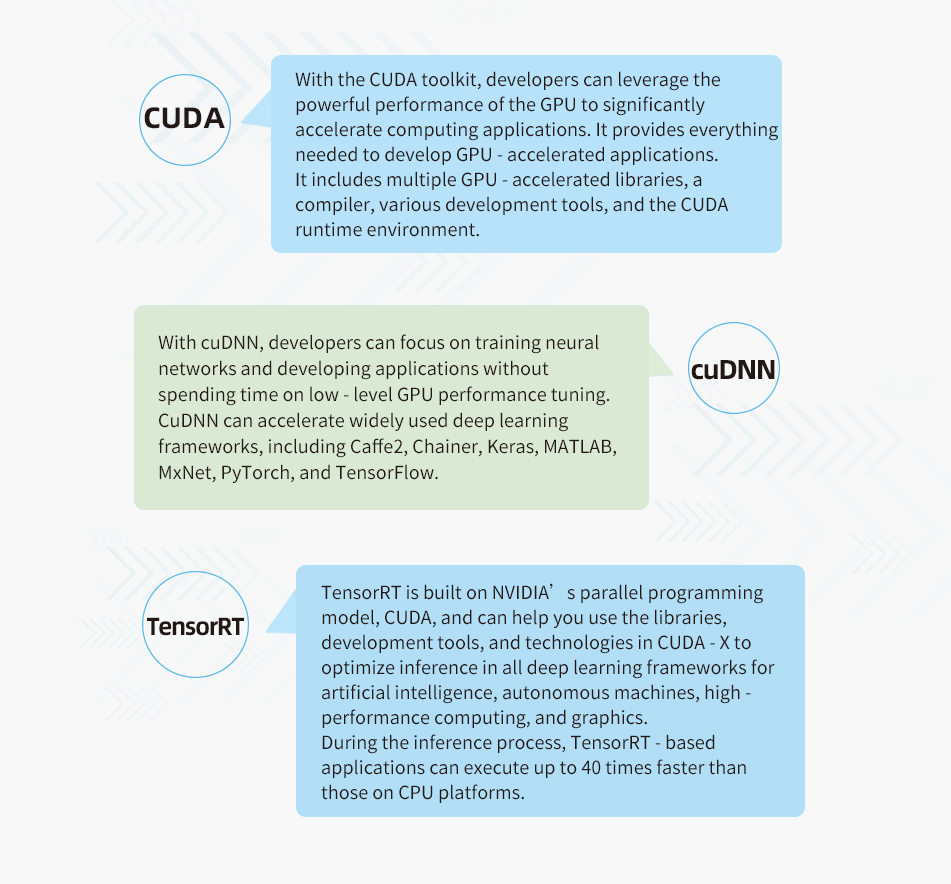

CUDA, cuDNN, and TensorRT power AI
Easy to Develop with Powerful AI Performance

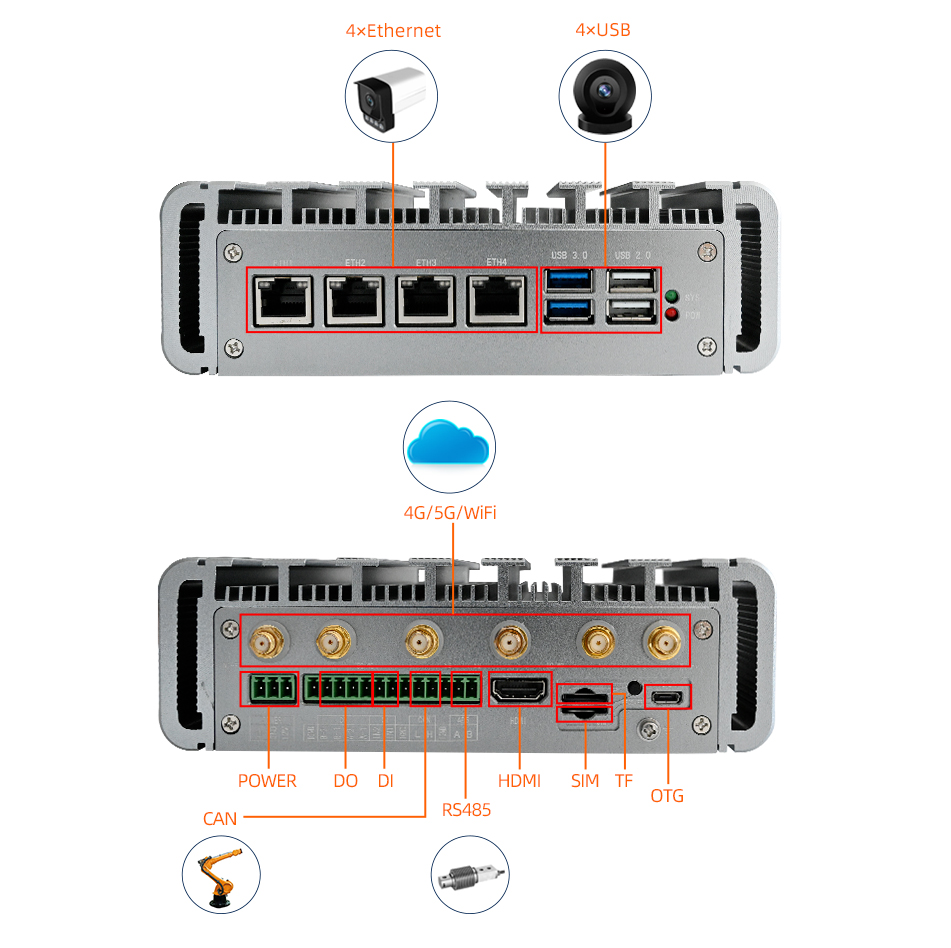

Rich Functional Interfaces
One - Stop Computing + Control
4× Gigabit Ethernet & 4× USB 3.0 for multi-HD cameras, dual storage (TF + SSD), optional 4G/5G & dual-band Wi-Fi, and RS-485/CAN industrial interfaces.

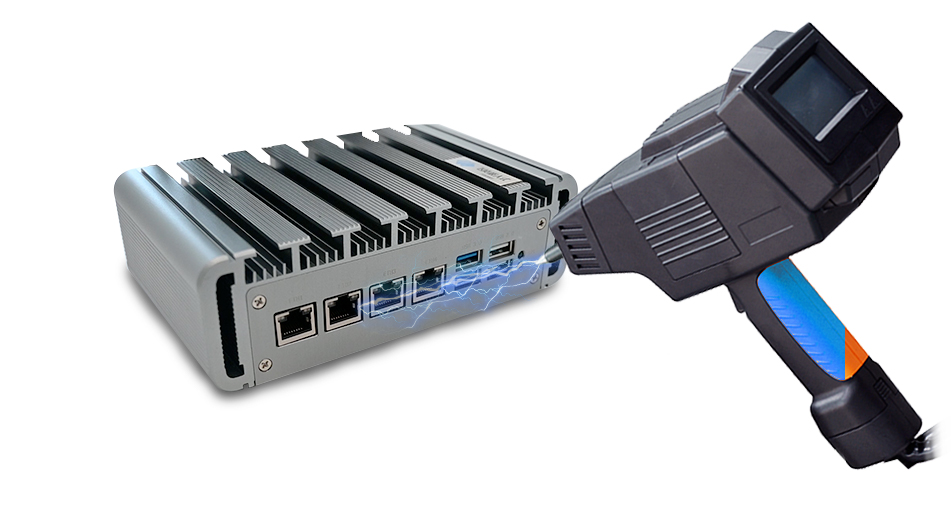

Interface Electrostatic Protection for More Stable Operation
All Ethernet, USB, RS485, and CAN interfaces feature ESD Level 3 protection, with ±6KV contact discharge and ±8KV air discharge, ensuring long-term stable and reliable operation.

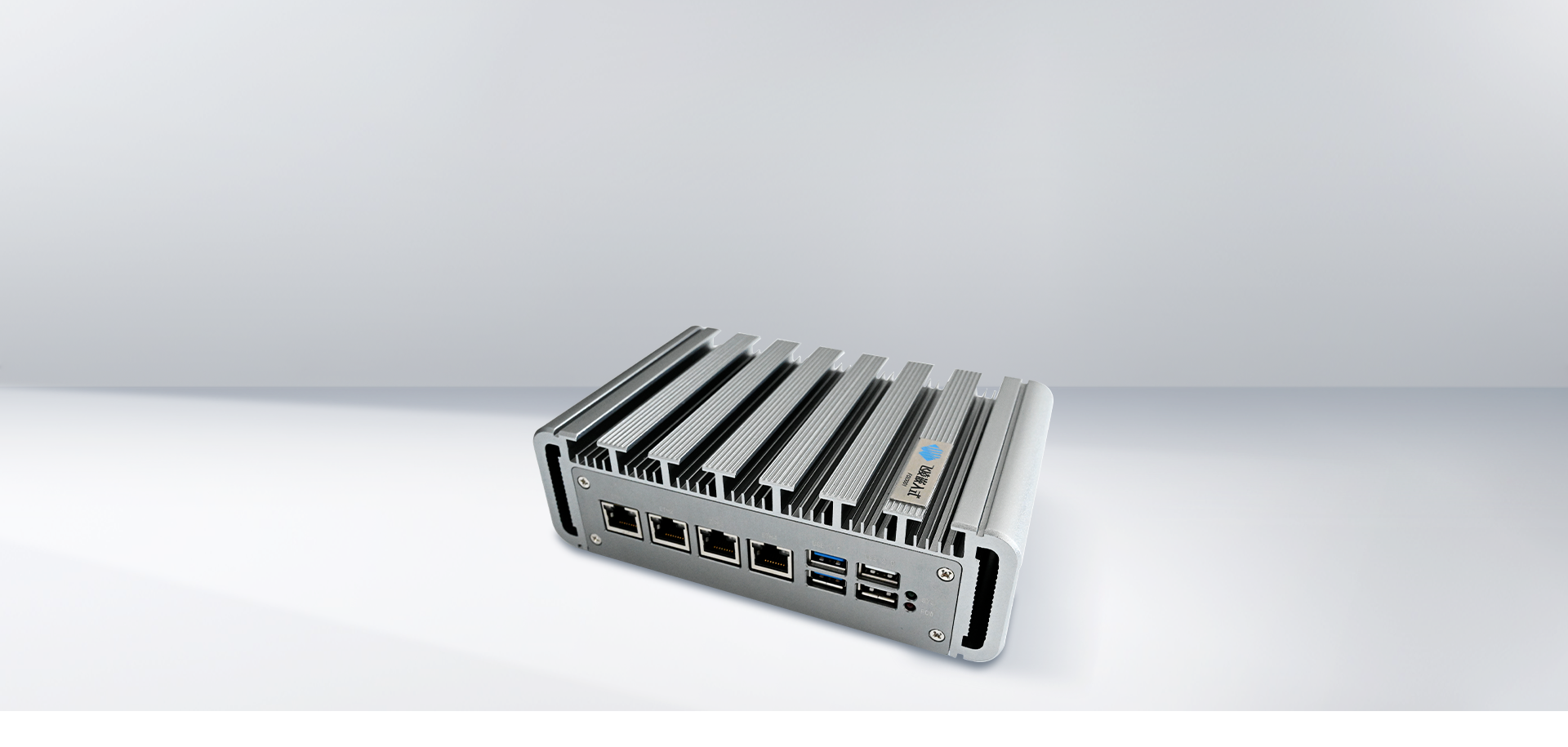

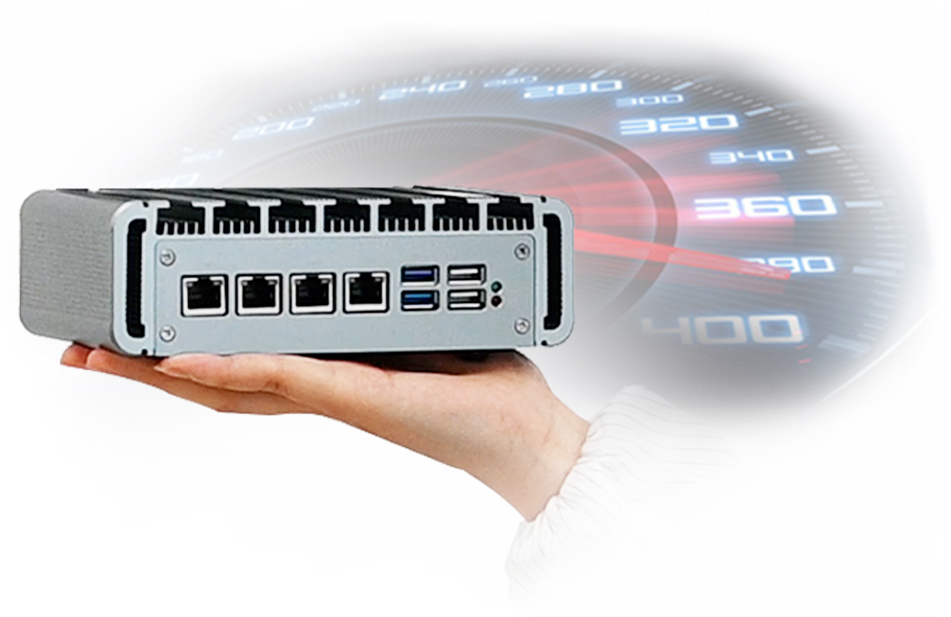

Small Size, Fanless Design
It has rich functional interfaces and a compact size; the optimized passive heat dissipation design ensures full - power operation of 40 TOPS computing power.

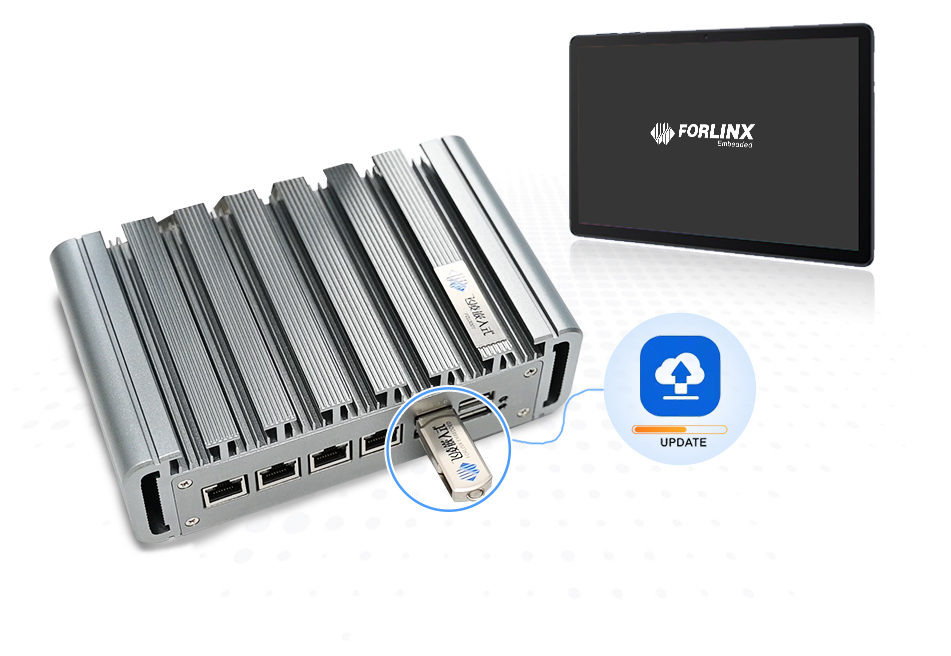

User-Friendly Design for Easier Productization
Forlinx Embedded FCU3011 supports easy system updates via OTG (Linux) or USB flash drive (Windows), facilitating development and after-sales maintenance. It also provides tools for enterprise customization, including logo modification.

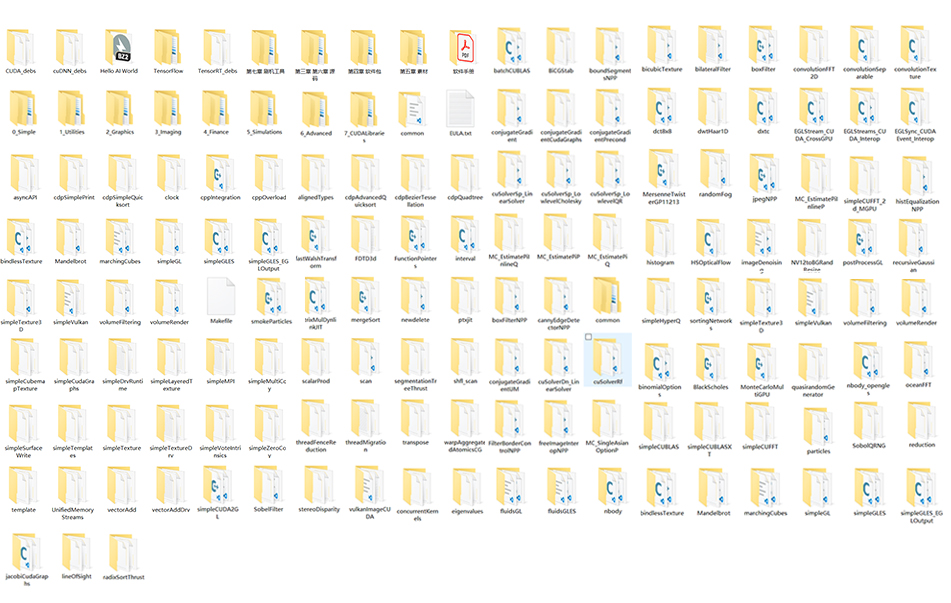

Rich Documentation
Detailed documentation is provided with the product, including a product user manual, complete CUDA cases, interface test routines, and 3D assembly drawings, comprehensively assisting your AI application development.
Application Areas
Forlinx Embedded AI edge computing terminal FCU3011 is ideal for portable medical devices, AGVs, small commercial robots, intelligent road analysis, visual inspection, and smart factories, delivering the high computing power required for edge AI applications.
▊ Hardware Features
| Hardware Parameters of AI Edge Computing Terminal FCU3011 | ||
|---|---|---|
| Processor | NVIDIA Jetson Orin Nano | |
| CPU: 6-core Arm® Cortex® A78AE v8.2 64-bit CPU | ||
|
GPU: NVIDIA Ampere architecture GPU 4G: 512 NVIDIA®Ampere cores, 16 Tensor cores 8G: 1024 NVIDIA®Ampere cores, 32 Tensor cores |
||
| Hardware Encoding：1080p30 | ||
| Hardware Decoding: | ||
| 1x 4K60 (H.265) | ||
| 2x 4K30 (H.265) | ||
| 5x 1080p60 (H.265) | ||
| 11x 1080p30 (H.265) | ||
| AI Performance | Jetson Orin Nano 4GB: | |
| It is equipped with a 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores, offering 20 TOPS of computing power. | ||
| Jetson Orin Nano 8GB: | ||
| It is equipped with a 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores, offering 40 TOPS of computing power. | ||
| RAM | 4GB/8GB LPDDR5 | |
| ROM | 128GB PCIeX4 Nvme SSD | |
| Environmental Temperature | 0℃~+60℃ | |
| Working Voltage | The rated DC voltage is 12V, supporting a wide voltage range from 9V to 24V, with reverse-connection protection and over-current protection. | |
| Overall Dimensions | 178*110*55mm | |
| Heat Dissipation | Passive heat dissipation, fanless design | |
| OS | Forlinx Desktop 22.04 | |
| Interface of AI Edge Computing Terminal FCU3011 | ||
|---|---|---|
| Function | Quantity | Description |
| Ethernet | 4 | 4 x Gigabit Ethernet ports, 10M/100/1000M auto-adaptive, with ESD level 3 protection. |
| USB | 4 | 2 x USB 3.0 and 2 x USB 2.0 interfaces, all with ESD level 3 protection. |
| HDMI | 1 | 1 x HDMI 2.0 port, supporting a maximum 4K display. |
| 4/5G | 1 | 5G module: Supports Quectel RM500U module; 4G module: Supports Quectel EM05 module. |
| WiFi | 1 | M.2 PCIex1 2230 KEY E standard interface. |
| TF | 1 | Supports storage expansion. |
| RS-485 | 1 | With 3KV isolation protection and ESD level 3 protection. |
| CAN | 1 | With 2.5KV isolation protection and ESD level 3 protection. |
| Switching Output | 2 | Relay output; Contact capacity: 5A 30VDC / 5A 250VAC. |
| Switching Intput | 2 | 2.5KV opto-isolation. |
| Real-Time Clock | 1 | Built-in CR2032 battery. |
| Recovery Button | 1 | One button for system recovery. |
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Documentation
Reference Manuals
Hardware Related
Product Datasheet
User Guide
Carrier Board Schematic
Carrier Board PCB
SoM Pinmux
Firmware Related
OS Image
Testing Demo
Source Code
Manual
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy & Shipment
1. Order Online: We have an online store on Alibaba. Please contact us for details.
2. Order Offline: Send your inquiry to [email protected].
3. Payment Terms: 100% T/T in advance.
1. Delivery: Goods shipped by express upon receipt of payment.
2. Lead Time: Sample orders within 5 working days; bulk orders 6 weeks.
3. Shipping Charge: Buyers bear the shipping cost.
