FET1043A-C3 System on Module

CPU: LS1043A

Architecture: Cortex-A53

Frequency: 1.6GHZ

RAM: 2GB DDR4

ROM: 16MB QSPI NorFlash,8GB eMMC

System: OpenWrt v21.02,ForlinxDesktop 18.04

Brief Message Compare

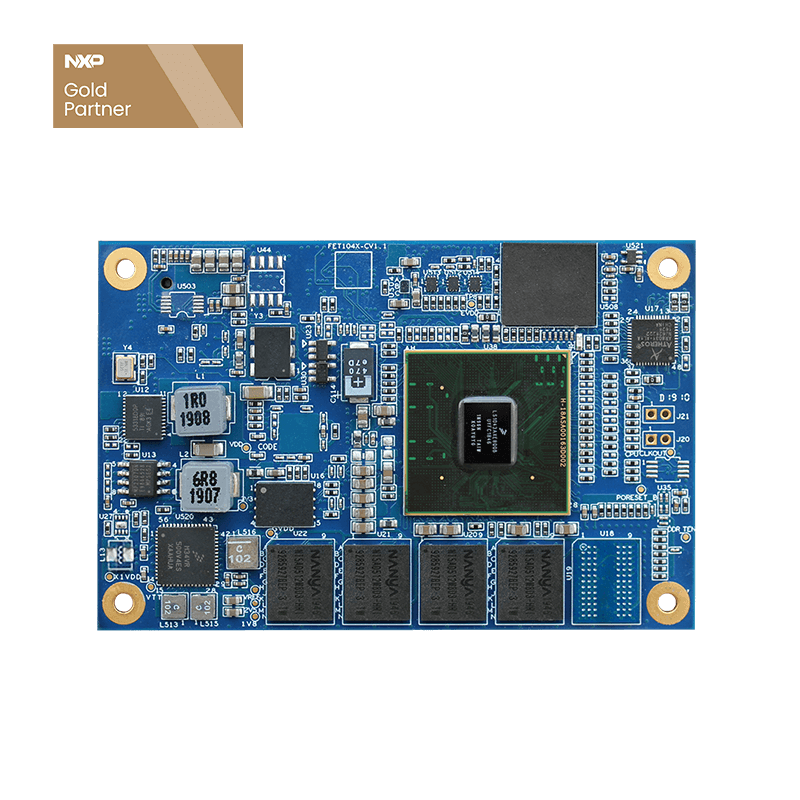

System on Module FET1043A-C based on NXP LS1043A

FET1043A-C3 is a system on module(SoM) / computer on module designed based NXP Cortex-A53 featuring quad-core processor LS1043A with frequency up to 1.6GHz has 7 native Ethernet interface(1x 10Gbps and 6x 1000Mbps), it has PCIe2.0, SATA3.0, USB3.0, UART, IIC and other periperals redy-to-use and supports both Ubuntu and OpenWRT. Widely used in router, IoT gateway, IP-PBX and other similar products, and fields such as edge computing, energy related gateway, smart city, industrial automation,video surveillance and other fields.

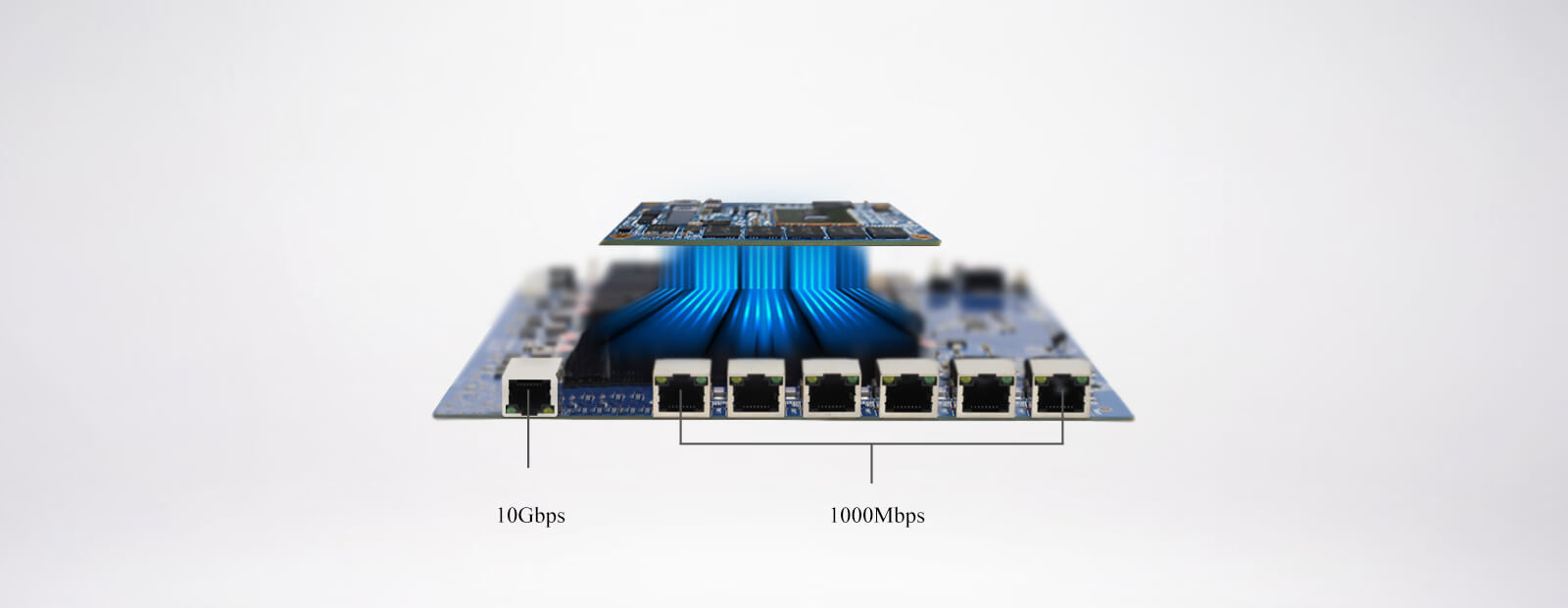

Ls1043A with Native Ethernet Interface

7x Ethernet with one up to 10Gbps and six up to 1000Mbps

LS1043A som system on module pc
LS1043A som system on module Pc Phone

High-speed Network

Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification,
and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation
and de-allocation(BMan). Software supported with DPDK and OVS-DPDK for high
performance in network related data packet processing

LS1043A som DPDK PFE DPAA pc
LS1043A som DPDK PFE DPAA phone

Various High-speed Interfaces

5Gbps PCIe2.0, 5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet

LS1043A Cortex A53 USB3.0, PCIe, SATA Pc
LS1043A Cortex A53 USB3.0, PCIe, SATA Phone

Flexible Scalability

PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals

LS1043A som PCIe dual band wifi PC
LS1043A som PCIe dual band wifi Phone

COM Express Package Designing

LS1043A som COM-E Mini Type-10 PC
LS1043A som COM-E Mini Type-10

OK1043A-C3 Single Board Computer(SBC) Pin Diagram

OK1043A-C3 single board computer consists of SoM FET1043A-C and carrier board

LS1043A Ubuntu cortex a53 development board openwrt
LS1043A Ubuntu cortex a53 development board openwrt

▊ Hardware Features


Overview of FET1043A-C3 System on Module
CPU NXP LS1043A
Architecture quad-core Cortex-A53
RAM 2GB DDR4
OS Ubuntu/OpenWrt
Package COM Express
Working Temp Width -40℃~ +80℃
Main Frequency ≤1.6GHz
Flash 8GB eMMC; 16MB QSPI NorFlash
Voltage Input 12V
Dimensions 84mm×55mm

FET1043A-C3 System on Module Features

Peripheral

QTY

Spec.

Ethernet

≤7


CPU has 7 native MAC, available for below combinations

7x 1Gbps Ethernet
1x 2.5G/10Gbps and 6x 1Gbps Ethernet
2x 2.5Gbps and 2x 1Gbps Ethernet


PCIe2.0

≤3

SerDes configurable, can support X1, X2, X4 modes, each channel up to 5GT/s

SATA3.0

≤1

SerDes configurable, up to 6Gbps

SerDes2

4

4x SerDes for high speed peripherals:

3x PCI Express 2.0 controller

1x SATA 3.0 controller

up to 4x SGMII with 1000 Mbit/s

up to 2x SGMII with 2500 Mbit/s

up to one XFI (10 GbE)

up to 1x QSGMII

USB3.0

≤3

up to 5Gbps

UART

≤6

2x DUART or 6x UART

IIC

≤3


eSDHC

≤1

can support SD3.0 EMMC4.5, multiplexed with eMMC, it can be used for system booting or flashing, but can not be used for storage expanding

JTAG

1

NXP CodeWarrior TAP

Note2: SerDes configuration sheet about Ethernet, PCIe and SATA, please refer to QorIQ LS1046A Reference

▊ Software Features

Linux Ubuntu

Cross-compiler

aarch64-linux-gnu-gcc

Ubuntu/Linaro 7.3.0-16ubuntu3~18.04, glibc-2.27, binutils-2.30-0, gdb-8.1

System Flashing

SD card


U-disk


UBoot

version: Uboot-2018.03


can support device tree


can support TFTP NFS


can support U-disk, eMMC, TF card, QSPI Flash, etc.


Linux kernel MAC setting and saving


Linux Kernel

Version: Linux-4.14.47


File system

EXT4/NFS/FAT32

eMMC

HS200 mode

Watchdog


RTC

Rx8010

IO


QSPI

4-wire mode high speed reading and writing

PCIe

can support WLE900VX 5G WIFI module with mini PCIe interface

can support RTL8111F Gigabit Ethernet module with MINI-PCIe interface
can support Intel 82574L Gigabit NIC with PCIe(x1) interface

USB 3.0

U-disk, USB Hub, USB keyboard and mouse, etc.

TMU

LS1043 internal temp sensor

UART


Ethernet, (10000/1000/100/10Mbps)

1x 10-Gigabit Ethernet, 6x Gigabit Ethernet

UART

1x RS232 debug port, 3x RS232 general purpose UART

Ubuntu File System

Version: ubuntu-18.04.1


Samba


Lighttpd


Docker


LXC


QEMU


OP-TEE OS


OpenSSL


IPSEC


DPDK

OVS-DPDK


Linux LEDEv17.01.6 Release

Linux Kernel

Version: Linux- 4.9.63

Openwrt System

Version: v17.01.6

Sourpack and Version

ath10k-firmware-qca988x_2017-03-29-956e2609-1_aarch64_generic
base-files_178-r5410+1-62ede4f783_aarch64_generic
block-mount_2017-07-31-8ab4fda6-1_aarch64_generic
busybox_1.27.2-1_aarch64_generic
dnsmasq_2.78-3_aarch64_generic
dropbear_2017.75-4_aarch64_generic
ethtool_4.15-1_aarch64_generic
firewall_2017-11-07-c4309372-1_aarch64_generic
fstools_2017-07-31-8ab4fda6-1_aarch64_generic
fwtool_1_aarch64_generic
hostapd-common_2017-08-24-c2d4f2eb-4_aarch64_generic
hostapd_2017-08-24-c2d4f2eb-4_aarch64_generic
iperf3_3.3-1_aarch64_generic
iperf_2.0.10-1_aarch64_generic
iw_4.9-1_aarch64_generic
jshn_2017-10-06-729f47fd-1_aarch64_generic
jsonfilter_2016-07-02-dea067ad-1_aarch64_generic
kernel_4.9.63-1-5ac84a901b0c0bf7e0ffa39f812a12fe_aarch64_generic
kmod-ath10k_4.9.63+2017-11-01-1_aarch64_generic
kmod-ath_4.9.63+2017-11-01-1_aarch64_generic
kmod-cfg80211_4.9.63+2017-11-01-1_aarch64_generic
kmod-ipt-conntrack_4.9.63-1_aarch64_generic
kmod-ipt-core_4.9.63-1_aarch64_generic
kmod-ipt-nat_4.9.63-1_aarch64_generic
kmod-mac80211_4.9.63+2017-11-01-1_aarch64_generic
kmod-nf-conntrack6_4.9.63-1_aarch64_generic
kmod-nf-conntrack_4.9.63-1_aarch64_generic
kmod-nf-ipt_4.9.63-1_aarch64_generic
kmod-nf-nat_4.9.63-1_aarch64_generic
kmod-nls-base_4.9.63-1_aarch64_generic
kmod-ppfe_4.9.63-1_aarch64_generic
kmod-scsi-core_4.9.63-1_aarch64_generic
kmod-usb-core_4.9.63-1_aarch64_generic
kmod-usb-dwc3_4.9.63-1_aarch64_generic
kmod-usb-storage_4.9.63-1_aarch64_generic
layerscape-ppa-ls1043ardb_2017.09-1_aarch64_generic
layerscape-ppfe_2017.09-1_aarch64_generic
lede-keyring_2017-01-20-a50b7529-1_aarch64_generic
libblobmsg-json_2017-10-06-729f47fd-1_aarch64_generic
libc_1.1.18-1_aarch64_generic
libgcc_5.5.0-1_aarch64_generic
libip4tc_1.6.1-1_aarch64_generic
libip6tc_1.6.1-1_aarch64_generic
libiwinfo-lua_2017-08-23-c1a03e82-1_aarch64_generic
libiwinfo_2017-08-23-c1a03e82-1_aarch64_generic
libjpeg_9a-1_aarch64_generic
libjson-c_0.12.1-1_aarch64_generic
libjson-script_2017-10-06-729f47fd-1_aarch64_generic
liblua_5.1.5-1_aarch64_generic
liblucihttp-lua_2018-05-18-cb119ded-1_aarch64_generic
liblucihttp_2018-05-18-cb119ded-1_aarch64_generic
libnl-tiny_0.1-5_aarch64_generic
libpcap_1.8.1-1_aarch64_generic
libpthread_1.1.18-1_aarch64_generic
libubox_2017-10-06-729f47fd-1_aarch64_generic
libubus-lua_2017-11-13-5f87f548-1_aarch64_generic
libubus_2017-11-13-5f87f548-1_aarch64_generic
libuci_2017-09-29-5ad59ad4-1_aarch64_generic
libuclient_2017-11-02-4b87d831-1_aarch64_generic
libxtables_1.6.1-1_aarch64_generic
logd_2017-11-06-2c0d9cfe-1_aarch64_generic
lua_5.1.5-1_aarch64_generic
luci-app-firewall_git-18.210.69179-6df9a57-1_all
luci-app-mjpg-streamer_git-18.210.69179-6df9a57-1_all
luci-app-samba_git-18.210.69179-6df9a57-1_all
luci-base_git-18.210.69179-6df9a57-1_aarch64_generic
luci-i18n-base-en_git-18.210.69179-6df9a57-1_all
luci-i18n-base-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-firewall-en_git-18.210.69179-6df9a57-1_all
luci-i18n-firewall-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-mjpg-streamer-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-samba-en_git-18.210.69179-6df9a57-1_all
luci-i18n-samba-zh-cn_git-18.210.69179-6df9a57-1_all
luci-lib-ip_git-18.210.69179-6df9a57-1_aarch64_generic
luci-lib-jsonc_git-18.210.69179-6df9a57-1_aarch64_generic
luci-lib-nixio_git-18.210.69179-6df9a57-1_aarch64_generic
luci-mod-admin-full_git-18.210.69179-6df9a57-1_aarch64_generic
luci-proto-ipv6_git-18.210.69179-6df9a57-1_all
luci-proto-ppp_git-18.210.69179-6df9a57-1_all
luci-theme-bootstrap_git-18.210.69179-6df9a57-1_all
luci-theme-freifunk-generic_git-18.210.69179-6df9a57-1_all
luci-theme-material_git-18.210.69179-6df9a57-1_all
luci-theme-openwrt_git-18.210.69179-6df9a57-1_all
luci_git-18.210.69179-6df9a57-1_all
mjpg-streamer_r182-10_aarch64_generic
mtd_21_aarch64_generic
netifd_2017-11-17-c92106e3-1_aarch64_generic
opkg_2017-07-28-4bd8601e-1_aarch64_generic
procd_2017-10-10-7c9aa7c3-1_aarch64_generic
rcw-layerscape-ls1043ardb_2017.09-1_aarch64_generic
rpcd-mod-rrdns_20170710_aarch64_generic
rpcd_2017-11-12-a0231be8-1_aarch64_generic
samba36-server_3.6.25-8_aarch64_generic
tcpdump_4.9.2-1_aarch64_generic
ubi-utils_1.5.2-1_aarch64_generic
ubox_2017-11-06-2c0d9cfe-1_aarch64_generic
ubus_2017-11-13-5f87f548-1_aarch64_generic
ubusd_2017-11-13-5f87f548-1_aarch64_generic
uci_2017-09-29-5ad59ad4-1_aarch64_generic
uclibcxx_0.2.4-3_aarch64_generic
uclient-fetch_2017-11-02-4b87d831-1_aarch64_generic
uhttpd-mod-ubus_2017-11-04-a235636a-1_aarch64_generic
uhttpd_2017-11-04-a235636a-1_aarch64_generic
usign_2015-07-04-ef641914-1_aarch64_generic
wireless-regdb_2017-10-20-4343d359_aarch64_generic
wpa-supplicant_2017-08-24-c2d4f2eb-4_aarch64_generic

▊ NXP Software Resource Recommendation ASK


ASK is an OpenWRT-based application solution kit for broadband routers from NXP, which utilizes the packet gas pedal in the LS1043A / LS1046A processor and delivers wire-speed performance with less than 5% ARM core load.

LS1043A ASK Download: NXP Special Single Chip Hardware Speeds Router/Switch Software

NXP Software Resource Recommendation ASK

▊ Download


Catalog: Forlinx Catalog Manual

Product Brief: FET1043A-C3 SoM and OK1043A-C3 SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
