NXP i.MX RT 1052 based System on Module FET1052 -C

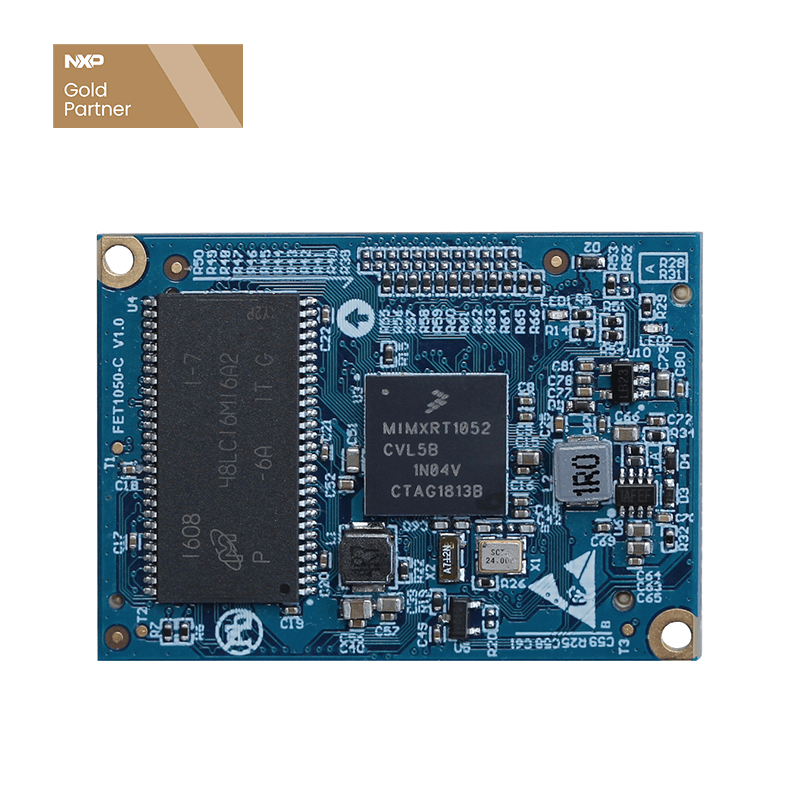

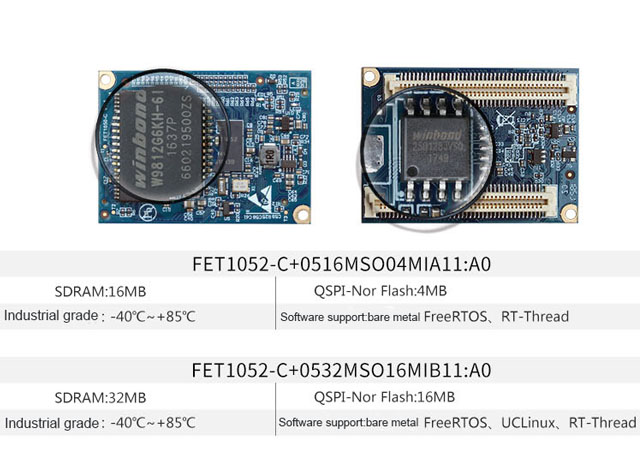

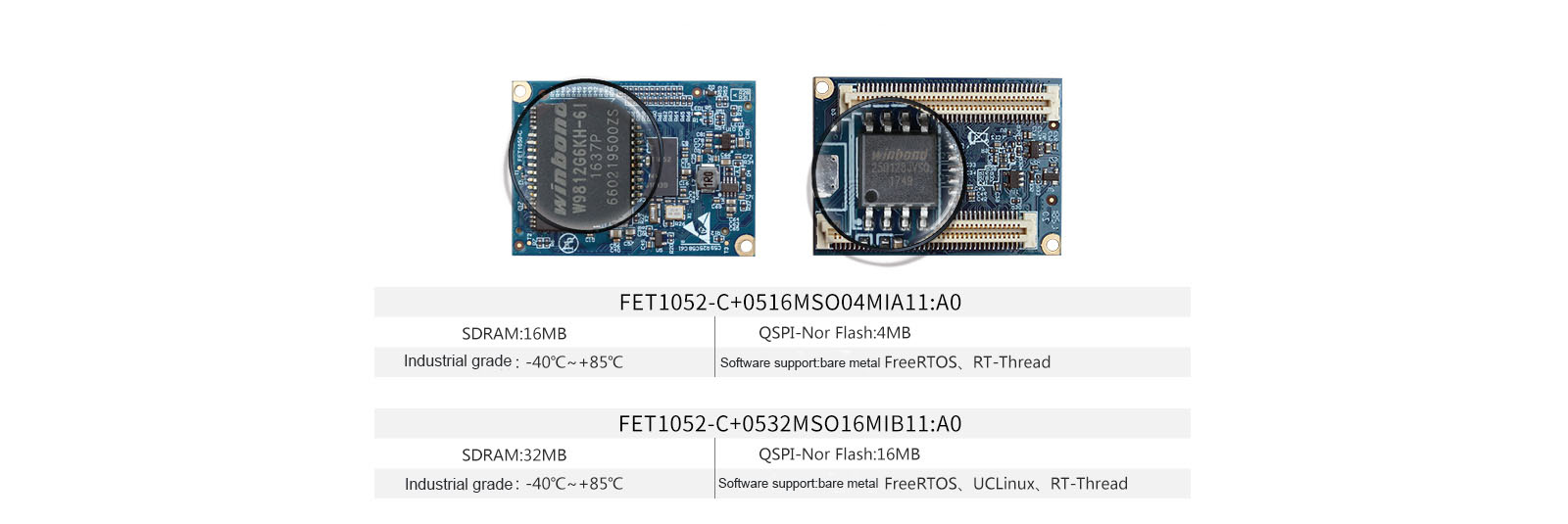

FET1052-C is an system on module designed based on NXP Cortex-M7 i.MX RT1050 series processor, the one we use is i.MXRT1052. It operates at speeds up to 528MHz to provide high CPU performance and best real-time response. The i.MX RT1052 processor has 512 KB on-chip RAM,which can be flexibly configured as TCM or general-purpose on-chip RAM. 16MB/ 32MB SDRAM, 4MB/ 16MB QSPI-NorFlash are optional on SoM FET1052-C.

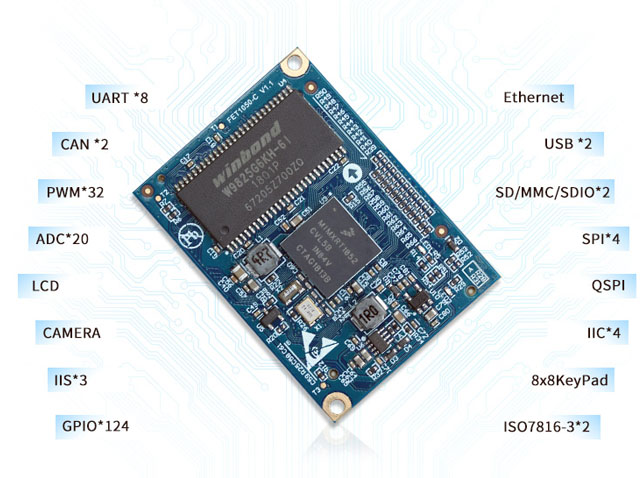

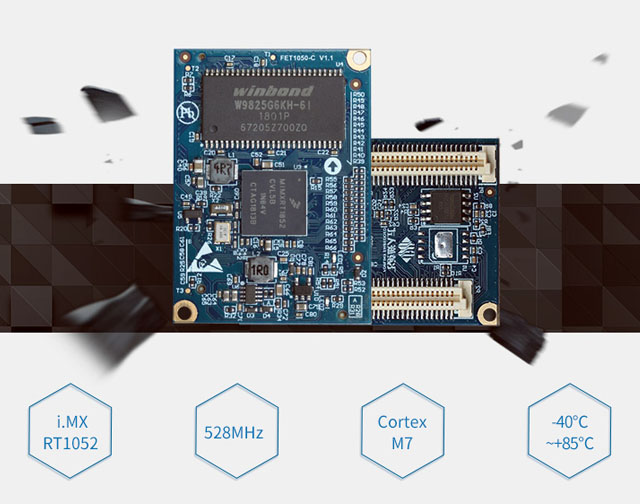

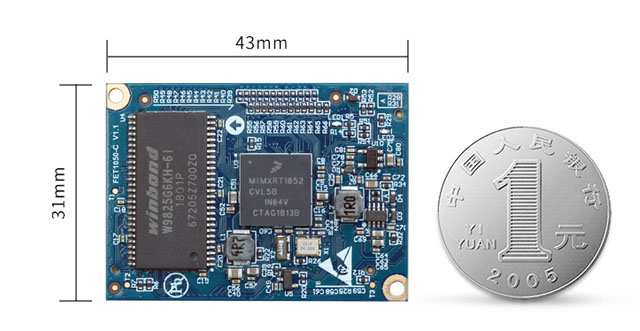

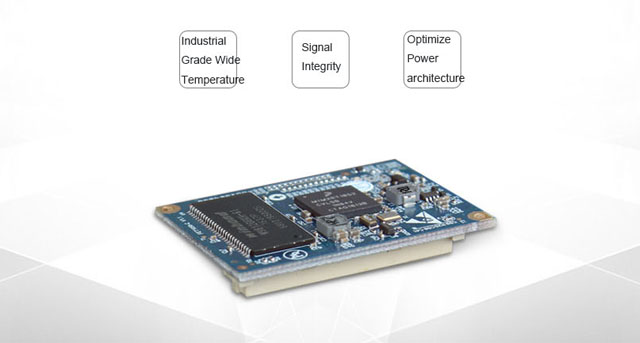

The SoM FET1052-C is an industrial grade item with working temperature ranges from -40℃ to +85℃ and it has a compact appearance that dimensions only 31mm * 43mm, the SoM is designed with a couple of 80-pin connectors with pitch of 0.8mm, all 160pins of the processor are drawn out with GPIO up to 124 pins. Other peripheral pins such as UART, Ethernet, USB, CAN, PWM, ADC, LCD and CAMERA are all available. What's more, OS uClinux is supported very well.
▊ Hardware Features
|Overview of FET1052-C System on Module|
|Frequency||528MHz||PCB||thickness 1.6mm, 4-layer PCB, ENIG|
|RAM||SRAM 512KB; SDRAM 16MB/32MB||Package||board to board connector, 2*80pin, pitch 0.8mm|
|Flash||QSPI Nor Flash 4MB/16MB||Working Temperature||-40℃~+85℃|
|OS||Bare metal, FreeRTOS, uCLinux, RT-Thread|
|FET1052-C System on Module Features|
upto RGB888, resolution up to 1366* 768*(WXGA), 480*x 272 and 800* 480 are available
8-bit DVP, up to 5.0MP
SD card or SDIO card with 1-bit or 4-bit mode
1x USB2.0 OTG(up to 480Mbps), 1x USB2.0 host, integrated with HS USB Phy
up to 3x IIS audio
Sony/ Philips digital audio interface
each up to 5.0Mbps
full duplex enhanced sync. serial interface, up to 52Mbit/s, it could be configured to host/ device mode, four chip selections are available
2x 12-bit ADC, up to 20 input channels
16-bit parallel bus
▊ Software Features
|Bare Metal DEMO|
|build up of compiling environment||Ethernet|
|Make file system image||LED GPIO OUT|
|TF card booting/ iamge flashing||User key|
|micro SD/TF card driver||LCD FrameBuffer|
|USB HOST||Tsc resistive touching|
|read and write file system||UART testing|
|spi||LCD/resistive touch screen/emwin testing|
