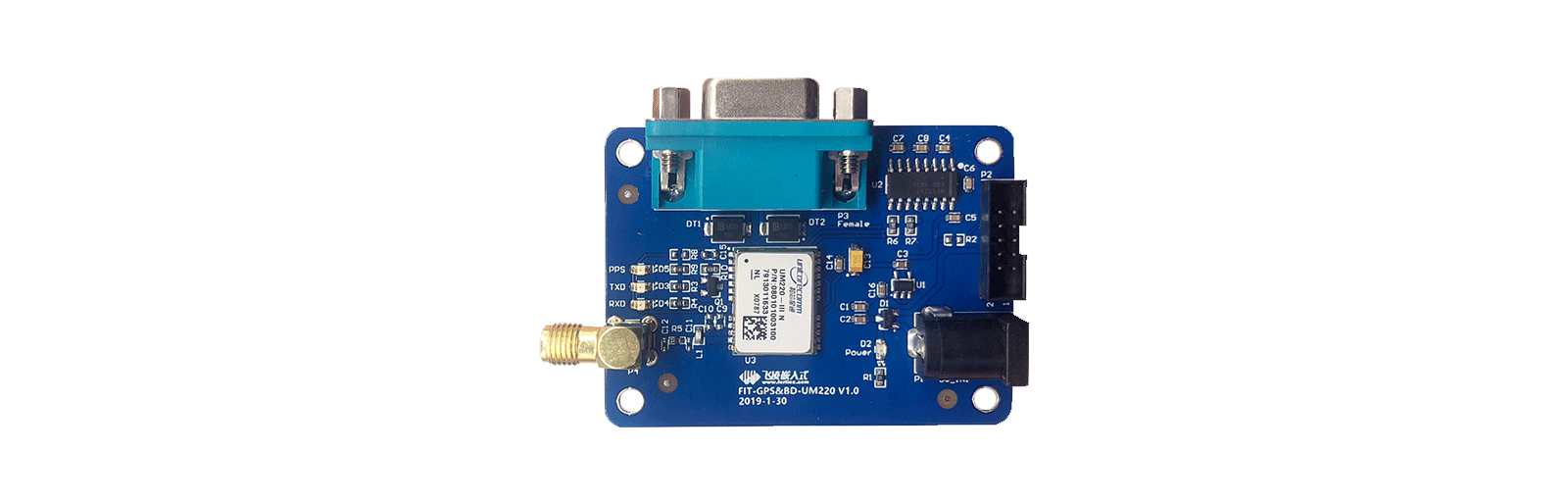

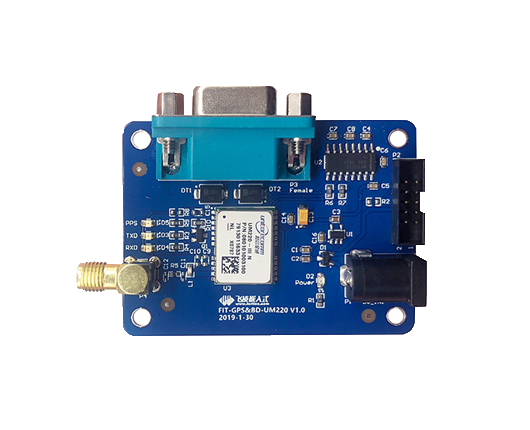

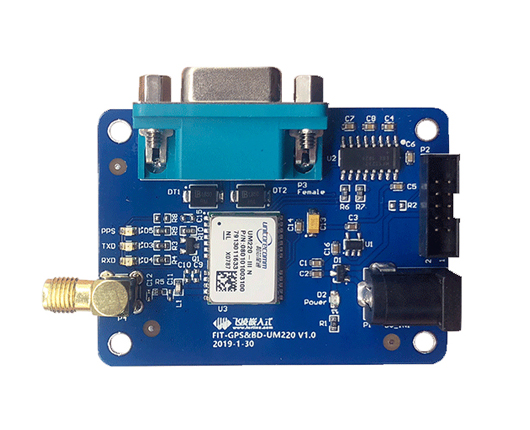

| GPS& Beidou Module | |||
|---|---|---|---|
| Item | Name | Spec. | |
| Chipset | UM220-Ⅲ NL | lower power GNSS SoC | |
| Frequency Input | frequency | BDS B1&GPS L1, 1559-1577MHz | |
| Standing Wave Ratio | ≤1.5 | ||
| Input Impedance | 50ohms | ||
| GNSS | positioning accurate | 2.5m CEP(dual-system, opensky) | |
| RMS | GPS/dual mode: 0.1m/s | ||
| Beidou: 0.2m/s(open sky) | |||
| TTFF | cold starting 30s | ||
| hot starting 1s | |||
| re-capture＜1s | |||
| Sensibility | tracking | -160dBm | |
| capture | Beidou: -145dBm; GPS: -147dBm | ||
| hot starting/ re-capture | -150dBm | ||
| 1PPS accuracy(RMS) | 20ns | ||
| Data updating rate | 1Hz | ||
| Nevigating Data Form | based on NMEA0183, compatible with Beidou | ||
| Power | main power | 5V recommended | |
| Power consumption | 120mW(typical) | ||
| Peak current | 100mA | ||
| Interface | simple horn seat serial interface | LVTTL, baud rate 4800-115200bps, default 9600bps | |
| DB9 female | RS232, baud rate 4800-115200bps, default9600bps | ||
| Applicable Single Board Computer | |||
|---|---|---|---|
| Single Board Computer | OS | ||
| OKMX6Q-C | Linux3.0.35/4.1.15, Android4.4/6.0 | ||
| OKMX6Q-S3 | Linux3.0.35/4.1.15, Android4.4/6.0 | ||
| OKMX6DL-S3 | Linux3.0.35/4.1.15, Android4.4/6.0 | ||
| OKMX6UL | Linux3.14.38/4.1.15 | ||
| OK335xD | Linux3.2, Android2.3/4.2 | ||
| OK335xS | Linux3.2, Android2.3/4.2 | ||
| OK335xS-II | Linux3.2 | ||
| OK4418-C | Linux3.4.39, Android5.1.1 | ||
| OK6818-C | Linux3.4.39, Android5.1.1 | ||
| OK5718-C | Linux4.9.41 | ||
| OK1052-C | uClinux | ||
| Packing List | |||
|---|---|---|---|
| FIT-GPS&BD-UM220 V1.0 module x 1 | 2.0-10P-15cm cable x 1 | ||
| GPS SMA male magnetic base antenna 5 meters x 1 | dual-hole straight connect serial port cablex 1 | ||
| 5.5*2.1mm AC220V DC5V 2.0A power adapter x 1 | |||
