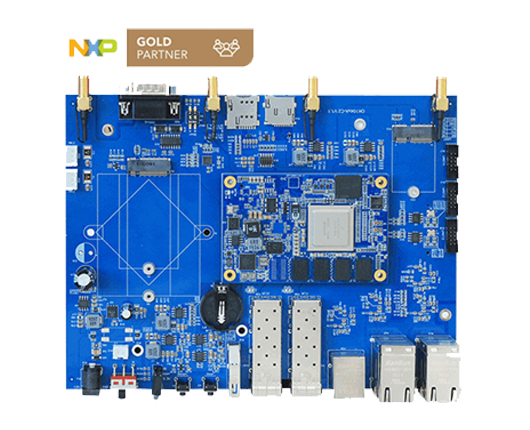

OK1046A-C2 Single Board Computer

CPU: LS1046A

Architecture: Cortex-A72

Frequency: 1.8GHz

RAM: 2GB/4GB DDR4

ROM: 8GB eMMC

System: OpenWrt v21.02,ForlinxDesktop 18.04

Brief Message Compare

OK1046A-C2 Single Board Computer Based on NXP LS1046A

OK1046A-C2 is single board computer/development board designed based on NXP Cortex-A72 featuring quad-core processor LS1046A with frequency up to 1.8GHz. It consists of a carrier board and SoM (system on module) with separated structure by COM Expressor connector with a transfer rate up to 10GHz. the processor can support 2 native SFP+(10Gb), 5 Gagibit Ethernet, and also USB3.0, M.2( 5G), mSATA, M.2(WiFi), UART and other useful peripheral interfaces are available, in software view, Ubuntu and OpenWRT are both well supported. Widely used in industrial routers, edge computing gateway, IP-PBX, energy management, automation, and other fields.

Robust processing performance

Quad-core ARM Cortex-A72 processor with frequency up to 1.8GHz,
2GB DDR4 RAM, data throughput up to 2.1GT/s, and CoreMark up to 45000

LS1046 LS1046A SBC single board computer pc
LS1046 LS1046A SBC single board computer Pc Phone

8 Native Ethernet

up to two XFI(10GbE)

LS1046A SBC 8 Ethernet LAN pc
LS1046A SBC 8 Ethernet LAN

High-speed Network

Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification, and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation and de-allocation(BMan).
Software supported with DPDK and OVS-DPDK for high performance in network related data packet processing

LS1046A SBC DPDK PFE DPAA pc
LS1046A SBC DPDK PFE DPAA phone

Various High-speed Interfaces

5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet, 32GT/s PCIe3.0(x4)

LS1046A Cortex A72 USB3.0, PCIe, SATA Pc
LS1046A Cortex A72 USB3.0, PCIe, SATA Phone

Flexible Scalability

PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals

LS1046A SBC PCIe dual band wifi PC
LS1046A SBC PCIe dual band wifi Phone

COM Express Package designing

COM Express package designing between SoM and carrier board can provide data transfering rate up to 10GHz,
providing a wealth of connectivity and interface options. COM Express Mini Type 10 with high compatibility makes it flexible for users to custom different SoM for carrier board.

LS1046A SBC COM-E Mini Type-10 PC
LS1046A SBC COM-E Mini Type-10

OS Supporting

Ubuntu18.04 and OpenWRT are available for applications
and plugins from third parties, which is convenient for users to do development

LS1046A SBC Ubuntu cortex a72 development board openwrt PC
LS1046A SBC Ubuntu cortex a72 development board openwrt

OK1046A-C SBC Pin Diagram

OK1046A-C single board computer consists of SoM FET1046A-C and carrier board

OK1046A-C SBC Pin Diagram
OK1046A-C SBC Pin Diagram

▊ Product Video


OK1046A-C2 SBC(Single Board Computer) Support 10Gbps Ethernet

▊ Hardware Features


Overview of FET1046A-C System on Module
CPU NXP LS1046A
Architecture Quad-core, Cortex-A72
RAM 2GB/4GB DDR4
OS Ubuntu-18.04.1/OpenWrt v18.06.0-rc2
Package COM Express
Working Temp. -40℃~ +75℃
Main Frequency ≤1.8GHz
ROM 8GB eMMC; 16MB QSPI NorFlash
Voltage In 12V
Dimensions 84mm×55mm


FET1046A-C System on Module Features

Peripheral

QTY

Spec.

Ethernet



≤8

CPU can support 8 native MAC, available for below combinations:
8-ch 1Gbps Ethernet;
1-ch 2.5G/10Gbps and 7-ch 1Gbps Ethernet;
2-ch 2.5G/10Gbps and 5-ch 1Gbps Ethernet;
3-ch 2.5Gbps and 4-ch 1Gbps Ethernet;

PCIe3.0

≤3

Set by SerDes, can support x1, x2 and x4 modes, each channel up to 8GT/s

SATA3.0

≤1

Set by SerDes, transfer rate up to 6Gbps

SerDes2

4

8 SerDes channels can be used for high speed peripherals:

3-ch PCI Express 3.0 controller

1-ch SATA 3.0 controller

can support up to 5-ch SGMII and each 1000 Mbit/s

can support up to 3-ch SGMII and each 2500 Mbit/s

can support up to 2-ch XFI (10 GbE)

can support up to 1-ch QSGMII

USB3.0

≤3

Up to 5Gbps

UART

≤6

2-ch DUART or 6-ch UART

IIC

≤3


eSDHC

≤1

Can support SD3.0 EMMC4.5, multiplexed with eMMC, it can be used for system booting from card or OS image flashing, butcan not be used for external memory expanding

Note2:SerDes can be used for settings of Ethernet, PCIe and SATA, details please refer to 'QorIQ LS1043A Reference Manual'

OK1046A-C2 Carrier Board Features

Peripherals

QTY

Spec.

Ethernet 1Gbps

5

1G/ 100M/ 10Mbps auto-negotiation, 3 from SGMII and 2 from RGMII

SFP+

2

transfer rate up to 10Gbps, for SFP+ optical module or electrical module

mSATA

1

SATA3.0, up to 6Gbps

M.2 E key

1

integrated with PCIex1, for WiFi card

M.2 B key

1

integrated with PCIex1, USB3.0 and SIM, for 5G module

USB 3.0

1

up to 5Gbps

UART

3

TTL, 3-wire serial interface

RTC

1

on-board CR2032 cell

User key

1

for user's definition

▊Software Features


Linux ubuntu

Cross-compiler

aarch64-linux-gnu-gcc

Ubuntu/Linaro 7.3.0-16ubuntu3~18.04, glibc-2.27, binutils-2.30-0, gdb-8.1

Booting mode

boot system from SD card


flash OS image by U-disk






UBoot

version: Uboot-2018.03


can support device tree


TFTP and NFS are supported


can support U-disk, eMMC, TF card, QSPI Flash, etc.


can support Linux kernel MQC setting and saving














Linux kernel driver

version: Linux-4.14.47


file system

EXT4/NFS/FAT32

eMMC

HS200 mode

watchdog


RTC

Rx8010

IO


QSPI

can support 4-wire mode high speed reading and writing

PCIe

MINI-PCIe: WLE900VX Gigabit 5G WIFI module
MINI-PCIe: RTL8111F Gigabit Ethernet module
PCIe(x1): Intel 82574L Gigabit NIC

USB 3.0

U-disk, USB Hub, USB mouse, USB keyboard

TMU

LS1043 inernal temp sensor

UART


SATA

1x mSATAT

Ethernet(10000/1000/100/10Mbps)

1x Ten-Gigabit Ethernet, 1x SFP+, 5x Gigabit Ethernet

UART

1x RS232 debug port, 3x RS232 general purpose serial interface








Ubuntu file system

version: ubuntu-18.04.1


Samba


Lighttpd


Docker


LXC


QEMU


OP-TEE OS


OpenSSL


IPSEC


DPDK

OVS-DPDK

Linux LEDE v17.01.6 Release

Linux kernel

version: Linux-4.9.63

Openwrt

version: v17.01.6

































Source pack

ath10k-firmware-qca988x_2017-03-29-956e2609-1_aarch64_generic
base-files_178-r5410+1-62ede4f783_aarch64_generic
block-mount_2017-07-31-8ab4fda6-1_aarch64_generic
busybox_1.27.2-1_aarch64_generic
dnsmasq_2.78-3_aarch64_generic
dropbear_2017.75-4_aarch64_generic
ethtool_4.15-1_aarch64_generic
firewall_2017-11-07-c4309372-1_aarch64_generic
fstools_2017-07-31-8ab4fda6-1_aarch64_generic
fwtool_1_aarch64_generic
hostapd-common_2017-08-24-c2d4f2eb-4_aarch64_generic
hostapd_2017-08-24-c2d4f2eb-4_aarch64_generic
iperf3_3.3-1_aarch64_generic
iperf_2.0.10-1_aarch64_generic
iw_4.9-1_aarch64_generic
jshn_2017-10-06-729f47fd-1_aarch64_generic
jsonfilter_2016-07-02-dea067ad-1_aarch64_generic
kernel_4.9.63-1-5ac84a901b0c0bf7e0ffa39f812a12fe_aarch64_generic
kmod-ath10k_4.9.63+2017-11-01-1_aarch64_generic
kmod-ath_4.9.63+2017-11-01-1_aarch64_generic
kmod-cfg80211_4.9.63+2017-11-01-1_aarch64_generic
kmod-ipt-conntrack_4.9.63-1_aarch64_generic
kmod-ipt-core_4.9.63-1_aarch64_generic
kmod-ipt-nat_4.9.63-1_aarch64_generic
kmod-mac80211_4.9.63+2017-11-01-1_aarch64_generic
kmod-nf-conntrack6_4.9.63-1_aarch64_generic
kmod-nf-conntrack_4.9.63-1_aarch64_generic
kmod-nf-ipt_4.9.63-1_aarch64_generic
kmod-nf-nat_4.9.63-1_aarch64_generic
kmod-nls-base_4.9.63-1_aarch64_generic
kmod-ppfe_4.9.63-1_aarch64_generic
kmod-scsi-core_4.9.63-1_aarch64_generic
kmod-usb-core_4.9.63-1_aarch64_generic
kmod-usb-dwc3_4.9.63-1_aarch64_generic
kmod-usb-storage_4.9.63-1_aarch64_generic
layerscape-ppa-ls1043ardb_2017.09-1_aarch64_generic
layerscape-ppfe_2017.09-1_aarch64_generic
lede-keyring_2017-01-20-a50b7529-1_aarch64_generic
libblobmsg-json_2017-10-06-729f47fd-1_aarch64_generic
libc_1.1.18-1_aarch64_generic
libgcc_5.5.0-1_aarch64_generic
libip4tc_1.6.1-1_aarch64_generic
libip6tc_1.6.1-1_aarch64_generic
libiwinfo-lua_2017-08-23-c1a03e82-1_aarch64_generic
libiwinfo_2017-08-23-c1a03e82-1_aarch64_generic
libjpeg_9a-1_aarch64_generic
libjson-c_0.12.1-1_aarch64_generic
libjson-script_2017-10-06-729f47fd-1_aarch64_generic
liblua_5.1.5-1_aarch64_generic
liblucihttp-lua_2018-05-18-cb119ded-1_aarch64_generic
liblucihttp_2018-05-18-cb119ded-1_aarch64_generic
libnl-tiny_0.1-5_aarch64_generic
libpcap_1.8.1-1_aarch64_generic
libpthread_1.1.18-1_aarch64_generic
libubox_2017-10-06-729f47fd-1_aarch64_generic
libubus-lua_2017-11-13-5f87f548-1_aarch64_generic
libubus_2017-11-13-5f87f548-1_aarch64_generic
libuci_2017-09-29-5ad59ad4-1_aarch64_generic
libuclient_2017-11-02-4b87d831-1_aarch64_generic
libxtables_1.6.1-1_aarch64_generic
logd_2017-11-06-2c0d9cfe-1_aarch64_generic
lua_5.1.5-1_aarch64_generic
luci-app-firewall_git-18.210.69179-6df9a57-1_all
luci-app-mjpg-streamer_git-18.210.69179-6df9a57-1_all
luci-app-samba_git-18.210.69179-6df9a57-1_all
luci-base_git-18.210.69179-6df9a57-1_aarch64_generic
luci-i18n-base-en_git-18.210.69179-6df9a57-1_all
luci-i18n-base-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-firewall-en_git-18.210.69179-6df9a57-1_all
luci-i18n-firewall-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-mjpg-streamer-zh-cn_git-18.210.69179-6df9a57-1_all
luci-i18n-samba-en_git-18.210.69179-6df9a57-1_all
luci-i18n-samba-zh-cn_git-18.210.69179-6df9a57-1_all
luci-lib-ip_git-18.210.69179-6df9a57-1_aarch64_generic
luci-lib-jsonc_git-18.210.69179-6df9a57-1_aarch64_generic
luci-lib-nixio_git-18.210.69179-6df9a57-1_aarch64_generic
luci-mod-admin-full_git-18.210.69179-6df9a57-1_aarch64_generic
luci-proto-ipv6_git-18.210.69179-6df9a57-1_all
luci-proto-ppp_git-18.210.69179-6df9a57-1_all
luci-theme-bootstrap_git-18.210.69179-6df9a57-1_all
luci-theme-freifunk-generic_git-18.210.69179-6df9a57-1_all
luci-theme-material_git-18.210.69179-6df9a57-1_all
luci-theme-openwrt_git-18.210.69179-6df9a57-1_all
luci_git-18.210.69179-6df9a57-1_all
mjpg-streamer_r182-10_aarch64_generic
mtd_21_aarch64_generic
netifd_2017-11-17-c92106e3-1_aarch64_generic
opkg_2017-07-28-4bd8601e-1_aarch64_generic
procd_2017-10-10-7c9aa7c3-1_aarch64_generic
rcw-layerscape-ls1043ardb_2017.09-1_aarch64_generic
rpcd-mod-rrdns_20170710_aarch64_generic
rpcd_2017-11-12-a0231be8-1_aarch64_generic
samba36-server_3.6.25-8_aarch64_generic
tcpdump_4.9.2-1_aarch64_generic
ubi-utils_1.5.2-1_aarch64_generic
ubox_2017-11-06-2c0d9cfe-1_aarch64_generic
ubus_2017-11-13-5f87f548-1_aarch64_generic
ubusd_2017-11-13-5f87f548-1_aarch64_generic
uci_2017-09-29-5ad59ad4-1_aarch64_generic
uclibcxx_0.2.4-3_aarch64_generic
uclient-fetch_2017-11-02-4b87d831-1_aarch64_generic
uhttpd-mod-ubus_2017-11-04-a235636a-1_aarch64_generic
uhttpd_2017-11-04-a235636a-1_aarch64_generic
usign_2015-07-04-ef641914-1_aarch64_generic
wireless-regdb_2017-10-20-4343d359_aarch64_generic
wpa-supplicant_2017-08-24-c2d4f2eb-4_aarch64_generic

▊ NXP Software Resource Recommendation ASK


ASK is an OpenWRT-based application solution kit for broadband routers from NXP, which utilizes the packet gas pedal in the LS1043A / LS1046A processor and delivers wire-speed performance with less than 5% ARM core load.

LS1046A ASK Download: NXP Special Single Chip Hardware Speeds Router/Switch Software

NXP Software Resource Recommendation ASK

▊ Downloads


Catalog: Forlinx Catalog Manual

Datasheet: FET1046A-C SoM and OK1046A-C SBC introduction


▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.

▊ Other Forlinx LS10xx Series Products


FET1046A-C System on Module
FET1046A-C System on Module
CPU: NXP LS1046A
Architecture: Cortex-A72
Frequency: 1.8GHz
RAM: 2GB/4GB LPDDR4
ROM: 16MB QSPI NorFlash,8GB eMMC
System: Ubuntu-18.04.1,OpenWrt v18.06.0-rc2
Learn More
NXP LS1043A Single Board Computer
OK1043A-C Single Board Computer
CPU: NXP LS1043A
Architecture: Cortex-A53
Frequency: 1.6GHZ
RAM: 2GB DDR4
ROM: 16MB QSPI NorFlash,8GB eMMC
System: Ubuntu-18.04.1,OpenWrt v18.06.0-rc2
Learn More
NXP LS1028A Single Board Computer
OK1028A-C Single Board Computer
CPU: NXP LS1028A
Architecture: Cortex-A72
Frequency: 1.5GHz
RAM: 2GB DDR4
ROM: 8GB eMMC
System: Ubuntu18.04
Learn More
OK1012A-C Single Board Computer
OK1012A-C Single Board Computer
CPU: NXP LS1012A
Architecture: Cortex-A53
Frequency: 1.0GHz
RAM: 512MB DDR3L
ROM: 16MB QSPI NorFlash,8GB eMMC
System: Ubuntu-18.04.1,OpenWrt v18.06.0-rc2
Learn More
