OK1061-S Single Board Computer

CPU: i.MXRT1061

Architecture: Cortex-M7

Frequency: 528MHz

RAM: 1MB on-chip SRAM

ROM: 4MB QSPI NorFlash(16MB optional)

System: FreeRTOS,RT-Therad,Bare Metal

Brief Message Compare

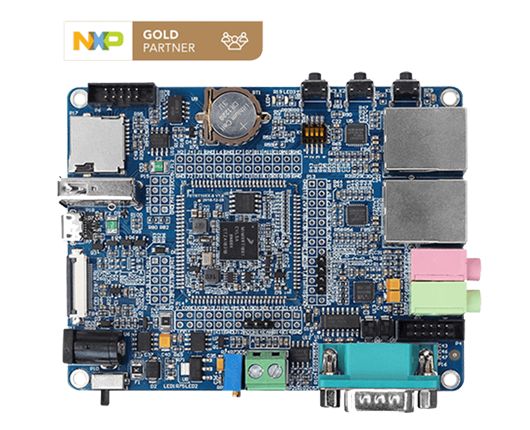

Single Board Computer OK1061-S based on NXP i.MX RT1061

OK1061-S is a single board computer designed based on NXP Cortex-M7 MCU i.MX RT1061@ 528MHz(commercial grade one 600MHz), has on-chip SRAM up to 1MB, 512KB can be flexibly configured as TCM or general purpoes on-chip RAM, and it can support QSPI-NOR Flash with capability of 4MB.

It consists of i.MX RT1061 SoM with compact volume of 30x 30x 3mm and carrier board with dimensions of 104x 80mm, and SoM soldered on carrier board. It integrates HS_GPIO, CAN-FD and NAND/ NOR/ PSRAM controllers. The SoM temp width ranges from -40℃ to +85℃. Meanwhile, various peripheral interface such as UART, 2x Ethernet, USB, CAN, CAN-FD, HS_GPIO and PWM, ADC are available on carrier board. Bare metal and Free RTOS are both supported.


On-Chip SRAM

Up to 1MB on-chip SRAM, perfect compatibility with i.MX RT1052 pin-to-pin

i.MX RT1061 Single Board Computer On-Chip SRAM

CAN Bus

CAB-FD and CAN2.0B are both available

CAN Bus i.MX RT1061 Single Board Computer CAB-FD and CAN2.0B

HS-GPIO available for flexible protocols

Up to 32 bits of I/O are available and is capable of supporting
a wide range of protocols in cluding, but not limited to: UART, I2C, SPI, PWM, etc.

i.MX RT1061 Single Board Computer HS-GPIO available for flexible protocols

Communication Interface

SoM is available with dual channels of 10M/100M Ethernet, CAN2.0B and 7-ch UART

i.MX RT1061 Single Board Computer 10M/100M Ethernet imxrt1061

Native data encryption

NXP-MCUBootUtility is a special tool for NXP MCU booting security and encryption solution which is a real one-stop and full GUI tool supports full range of i.MX RT MCU

i.MX RT1061 Single Board Computer Native data encryption

Industrial grade quality

Designing with full consideration of signal integrity to
ensure optimized electrical; optimized power structureand regulated power sequence to enhance Robustness.

i.MX RT1061 Single Board Computer Industrial grade imxrt1061 sbc

OK1061-S Single Board Computer

i.MX RT1061 Single Board Computer pin diagram

▊ Hardware Features


Overview of FET1061-S System on Module
CPU i.MXRT1061
Architecture Cortex-M7
Frequency 528MHz
RAM On Chip SRAM 1MB
Flash QSPI Nor Flash 4MB (16MB QSPI Nor Flash)
OS bare metal, FreeRTOS, RT-Thread
Power In 5V
Dimensions 30×30mm
PCB thickness: 1mm, 4-layer ENIG
Package edge soldering, 4*25pin, pitch of 1mm
Working Temperature -40℃~+85℃

FET1061-S System on Module Features
Interface QTY Spec.
SD/MMC/SDIO ≤2

Supports SD/ SDIO card 1-bit or 4-bit transfer modes

USB 2

USB2.0(up to 480Mbps), integrated with HS USB PHY

SAI ≤2

Up to 3-ch I2S audio

UART ≤7

Each up to 5.0Mbps

eCSPI ≤3

Full duplex enhanced serial interface, data rate up to 52Mbit/s. It's available for both host and slave modes, each SPI controller has four chip selection to support multiple prepherial

IIC ≤4
Ethernet ≤2

10/ 100Mbps auto-negotiation

PWM ≤26

4x 16-bit PWM controller, each channel support up to 8 pins

SWD supported
KeyPad Port supported 8*8;
QSPI ≤2 QSPI NOR flash
CAN ≤2 CAN 2.0B
CAN FD 1 CAN FD
ADC ≤10

two 12-bit ADC, up to 10 input channel


OK1061-S Carrier Board Features
Interface QTY Spec.
CAMERA 1

8-bit CSI, up to 5.0MP(available for RT1052/ RT1062)

Audio 1 1*MIC, 1*Phone
USB Host 1

USB2.0(up to 480Mbps)

USB OTG 1

standard micro USB connector, USB2.0(up to 480Mbps)

Ethernet 2

10M/ 100Mbps, RJ45

RTC 1 RX8010SJ, CR1220
EEPROM 1

24C02, 256bytes

TF Card 1

compatible with SD, SDHC

LED 2

for users

POR_BUTTON 1 reset
WAKEUP 1

wake up key

ON/OFF 1

power switch, keep pressing to switch on or off

BOOT 1

DIP switch, for booting mode options, presently only available for internal TF, QSPI NOR Flash booting mode

PWM 1

headers with pitch of 2.54mm

ADC 1

multiplexed with CAN, jumper cap turnt to left(21, 22) to choose ADC mode

IIC 1

Camera, WM8960, EEPROM, RTC, IIC address not conflict by default, and could be used together

CAN 1

CAN2.0B, DG128-2P connector, multiplexed with ADC, P14 turnt to right(22, 23) to choose CAN TX

CAN FD 1

CAN FD, multiplexed with CAN2, DG128-2P connector

SPI 1

10P header with pitch of 2.0mm, multiplexed with TF card

UART 1

3-wire serial, 3.3V, each up to 5.0Mbps, 10P header with pitch of 2.54mm

I2S 1 WM8960
UART Debug 1

RS232, DB9 connector

SWD 1

debug port, P13, 4P header with pitch of 2.54mm

KEY BOARD 1 4×4 keyboard, multi-plexed with camera, drawn out by a 10-pin header with pitch of 2.54MM(8Pins for keyboard).

▊ Software Features


DEMO
Demos under \boards\evkbimxrt1060\driver_examples Demos under \boards\evkbimxrt1060\demo_apps
ADC helloword
adc_etc hello_world_virtual_com
bee led_blinky
cache power_mode_switch
cmp sai
dcp shell
edma uart_gprs
enc xbar_aoi
enet Demos under \boards\evkmimxrt1060\lwip_examples
canfd lwip_httpsrv
flexcan lwip_iperf
flexio lwip_ping:ping
flexio3 lwip_ping_enet1_enet2: Dual network ports ping
flexram lwip_tcpecho
flexspi: read and write Flash lwip_tcpecho_enet1_enet2
gpio: LED lwip_udpecho
gpt lwip_udpecho_enet1_enet2
kpp Demos under \boards\evkmimxrt1060\rtos_examples
lpi2c: (RTC, EEPROM) freertos_event
lpspi freertos_generic
lpuart (uart2) freertos_hello
pit freertos_lpi2c_eeprom
flexpwm freertos_lpuart
qtmr freertos_mutex
rtwdog freertos_queue
sai freertos_sem
sdcard freertos_sem_static
snvs freertos_swtimer
src freertos_tickless
tempmon Demos under \boards\evkmimxrt1060\usb_examples
trng usb_device_hid_mouse
wdog usb_host_hid_mouse
ewm usb_host_hid_mouse_keyboard
xbara
Demos under boards\evkmimxrt1060\fatfs_examples fatfs_sdcard
