FET3399K-C System on Module

CPU: Rockchip RK3399K

Architecture: Cortex-A53,Cortex-A72

Frequency: 1.4GHz,1.8GHz

RAM: 2GB / 4GB LPDDR3

ROM: 16GB / 32GB eMMC

System: Linux4.4.189+ QT5.12,Android7.1

Datasheet Message Compare

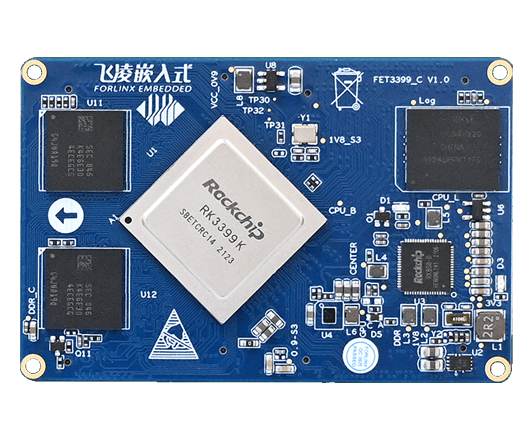

System on Module(SoM) FET3399K-C based on Rockchip RK3399K

FET3399K-C is a system on module (SoM) designed based on Rockchip RK3399K processor which consists of two Cotex-A72 featuring cores with frequency up to 1.8GHz and four Cortex-A53 featuring cores with frequency up to 1.4GHz. It's integrated with GPU Mali-T864, can support OpenGL ES1.1/ 2.0/ 3.0/ 3.1, OpenVG1.1, OpenCL and DX11. It has on-board 2GB LPDDR3 RAM and 16GB eMMC. A variety of display interfaces such as HDMI2.0, MIPI-DSI, eDP1.3 and DP1.2 are all available and resolution up to 4K. Dual-screen both synchronous and asynchronous playing are well supported. Besides, it carries PCIe, USB3.0 Host, Type-C, MIPI-CSI, SPDIF, IIC, SPI, UART, ADC, PWM, GPIO, IIS(8 digital micphone array input) and Ethernet on board.


  • Target application
  • Self-service terminal
  • Edge computing
  • 5G Smart terminal
  • POS machine
  • Facial recognition
…… ……
Product Video

Hexa-core processor

FET3399K-C SoM is based on Rockchip RK3399K processor which consists of two Cortex-A72
cores up to 1.8GHz and four Cortex-A53 cores up to 1.4GHz. GPU Mali-T864 can support
OpenGL ES1.1/ 2.0/ 3.0/ 3.1, OpenVG1.1, OpenCL, DX11; with 2GB LPDDR3 on-board RAM(4GB upgradable) and 16GB eMMC.

rk3399k hexa core development board pc
RK3399K development board 2 ARM Cortex-A72 cores, 4 ARM Cortex-A53 cores Pc Phone

Various AI framework supporting


FET3399K-C Android7.1 is supported with Tensorflow Lite, Caffe and other related AI frameworks; and provides optimized program routines (RKSSD) developed for
RK3399K platform deep learning target detection, using hardware acceleration modules such as OpenCL and RGA to reduce CPU load.

RK3399K AI framework pc
RK3399K AI framework phone

4K UHD


4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps; Video post processor: de-interlace, de-noise, enhancement for edge/detail/color

RK3399K 4K output pc
RK3399K 4K output phone

Multiplex display interfaces, can support dual-screen synchronous or asynchronous playing


Dual VOP: one supports 4096x2160 with AFBC supported; the other supports
2560x1600; Dual channel MIPI-DSI (4 lanes per channel); eDP 1.3 (4 lanes with 10.8Gbps)
to support display, with PSR; HDMI 2.0a for 4K 60Hz with HDCP 1.4/2.2; DisplayPort 1.2 (4 lanes, up to 4K 60Hz).

RK3399K dual screen output
RK3399K dual screen output

Dual ISP


Dual hardware ISP, can support up to one 13MPix/ s or dual 8MPix/ s, can support dual cameras input

RK3399K dual ISP PC
RK3399K dual ISP Phone

High-speed connectors, OSP and misplug-proof designing


SoM can be mounted to carrier board via four 80-pin ultra thin connectors with strong OSP performance,
which guarantees high signal transaction reliability and protects contacts from touching and stain;
Misplug-proof deisigning to avoid SoM failure by misplug operation.

RK3399K motherboard PC
RK3399K motherboard Phone

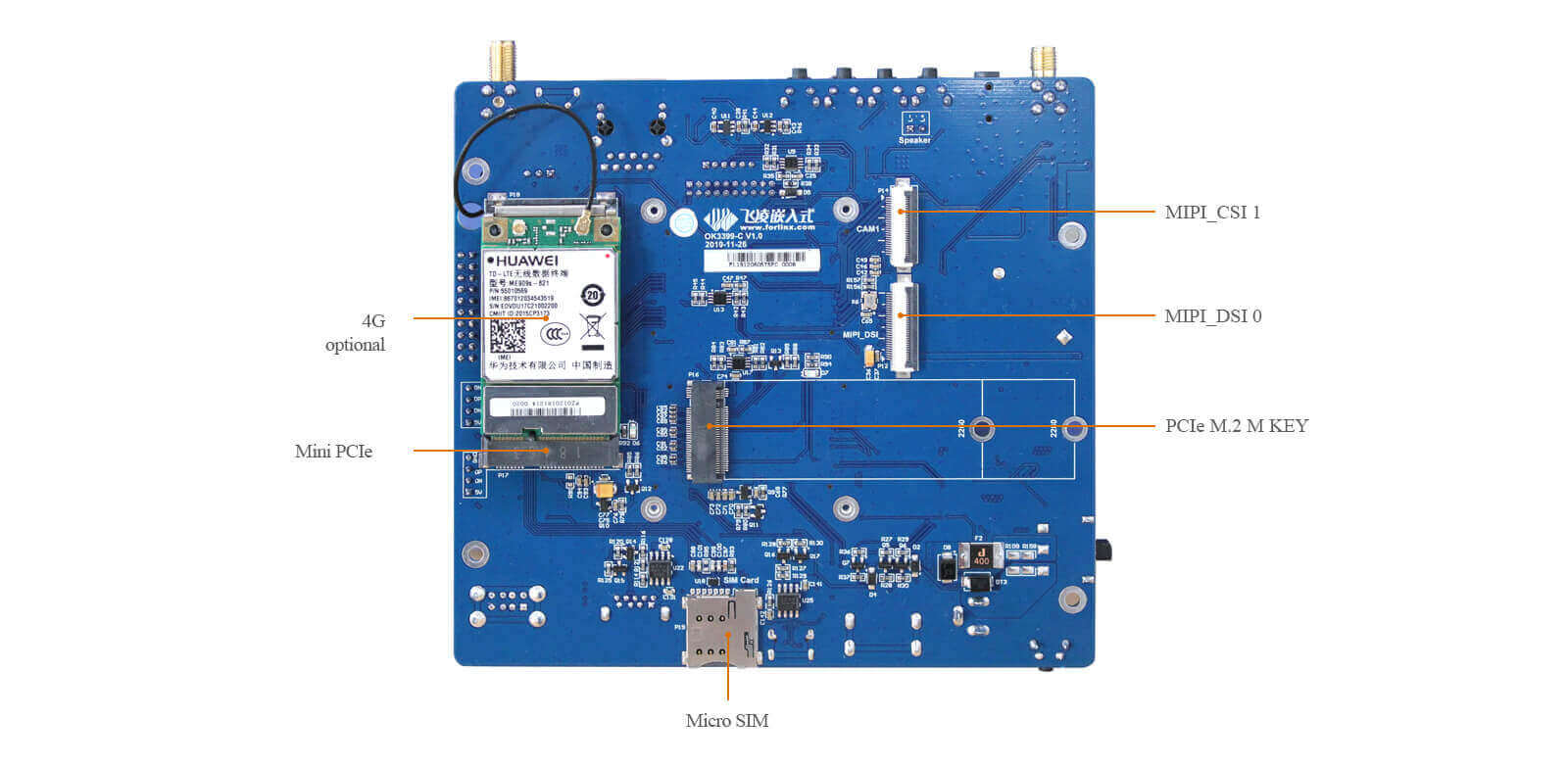

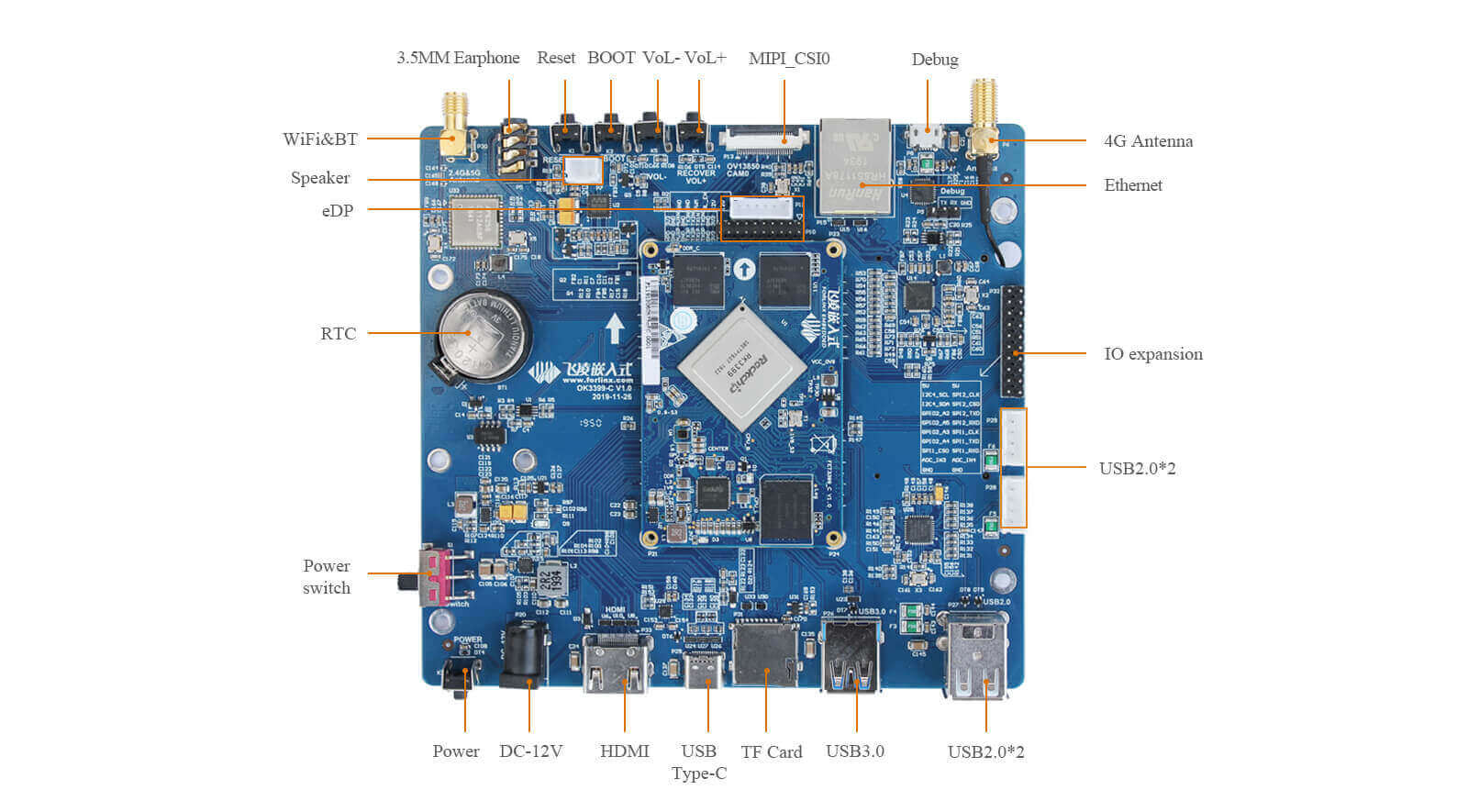

OK3399K-C SBC Pin Diagram

Note*: OK3399K-C single board computer consists of SoM FET3399K-C and carrier board

Powerful and various communication channels


OK3399K-C has on-board Gigabit Ethernet interface, can support 2.4GHz & 5GHz WiFi, BT5.0, and also it's preserved with mini PCIe package for 4G LTE.

RK3399K network
RK3399K network

Easy for evaluation and development


All pins except standard peripherals are all drawn out by pin connectors with pitch of 2.54mm, including SPIx 2, IIC,
ADCx 2, GPIOx 4. 2 USB2.0 Host are expanded by XH2.54 connectors which can be mounted with binocular camera or be used for serial expansion.

RK3399K evaluation board pc
RK3399K evaluation board phone

Easy for installation

OK3399K-C is available with 2 structures with dimension difference. 130x 155mm and 130x 140mm, the
former one can fit a stardard aluminum enlcosure and the later compact one for user-defined enclosure.


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

▊ Overview of SoM FET3399K-C





CPU

RK3399K hexa-core, Big.Little architecture
Cortex-A72 Core:
• 2x Cortex-A72
• up to 1.8GHz
• 64-bit Armv8
Cortex-A53 Core:
• 4x Cortex-A53
• up to 1.4GHz
• 64-bit Armv8





GPU

3D graphical engine:
• quad-core Mali-T860MP4
• can support OpenGL ES1.1/2.0/3.0/3.1
• can support OpenCL 1.2

2D graphical engine:
• source form:
ARGB, RGB888, RGB565, RGB4444, RGB5551, YUV420, YUV422(SupportYUV422SP10bit/YUV420SP10bit)
• target form:
ARGB, RGB888, RGB565, RGB4444, RGB5551, YUV420, YUV422(SupportYVYU422/420 output)

• maximum resolution: source 8192x8192, and target 4096x4096









VPU

Decode:
• H.265/HEVC, up to 4Kx2K @ 60fps
• VP9, up to 4Kx2K @ 60fps
• H.264/AVC, up to 4Kx2K @ 30fps
• MPEG-1,ISO/IEC 11172-2, up to1080P @ 60fps
• MPEG-2,ISO/IEC 13818-2, up to 1080P @ 60fps
• MPEG-4,ISO/IEC 14496-2, up to 1080P @ 60fps
• VC-1, up to 1080P @ 60fps
• MVC based on H.264 or H.265, up to 1080P @ 60fps

Encode:
• 1080p30 AVC/H.264
• 1080p30 VP8

RAM

• 2GB(optional 4GB)
• LPDDR3  1600

ROM

• 16GB(optional 32GB)

• eMMC 5.1 storage
• HS400 mode

Working Temperature

0℃~80℃

Dimensions

46mm x 70mm

Voltage Input

12V

OS

Android
• Android: 7.1 64bit
• Kernel: Linux 4.4
• Development environment: provide a well-built development environment

Linux
• File System: buildroot
• Desktop: Weston
• QT: 5.12
• Kernel: Linux 4.4.189
• Development environment: provide a well-built development environment

ForlinxDesktop
• File System:Ubuntu18.04 64bit
• Kernel:Linux 4.4.189
• Development environment: provide a well-built development environment
• Description: ForlinxDesktop18.04 is built on Ubuntu18.04 64bit desktop system and is a desktop system for FET3399K-C SoM and OK3399K-C SBC.

▊ Functional Features


Functional Interface

Spec.

Display


dual-screen engine up to 4096x 2160 and 2560x 1600, can output from below ports:

MIPI-DSI ≤2
CPU has 3 built-in MIPI PHY, MIPI0 can be only used as DSI, MIPI1 can be used as DSI or CSI, MIPI2 can be only used as CSI


each DSI port has 4 data lanes, can support data transferring rate up to 6.0Gbps


each DSI port can support output up to [email protected] 60FPS

• MIPI0 and MIPI1 combination can support output 2560x [email protected] 60FPS

eDPx1
eDP V1.3


• RGB 6/ 8/ 10-bit

• 4 data lanes, each 2.7/ 1.62Gbps

• can support PSR

DP x1
Display Port V1.2


compatible with HDCP2.2(backward compatible with HDCP1.3)


only has one built-in DP controller, can output from Type-C*


support outputting up to 4Kx [email protected] 60Hz

HDMI x1
HDMI1.4, HDMI2.0


up to 18Gbps port trunks


up to [email protected] 120Hz, 4Kx [email protected] 60Hz, [email protected] 120Hz


HDCP1.4/ 2.2


Audio

I2S/PCM x3
• I2S0/I2S2 can support 8-channel TX/RX. I2S1 can support -channel TX/RX
IIS2 internally connected to HDMI and DisplayPort, IIS0 and IIS1 are for peripherals
audio resolution from 16-bit to 32-bit
• sampling rate up to 192KHz
SPDIF
can support two 16-bit audio data stored in one 32-bit width location
can support two-phase formed stereo audio output
can support 16-bit to 31-bit audio data left or right justified in 32-bit width sampling data frame zone
can support 16-bit, 20-bit, 24-bit audio data transferring in PCM mode
can support none-PCM mode

Camera

MIPI CSI ≤2
can support one 13.0MP camera or two 8.0MP cameras
• two internal ISP
• one ISP with resolution up to 14.0 MP
USB UVC
• USB UVC camera input

USB
Type-C

USB Type-C x2(multiplexed with USB 3.0)
• USB Type-C 1.1
• can support USB3.0 Type-C and DP 1.2* can switch to USB Type-C mode
• USB3.0 up to 5Gbps
• DP1.2 up to 5.4Gbps(HBR2), can support 1/2/4 mode*
• DisplayPort with AUX channel*

USB OTG3.0

USB OTG 3.0 x2( contains USB OTG 2.0 x2)
• compatible protocol: USB 3.0、USB 2.0、USB Host 1.1
• USB 3.0 in full-duplex mode up to 5Gbps band width

USB 2.0

USB 2.0 Host x2(separated, not multiplexed with 3.0)
• compatible with USB 2.0
• can support high speed mode(480Mbps), full speed mode (12Mbps) and low speed mode(1.5Mbps)

SD/MMC

SD/MMC x2
• can be configured to SD/MMC or SDIO
• compatible with SDIO 3.0
• 4-bit data bus

Ethernet

• Gigabit Ethernet x1
• RGMII is available for 10/100/1000-Mbps
• RMII is available for 10/100-Mbps

SPI

SPI x5
• can support serial host and slave mode, software configurable
• operation based on DMA or interrupt
• TX and RX are 32x16-bit FIFO

UART

UART x5
• operation based on DMA or interrupt
• TX and RX are 64Bytes FIFO
• each serial up to 4.0 Mbps

I2C

I2C x7
• multi-host machine I2C
• standard mode up to 100 kbit/s
• fast mode up to 400 kbit/s

PCIe

PCIe x 1
• compatible with PCI Express revised 2.1
• 4 full-plex channel
• each channel can support 2.5GT/s to each direction
• dual-operation mode: Root Complex(RC) and End Point(EP)

PWM

PWMs x 3
• operation based on interrupt
•32-bit timer/ counter
• can support capture mode
• can support continuous mode or one-time mode

ADC

ADC x 5
• successive approaching ADC
•10-bit
• switch rate up to 1MS/ s for sampling



▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.
