OK3568-C Single Board Computer Based on Rockchip RK3568 Processor
OK3568-C single board computer(SBC)/development board is populated with SoM FET3568-C on carrier board through four ultra-thin connectors. The carrier board ensures the SoM source is fully available to achieve users' fast evaluation purpose. Besides, the board is designed with ESC solution which simplifies design reference to help users to shorten your product time-to-market.

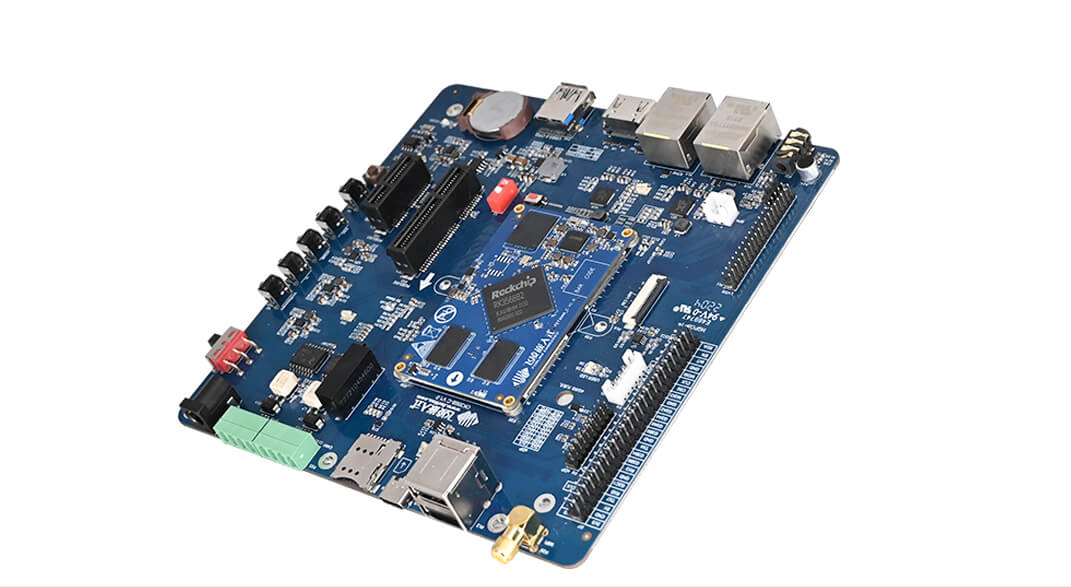

OK3568-C SBC
Advanced and Robust
FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm process technology,
running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.
High-performance NPU for Lightweight AI
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit.
In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
Multiple Display Interfaces: Realize Three-Screen Heterogeneous Display
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K,
which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful Video Codec Performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding,
and can support multiple video sources decoding simultaneously, support HDR10 with excellent color and dynamic range performance;
FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
Rich High-Speed Interfaces: Expand Functionality and Connect More Efficiently
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
Industrial Applicable EMC Protection
OK3568-C carrier board is designed with EMC protection solution, which is applicable for industrial related scenes.
CAN and Ethernet are designed with EFT3, ESD3 and Surge3; HDMI and USB are designed with ESD3.

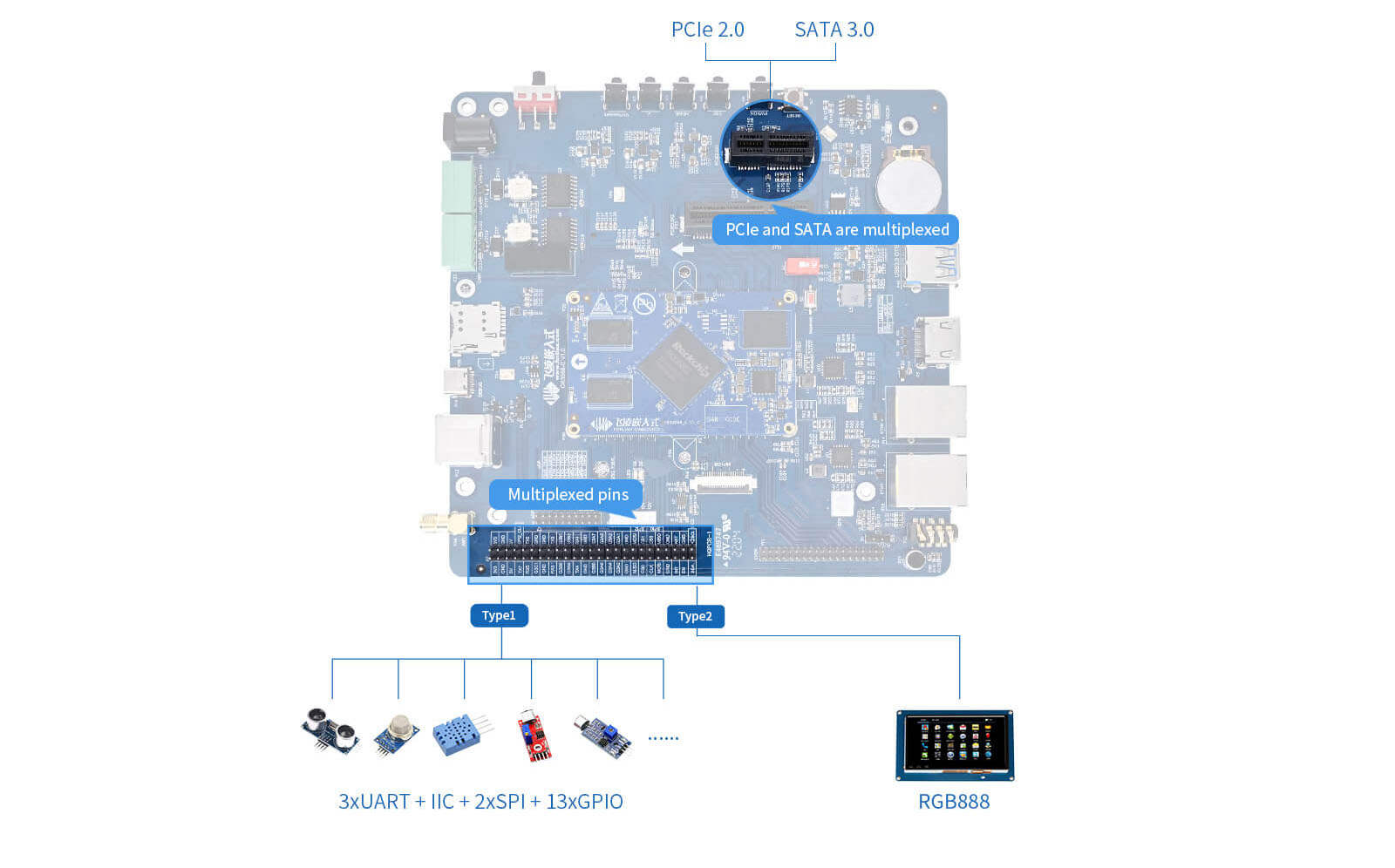

User-friendly Designing
Multiple pins are multiplexed on OK3568-C carrier board, user friendly and easy to go.

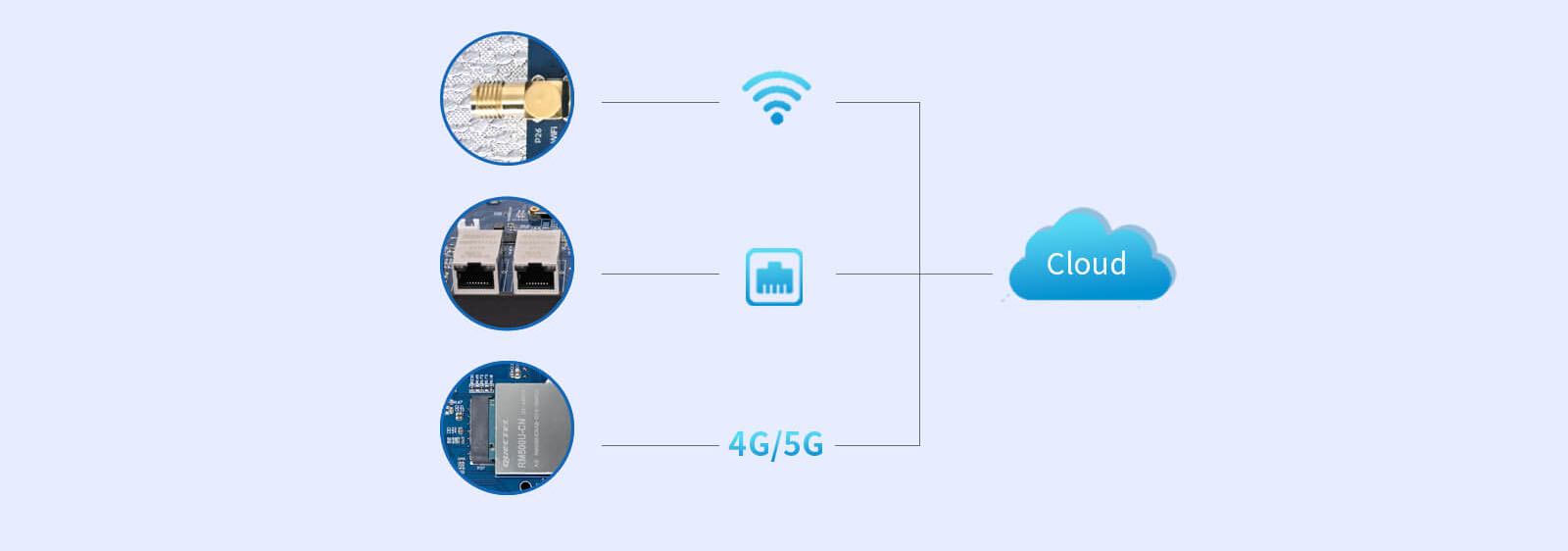

Diverse Networking Connectivity
Dual native Gigabit Ethernet, dual-band WiFi and 4G/ 5G modem slot are all available on OK3568-C carrier board for networking requirement.
▊ Rockchip RK3568 SoM /SBC Video
Forlinx RK3568 SoM & Single Board Computer
▊ Hardware Features
|
FET3568-C SoM Basic Parameters |
|||
|---|---|---|---|
|
CPU |
Rockchip RK3568 quad-core [email protected] |
||
|
GPU |
• Mali-G52-2EE |
||
|
NPU |
1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation. |
||
|
VPU |
Decode: |
Encode: |
|
|
RAM |
1GB/2GB/4GB/8GB DDR4(Standard 2GB) |
ROM |
8/16/32GB eMMC |
|
OS |
Linux4.19/5.10+Qt5.12, Debian 11, Android 11, Forlinx Desktop 22.04 |
Voltage input |
DC5V |
|
Package |
board to board connector(4*80pin Spacing 0.5mm) |
||
|
Working temperature width |
0℃ ~ 70℃ / -40~85℃ |
Dimensions |
45x70mm |
|
FET3568-C SoM Software Support |
||||
|---|---|---|---|---|
|
Operating Systems |
Linux5.10.160+Qt5.15.8、Android11、ForlinxDesktop20.04（File System Based on Ubuntu 20.04）、Debian11、 AMP (based on Linux 4.19.232 + Qt 5.15.8), OpenHarmony 4.1 (based on Linux 5.10.184) |
|||
|
Operating Systems Adaptation Details |
Product |
RAM |
ROM |
Operating Systems |
|
FET3568-C |
1GB |
8GB |
Linux5.10.160、AMP、OpenHarmony4.1* |
|
|
2GB |
16GB |
Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1 |
||
|
2GB |
32GB |
Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1* |
||
|
4GB |
32GB |
|||
|
FET3568J-C |
1GB |
8GB |
Linux5.10.160、AMP、OpenHarmony4.1* |
|
|
2GB |
16GB |
Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1 |
||
|
4GB |
32GB |
Linux5.10.160、Android11、ForlinxDesktop20.04、Debian11、AMP、OpenHarmony4.1* |
||
|
FET3568J-C2 |
4GB |
32GB |
Linux5.10.160、Android11、ForlinxDesktop20.04*、Debian11*、AMP*、OpenHarmony4.1* |
|
|
8GB |
64GB |
|||
|
|
Note: Systems marked with * are in adaptation. | |||
|
System Flashing Methods |
• SD card • USB OTG |
|||
|
FET3568-C SoM Function parameter |
|||
|---|---|---|---|
|
Interface |
QTY |
Spec. |
|
|
Display |
3 |
Equipped with 3 display controller, supports 3 simultaneous output in RGB, LVDS, MIPI DSI, HDMI, eDP interface. |
|
|
Camera |
2 |
1x DVP, 1x 4-lane MIPI-CSI. |
|
|
Audio |
4 |
1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM. |
|
|
SDIO |
3 |
SDIO 3.0, data throughput up to: 104MB/S |
|
|
Ethernet |
2 |
2GMAC, by RGMII / RMII |
|
|
USB 2.0 |
2 |
USB2.0 Host, separate but not multiplexed with USB3.0. |
|
|
USB 2.0 |
2 |
1 USB 2.0 Host and1 USB 2.0 OTG in USB 3.0. Can be used as 2 independent USB 2.0 USB 3.0 is not needed |
|
|
USB 3.0 |
2 |
1x USB 3.0 Host, 1x USB 3.0 OTG. |
They share 3 sets of SerDes, in this case, only 3 functional interface of them could be used simultaneously. |
|
SATA |
3 |
SATA 3.0, up to 6.0Gb/s, support eSATA. |
|
|
PCIe2.1 |
1 |
PCIe 2.1 x1, up to 5.0Gbps, RC mode. |
|
|
PCIe3.0 |
2 |
PCIe 3.0, 1x2Lanes or 2x1Lane, each lane up to 8.0Gbps. |
|
|
UART |
10 |
up to 4Mbps. |
|
|
CAN |
3 |
CAN2.0 B is well supported |
|
|
SPI |
4 |
Host mode and slave mode are optional and configurable |
|
|
I2C |
5 |
Supports 7bits and 10bits address modes, up to 1 Mbit/s. |
|
|
PWM |
16 |
32bits timer/counter |
|
▊ Carrier Board
|
|
|
OK3568-C Carrier Board Features |
||
|---|---|---|
|
Interface |
spec. |
|
|
Display |
HDMI 2.0 |
resolution up to 1080p@120Hz or 4096x2304@60Hz; |
|
eDP |
supports eDP 1.3, resolution up to 2560x1600@60Hz; |
|
|
LVDS |
single-channel output, resolution up to 1280x800; |
|
|
LCD |
RGB888 up to 1280x800; multiplexed with SPI0, SPI2, UART3, UART4, UART5 and UART7. |
|
|
MIPI-DSI1 |
single-channel output, up to 1920x1080@60Hz; |
|
|
Camera |
MIPI-CSI, tested and recommended model OV13850. |
|
|
Audio |
1x stereo headphone output; 1x 1.3W class D amplifier output; 1x MIC input. |
|
|
TF Card |
For storage expanding and OS firmware flashing. |
|
|
Ethernet |
2x 10/100/1000Mbps auto-negotiation, RJ45 connector. |
|
|
4G/5G modem |
M.2 Key-B, contains USB 3.0/2.0 for 4G/5G module expanding; |
|
|
Wi-Fi&BT |
On-board AW-CM358SM, 2.4G/5G dual-band Wi-Fi, BT5.0. |
|
|
USB 2.0 |
2x USB 2.0 Host, Type-A |
|
|
USB 3.0 |
1x USB 3.0 Host, Type-A. |
|
|
USB 2.0 OTG |
contained in USB 3.0, can be used as slave mode for OS iamge flashing and ADB debugging. |
|
|
PCIe 2.1 |
Standard PCIe x1 socket; multiplexed with SATA |
|
|
PCIe 3.0 |
Standard PCIe x4 socket, can be configured as 2 PCIe x1. |
|
|
UART |
3x 3.3V TTL level, by pin headers with pitch of 2.54mm. |
|
|
CAN |
2x CAN2.0; with isolation and ESD protection. |
|
|
SPI |
2x 3.3V TTL, by pin headers with pitch of 2.54mm |
|
|
I2C |
1x 3.3V TTL level, by pin headers with pitch of 2.54mm. |
|
|
RTC |
CR2032 |
|
|
Buttons |
8: reset, power on/off, OTG programming, Maskrom, VOL+, VOL-, HOME, ESC. |
|
|
QSPI |
on-board 32MB QSPI Nor Flash. |
|
|
Debug |
converted by USB, Type-C connector that convenient for laptop users. |
|
|
Power input |
DC 12V |
|
▊ Downloads
Catalog:
Forlinx Catalog Manual
Product manual:
FET3568-C System on Module & SBC Brief Introduction
|
Linux4.19 |
User manual, compiling guideline, kernel source code, file system, OS image, VM ubuntu image, SD card tool, USB OTG tool, QT demos and source code |
| Hardware | User manual, carrier board schematic, carrier board PCB(AD), datasheet, carrier board and SoM DXF files, pinmux sheet |
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
Product shipping list
| FET3568-C System on Module | 1 |
| OK3568-C Carrier Board | 1 |
| Heat sink | 1 |
| Power adapter | 1 |
| PCIe pin multiplexing SATA function module | 1 |
| USB-C cable | 1 |
| WiFi antenna | 1 |
