OK1126Bx-S Single Board Computer
CPU: Rockchip RV1126B/RV1126BJ
Architecture: 4x [email protected]
Frequency: 1.3GHz，1.6GHZ
RAM: 1GB/2GB/4GB LPDDR4
ROM: 8/16/32/64GB eMMC
System: Linux 6.1.141

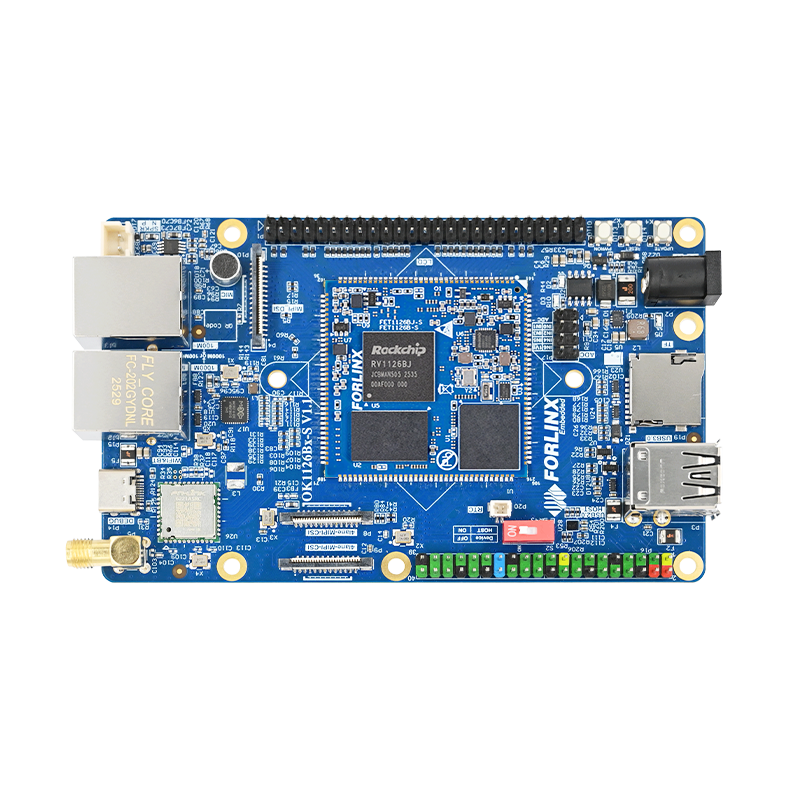

OK1126Bx-S (Rockchip RV1126B/RV1126BJ) Edge AI Single Board Computer
The OK1126B-S/OK1126BJ-S single board computer(SBC)/development board is developed and designed based on the Rockchip RV1126B/RV1126BJ. Measuring 120mm × 75mm, it integrates network ports, 2 × MIPI-CSI, 1 × MIPI-DSI, and a 40-pin GPIO (UART, SPI, I2C). It supports flexible peripheral and sensor expansion, making it ideal for embedded vision, edge computing, AIoT, and AI inference.

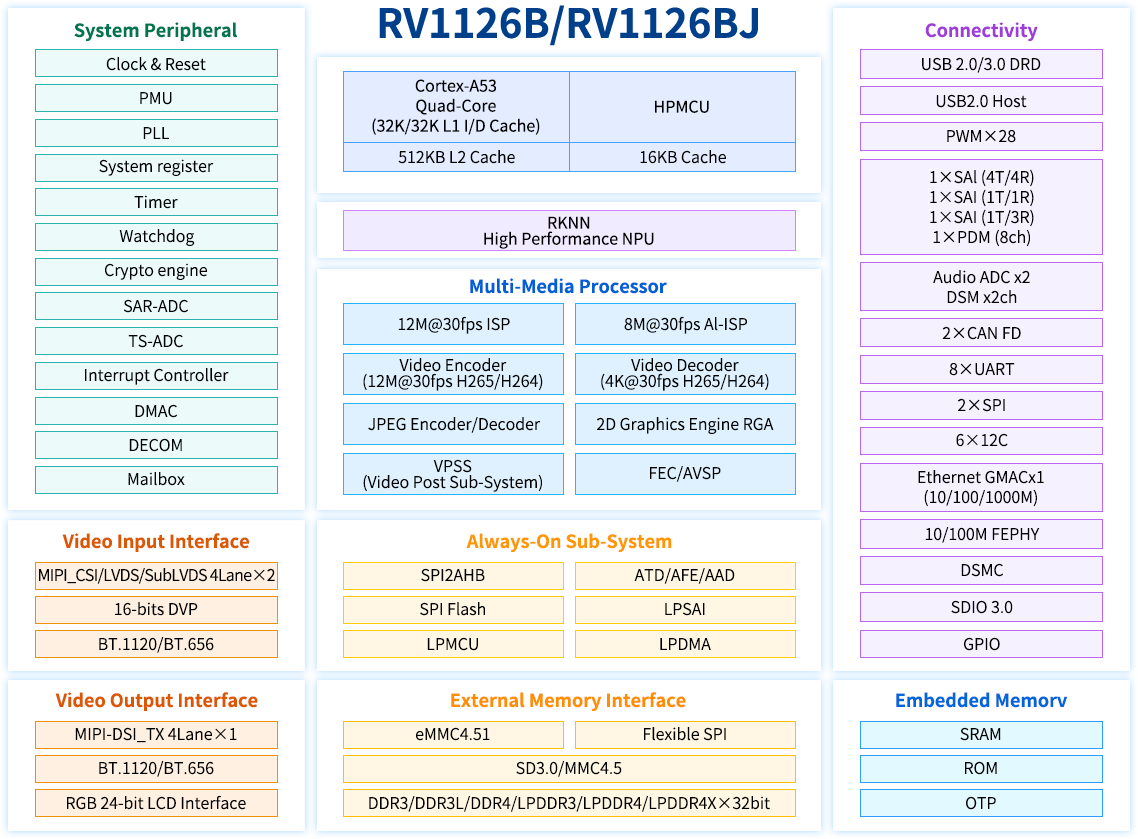

Functional Diagram

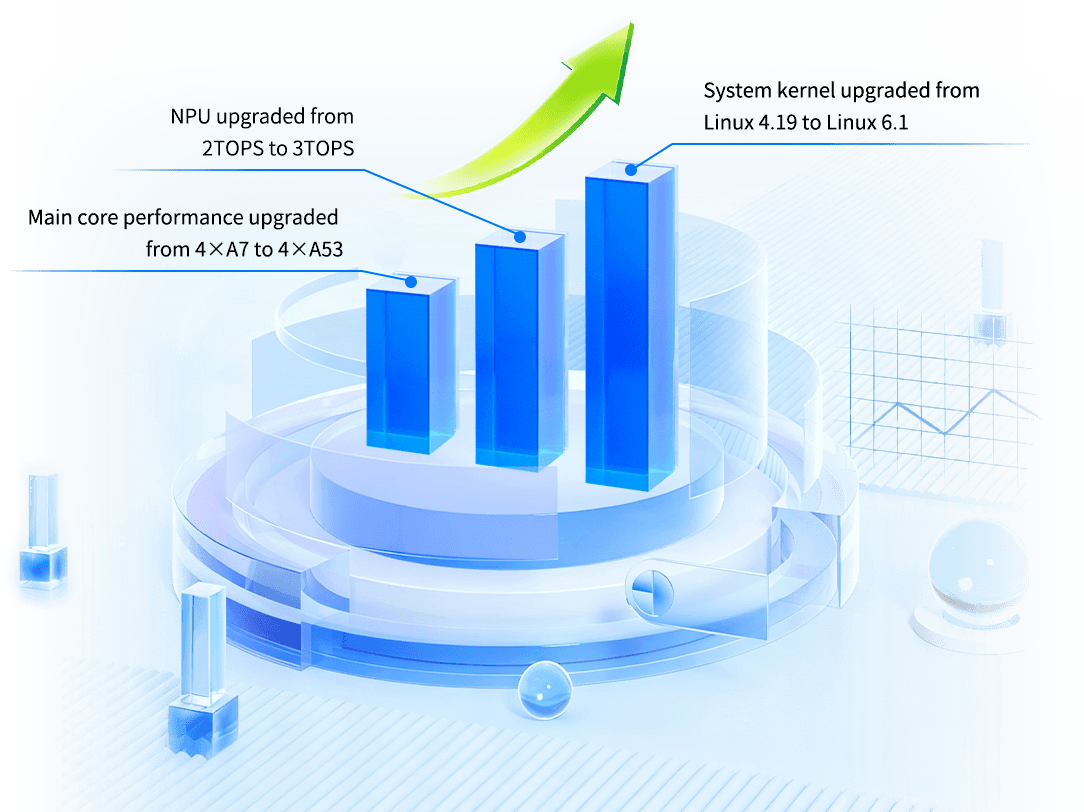

Full Upgrade
Compared to the RV1126, it offers three major enhancements: boosted CPU and NPU performance, plus an upgraded OS. Enjoy a more powerful, intelligent, and seamless device AI journey.

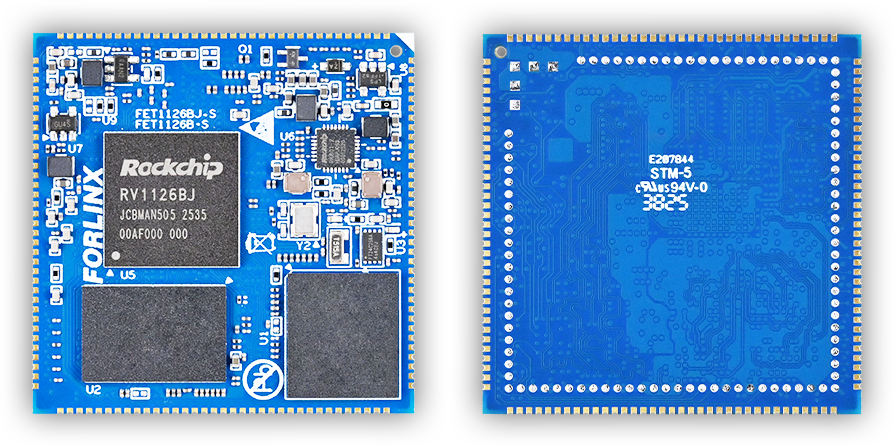

Comprehensive Pinout & Rich Connectivity
Stamp hole + LGA connection. All functional pins of the RV1126B/RV1126BJ are fully led out, including display interfaces (MIPI-DSI, RGB LCD),
network interfaces (Gigabit RGMII, 100Mbps Ethernet), and various peripherals (CAN FD, UART, SPI, I2C, PWM, ADC, etc.).
The GPIO layout is fully compatible with the Raspberry Pi 40-pin standard.
3TOPS NPU Empowers Edge AI Inference
Independent built - in NPU , providing up to 3TOPS@INT8 AI computing power, supporting INT8/INT16 mixed - precision operations,

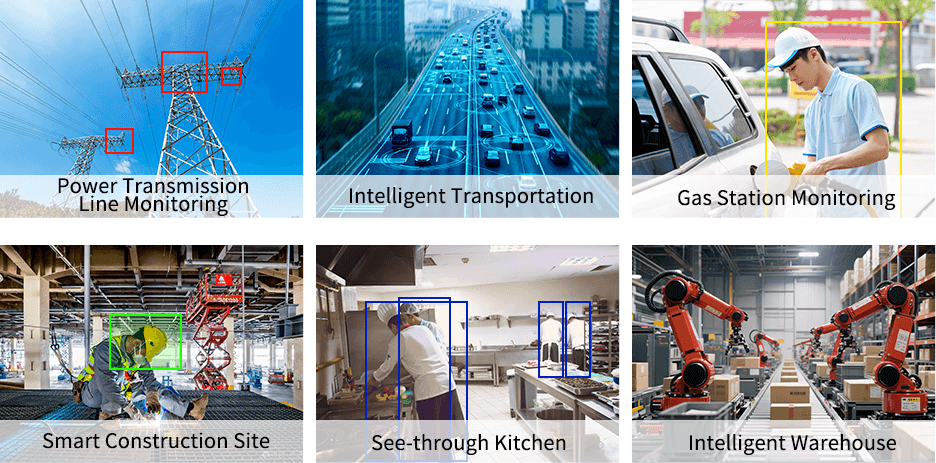

and can efficiently run typical edge AI target recognition models such as face detection, safety helmet recognition, fire and smoke alarm,
and area intrusion, realizing local real - time decision - making without relying on the cloud.

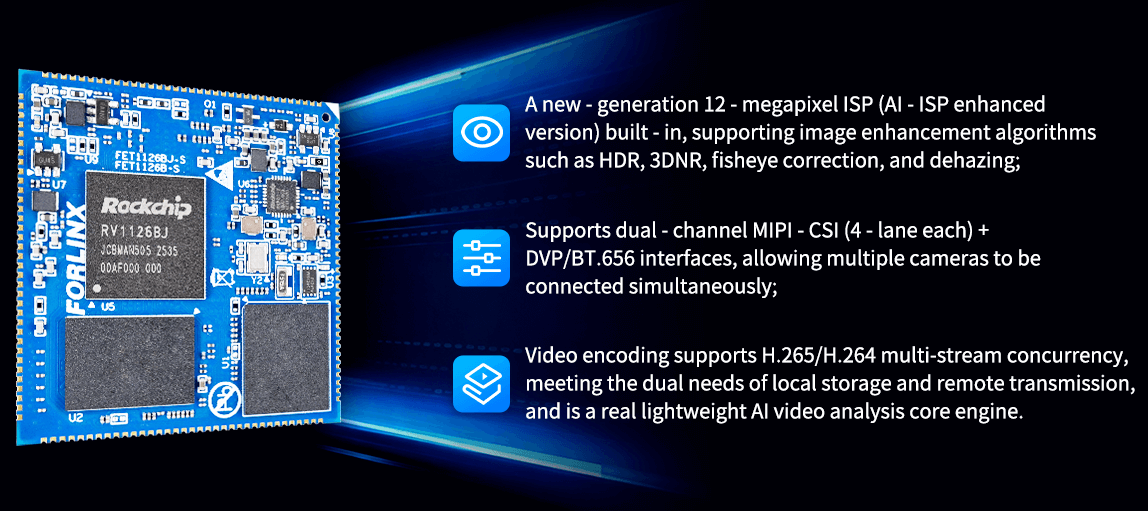

Powerful Vision & Multi-channel Video Analytics

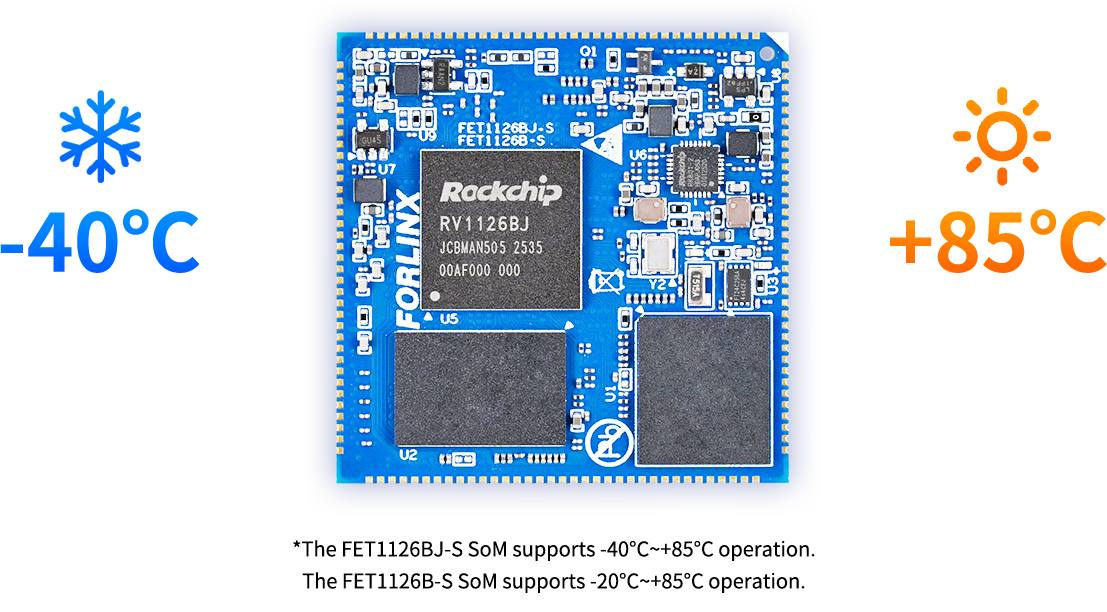

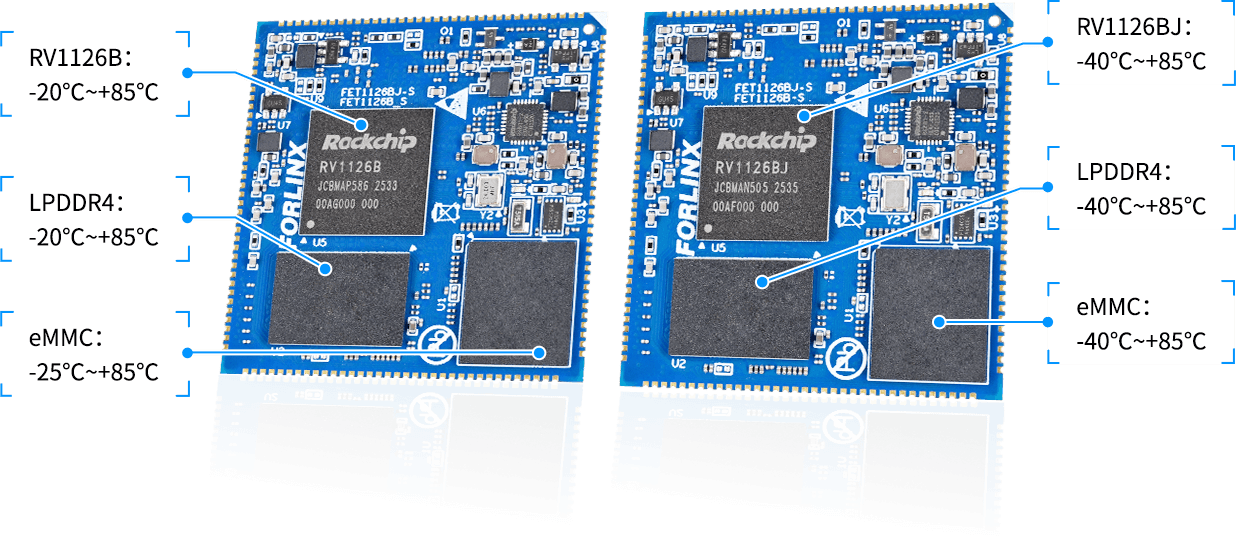

-40°C to +85°C Stable 24/7 Operation
The FET1126BJ - S SoM supports - 40°C~+85°C operation, delivering excellent reliability and environmental adaptability in complex settings.
LPDDR4 Memory Design for More Scenarios
An LPDDR4 memory design for lower power consumption. DDR4 commercial-grade chips operate at 0°C - 70°C, while LPDDR4 ones cover - 20°C - 85°C.
With RV1126B (- 20°C - 85°C) and eMMC (- 25°C - 85°C)'s wide-temperature features, the commercial-grade SoM works at - 20°C - 85°C, offering low cost and wide-temperature performance.
It combines low cost with wide-temperature characteristics.
Full Software Ecosystem & Rapid AI Deployment
Equipped with the Linux 6.1 OS, it's a major upgrade from the previous - generation RV1126. It offers full BSP support, including kernel source code, file system, drivers, and the RKNN toolchain. It's also compatible with model conversion of mainstream deep - learning frameworks like TensorFlow, PyTorch, Caffe, and MXNet.

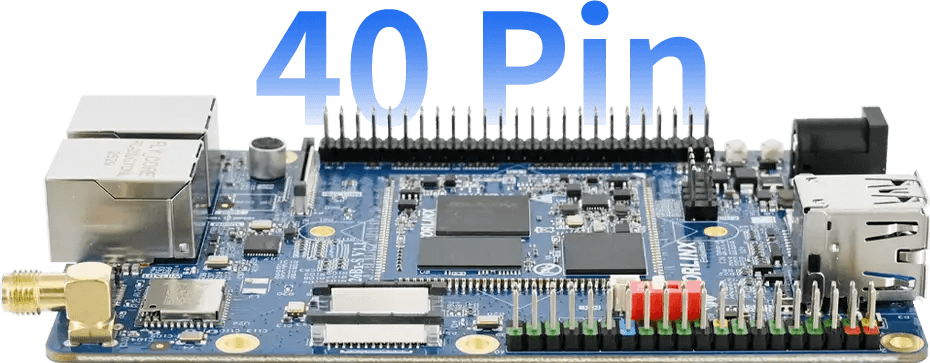

RPi 40-Pin GPIO Compatible for Quick Start

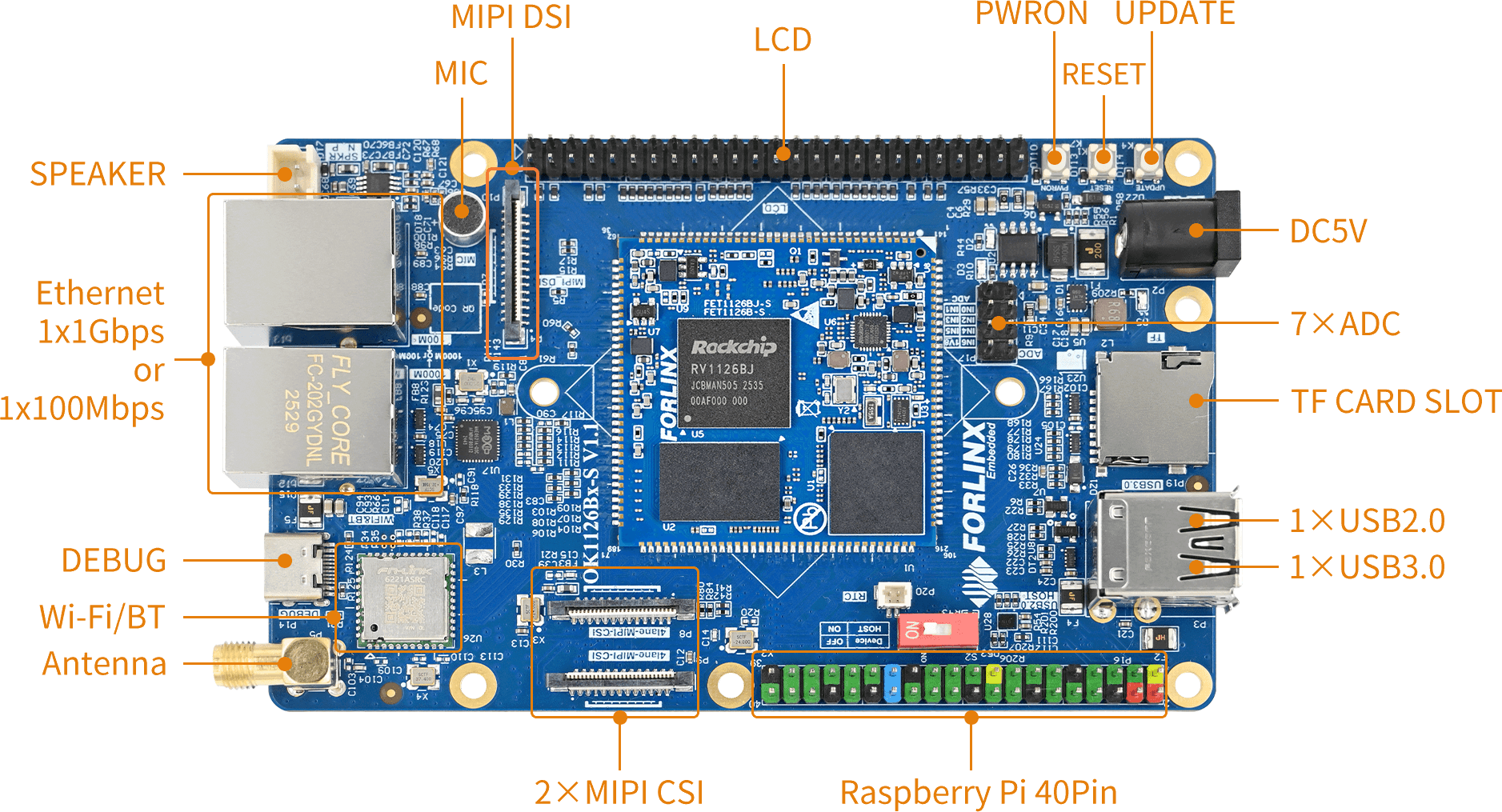

The compact development board features 2 x network ports, display, USB and Wi-Fi interfaces, plus pins matching Raspberry Pi 40-Pin GPIO for testing FET1126B-S/FET1126BJ-S SoM functions and AI development.
Compact Development Board with Complete Interfaces
Compact size, measuring only 120mm×75mm, offers interfaces like network ports, 2 x MIPI - CSI, 1 x MIPI - DSI, and 40Pin GPIO (with UART, SPI, IIC).
It can flexibly expand peripherals and sensors, ideal for embedded vision, edge computing, AIoT, and AI inference.
The Choice for High - End Applications
RV1126B/RV1126BJ SoM&SBC Video

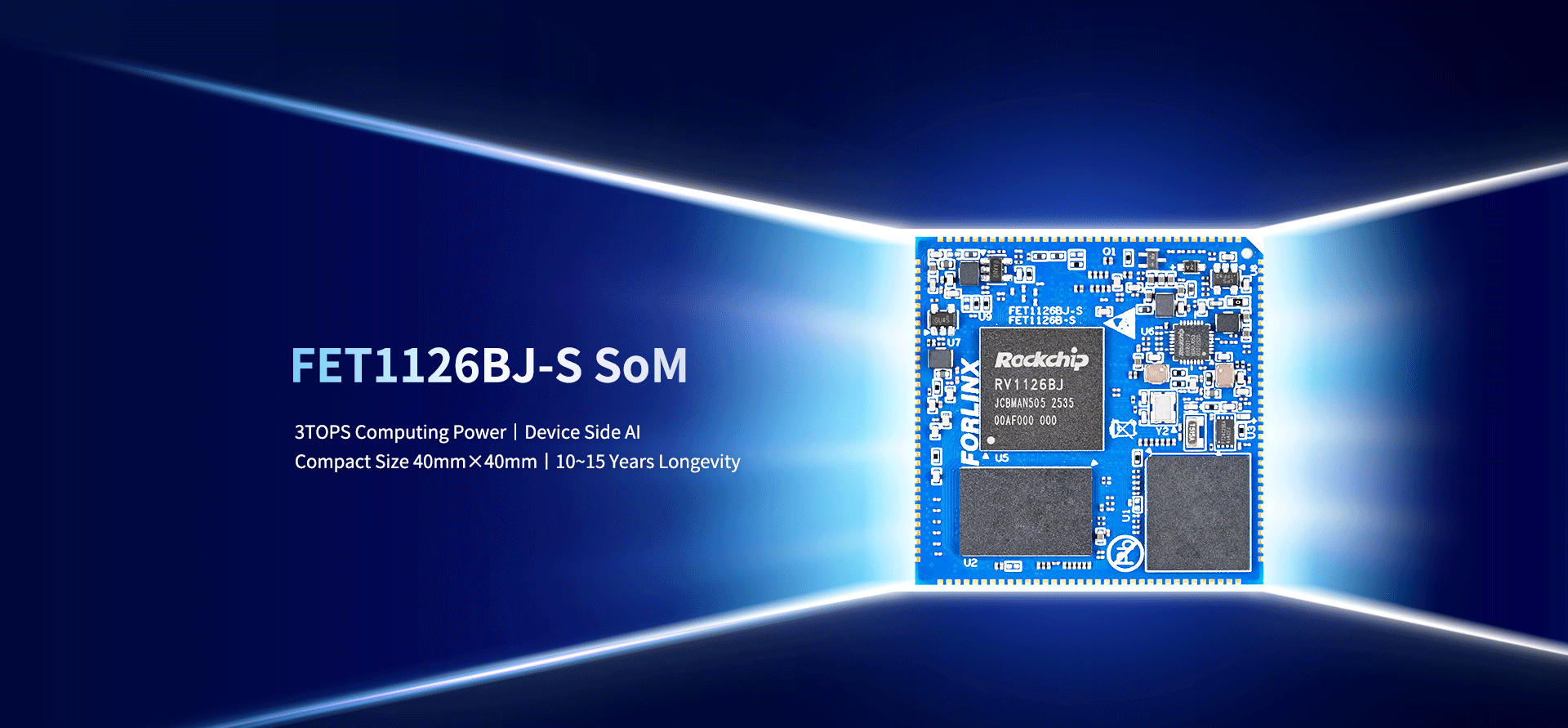

All New FET1126BJ-S SoM: Cost-Effective Edge AI Solution
▊ Hardware Features
| RV1126B / RV1126BJ System On Module Basic Parameters | |||
|---|---|---|---|
| Processor | Rockchip RV1126B | Rockchip RV1126BJ | |
| CPU: | 4 × Cortex-A53, up to 1.6 GHz | 4 × Cortex-A53, up to 1.3 GHz | |
| NPU: | 3 TOPS @ INT8 | ||
| GPU: | No 3D GPU, only 2D RGA is supported. | ||
| ISP: |
VICAP input: RX raw8/raw10/raw12/raw14/raw16 Maximum input: 12 MP @ 20 fps Minimum input: 264 x 264 |
||
| AI ISP: |
Maximum input: 8 MP @ 30 fps Maximum resolution: 4096 x 4096 |
||
| VPU: |
Video Decoder:
Video Encoder:
JPEG Decoder:
|
||
| RAM | 1 GB / 2 GB / 4 GB LPDDR4 | 1 GB / 2 GB / 4 GB LPDDR4 | |
| ROM | 64 GB eMMC | 8 GB / 16 GB / 32 GB eMMC | |
| Operating Temperature | -20°C ~ +85°C | -40°C ~ +85°C | |
| Working Voltage | DC 5 V | ||
| Form Factor | Castellated holes + LGA (A total of 237 pins are led out, including 140 pins in the form of castellated holes with a center-to-center pin spacing of 1.0 mm, and 97 pins in the LGA form with a center-to-center pin spacing of 1.27 mm) | ||
| Dimension | 40 mm x 40 mm | ||
| OS | Linux 6.1.141 | ||
| Flashing | USB OTG, TF Card | ||
| RV1126B / RV1126BJ System On Module Function Parameters | ||
|---|---|---|
| Function | QTY | Parameter |
| Display | 1 | Supports 1 x display output, with a maximum supported resolution of 1920 x 1080 @ 60 fps. |
|
Supports multiple display interfaces: RGB: 24-bit MIPI-DSI: 4-lane, 1.5 Gbps/lane BT.656 / BT.1120 |
||
| MIPI CSI | Up to 2 |
Supports 2 x 4-lane, 2.5 Gbps/lane Supports 2 x MIPI CSI / LVDS / SubLVDS DPHY Each MIPI DPHY V1.2 has 4 lanes, with a data rate of 2.5 Gbps per lane Each interface can be configured as a 2x2 data channel port Supports virtual channels |
| DVP | 1 | Supports 8/10/12/14/16-bit data, with a maximum I/O frequency of up to 150 MHz |
| Supports BT.601 / BT.656 and BT.1120 inputs. | ||
| Ethernet | 1 | 1 x MAC can be used for either 1 x RGMII interface or 1 x 100 Mbps interface (the CPU has 1 x built-in 100 Mbps PHY) |
| USB | 2 | 1 x USB 2.0 Host |
| 1 x USB 2.0/3.0 DRD | ||
| UART | Up to 8 | Maximum supported baud rate is 4 Mbps. UART1 - UART7 support automatic flow control |
| CAN | Up to 2 | Supports CAN 2.0 A/B |
| SDIO 3.0 | Up to 2 | 1 x TF card interface, supporting high-speed cards; and 1 x SDIO with a 3.3 V level |
| DSMC | Up to 1 | 1 x host interface for connecting to an FPGA |
| Supports 4 chip select signals, as well as 8-wire or 16-wire serial transmission modes. | ||
| FSPI | Up to 1 | Supports startup and 1/2/4-bit modes |
| SPI | Up to 2 | Supports both master and slave mode |
| I2C | Up to 5 | Supports 7-bit and 10-bit address modes up to 1 Mbps |
| PWM | Up to 27 | Supports up to 27 channels of PWM |
| ADC | Up to 24 | 24 single-ended inputs, 13-bit, 2 MSPS |
| SAI | Up to 3 | Supports both master and slave mode |
| Audio ADC | Up to 2 | 2 x differential MIC inputs and 2 x Audio DSM differential outputs |
| GPIO | Up to 118 | The total quantity excluding the internal use of the SoM |
▊ OK1126Bx-S Carrier Board
| OK1126Bx-S Development Board Function Parameters | ||
|---|---|---|
| Function | QTY | Parameter |
| LCD | 1 | Led out via pin headers, supporting capacitive touch screens and backlight brightness adjustment |
| MIPI DSI | 1 | 4-lane MIPI DSI interface, supporting capacitive touch screens and backlight brightness adjustment. |
| MIPI CSI | 2 | Led out through an FPC connector, with 4 lanes + 4 lanes |
| UART Debug | 1 | Integrated into a Type-C port, which can be connected to a computer for debugging |
| USB 2.0 | 2 |
1 x USB_HOST interface is led out via a USB connector 1 x USB_OTG interface is led out through a Type-C connector for OTG burning, or combined with USB 3.0 and led out via a USB 3.0 connector. |
| USB 3.0 | 1 | 1 x USB 3.0 HOST interface is led out via a USB 3.0 connector |
| Ethernet | 1 | Standard RJ45 sockets are used for connection. 1 x 100 Mbps interface and 1 x 1000 Mbps interface. Since the CPU has only one MAC, only one can be selected at a time, so they cannot be used simultaneously. |
| UART | 1 | UART5 is led out through a 40-pin header |
| CAN | 2 | CAN0 and CAN1 are led out through a 40-pin header |
| I2C | 2 | I2C3 and I2C4 are led out through a 40-pin header |
| SPI | 1 | SPI1 is led out through a 40-pin header |
| Wi-Fi | 1 | Single-antenna 2.4 GHz & 5 GHz. |
| Bluetooth | Wi-Fi Dual-band 1x1 802.11ac + Bluetooth 4.2 | |
| ADC | 7 | 7 x ADC are led out through pin headers |
| RTC | 1 | An external CR2032 coin-cell battery is used to keep time when powered off. |
| Speaker | 1 | Output through a power amplifier chip, allowing an external 4 Ω / 3.3 W speaker to be connected |
| MIC | 2 | 1 x is connected to the on-board electret microphone, and the other 1 x is not led out |
| FSPI | 1 | An external Flash chip can be connected to support startup |
| TF Card Slot | 1 | Supports a TF card with a maximum SDR104 speed |
| KEY | 3 | Buttons for CPU reset, power on/off, and startup item selection |
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Documentation
Reference Manuals
Hardware Related
Product Datasheet
User Guide
Carrier Board Schematic
Carrier Board PCB
SoM Pinmux
Firmware Related
OS Image
Testing Demo
Source Code
Manual
Request a Quote
