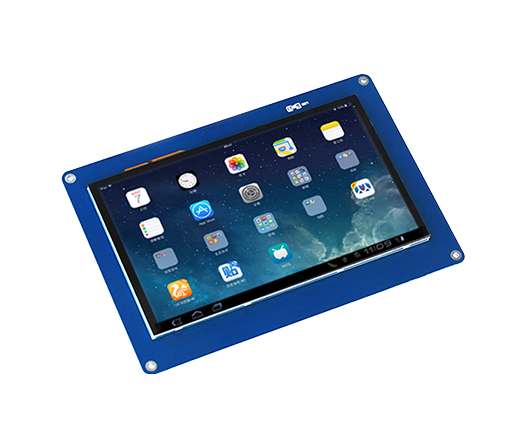

7.0-inch MIPI-DSI LCD Module with Capacitive Touch
The FIT-LCD7.0 MIPI V2.1 is a 7.0-inch LCD module featuring an ADT07009D30-06 TFT LCD panel, a 4-lane MIPI-DSI display interface, and an integrated capacitive touch panel with an I2C touch controller.
The display provides a resolution of 1024 × 600 pixels with 24-bit color and uses an LED backlight. Integrated power circuitry supports single-rail operation, with a recommended supply voltage of 3.3 V and 5 V also supported.
The module features a 154.21 mm × 85.92 mm viewing area, 250 cd/m² typical brightness, an 800:1 contrast ratio, and a typical backlight power consumption of 1.7 W. Both the TFT LCD and capacitive touch panel are protected by cover glass.
A 30-pin FPC cable is included with the module.
The FIT-LCD7.0 MIPI V2.1 is designed for use with embedded platforms and SoMLabs carrier boards equipped with MIPI-DSI display connectors.
Package Includes:
1 × 7.0-inch MIPI-DSI LCD module
1 × 30-pin FPC cable
▊ Feature of 7'' MIPI Display Module
| 7'' MIPI Display Module | ||||
|---|---|---|---|---|
| Model | FIT-LCD7.0 MIPI V2.1 | Brand | Forlinx | |
| Crystal | ADT07009D30-06 | Resolution | 1024 x 600 | |
| Connector | FPC | Touching Type | capacitive | |
| Screen Parameters | ||||
| Backlight | LED | Color | 16777216 | |
| Pixel Ratio | 5:3 | Visual Area(mm) | 154.21(W) × x85.92(H) | |
| Brightness(cd/m2) | 250 | Angual(U/D/L/R) | 30/30/30/30 | |
| Response Time(ms) | 25 | Contrast Ratio | 800 | |
| Backlight Consumption(W) | 1.7 (Typ.) | Pin Number | 30 | |
| Working Temperature | -20℃～+70℃ | |||
| Applicable to Forlinx single board computer: OK-MX9352-C, OKMX8MP-C, OKMX8MM-C, OK3588-C, OK3568-C, OK527N-C, OKA40i-C, OKT3-C, OK113i-S, OK7110-C, OK-G2LD-C, OK3399-C | ||||
