FET-D9360-C System on Module Based on SemiDrive D9 Series

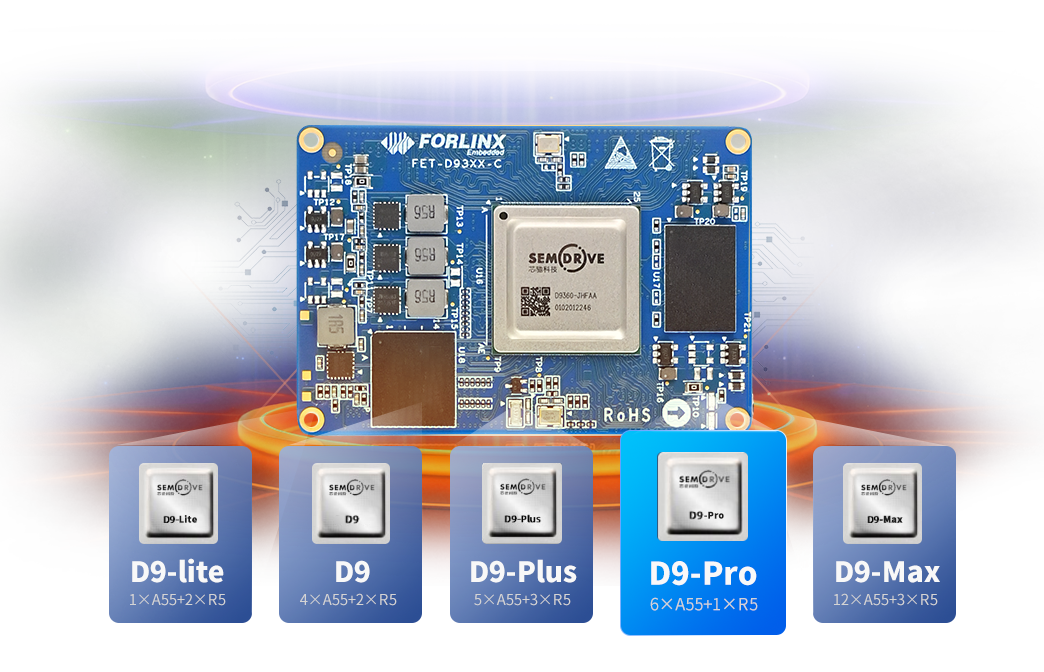

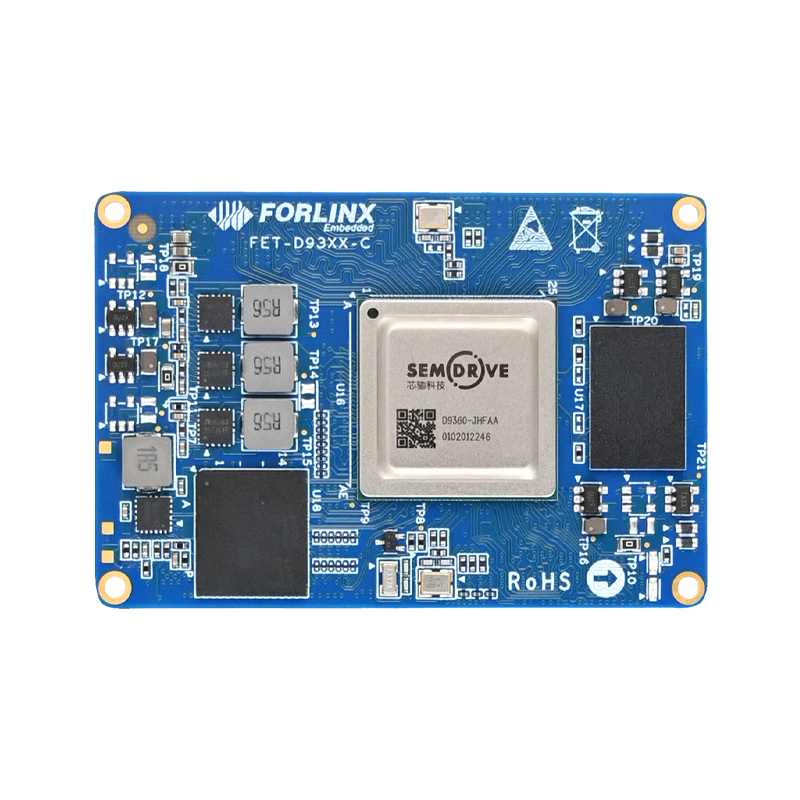

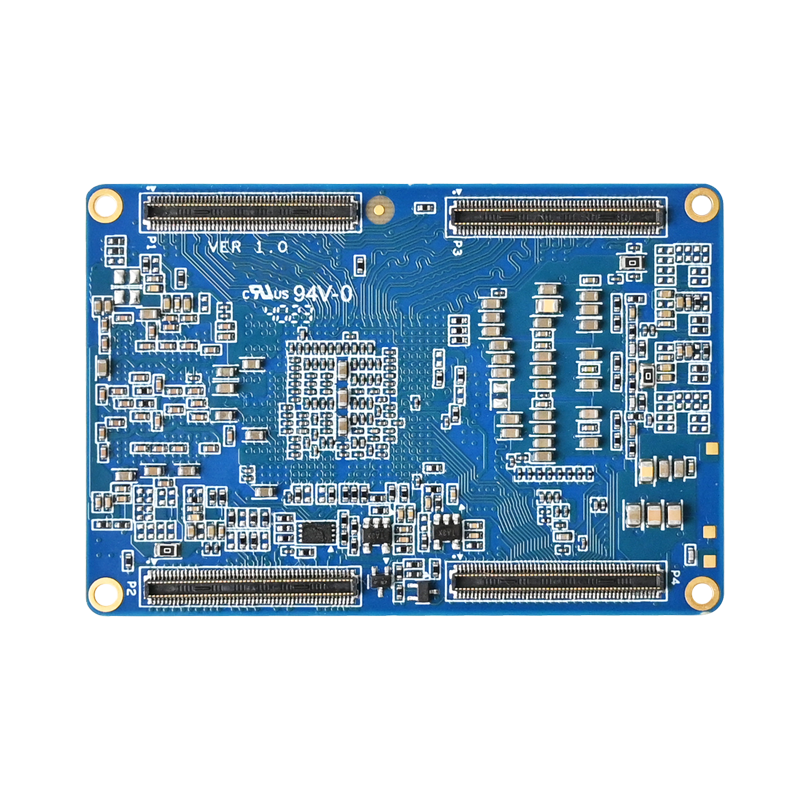

FET-D9360-C System on Module(SoM) is developed and designed based on D9-Pro processor, integrating 6 ARM Cortex-A55 high performance cores and 1 ARM Cortex-R5 real-time core. FET-D9360-C adopts 10-layer PCB gold immersion process. FET-D9360-C is 44×65mm ultra-small size and adopts 4×100Pin ultra-thin board-to-board connector with a total of 400 pins, which pin out all the processor function pins. FET-D9360-C System on Module is compatible with a variety of processors of D9 series to meet your high-performance, diversified customization needs.
FET-D9360-C SoM Highlights:
- R5 core for real-time tasks processing;
- 16nm processing technology;
- Connection between SoM and carrier board based on four ultra thin 100-pin connectors, combined height only 1.5mm;
- Multiple high-speed peripherals, such as dual Gigabit Ethernet supported with TSN, USB3.0, CAN-FD, UART, etc;
- Supports dual LVDS displays, dual MIPI-CSI and triple-displaying;
- 3D GPU, AI accelerator and H.264 coder
FET-D9360-C SoM

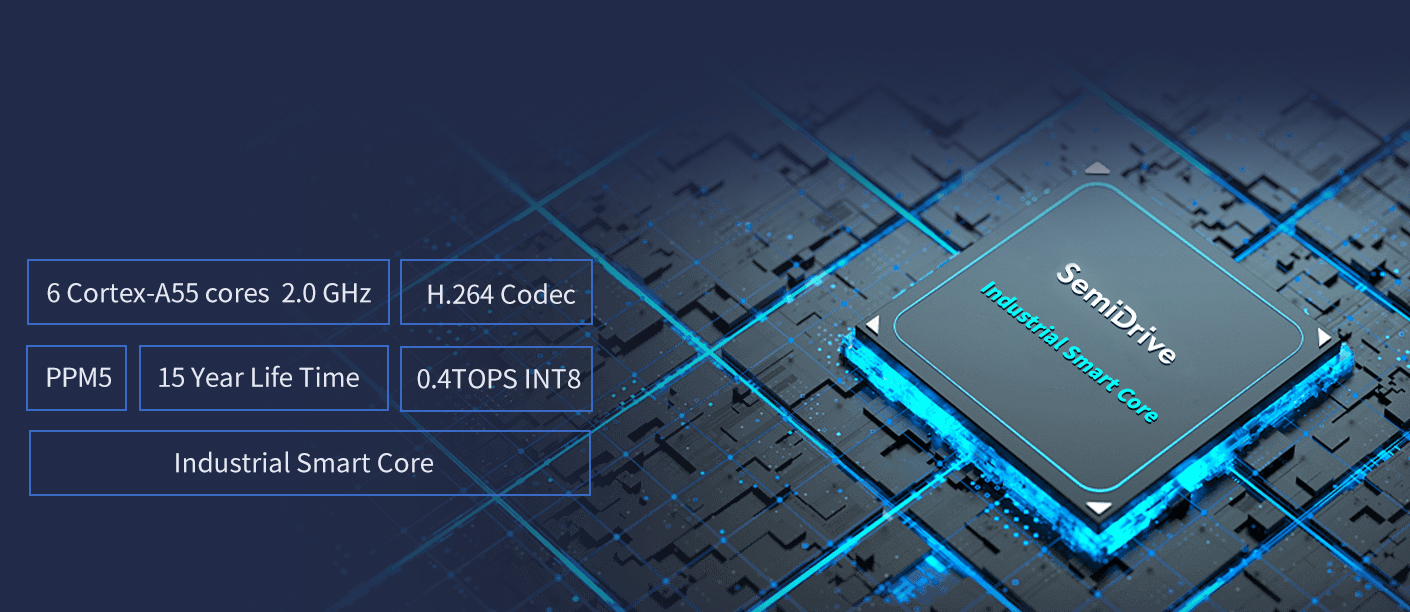

New Generation of High Performance Industrial Grade Chip
SemiDrive D9-Pro is a new generation of industrial application processor, which integrates 6 ARM Cortex-A55 high-performance cores and 1 ARM Cortex-R5 real-time core,
with ultra-high consistency and excellence rate of the product, and ultra-long service life guarantee. The competing chips widely use 28nm, 22nm process.
In contrast, SemiDrive D9-Pro adopts 16nm process which significantly improve chip performance and reduce power consumption.
Derived from Automotive-grade and Designed for Industrial Application
SemiDrive R&D team has extensive experience in automotive-grade chip design.
The D9 series is a highly reliable, secure, real-time, high-performance chip designed for advanced industrial applications.
Cortex R5 Real-time High Security Protection
The ARM Cortex-R5 processor with an operating frequency of up to 800MHz ensures strong real-time application processing.

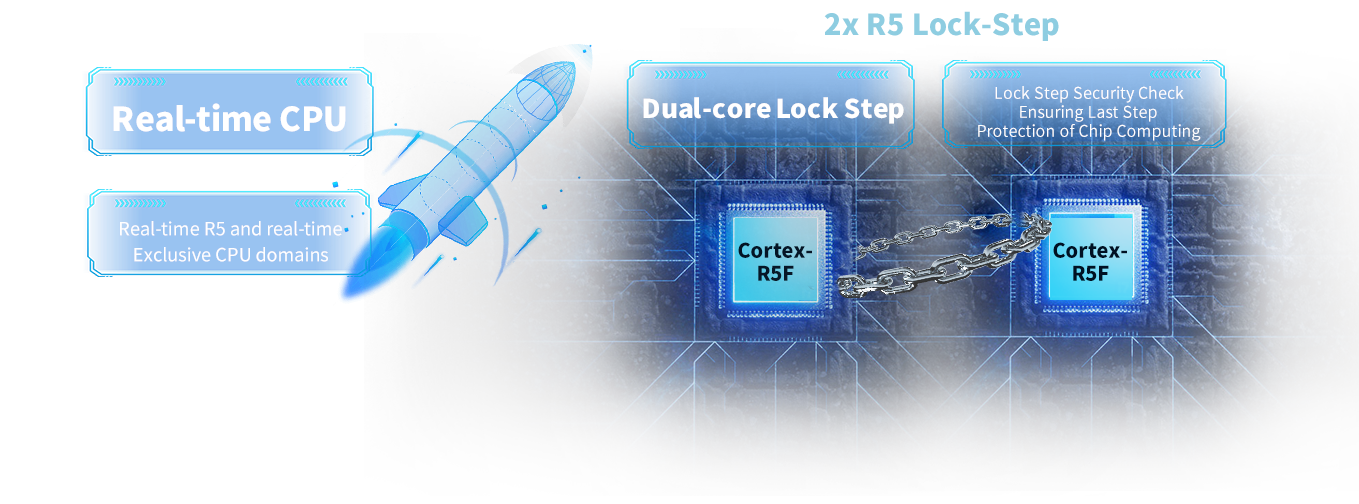

Its real-time applications has exclusive access to real-time arithmetic domains, and the dual-core lock step ensures the protection of the last step of the chip's arithmetic.
Achieve Triple Screen Displaying Different Content to Meet Diversified Needs

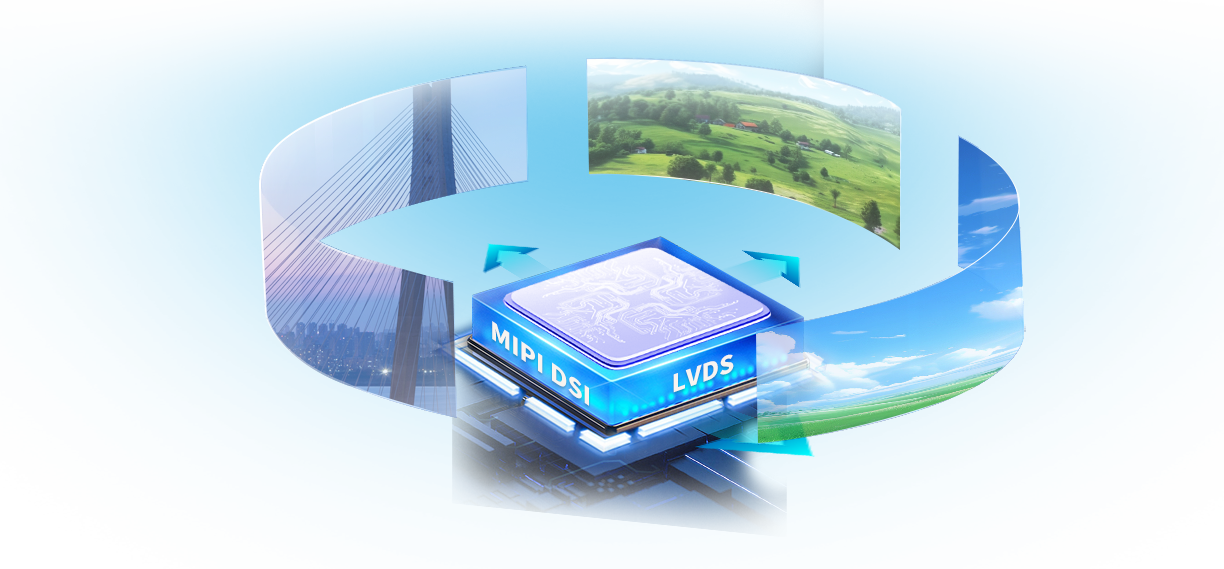

FET-D9360-C SoM is equipped with 2xLVDS and 2xMIPI DSI display interfaces,which can output three display signals at the same time, and support maximum resolution of 2560×1600@60Hz.
This configuration could meet the diversified display needs of single-screen handheld terminals,
dual-screen cash registers, multi-screen advertisement machines, electronic bus stops, self-service kiosks, and industrial HMIs and other scenarios.

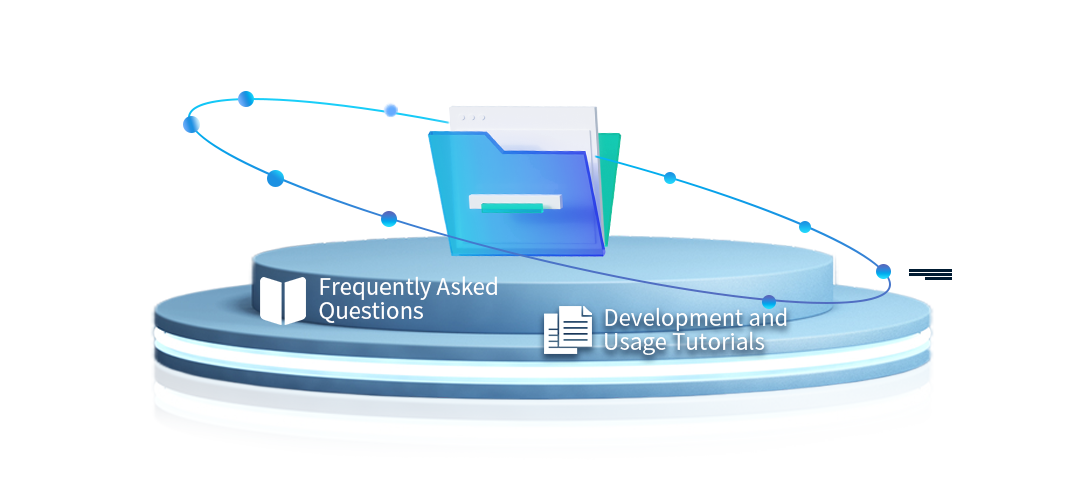

Continuously Updated User Files
Wide Range of Industrial Applications

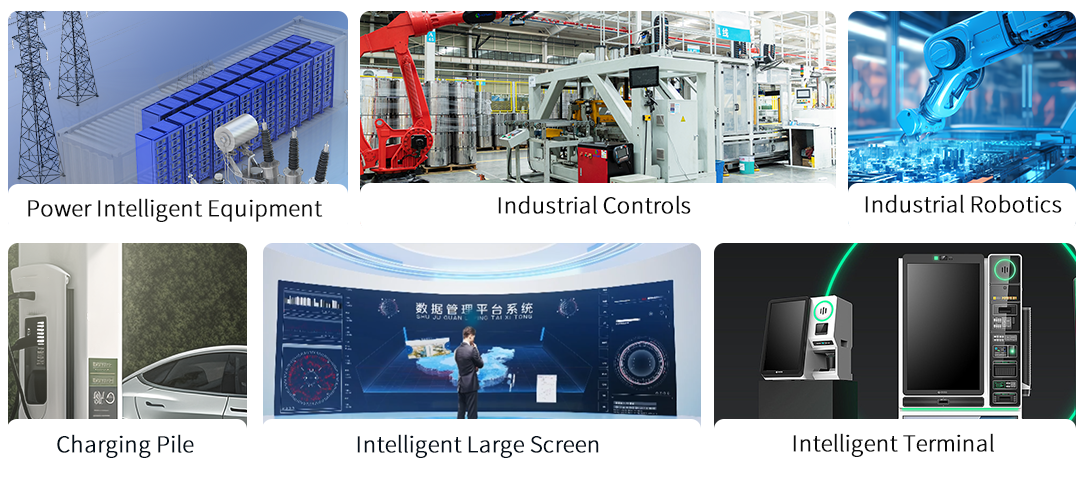

FET-D9360-C SoM is widely used in power intelligent equipment,
industrial control , engineering machinery, industrial robotics,
industrial Internet of Things, new energy charging piles, energy storage market, rail transportation, intelligent terminals, display control and other fields.
Forlinx's competitive price advantage and responsive after-sales technical support could help your products occupy the market and take the lead in your industry.
▊ Hardware Features
Note: tolerance ±0.2mm

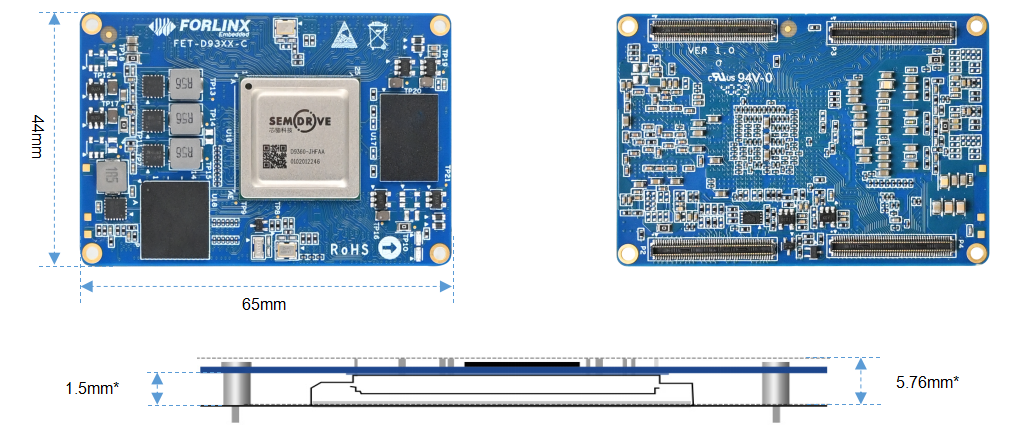

It's suggested to use double-pass copper pillars with M2* 5mm, and mating screw with M2* 4mm
|
FET-D9360-C System on Module Basic Features |
|
|---|---|
|
CPU |
SemiDrive D9 Pro CPU: D9360-JHFAA Architecture: 6×Cortex-A55+1×Cortex-R5 Clock: 2.0GHz+ 800MHz NPU: 0.4TOPS INT8(0.8TOPS INT4) GPU: PowerVR 9XM 3D GPU, 100GFLOPS VPU: H.264 video codec, 4Kp30, H.265 video decoding 4Kp30 |
|
RAM |
2GB/4GB LPDDR4x |
|
ROM |
16GB/32GB eMMC |
| Voltage input | DC 12V |
|
Operating temp |
-40℃~+85℃ |
|
Package |
Board-to-board connector(4x 100-pin, pitch 0.4mm, combined height 1.5mm) |
|
OS version |
Linux 4.14.61+Qt 5.15.2 |
|
Firmware installation |
TF card USB device |
|
FET-D9360-C System on Module Functional Parameters |
||
|---|---|---|
|
Peripheral |
NUM |
Spec. |
|
LVDS |
2 |
2x 8-lane dual LVDS, up to 2K; 4x 4-lane single LVDS, up to 1080P |
|
MIPI-DSI |
2 |
Up to 2K, fit with Forlinx 7’’ MIPI-DSI module(1024x 600) |
|
MIPI-CSI |
2 |
Supports 4 analog camera Supports 4 1080P@ 30FPS camera input |
|
Ethernet |
2 |
2x RGMII GMAC, rating 10/ 100/ 1000Mbps Supports 1.8V/ 2.5V RGMII mode Supports 3.3V RMII mode |
|
PCIe |
2 |
2x PCIe 3.0x1(or 1x PCIe3.0x2), supports RC/ EP |
|
USB3.0 |
2 |
|
|
CAN-FD |
4 |
|
|
OSPI |
2 |
Supports SDR and DDR modes Supports data bit width defining, and supports 1bit/2bit/4bit/8bit mode |
|
SDIO |
2 |
Supports DS and HS Supports SDR 12/SDR 25/SDR 50/SDR 104/DDR 50 |
|
IIS |
≤6 |
Supports 4 single channel I2S/ TDM, supports multiple data align mode; Supports 2 multi-channel I2S and multiple data align mode |
|
ADC |
4 |
12bit SAR ADC |
|
SPI |
≤8 |
Both host mode and slave mode are supported |
|
UART |
≤16 |
|
|
IIC |
≤12 |
|
|
JTAG |
1 |
|
▊ SemiDrive D9360 Carrier Board
OK-D9360-C Development Board
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.

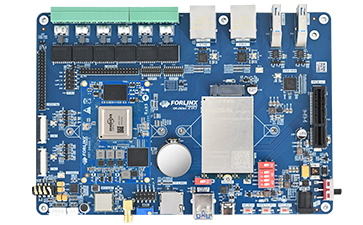

OK-D9360-C Single Board Computer by Forlinx is powered by the D9360 processor from SemiDrive, featuring a 2.0GHz 6-core Cortex-A55 and an 800MHz Cortex-R5 CPU. Featuring a wide range of connectivity options, including USB 3.0, SDIO, UART, SPI, CAN-FD, and Ethernet, and supports Linux 4.14.61 system. Featuring open system architecture design, it can provide technical information for your secondary development.
▊ Downloads
Catalog:
Forlinx Catalog Manual
Datasheet:
FET-D9360-C SoM and OK-D9360-C SBC introduction
|
Linux4.14.61 |
User manual, compiling guideline, GIT source, 3P tool and lib, reference files from StarFive, kernel source code, file system, OS image, VM ubuntu image, SD card making tool |
| Hardware | User manual, carrier board schematic, carrier board PCB(CAD), datasheet, carrier board and SoM DXF files, pinmux sheet |
▊ Accessories
Provides the modules and accessories used in Forlinx's OK-D9360-C development board.
See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
Pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested.
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
