OK3588-C Single Board Computer

CPU: RK3588

Architecture: 4*A76+4*A55

Frequency: [email protected][email protected]

RAM: 4GB/8GB LPDDR4x

ROM: 32GB/64GB eMMC

System: Android12.0,Ubuntu*,Linux*

Download Message Compare

OK3588-C Single Board Computer

Forlinx OK3588-C SBC(single board computer) is featured with Rockchip’s RK3588 one of the most anticipated processors, it consists of FET3588-C SoM and carrier board. All pin sources are available and easy-to-use on carrier board circuited from the SoM, which is much convenient to users. The board can support 8K HD display and can support quad screens playing with different content.

Rich Ready-to-use Peripheral Source

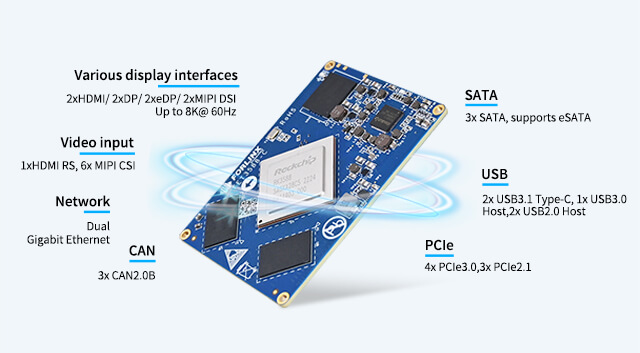

FET3588-C System on Module
FET3588-C System on Module

8K Encoder/ Decoders Exploring

RK3588 supports 8K display output, supports H.265 and VP9 decoder by [email protected], H.264 decoder by [email protected], and AV1 decoder by [email protected]
It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

RK3588 8K encoder/ decoders exploring
RK3588 8K encoder/ decoders exploring

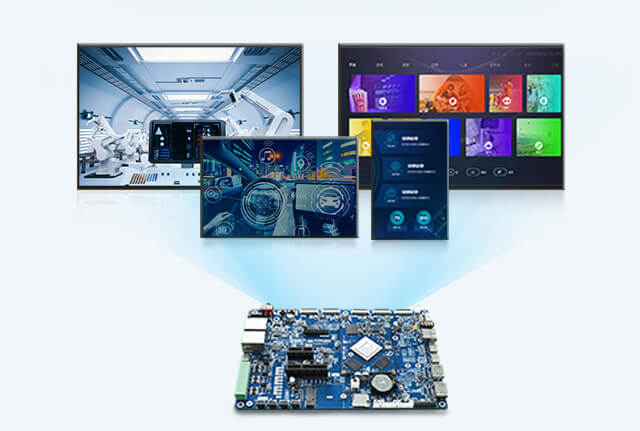

Various display interfaces, supports quad-screen playing with different content

Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available.
Can support quad-screen playing together but with different content, up to [email protected] output, will take users fantastic visual experience.

RK3588 SBC supports quad-screen playing
RK3588 SBC supports quad-screen playing

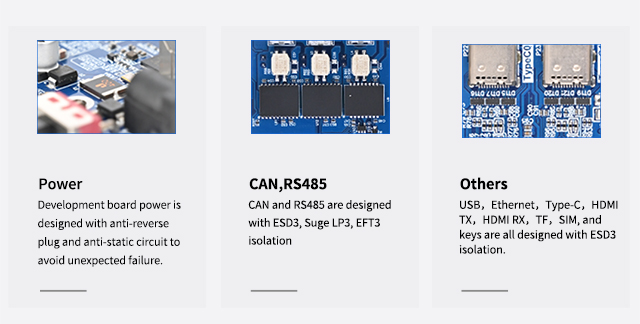

Multiplied isolation circuits, make the board a trusted platform.

RK3588 sbc Multiple protection design
RK3588 sbc Multiple protection design

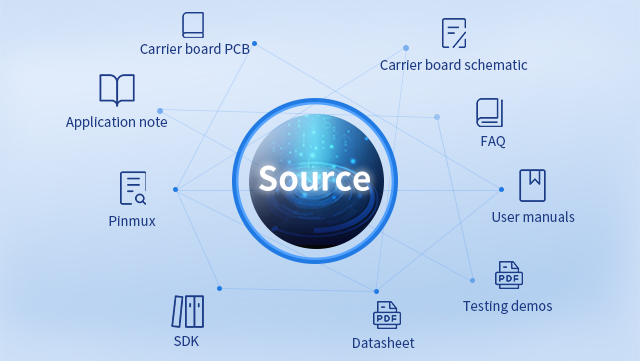

User friendly reference files support and efficient after-sale technical support.

RK3588 sbc datasheet
RK3588 sbc datasheet

▊ Specifications


FET3588-C SoM Basic Parameters

Processor

Rockchip RK3588

CPU: quad-core [email protected] + quad-core [email protected];

NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating;

GPU:

• Mail-G610 MP4

• OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2

VPU:

Decode:

• H.265, VP9: up to [email protected]

• H.264 up to [email protected]

• AV1 up to [email protected]

Encode:

• H.265/HEVC, H.264/AVC: up to [email protected]

RAM

4GB/8GB LPDDR4x

ROM

32GB/64GB eMMC

Power Input

DC 12V

Working Temperature

0℃ ~ +80℃

Package

Board to board connector(4*100pin, 0.4mm pitch, combined height 1.5mm)

▊ RK3588 SoM Feature


FET3588-C SoM Function Parameter

Interface

Type

QTY

Spec.

Video Input

MIPI DC PHY(DPHY/CPHY)

2

· Supports DPHY or CPHY;

· 4-lane MIPI DPHY V2.0m, each line up to 4.5Gbps;

· 3-lane MIPI CPHY V1.1, each line up to 2.5Gsps

Supported MIPI-CSI combo:

2 MIPI DCPHY + 4 x 2 lanes MIPI CSI DPHY

2 MIPI DCPHY + 1 x 4 lanes MIPI CSI DPHY

2 MIPI DCPHY + 2 x 4 lanes MIPI CSI DPHY

MIPI CSI DPHY

4

· 2-lane MIPI DPHY V1.2, each line up to 2.5Gsps;

· two 2-lane DPHY can be combined to a 4-lane DPHY

DVP

1

· 8/10/12/16-bit standard DVP up to 150MHz input;

· Supports BT.601/BT.656 and BT.1120 VI

HDMI RX

1

· Supports 3.4Gbps~6Gbps HDMI 2.0;

· Supports 250Mbps~3.4Gbps HDMI 1.4b;

· Supports HDCP2.3 and HDCP1.4;

Video Output

HDMI/eDP TX

≤ 2

· HDMI/eDP TX are multiplexed, each interface supports x1, x2 and x4;

· HDMI up to [email protected], supports 3, 6, 8, 10, 12Gbps band widths, supports HDCP2.3;

· eDP is up to 4K[email protected], supports 1.62Gbps, 2.7Gbps and 5.4Gbps band widths, supports HDCP1.3.

DP TX

2

· Supports 2 DP TX 1.4a, which is available for USB3.1 Gen1, supports 1/ 2/ 4 lanes;

· Up to [email protected];

· Supports HDCP2.3, HDCP 1.3.

MIPI DSI

2

· Supports 2 MIPI DPHY2.0 or CPHY 1.1, up to [email protected];

· Supports left/ right mode dual MIPI-DSI, available for RGB/ YUV up to 10-bit;

BT.1120

1

· Supports RGB up to 8-bit and rating up to 150MHz;

· Up to [email protected];

Audio

I2S

≤ 4

· 8 lanes I2S0/I2S1: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz;

· 2 lanes I2S2/I2S3: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz.

SPDIF

2

· Supports 2x 16-bit data storing;

· Supports biphasic stereo output.

PDM

2

· Up to 8 channels, resolution 16~24 bits, sampling rate up to 192KHz;

· Supports PDM primary receive mode.

DSM PWM

1

Convert PCM data to bitstream digital directly to 1-bit data output, the output digital signal will be filtered to audio signal.

Network

Ethernet

2

2x GMAC by RGMII / RMII, 10/100/1000Mbps.

Others

USB3.1 Gen1

3x

· USB3.1 Gen1 up to 5Gbps;

· 2 USB3.1 OTG, multiplexed with DP TX(USB3OTG_0 and USB3OTG_1), USB3OTG_o and USB3OTG_1 support USB Type-C and DP Alt;

· 1 USB3.1 Host, multiplexed with PIPE PHY2(USB3OTG_2).

USB 2.0 Host

2

2x USB 2.0 Host

PCIe 2.0

≤3

Each PCIe2.1 can support 1 lane, up to 5Gbps

PCIe 3.0

2

· Supports RC and EP, up to 8Gbps;

· Support 4 combinations: 1 x4, 2 x2, 4 x1, 1 x2+ 2 x1

SPI

≤5

· Each controller supports two chip select output;

· Serial master mode and serial slave mode are configurable

I2C

≤9

· Support 7-bit and 10-bit address mode;

· Standard mode data transferring rate up to 100K bits/s, and high-speed mode up to 400K bits/s.

UART

≤10

· Built-in 2 64-bit FIFO, can be used for TX and RX respectively;

· Supports 5-bit, 6-bit, 7-bit and 8-bit serial data transceiving, baud rate up to 4Mbps;

· All 10 UART can support auto flow control.

CAN

≤3

· 3 CAN2.0B;

· Can support CAN standard frame and expanding frame transceiving.

CAN

≤3

· 3 CAN2.0B;

· Can support CAN standard frame and expanding frame transceiving.

SATA

≤3

· 3 SATA3.0 controllers, PIPE PHY0/1/2 is multiplexed by PCIe and USB_HOST2;

· Supports eSATA up to 6Gbps.

PWM

≤16

Up to 16 on-chip PWM, supports capturing mode.

ADC

≤8

8x 12-bit single-end input SAR-ADC, sampling rate up to 1MS/s.

▊ Order Options


Model

Core Number

CPU Speed

RAM

Flash

Working Temp

Status

FET3588-C+244GSE32GCC11

4 x A76 + 4 x A55

[email protected]
[email protected]

4GB

32GB

0 ~ +80℃

Small batch

FET3588-C+248GSE64GCD11

4 x A76 + 4 x A55

8GB

64GB

0 ~ +80℃

Small batch

FET3588-C+2416GSE128GCE11

4 x A76 + 4 x A55

16GB

128GB

0 ~ +80℃

In planning

▊ Carrier Board


RK3588 development board front RK3588 development board back

OK3588-C Development Board Function Parameters

Interface

QTY

Spec.

MIPI CSI

5

· 2x MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; Available on carrier board by 2 26-pin FPC connectors, OV13850 is the default and recommended camera model;

· 2x MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; Available on carrier board by 3 26-pin FPC connectors, OV5645 is the default and recommended camera model;

· 1 x MIPI DPHY V1.2 4 lanes, each lane up to 2.5Gbps

MIP DSI

2

· Each MIPI-DSI supports 4 lanes output, up to [email protected];

· Forlinx default option: 7’’ MIPI DSI module, 1024x [email protected]

HDMI RX

1

· Standard HDMI connector, up to [email protected]

HDMI

1

· Standard HDMI connector, up to [email protected]

eDP TX

1

· Can fit [email protected] display;

· Up to [email protected]

DP TX

2

· 2 DP used together with USB3.1 Gen1, available on carrier board by Type-C connector;

· up to [email protected];

USB3.1 Gen1

2

· available on carrier board by Type-C connector;

· used together with DP TX, up to 5Gbps

USB2.0 Host

1

· available on carrier board by Type-A USB connector;

· supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps)

PCIe3.0

1

· 1x4 lanes PCIe signal is available on carrier board by PCIe x 4 slot;

· supports 2.5Gbps(PCIe1.1), 5Gbps(PCIe2.1), 8Gbps(PCIe3.0)

PCIe2.0

1

· By PCIe x 1 slot, up to 5Gbps

Ethernet

2

· RJ 45 connector, 10/100/1000 Mbps

TF Card

1

· Up to 150MHz, supports SDR104 mode

Audio

1

· On-board codec chip, supports earphone output, MIC input and Speaker

CAN

2

· CAN2.0B

RS485

1

UART

1

· Headers with pitch of 2.54mm, baud rate up to 4Mbps

4G/5G

1

· M.2 4G/ 5G module

WIFI&BT

1

· M.2, supports WI-FI 6 SU and MU-MIMO + Bluetooth 5.3

ADC

5

· PH2.0 connector, up to 12-bit resolution and 1MS/ s sampling rate

RTC

1

FAN

1

GPIO

9

· Pin headers with pitch of 2.54mm(3.3V) for 9 GPIO and power of 5V/ 3.3V/ 1.8V

▊ Downloads


Product manual: OK3588-C Single Board Computer Brief

▊ Accessories


Provides the modules and accessories used in Forlinx's RK3588 SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »


Optional Module
10.1 inch LVDS Screen

7.0-inch LCD Module with MIPI display

MIPI OV13850 Camera Module
10.1 inch LVDS Screen 7.0-inch LCD Module with MIPI display MIPI OV13850(13.0MP) Camera Module
Forlinx 5G Module Forlinx 4G Module MIPI OV5645 Camera Module
5G Module(RM500U) 4G Module(EM05) MIPI OV5645 Camera Module

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including Rockchip RK3588 embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with RK3588 SBC

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested.

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.

▊ Other Forlinx's Rockchip Series Products


RK3588 CPU Module
RK3399 system on module
RK3568 system on module
FET3588-C System on Module FET3399-C System on Module FET3568-C System on Module
