OK T507-C Single Board Computer

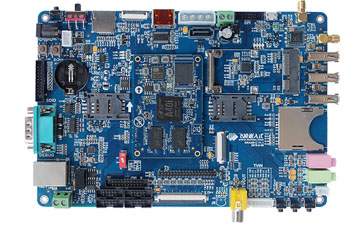

OKT507-C single board computer(SBC) consists of SoM and carrier board, the SoM could be mounted to carrier board by ultra thin connectors. It's designed based on Allwinner a quad-core industrial grade SoC T507 which belongs to Cortex-A53 architecture and runs at speed up to 1.5GHz. It's integrated with G31 GPU and carries 2GB DDR3L and 8GB eMMC on-board. It has plenty of peripherals ready-to-use, such as dual NIC, built-in Codec, external IIS Codec, ADC, TF card, LVDS, RGB, HDMI, WiFi, BT, 4G, MIPI-CSI, MIPI-DSI and other useful ports. Meanwhile, it's reserved with 4 lances of AHD to MIPI-CSI interface for connection with Forlinx expanding module for AHD camera testing and estimating.
Industrial grade SoC
FETT507-C system on module is based on industrial grade SoC T507 certified by AEC-Q100, more than 10 years of longevity.
T507 Advanced Performance
FETT507-C system on module is based on Cortex-A53 featuring quad-core SoC T507 running at speed up to 1.5GHz;
Integrates with GPU G31 MP2; Carries 2GB DDR3 RAM and 8GB eMMC ROM on-board, can support Android, Linux and Ubuntu very well.
Ultra low power consumption and fanless
SoM designed based on low-power Cortex-A53 featuring SoC, CPU full-loaded consumption only 2.25W, which is applicable for fanless designing, allows device can long-term run stably.
Various functional peripherals
AHD camera input
Can support AHD input converted to MIPI-CSI, can support 4 AHD camera capture.
Multi video output interfaces
RGB, LVDS, HDMI and CVBS output interfaces are all supported, can support dual-screen playing synchronously and asynchronously
4K video output
Supports HDMI 2.0a, output resolution up to 4K.
Supports 4K hardware codec
OS
Linux4.9+Qt5.12, Android10.0 and Ubuntu18.04 are all well supported and easy-to-go.
Target Applications
Applicable for car electronics, power industry, medical, IoT, industrial control , IoT and all kinds of smart devices.
▊ FDU Medical HMI
Forlinx launched FDU070K02 & FDU101K02, an HMI specially designed for medical. It supports touch with medical gloves, dual screen simultaneous display or differential display, taking into account the scene flexibility and convenience of use.
The FDU medical HMI support network, display, RS232/485, and USB, it also support communication interfaces such as CAN, 4G, and WIFI. All of them are equipped with ESD4 electrostatic protection.
Adapted to a variety of screen sizes, not limited by usage scenarios and space. It currently supports 10.1-inch screen (1280 * 800 resolution) and 7.0-inch screen (1024 * 600 resolution).
▊ Specification
| Overview of FETT507-C System on Module | |
|---|---|
| CPU | Allwinner T507 |
| Architecture | quad-core Cortex-A53 |
| Freequency | 1.5GHz |
| RAM | 2GB DDR3L |
| ROM | 8GB eMMC |
| Working Temperature | -40℃~ +85℃ |
| Dimensions | 40mm*70mm |
| Package | ultra thin board-to-board connector |
| Voltage input | 5V |
| OS |
Linux4.9+QT5.12, Android10, Ubuntu18.04 TBD |
| GPU | G31 MP2 available for OpenGL ES 3.2/2.0/1.0, Vulkan1.1, OpenCL 2.0 |
| FETT507-C System on Module Features | ||
|---|---|---|
| Peripheral | QTY | Spec. |
| TVOUT | 1 | CVBS output, NTSC mode and PAL mode |
| HMDI | 1 |
Video: - 2D Video up to [email protected]; - 3D Video up to [email protected]; Audio: -IEC60985 L-PCM unpressed audio form, up to 192 kHz; -IEC61937 pressed audio form, up to 1536 kHz |
| LCD/LVDS | 1 |
LCD and LVDS are multiplexed; LCD: - RGB(DE/SYNC) up to [email protected]; - Serial RGB/dummy RGB up to [email protected]; - i8080 up to [email protected]; - BT656 up to [email protected] or [email protected]; - RGB888, RGB565, RGB666; - can support R/G/B separate Gamma correcting LVDS: - dual-lane up to [email protected]; - single-lane up to [email protected] |
| MIPI_CSI | 1 |
supports image tailoring; supports MIPI Version 1.0; up to 1.0Gbps/Lane; video capturing rate up to [email protected] or 4*[email protected]; |
| CSI_DVP | 1 |
can support 8/10/12/16 bit DC; supports BT656, BT601, BT1120; supports ITU-R BT.656 TDM, up to 4*[email protected] id DDR sampling mode; supports progress and interlace video input; video capturing rate up to [email protected] and [email protected]; pixel clock up to 148.5MHz |
| USB2.0 | 4 |
OTG: - can support 1* OTG; - High-Speed (HS,482), Full-Speed(FS,12Mbit/s) and Low-Speed (LS,1.5Mbit/s) in master mode; - High-Speed (HS,482 Mbit/s) and Full-Speed (FS,12Mbit/s) in slave mode HOST: - can support 3* host; - can support High-Speed (HS,482 Mbit/s),Full-Speed(FS,12Mbit/s) and Low-Speed(LS,1.5Mbit/s) devices |
| SD | 2 |
SDHC0(SD3.0): - 4bit BUS width; - SDR mode [email protected] IO pad; - SDR mode [email protected] IO pad; - DDR mode [email protected] IO padSDHC1(SDIO3.0): - 4bit BUS width; - SDR mode [email protected] IO pad; - DDR mode [email protected] IO pad |
| RMII | 1 | 10/100Mbps auto-negotiation |
| RGMII | 1 | 10/100/1000 Mbps auto-negotiation; RGMII could be multiplexed to RMII for dual fast Ethernet expanding |
| UART | ≤6 |
UART0, UART5: 2-wire, UART1, UART2, UART3, UART4: 4-wire; Comply with 16550 UARTs; speed up to 4Mbit/s; can support 5～8 data bit and 1/1.5/2 stop bit; can support RS-485/9-bit mode |
| TWI | ≤5 | standard mode(up to 100kbit/s) and fast mode(up to 400kbit/s) |
| SPI | ≤2 | 3-wire/ 4-wire SPI: up to 100MHz |
| SCR | 1 | ISO/IEC 7816-3:1997(E) and EMV2000(4.0) |
| PWM | ≤6 |
3 couples of PWM: PWM01 consists of PWM0 and PWM1, PWM23 consists of PWM2 and PWM3, PWM45 consists of PWM4 and PWM5; can support pulse(configurable), circle and complementary pair output; can support capture input; programmable dead zone output; built-in programmable dead zone time generator, controllable dead zone time; three types of output waves: continuous wave; pulse wave, complementary wave; output reference range: 0～24MHz/100MHz; duty ratio: 0%～100%; minimum resolution: 1/65536; supports PWM output and input interrupt |
| JTAG | ≤1 | |
| CIR | 1 |
supports NEC data; supports remote controller or wirelesss keyboard CIR; 64x8 bit FIFO for data buffer; sampling clock up to 1MHz |
| GPADC | 4 |
can support 4 general purpose ADC, 12-bit resolution; maximum sampling rate 1MHz; can support data comprision and interrupt; can support DMA transaction; signal input range: 0～1.8V; supports three working modes: single conversion, continuours conversion burst conversion |
| LRADC | 1 |
6-bit resolution sampling rate up to 2kHz supports hold Key and general Key supports normal mode, continuous conduction mode and single work mode; Power supply voltage: 1.8V Power reference voltage: 1.35V, analog input detected voltage range: 0〜LEVELB(maximum 1.266V) |
| LINEIN TBD | 1 | reserved, not available |
| LINEOUT | 1 |
supports dynamic range controller to adjust DAC playing; 2 DAC channels: - can support 16-bit and 20-bit sampling rates; - 8kHz ~ 192kHz sampling rate; - 95±2db [email protected], -80±3db THD+N, output up to 0.55Vrms1 audio output: - one differential LINEOUTP/N or single-end LINEOUTL/R |
| DMIC | 1 |
can support up to 8 digital PDM micphones; can support sampling rate 8kHz to 48kHz |
| OWA | 1 | 1* OWA sending |
| I2S | ≤4 |
one built-in audio HUB; supports 2 Digital Audio MIXER(DAM); supports 3* I2S/PCM peripherals and 1* I2S/PCM for connecting internal HDMI; supports left-justifying, right-justifying, standard I2S, PCM, tdM; I2S supports 8 channels, 32-bit/192kbit sampling rate; I2S and TMD mode up to 16 channels, 32-bit/96kbit sampling rate |
▊ Carrier Board
| OKT507-C Single Board Computer Features | |||
|---|---|---|---|
| Peripheral | QTY | Spec. | |
| LCD | 1 | RGB888, up to [email protected] | |
| LVDS | 1 |
multiplexed with LCD; single-lane 1366x7[email protected], dual-lane [email protected] |
|
| HDMI | 1 |
complies with HDCP2.2 and HDCP1.4; supports HDR10; 2D video [email protected], 3D video [email protected] |
|
| TV-OUT | 1 | analog video output, supports NTSC and PAL mode | |
| MIPI_CSI | 1 |
4 lanes, up to 1.0Gbps/Lane; maximum video capturing resolution [email protected] or 4*[email protected] |
|
| DVP_CSI | 1 |
8-bit, resolution clock up to 148.5MHz; maximum video capturing resolution [email protected] or [email protected] |
|
| Audio | LINE IN TBD | 1 | reserved, not available |
| LINE OUT | 1 | CPU built-in codec, differential output or single-end output | |
| MIC | 1 | carrier board external codec, analog MIC | |
| Headphone | 1 | carrier board external codec, earphone output | |
| Speaker | 2 | carrier board external codec, D-amplifier can drive speakers | |
| USB2.0 | 2 | USB2.0 Type-A female connector, host mode, 480Mbit/s | |
| OTG | 1 | microUSB, host/ slave mode, for firmware installation | |
| 4G | 1 | for mini-PCIe 4G wireless module | |
| Ethernet | 2 | 1 Gigabit Ethernet, 1 fast Ethernet, auto-negotiation | |
| WiFi& Bluetooth | 1 |
Model: AP6256 WLAN: IEEE 802.11b/g/n & Wi-Fi compliant 2.4GHz IEEE 802.11a/n/ac& Wi-Fi compliant 5GHz BT: BT 5.0 Module |
|
| TF Card | 1 | compatible with SD3.0 | |
| KEY | 6 | VOL+, VOL-, MENU, ENTER, HOME, PWRON | |
| JTAG | 1 | ||
| SPI | 1 | SPI0 is not available for eMMC version, SPI1 can be multiplexed with I2S3 | |
| ADC | 4 | 1.8V, 8-bit effective SAR type A/D converter, sampling rate up to 1MHz, one on-board adjustable resistor | |
| PWM | 1 | for backlight adjusting | |
| IR | 1 |
|
|
| RTC | 1 | external RTC, CR1220 | |
| UART | 1 | TTL voltage drawn out by a 10-pin simple horn seat | |
| UART Debug | 1 | TTL by pin connectors with pitch of 2.54mm, RS232 by a DB9 male connetor | |
note: Ubuntu is coming
▊ Accessories
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
| Optional Module | ||
|---|---|---|
|
|
|
|
| 10.1-inch LVDS Display with Capacitive Touch Panel | 7.0-inch LCD Module with MIPI display | 7.0-inch TFC LCD Module with Capacitive Touch Panel |
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.
