AM62L32 Local EVM
CPU: Texas Instruments AM62L32
Architecture: 2× Cortex-A53 @ 1.25GHz
Frequency: [email protected]
RAM: 512MB LPDDR4
ROM: 8GB eMMC
System: Linux 6.12
The AM62L32 Local EVM by Forlinx Embedded is an industrial-grade evaluation board powered by the Texas Instruments (TI) AM62L32 processor. Engineered as a 4-layer integrated PCB (Single-Board), it eliminates the cost of a traditional SoM+Carrier architecture, making it highly cost-effective and production-ready for industrial control , IoT gateways, edge computing, and embedded HMI applications.
Key Hardware Specifications
- Processor: Texas Instruments (TI) AM62L32 (Cortex-A53 + Cortex-M4F, Low-Power Architecture)
- PCB Architecture: 4-Layer Single-Board Integrated Design (Cost-Optimized & Low Interference)
- Memory & Storage: Original Winbond Industrial LPDDR4 RAM + NAND Flash
- Connectivity & Comms: 2x Gigabit Ethernet, 3x CAN-FD, 8x UART, 4x SPI, 2x USB 2.0, 1x GPMC, 5x I2C
- Display Interfaces: MIPI DSI, RGB
- Reliability & Temp: Industrial-grade wide temperature range support for 24/7/365 continuous operation

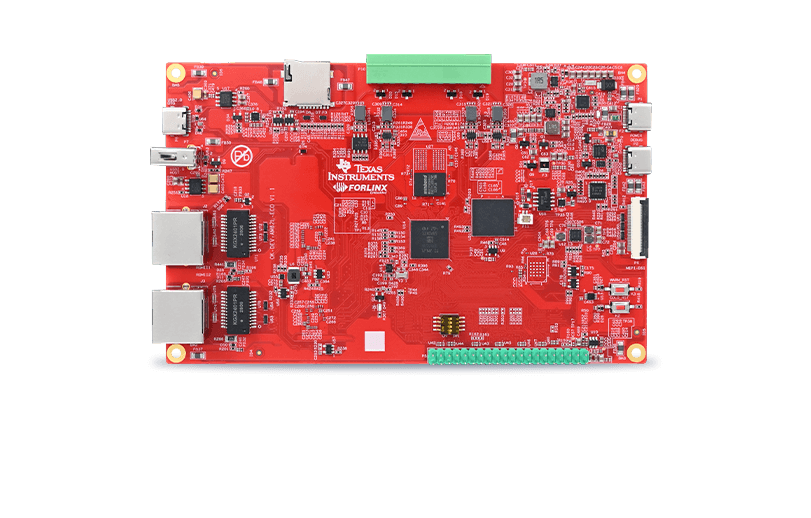

Forlinx Embedded and Texas Instruments
Jointly Launch the AM62L32 Local EVM
As a strategic partner of Texas Instruments (TI), Forlinx Embedded introduces the AM62L32 Local EVM, an evaluation board based on TI's AM62L processor series.
Merging TI's low-power, high-reliability architecture with Forlinx's hardware expertise, this board targets industrial control, IoT, embedded HMI, and edg-computing applications.
Through continued collaboration, Forlinx and TI will provide global developers with robust hardware solutions and full-cycle technical support to accelerate product development.

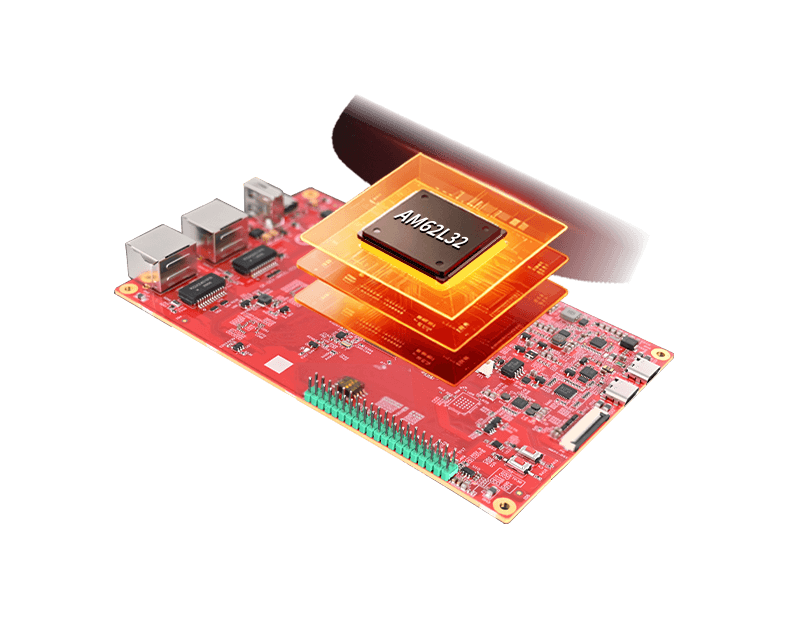

4-Layer Integrated Design:
Cost-Optimized, Production-Ready
TI AM62L32 features a highly integrated native architecture that simplifies peripheral hardware design. Built around this chip, the AM62L32 Local EVM utilizes a mature 4-layer PCB integrated board design.
It fully retains core peripherals while substantially reducing hardware production costs and accelerating secondary development and mass production cycles.
Additionally, the optimized 4-layer layout minimizes signal interference, enhances overall anti‑interference capability, and meets strict signal-integrity requirements for embedded industrial applications.
AM62L32-Extensive Interfaces for Comprehensive Development
Equipped with rich and versatile interfaces, the AM62L32 chip meets most embedded development needs without extra peripherals, significantly lowering the development barrier.
It features: 2x Gigabit Ethernet, 3x CAN-FD, 8x UART, 4x SPI, 2x USB 2.0, 1x GPMC, 5x IIC, MIPI DSI, RGB, OSPI,
which make it highly adaptable for industrial communication, data acquisition, image recognition, HMI, and more.
Industrial-Grade Storage
Ensuring 24/7 Reliability
AM62L32 Local EVM integrates original Winbond LPDDR4 RAM and NAND Flash with stringent quality control and mature process. These industrial-grade memory chips deliver robust environmental adaptability, interference resistance, and reliable read/write performance for stable 7×24/365 operation under harsh conditions. Combined with optimized hardware circuitry, the board supports both R&D/debugging and direct mass production, balancing high performance with proven reliability.
Low Power, High Adaptability
Wide Application Coverage
With excellent power efficiency and industrial-grade temperature range support, the TI AM62L32 operates reliably in complex environments. It suits a variety of embedded fields, including: Industrial automation control, IoT gateways, Smart security systems, Vehicle terminals, Embedded HMI, Smart instruments. Combined with Forlinx Embedded's strong technical support, it provides a cost-effective, stable solution to accelerate your product time-to-market.
Comprehensive Core Interfaces
Key interfaces include USB 2.0 OTG/HOST, dual Gigabit Ethernet, CAN-FD/RS485, eMMC, PD, MIPI-DSI/LCD, and GPIO.
Featuring a dual-PCB layout, it integrates core components, memory, networking, display, and communication interfaces in a centralized design,
facilitating hardware testing, software development, and production evaluation.
▊ Hardware Features
| Hardware Specifications of AM62L32 Local EVM | |||
|---|---|---|---|
| Core System | Processor: Texas Instruments AM62L32 (Industrial TI Solution) | ||
| CPU Architecture: 2× Cortex-A53 @ 1.25GHz | |||
| Memory: 512MB LPDDR4 | |||
| Storage: 8GB eMMC | |||
| OS Support: Linux 6.12 | |||
| Operating Temperature: -40°C to +85°C (Wide Temperature Industrial Grade) | |||
| Dimensions: 153.45mm x 96mm | |||
| Features: Industrial TI Processor Solution | Multi-industrial Bus Interfaces | Wide Temperature Operation | |||
| Display | LCD (RGB666) | 1 | 18-bit RGB, fully validated with 1024×600@60fps displays. Multiplexed with GPIO / SPI / I2C. |
| MIPI-DSI | 1 | Supports 4 lanes, up to 1080p@60fps. Fully validated with 1024×600@60fps displays. | |
| Connectivity | Ethernet | 2 | 10/100/1000Mbps auto-negotiation, RJ-45 ports. |
| Type-C (DEBUG) | 1 | Main domain debug interface, converting UART to USB output. | |
| Type-C (USB0 OTG) | 1 | Native USB0 port, supports OTG functionality. | |
| USB Host | 1 | Native USB1 port, USB 2.0 (up to 480 Mbps), Type-A interface. | |
| Industrial Bus & I/O | CAN-FD | 3 | Industrial-grade CAN-FD with protection circuitry, supporting up to 8Mbps. |
| RS485 | 1 | IO-controlled transceiver with built-in protection circuitry. | |
| UART | 8 | Native comprehensive serial communication interfaces. | |
| SPI | 4 | High-speed synchronous serial data buses. | |
| I2C | 5 | Multi-master serial buses for peripheral configuration. | |
| GPMC | 1 | General-Purpose Memory Controller interface. | |
| OSPI | 1 | Octal Serial Peripheral Interface for high-performance memory expansion. | |
| TF Card Slot | 1 | Supports SD3.0 protocol. | |
| PWM | 1 | Routed for LCD backlight adjustment. | |
| RTC | 1 | Onboard RTC chip (battery not included). | |
| Keys | 2 | Includes Cold Reset and Warm Reset buttons. | |
| LEDs | 2 | 1x Power indicator (Green), 1x System status indicator (Green). | |
