FETMX6UL-C2 System on Module

CPU: i.MX6UltraLite

Architecture: Cortex-A7

Frequency: 528MHz

RAM: 256MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.14.38,Linux4.1.15

Brief Message Compare

System on Module FETMX6UL-C2 based on NXP i.MX6UltraLite

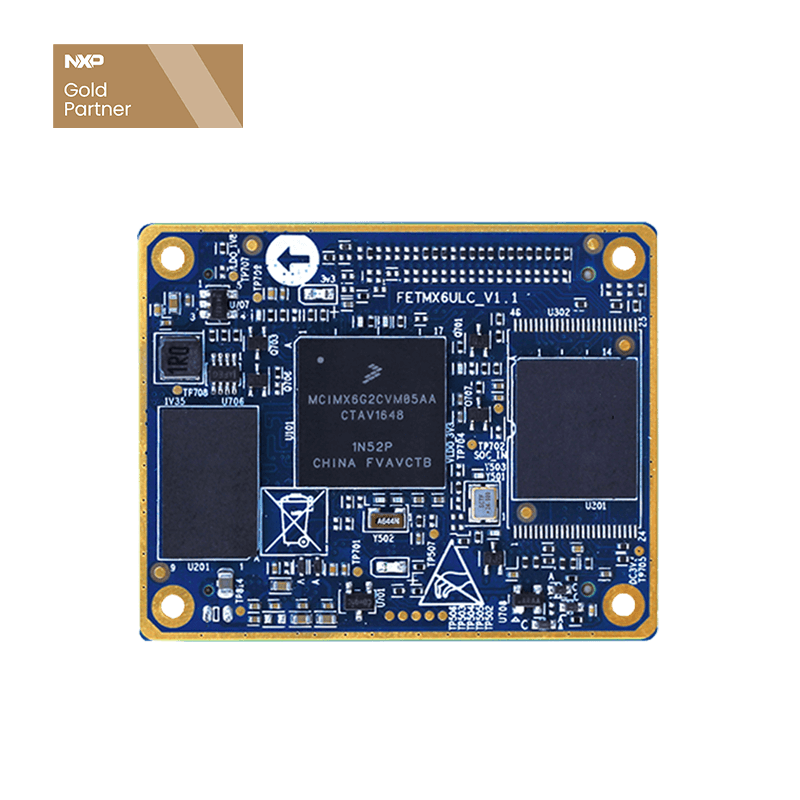

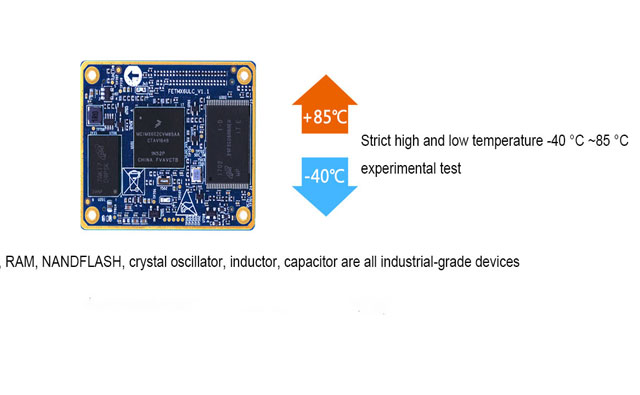

FETMX6UL-C2 is an industrial grade SoM based on NXP i.MX6 Ultra Lite microcontroller belongs to Cortex-A7 and is with main frequency of 528MHz, 256MB LvDDR3 and 256MB NAND Flash, the CPU module is with a couple of board-to-board connectors each with 80pins. Unique PMU design makes it lower power consumption than ARM 9 products. It's approved to work stably under environment temp ranges from -40℃ to +85 ℃.


FETMX6UL-C2 SoM Size

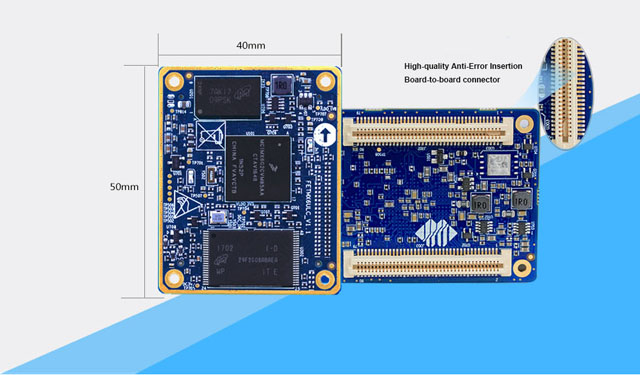

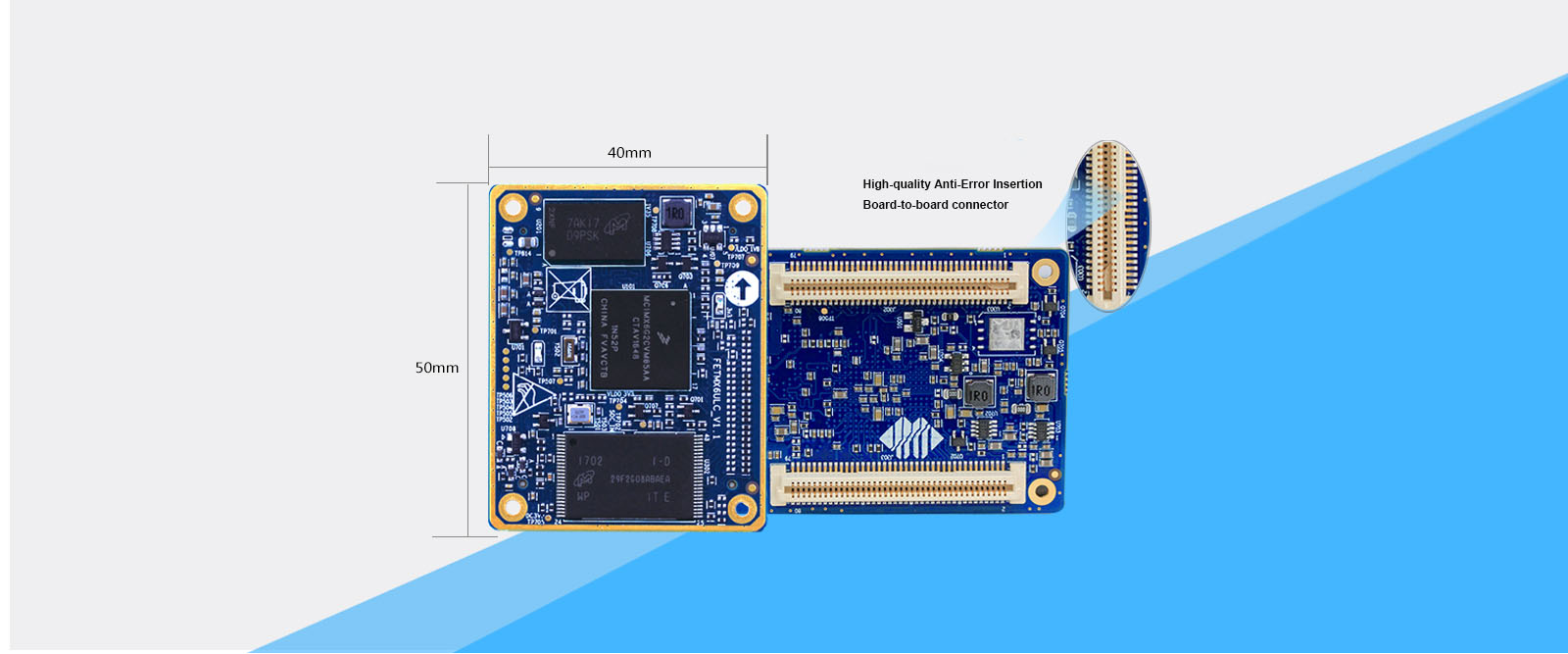

Length and width are only 40mm*50mm, 6-layer PCB immersion gold technology, two sets of high-quality anti-misplug board-to-board connectors

FETMX6UL-C2 SoM Size
FETMX6UL-C2 SoM Size

Low Power System on Module

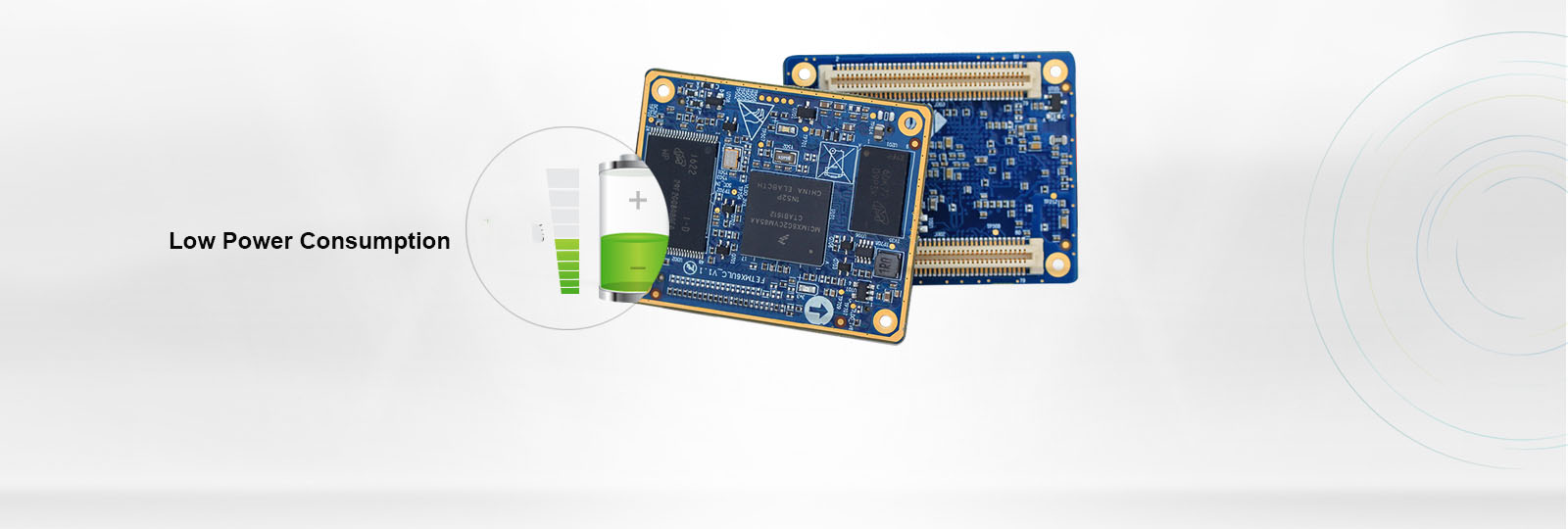

Compared with the ARM9 and ARM11 series system on module, the power consumption of the FETMX6UL-C SoM is reduced by 50%.

FETMX6UL-C core board
FETMX6UL-C core board

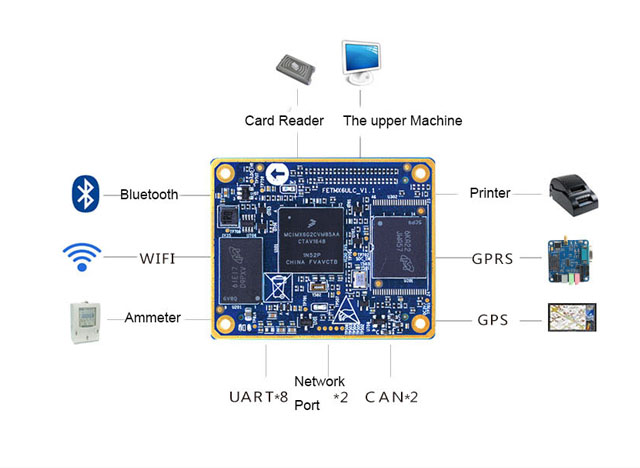

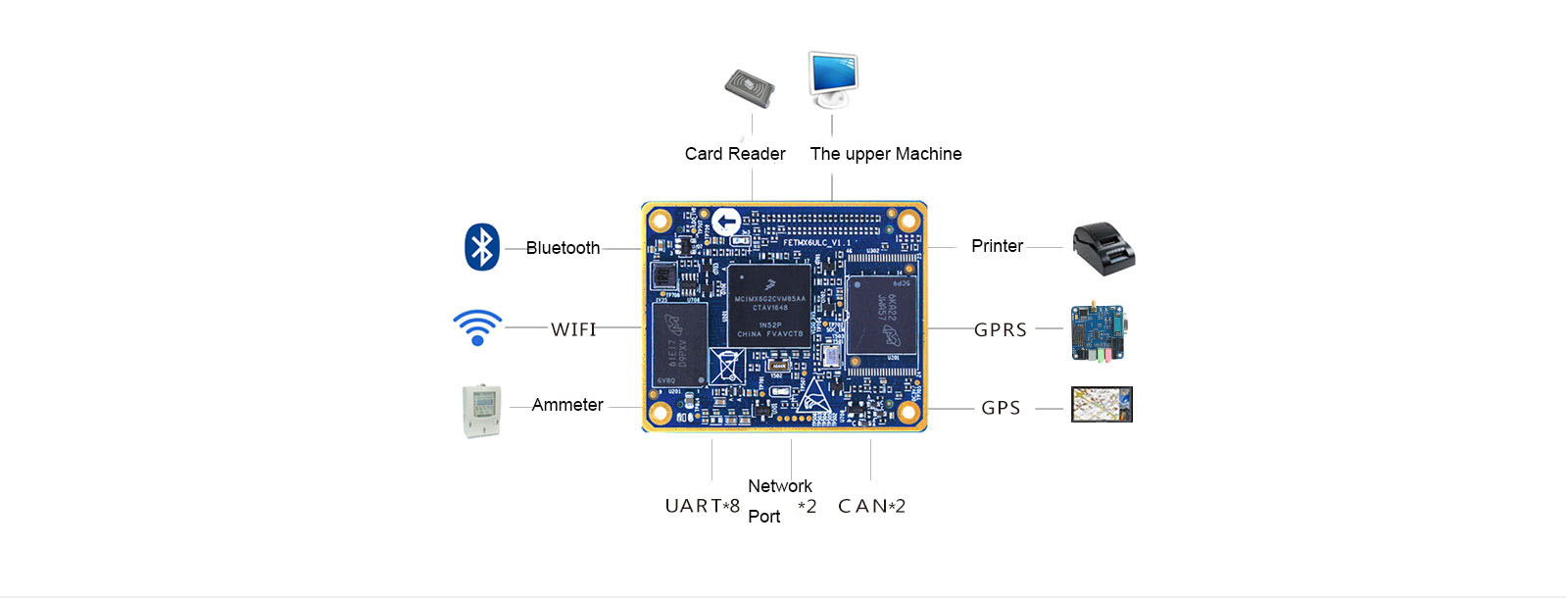

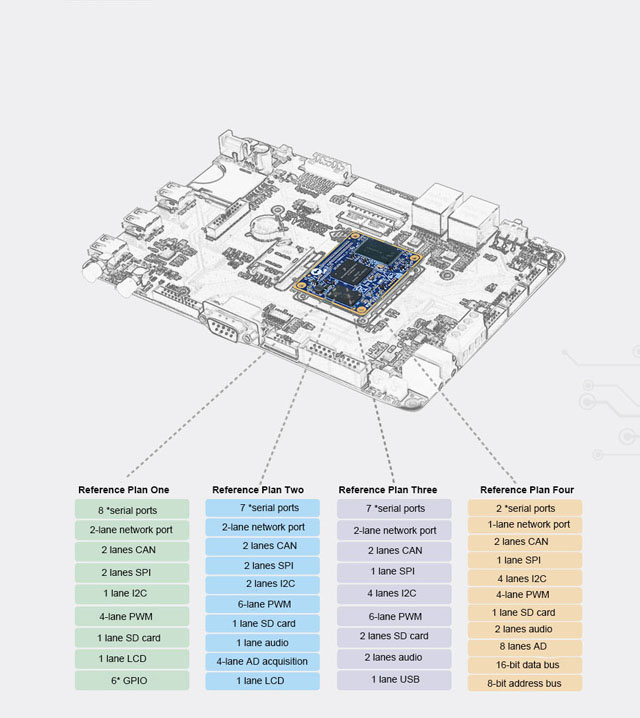

8 serial ports, 2 network ports, 2 CAN

The industry supports the CPU with the largest number of serial ports, as well as 2 dual-redundant networks and 2 high-real-time CAN buses.

FETMX6UL-C core board interface
FETMX6UL-C core board interface

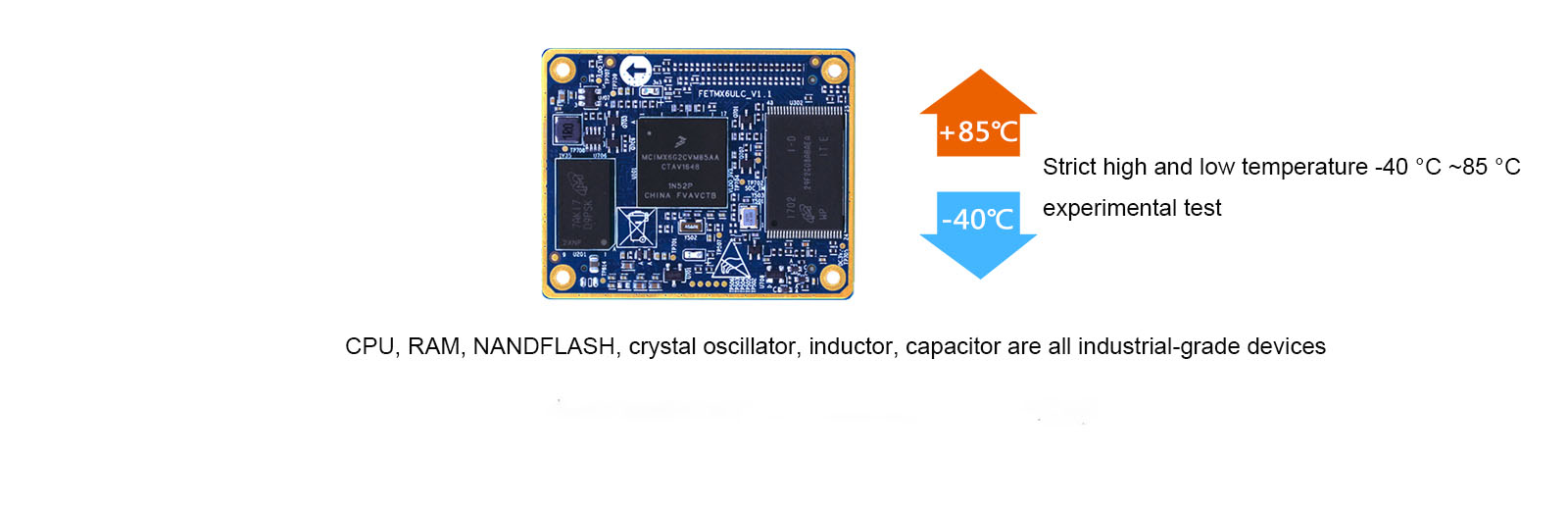

Industrial-grade System on Module

Industrial-grade System on Module
Industrial-grade System on Module

Media player, digital camera

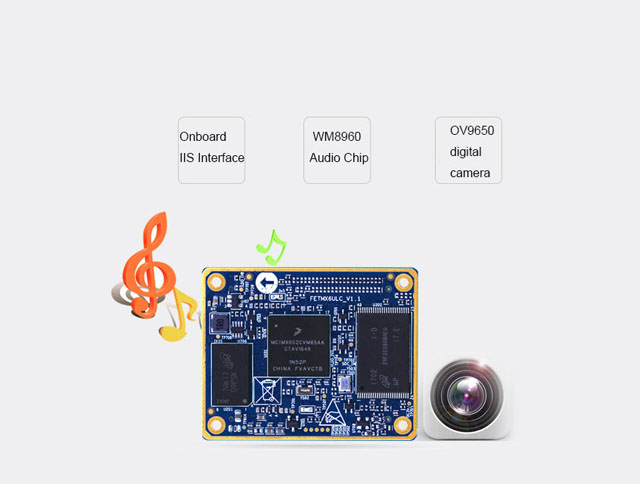

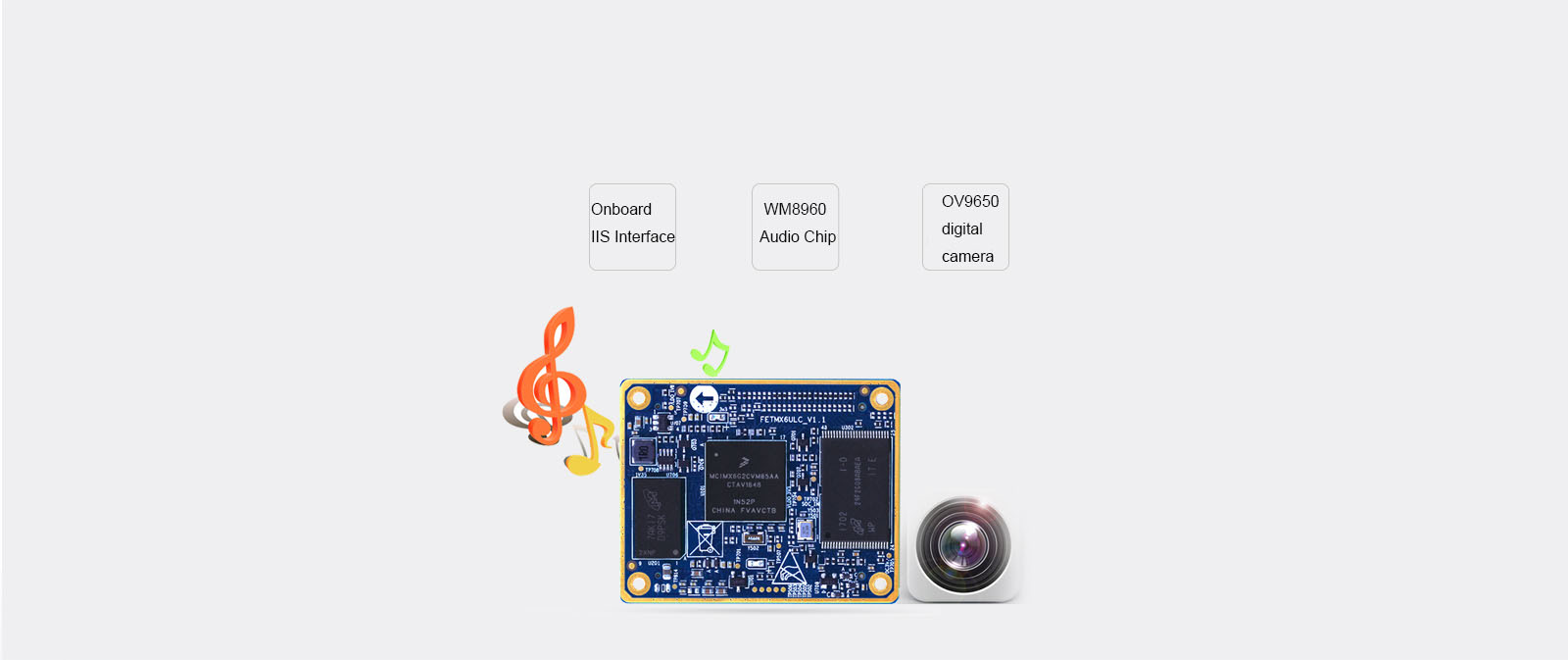

Onboard IIS interface, WM8960 audio chip, any music and song playback, support digital camera OV9650

FETMX6UL-C core board with Media player
FETMX6UL-C core board with Media player

Security encryption double protection

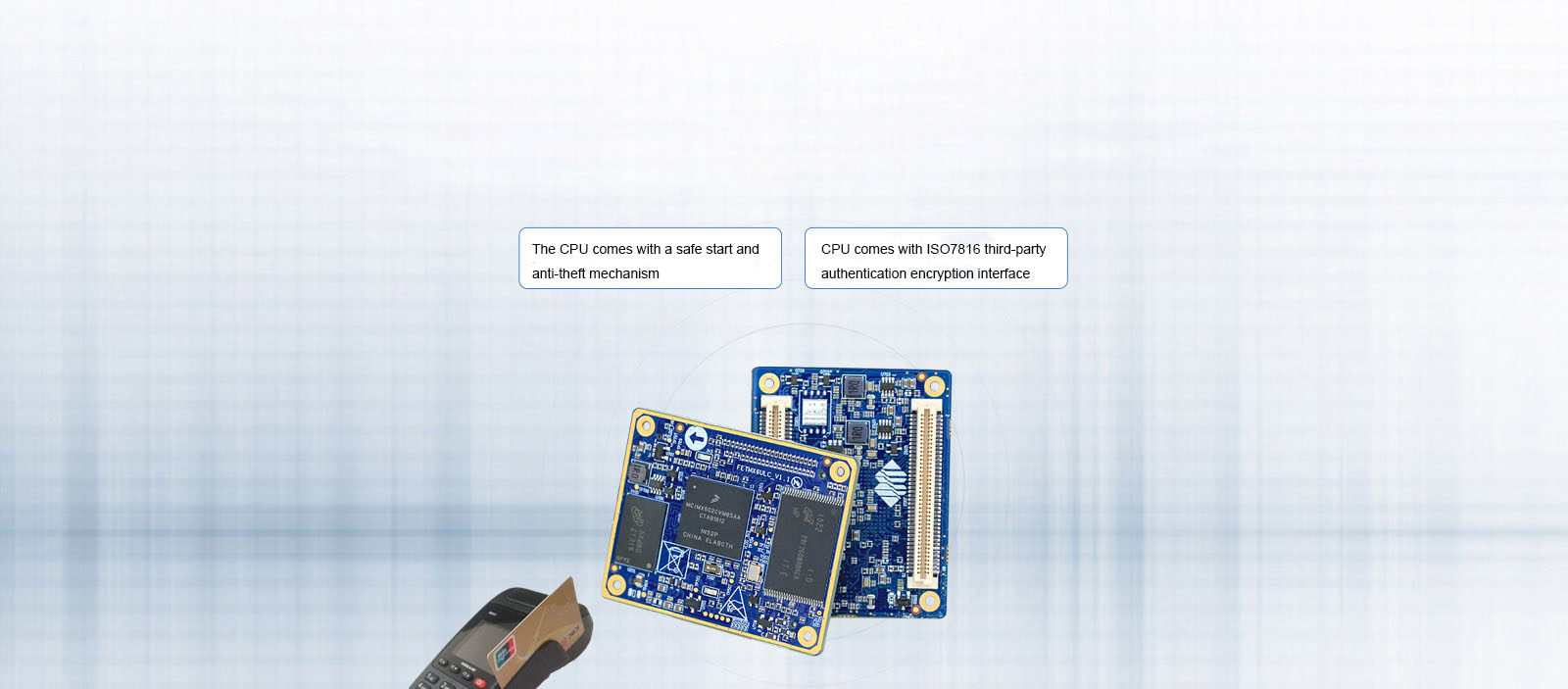

Single encryption: CPU comes with a safe boot anti-theft mechanism, which can prevent third-party users from arbitrarily brushing the machine and implanting Trojan horse viruses to steal user information;
double encryption: CPU comes with ISO7816 third-party authentication encryption interface, making transactions more secure

FETMX6UL-C core board Security
FETMX6UL-C core board Security

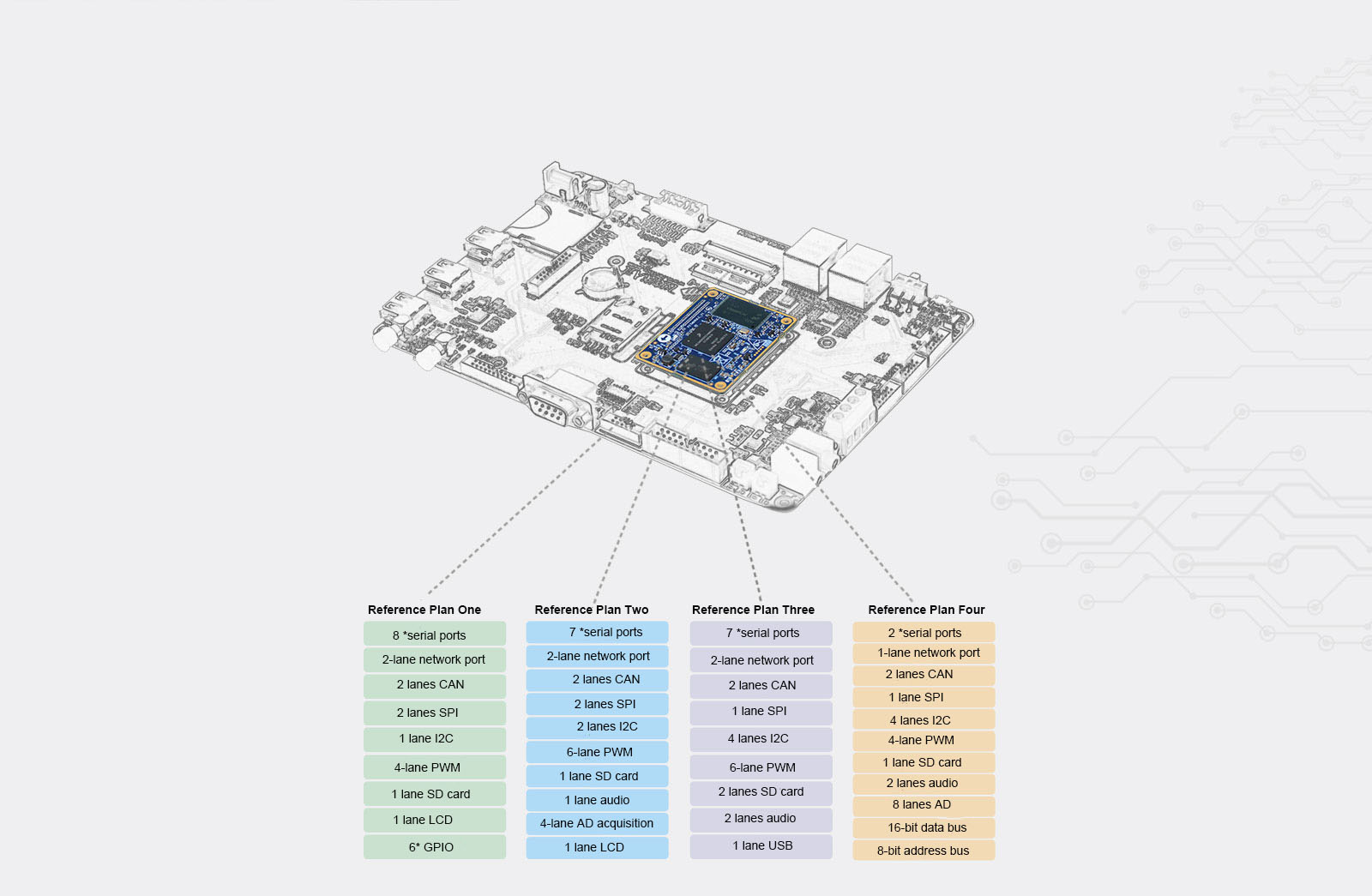

The multi-function pin configuration is more flexible, and the limit configuration is up to you!

Convenient to design various functional configuration boards, so that the industry is no longer limited

FETMX6UL-C core board
FETMX6UL-C core board

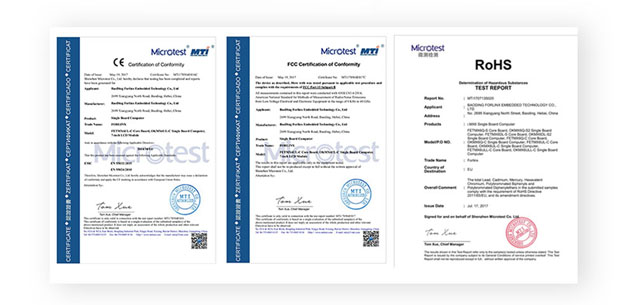

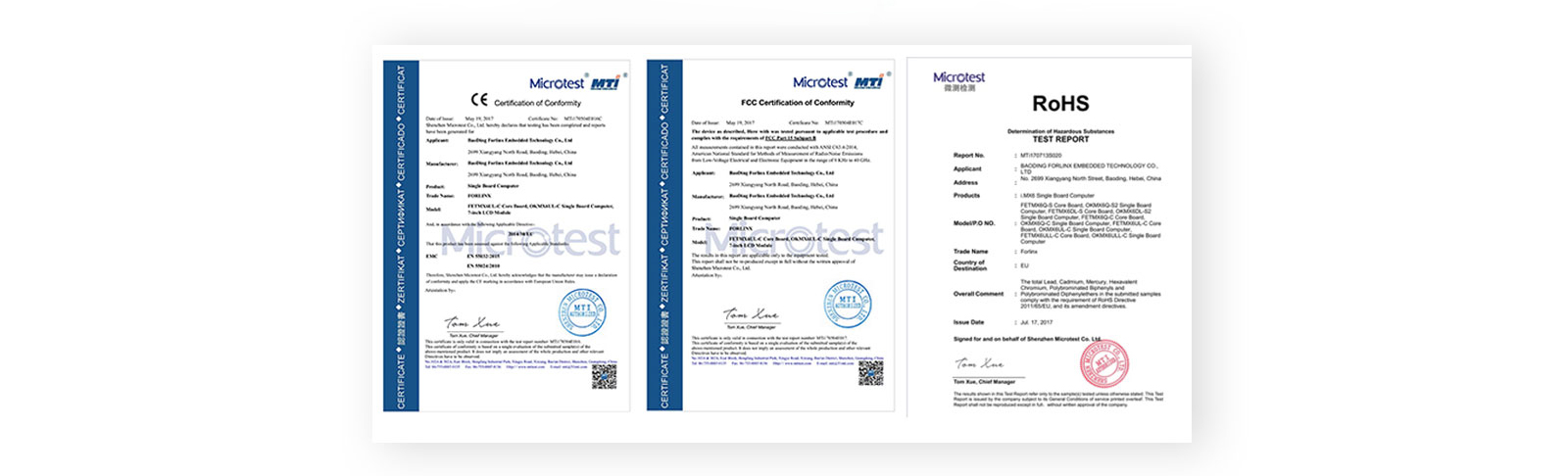

Multiple certifications

FETMX6UL-C core board Multiple certifications
FETMX6UL-C core board Multiple certifications

▊ OKMX6UL-C2 Development Board


iMX6UL single board computer

OKMX6UL-C2 is a development kit of i.MX6UL, consisting of a carrier board and an SoM FETMX6UL-C2, can serve both as a development platform and an end product. Small in size and flexible configuration, onboard LCD, Ethernet, USB host/OTG, RTC, SD card, and LED are all available.


Forlinx kindly provides related optional modules for OKMX6UL-C2 single board computer/ development kit testing, such as 4.3 inch Resistive LCD Module, 7.0-inch LCD Module with MIPI display, 7.0-inch TFC LCD Module with Capacitive Touch Panel, 7.0-inch TFT LCD Module with Resistive Touch Panel, 10.1-inch LVDS Display with Capacitive Touch Panel, etc.


Hardware Features


FETMX6UL-C2 System on Module Features
CPU NXP i.MX6UL
Architecture Cortex-A7
Frequency 528MHz
RAM 256MB DDR3
Flash 256MB NandFlash(1GB NandFlash optional)
Voltage Input 5V
GPU PXP
Dimensions 50mm* 40mm
Package board to board connector
OS Linux3.14.38+QT4.8
LCD RGB 24-bit
Audio 3x audio
I2C 4x IIC
SPI 4x SPI
QSPI 1x QSPI
CAN 2x CAN
USB 2x USB
SD/MMC/SDIO 2x SD/ MMC/ SDIO
Ethernet 2x 10/100M Ethernet
UART/IrDA 8x UART/ IrDA
EINT/GPIO supported
Video Coder software codec
EBI BUS supported
JTAG supported
Camera 1x 5.0MP parallel
PWM 8x PWM
ADC 10x ADC
ISO7816-3 2x ISO7816-3
Keypad Port 8*8
SPDIF 1x SPDIF

Software Features


OS Linux
OS Linux-3.14.38+ Qt4.8.5 Linux-4.1.15+ Qt5.6(only supported by the one with 1GB NandFlash)
Compiler arm-fsl-linux-gnueabi-gcc-4.6.2 arm-poky-linux-gnueabi-gcc  gcc-5.3.0



OS Flashing

flash OS image by SD card, USB OTG

flash OS image by SD card, USB OTG

flash single/ multiple files

flash single/ multiple files

can support yaffs file system

can support ext3/ yaffs file system

UBOOT booting mode(eMMC/SD/USB OTG/NAND) booting mode(eMMC/SD/USB OTG/NAND)
RAM(256M) RAM(256M)
UBOOT LOGO UBOOT LOGO





















Linux Kernel

Version: Linux-3.14.38 Version: Linux-4.1.15
file system: EXT3/NFS/FAT32/NTFS file system: EXT3/NFS/FAT32/NTFS
eMMC driver(8G/4G) eMMC driver (8G/4G), nandflash(1G)
watchdog driver watchdog driver
RTC driver RTC driver
IO driver IO driver
I2C driver
SPI driver SPI driver
wifi driver wifi driver
camera driver camera driver
PWM driver PWM driver
LCD backlight driver, 255-rating LCD backlight driver, 255-rating
LCD driver LCD driver
USB Host driver: U-disk, USB Hub, USB keyboard, mouse USB Host driver: U-disk, USB Hub, USB keyboard, mouse
USB Device driver USB Device driver
TF/SD/MMC card driver: up to 32GB TF/SD/MMC card driver: up to 32GB
UART driver UART driver
WM8960 audio driver: record/ playback WM8960 audio driver: record/ playback
Ethernet(RJ45, 100/10Mbps) Ethernet(RJ45, 100/10Mbps)
3G/4G driver 4G driver
USB to serial driver
















Testing APP

WIFI configution toold WIFI configution toold
Telnet Telnet
RTC RTC
Flexcan Flexcan
IP/Mac address setting IP/Mac address setting
Sqllite Sqllite
TTL to RS232 TTL to RS232
audio record/ playback(ALSA) audio record/ playback(ALSA)
GPRS wireless network GPRS wireless network
3G/4G wireless network 4G wireless network
USB camera testing USB camera testing
Speaker testing Speaker testing
RGB backlight adjusting RGB backlight adjusting
video playing and mp4 file testing video playing and mp4 file testing
watchdog testing watchdog testing
MMC/TF/SD card and U-disk auto-mounting and uninstalling MMC/TF/SD card and U-disk auto-mounting and uninstalling
FTP FTP
Boa Web Server

▊ Download


Catalog: Forlinx Catalog Manual

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

▊ Design Service


1. Hardware Designing

Provide carrier board, core board, industry product custom, etc. Read More+

2. Hardware Related Software Custom

Provide software custom service including kernel cutting, driven development, and system transplantation. Read More+

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
