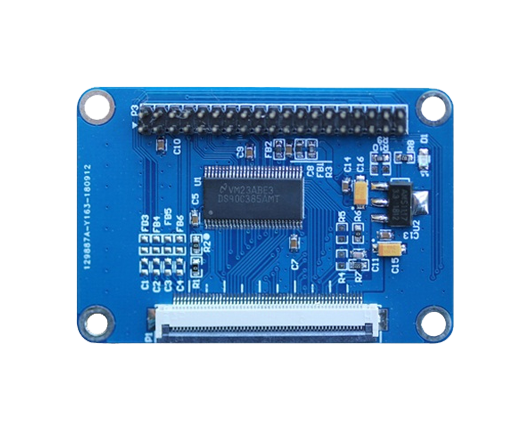

RGB to LVDS
Description:
The need for higher resolution displays is greater than ever. This results in higher pixel clocks, which can lead to challenges such as high EMI radiation and noise resistance. As a result, video interfaces are now converted from traditional RGB to LVDS video interfaces. Because microprocessors with integrated graphics units can only output single-ended RGB video data, this reference design demonstrates the simplicity of converting RGB to LVDS.
RGB to LVDS converter interface module allows all Forlinx development boards to switch interfaces.
Features
Compact 24-bit RGB to OLDI/LVDS interface;
Supports OKMX6Q /DL, OKMX6Q/DL-S3, OKMX6UL , OK335XD, OK335XS, OK335XS-II,etc.
| RGB to LVDS Module is Applicable to Forlinx Single Board Computer | |||
|---|---|---|---|
|
RGB to LVDS Module |
Single board computer | OS | |
| OKMX6Q/DL-C | Android6.0, Android4.4, Linux3.0.35+QT4.8.5, Linux4.1.15+QT5.6 | ||
| OKMX6Q/DL-S3 | Android6.0, Android4.4, Linux3.0.35+QT4.8.5, Linux4.1.15+QT5.6 | ||
| OKMX6UL | Linux 3.14.38+QT4.8, Linux4.1.15+QT5.6 | ||
| OK335xD | Linux3.2, Android2.3/4.2 | ||
| OK335xS | Linux3.2, Android2.3/4.2 | ||
| OK335xS-II | Linux3.2 | ||
| OK5718-C | Linux4.9.41+ QT5.6+Wayland | ||
| OK4418/6818-C | Android5.1.1, Linux3.4.39+QT5.6/QT4.8.6 | ||

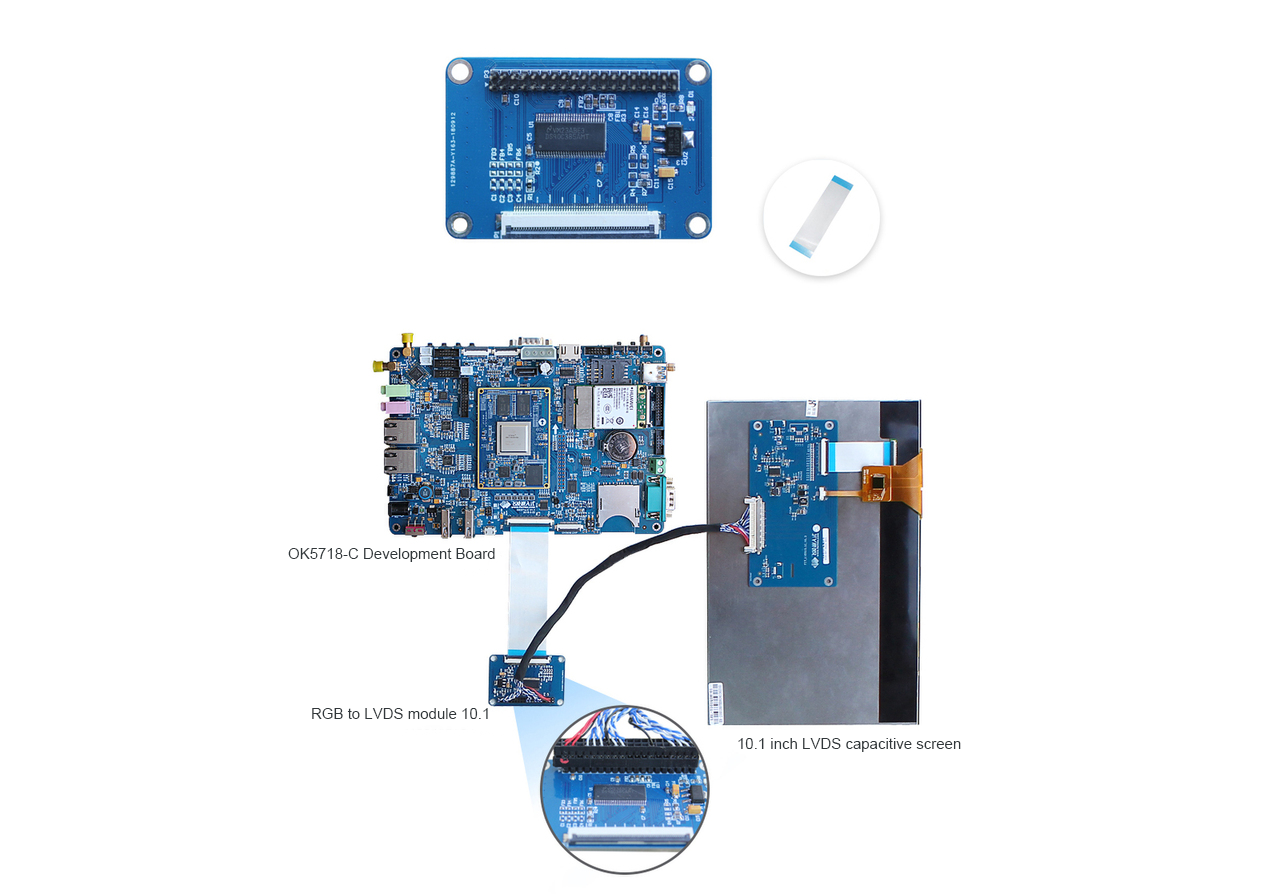

| Note: this RGB to LVDS module is tested based on Forlinx 10.1'' LVDS display module | |||
| Packing List | |||
|---|---|---|---|
| Material | Model or Specification | QTY | Unit |
| RGB to LVDS module | FIT-RLVDS+A10 | 1 | piece |
| FPC cable | 54P, 0.5mm(synclastic) 5cm | 1 | piece |
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
▊ Related single board computer
|
|
|
|

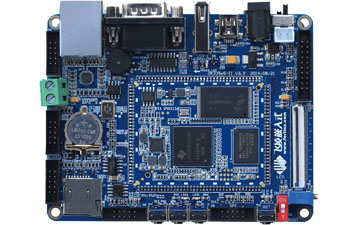

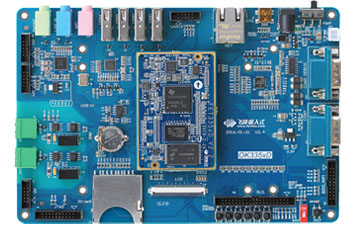

| OKMX6Q-C ARM Board | OK335XS-II ARM Board | OK335xD ARM Board |
