OK335xD Single Board Computer

CPU: TI AM3354

Architecture: Cortex-A8

Frequency: 800MHz

RAM: 512MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.2+QT4.8,Android2.3,Android4.2,WinCE6.0,Win CE7.0

Datasheet Message Compare

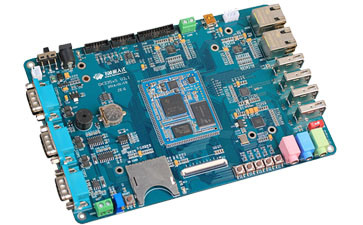

OK335xD Single Board Computer

TI AM335x microprocessors is a simple and stable industrial development platform with main frequency up to 800MHz, operating temperature ranges from -40℃ to +85℃. Industrial interface options such as CAN, PROFIBUS, RS485 and dual gigabit Ethernets. 324 CPU pins in total, each pin and peripheral interface pins up to 8 functional configuration. 8-layer of CPU module PCB guarantees perfect electrical and interference. SMT to be used to make sure accurate connection. OK335xD development board pins out mostly industrial used interfaces with open source code. Approved by EMC/EMI testing to make it more competitive.

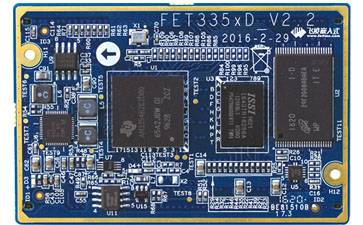

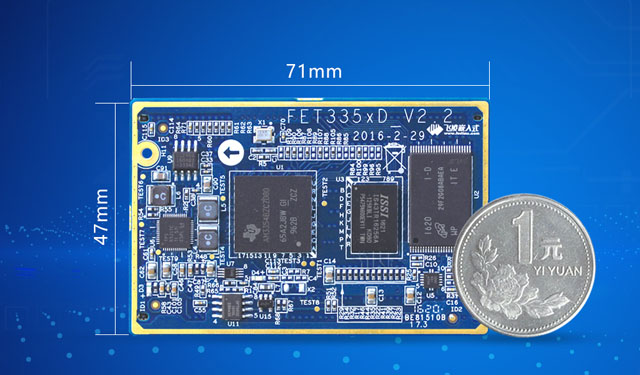

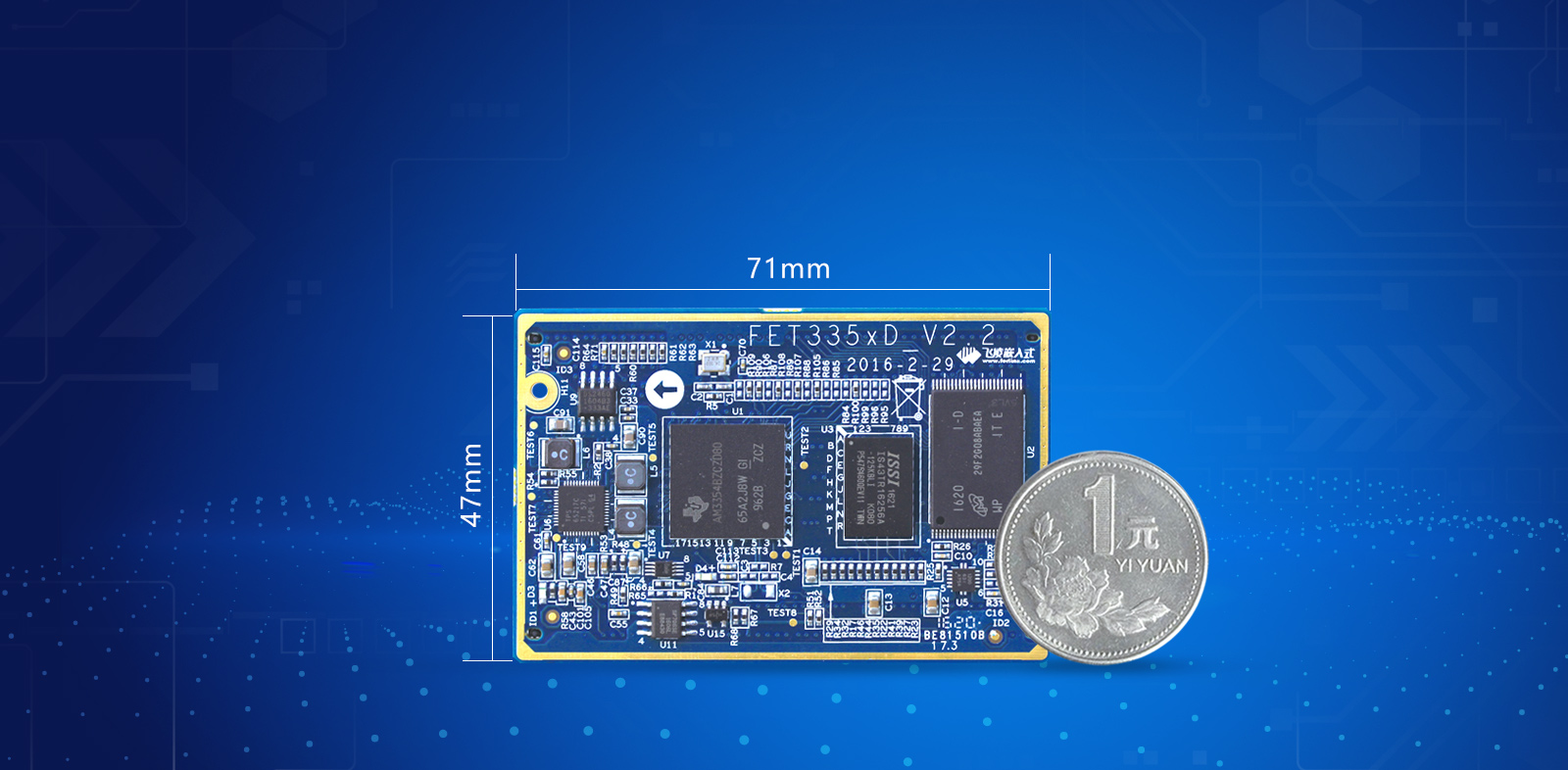

Compact size, easy for plugging

Its SoM has a compact size of 46*70mm, 8-layer PCB designed with ENIG, pin connectors with pitch of 1.27mm,
total 200 pins connectors in dual rows and SoM with misplugging mark design, convenient for debugging, manufacturing and maintance.

Industrial-grade AM335xD SoM compact size
Industrial-grade AM335xD SoM compact size

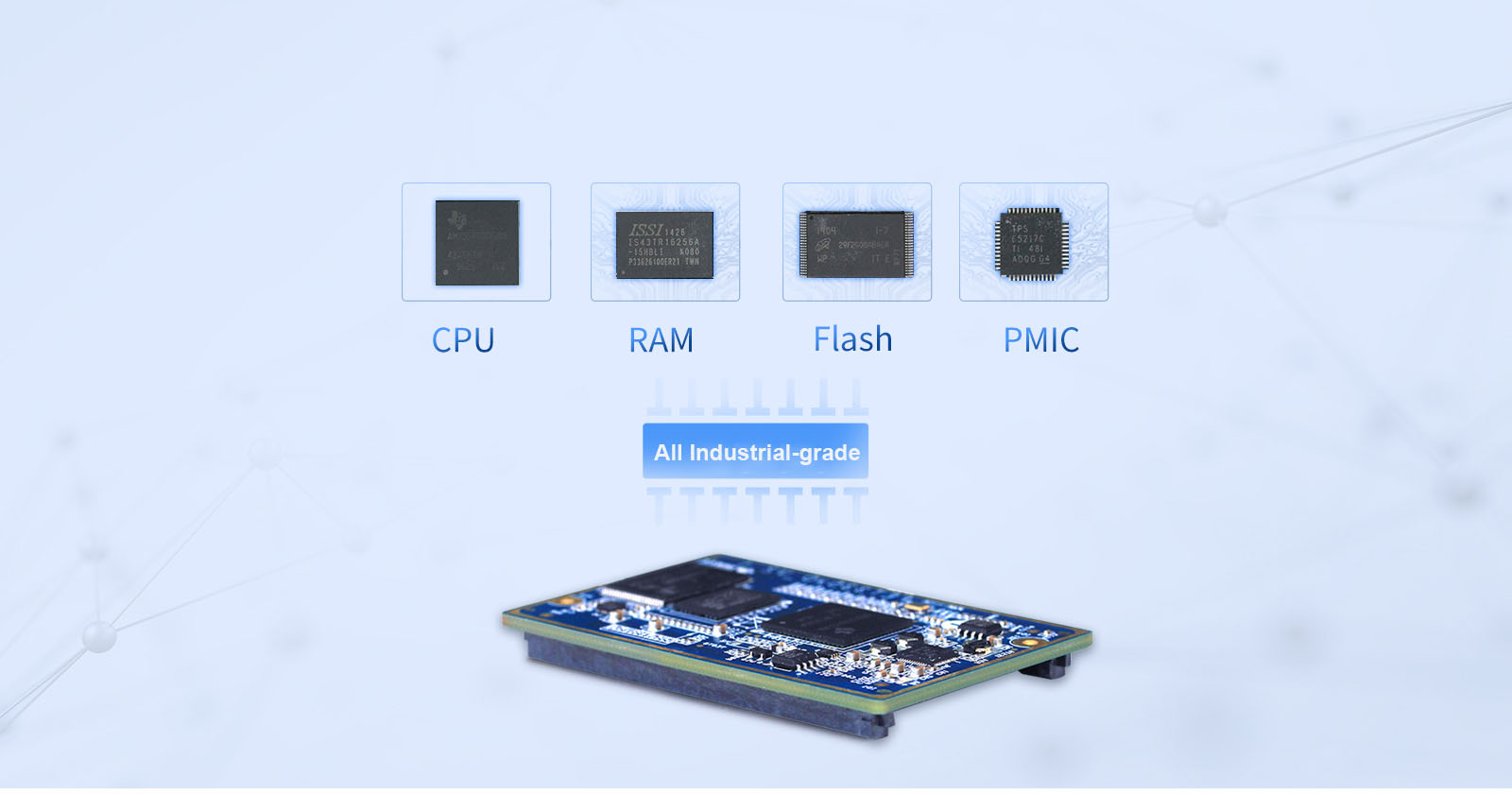

Industrial grade SoM

The SoM FET335xD was designed with industrial grade components and working temp tested ranges from -40℃ to +85℃

Industrial-grade AM335xD SoM
Industrial-grade AM335xD SoM

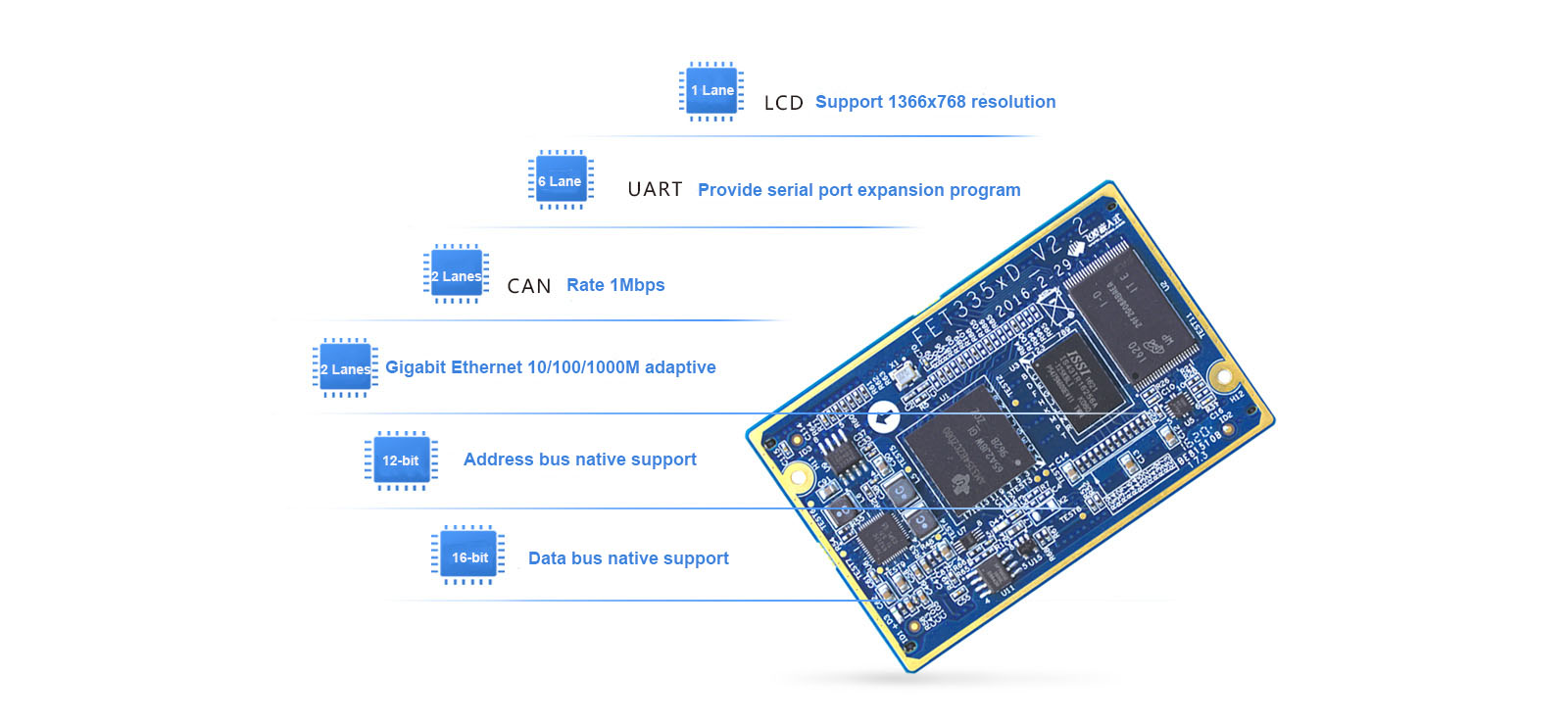

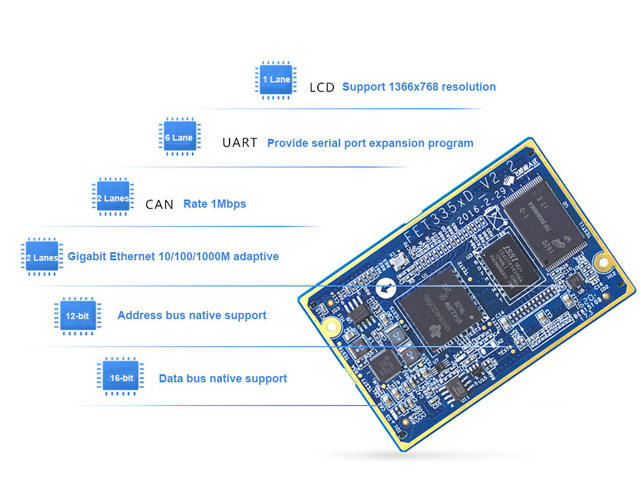

Rich sources, good scalability

SoM with 200 pins drawn out from CPU, native supporting of 6-ch UART,
2-ch CAN, dual Gigabit Ethernet, 1-ch LCD, 16-bit data bus and 12-bit address bus.

AM335xD SoM with 200 pins
AM335xD SoM with 200 pins

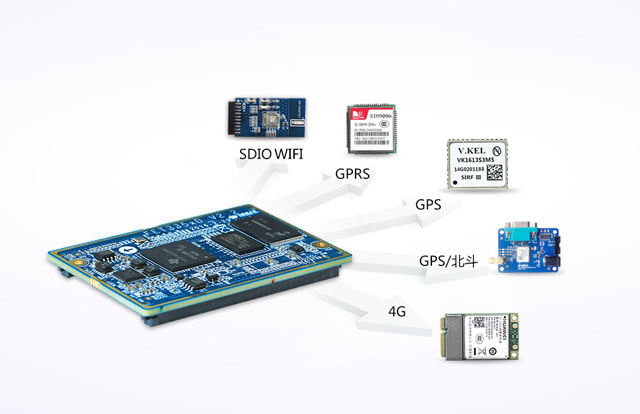

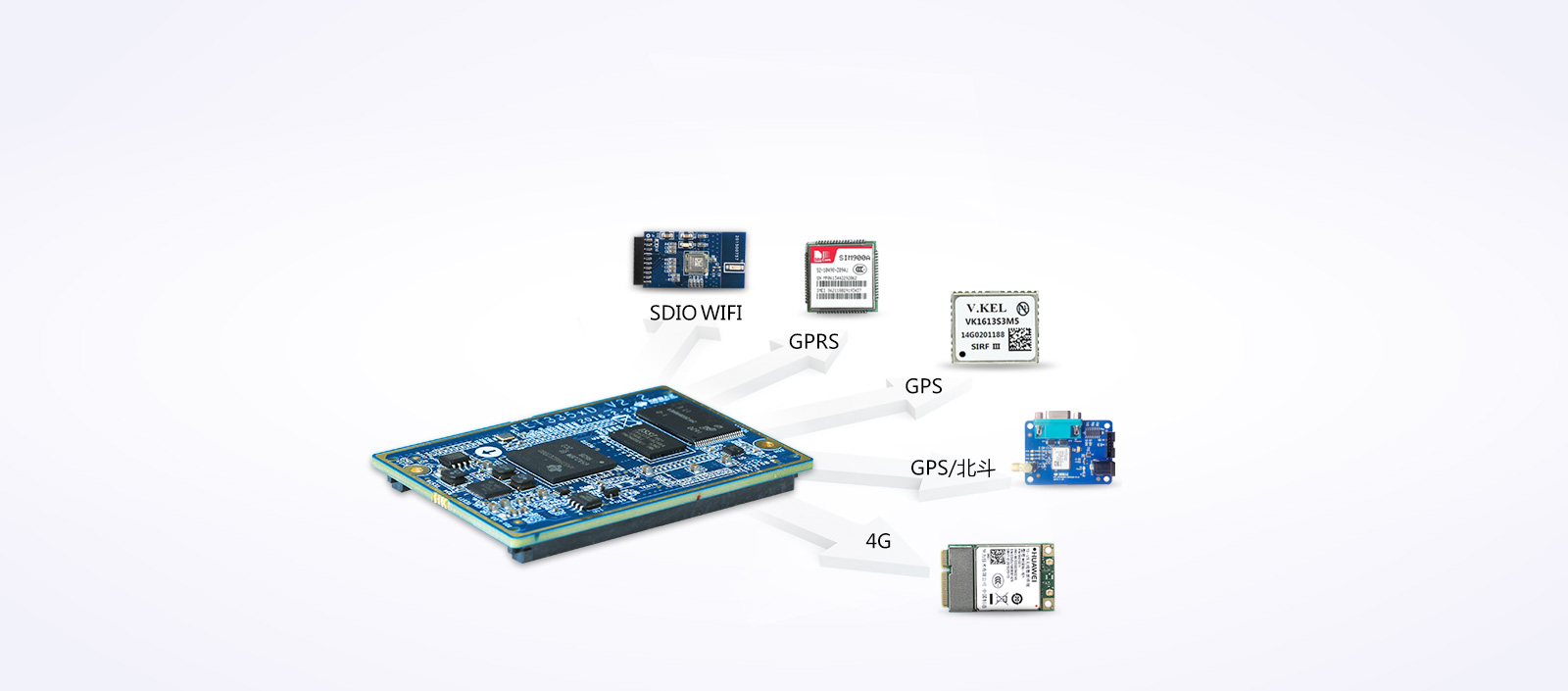

Multi-supporting expand modules to the board

Expand modules such as 3G, 4G, GPRS, GPS, WIFI, BT modules etc.
are all well supported by system on module FET335xD

AM335xD SoM with multi-supporting expand modules
AM335xD SoM with multi-supporting expand modules

Main Stream OS are all supported

Single board computer(SBC) OK335xD is supported with OS Linux3.2, Android2.3, Android4.2, WinCE7.0, WinCE6.0

AM335xD SoM with Main Stream OS
AM335xD SoM with Main Stream OS

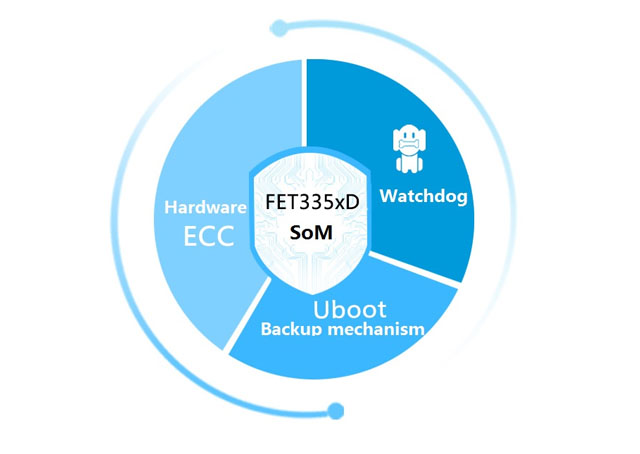

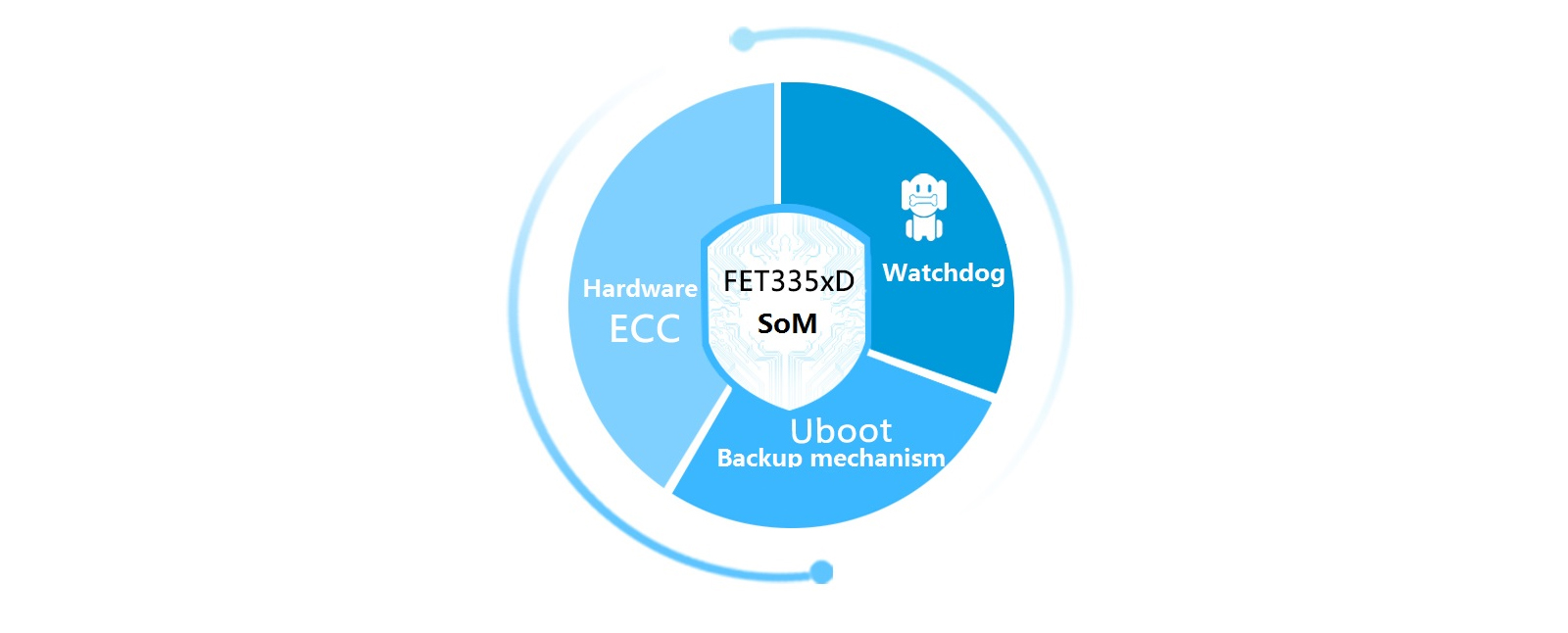

OS running with multiple protection
mechanism to allow the board to run stably

The SoM is supported with both hardware watchdog and software watchdog,
OS Linux is supported with NAND Flash ECC exclusively supporting of Uboot backup mechanism to make the system to run stably and smoothly

AM335xD SoM multiple protection
AM335xD SoM multiple protection

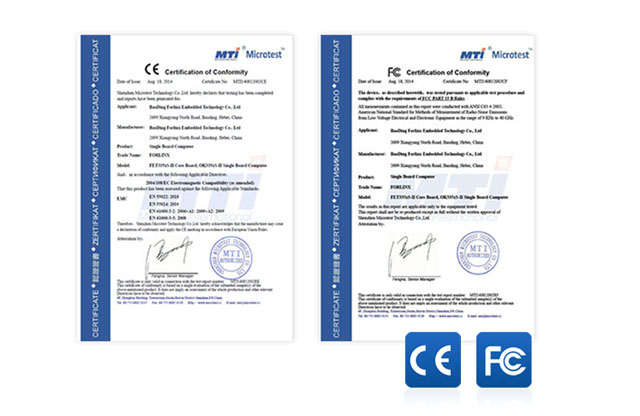

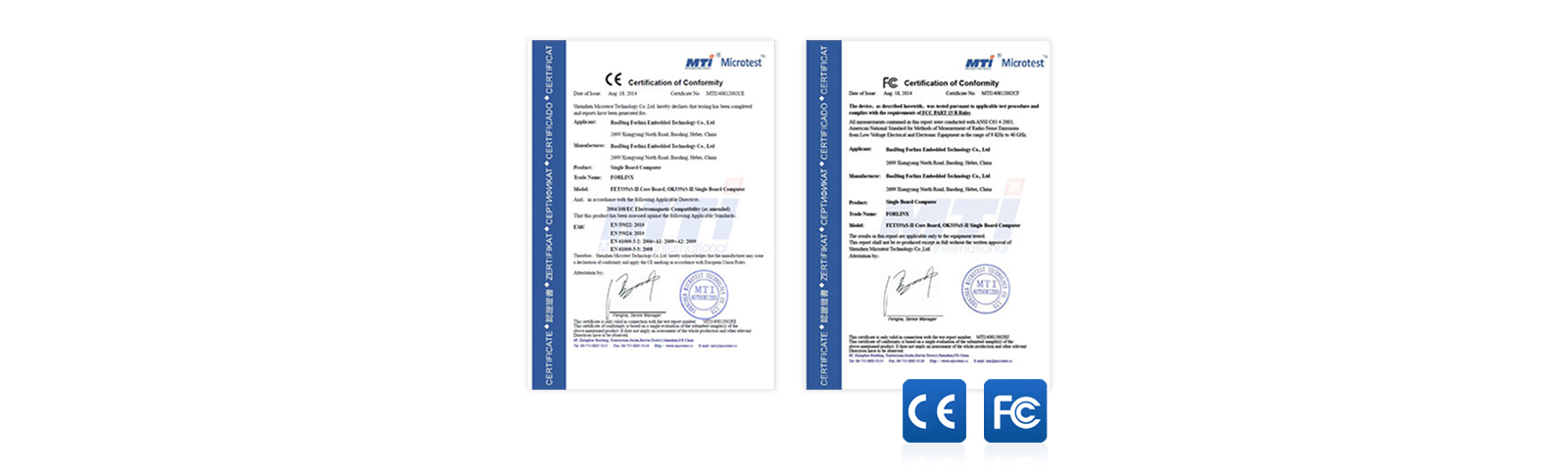

CPU module FET335xD was approved by CE&FCC

CPU module FET335xD with CE&FCC
CPU module FET335xD with CE&FCC

▊ Hardware Features



FET335xD System on Module Features
CPU TI AM3354 Cortex-A8
Architecture ARMv7 Cortex-A8
Frequency 800MHz
RAM 512M DDR3
Flash 256M SLC NandFlash(1GB optional)
Voltage Input 5V
2D/3D supported
GPU PowerVR SGX530
Hardware Watchdog SP706SEN
PMU TPS65217C
Dimensions 47mm*71mm
Package pin connectors
OS Linux3.2, Linux-RT, Android4.2/2.3, WinCE7.0, WinCE6.0, StarterWare
GPMC 16-0bit data bus, 12-bit address bus
Audio IIS
I2C 3x IIC
SPI 2x SPI
CAN 2x CAN
USB OTG 2x USB HOST 2.0
PWM 3x PWM
SD/MMC/SDIO 3x MMC
Ethernet 10/100/1000Mbps auto-negotiation
UART/IrDA 6x UART/ IrDA
EINT/GPIO supported
ADC 8x ADC
VideoCodec Software codec
LCD RGB24-bit
JTAG 1x JTAG
EEPROM supported, for encryption

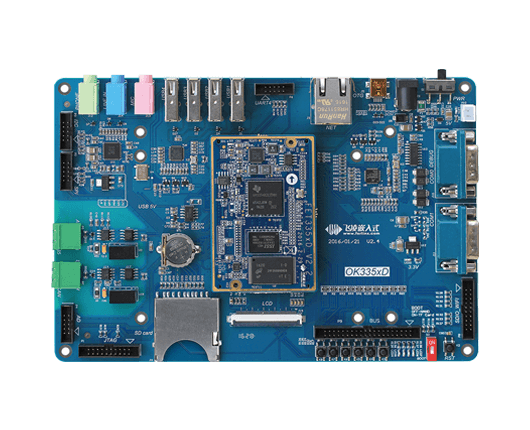

OK335xD Development Board Features
Audio 1x Phone, 1x MIC, 1x LineIN
I2C 2x IIC
SPI 1x SPI
CAN 1x CAN(isolated)
RS485 1x RS485(isolated)
SD/MMC/SDIO 2x SD/ MMC/ SDIO(1x SDIO WIFI, 1x SD card)
USB Host 4x USB Host, USB2.0
USB OTG 1x USB OTG, USB2.0
Ethernet 10/100/1000Mbps auto-negotiation
UART 3x UART(2x RS232, 1x TTL)
Power In 5V
LCD 1x LCD, can support both capacitive and resistive touching, can be converted to
ADC 8xADC(4 for resitive touch, 4 for users definition)
JTAG 1x JTAG
RTC supported
Key 6x key
DIP system booting mode selection
Reset 1x reset
PWM 1x PWM(backlight)
LED 4x LED
GPIO more than 20
GPMC 12-bit address bus, 16-bit data bus
SATA can be expanded by USB
GPS serial interface
3G AD3812(USB)
LVDS supported

▊ Software Features



OS Android
Android Android4.2/2.3
Kernel Linux-3.2.0
Flash OS Image Flashing By SD card
Cross-compiler arm-eabi-4.6
Development Environment Ubuntu12.04.2
System Compiling one key compiling









Driver

NIC RTC
LED SPI
LCD backlight UART(3)
USB(mouse, U-disk, etc.) Key
I2C Watchdog
Nand Flash RS485
UBI/Yaffs file system CAN
SD SDIO WiFi
LCD FrameBuffer USB WiFi
Resistive touching USB Camera
Capacitive touching Audio

OS Linux
Kernel Linux-3.2.0,  PSP: 04.06.00.10,  SDK: 05.07.00.00
OS Image Flashing OS image or a single file flashed to NAND flash by SD card
U-boot U-boot-2011.09
Cross-compiler cross-tools-am335x-4.5.3
Development Environment Ubuntu12.04
File ubifs
GPU QT4.8










Driver


NIC SPI
LED UART(3)
LCD backlight key
USB(U-disk, mouse, etc.) watchdog
I2C RS485
Flash ECC verification CAN
Nand Flash SDIO WiFi
UBI/Yaffs file system USB WiFi
SD card USB Camera
LCD FrameBuffer USB 3G
resistive touching USB BlueTooth
RTC audio











Command Line Testing

Key Backlight
USB RTC
Ethernet GPRS
UART USB 3G
Audio USB WIFI
Reset USB camera
RS485 SDIO-WIFI
CAN WIFI AP
SPI BT
Watchdog SD card
LED LCD









GUI Testing

Key RS485
USB SPI
NIC CAN
PING RTC
Audio Watchdog
Video GPRS
LED GPS
Backligh WEB
UART

OS WinCE6.0
BootLoader EBOOT flashed by SD card
OS Image Flashing by SD card
CE Version WinCE6.0
Development Environment VS2005









Driver

LED Key
GPIO RTC
I2C RS485
SPI EBOOT
UART Nand Flash
Touching Display
SD card NIC
DMA USB
Audio Backlight
Watchdog CAN

OS WinCE7.0
BootLaoder EBOOT can support USB2.0 high speed download mode
OS Image Flashing flash OS iamge or a single file by SD card
CE Version WinCE7.0
Development Environment VS2005 and VS2008







Driver

LED Touching screen
GPIO SD card
I2S BMAC
SPI USB
UART Key
Audio Backlight
Nand Flash DMA
Display


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

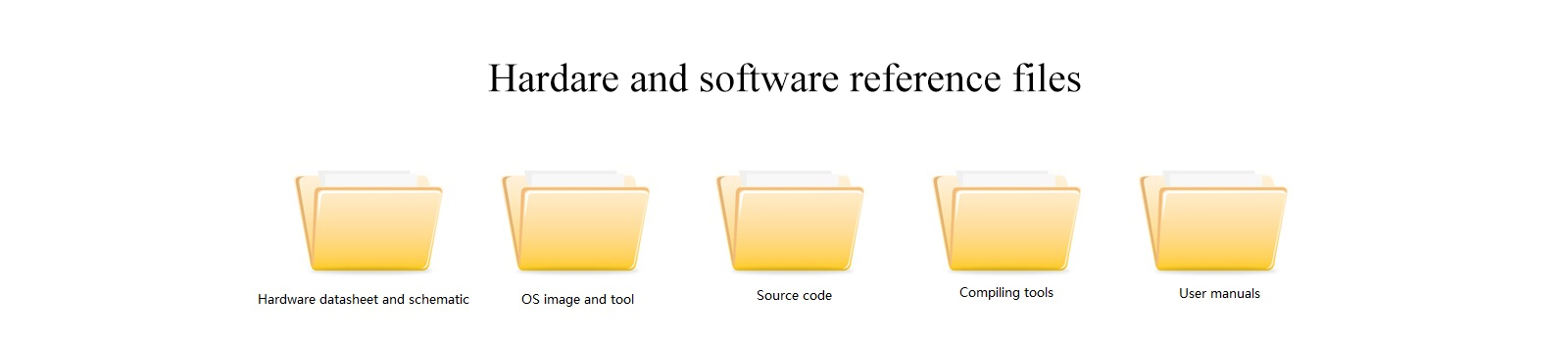

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including Ti AM335x embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with AM335x SBC
