OK-G2LD-C Single Board Computer


Architecture: 2*A55+M33

Frequency: 1.2GHz


ROM: 16MB QSPI NorFlash,8GB/16GB(Optional)

System: Linux4.19

Download Message Compare

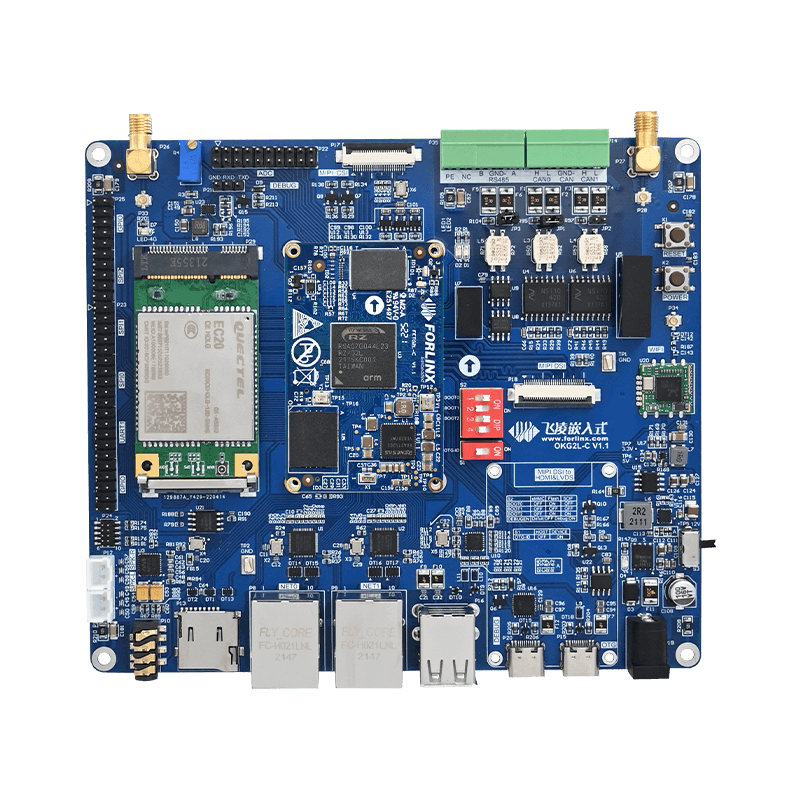

OK-G2LD-C Single Board Computer

OK-G2LD-C SBC carries high-performance and ultra-efficient processor Renesas RZ/G2L, which is Cortex-A55, 1.2GHz, and integrates a MCU Cortex-M33, 200MHz. It’s split design of SoM+Carrier Board, which is convenient for user secondary development. And it adds EMC protection reference design for RS485, CAN, which simplifies user design and facilitates on-site evaluation and testing. It is applicable to industrial, medical, electric power, transportation and other pan-industrial application scenarios.

Main Feature

  • Rich interface resources, 2x 1000Mbps Ethernet (GMAC), 2x CAN-FD, 7x UART, USB 2.0, SPI, IIC, MTU, ADC, etc.
  • Multi-function timer pulse unit, supports Toggle, PWM, complementary PWM and reset synchronous PWM modes, supports dead time compensation counter function;
  • Multiple display interfaces MIPI-DSI, RGB, up to 1920x1080;
  • Onboard QSPI Flash, separate storage of uboot, more stable;
  • Safe and reliable from Renesas’ technical accumulation of Automotive Electronics.

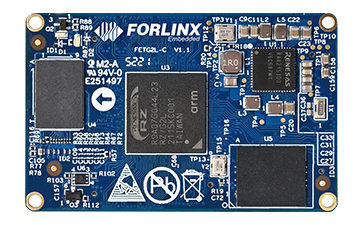

Renesas RZ/G2L system on module
Renesas RZ/G2L system on module Phone

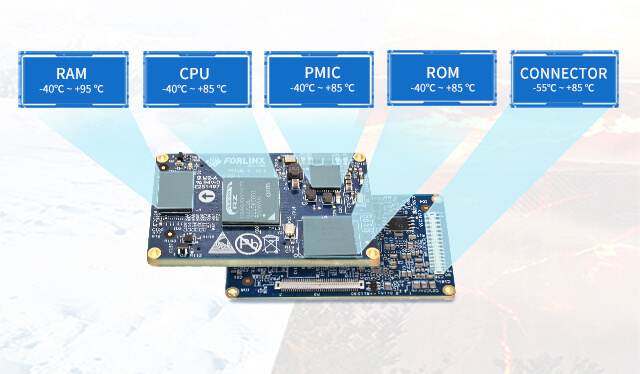

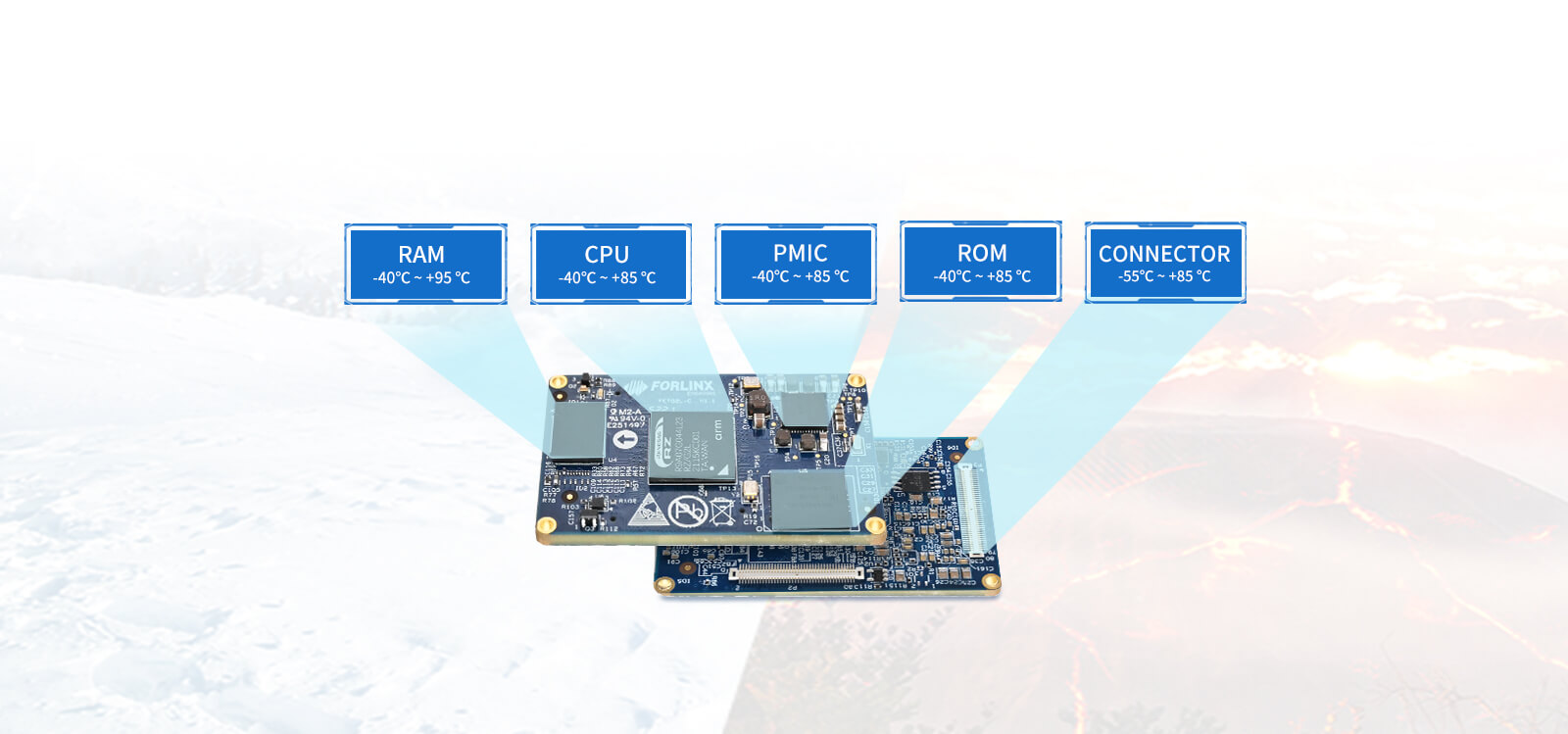

Industrial Grade Core Board

All components of FET-G2LD-C core board are industrial-grade temperature, including CPU, RAM, ROM,
resistors, capacitors, inductors, connectors, operating temperature -40°C~+85°C. Thus it can easily cope with various harsh scenarios.

Industrial Grade Renesas RZ/G2L SoM Pc
Industrial Grade Renesas RZ/G2L SoM phone

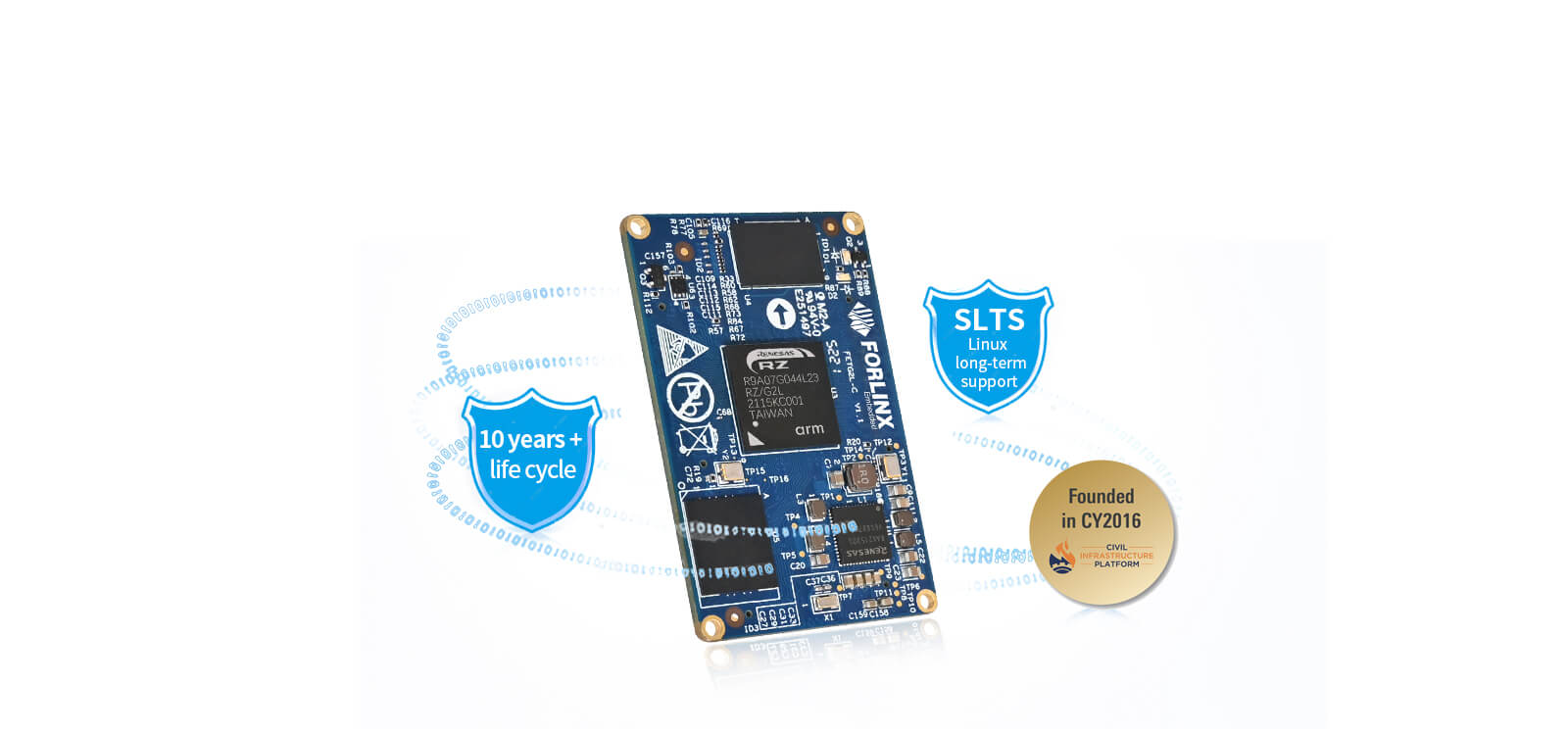

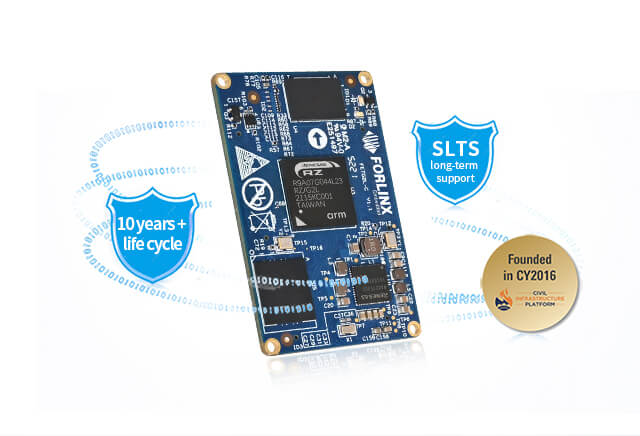

10+ Product Service Life

RZ/G2L has a 10-year+ life cycle guarantee,
and its Linux kernel is the super long-term support (SLTS) Kernel maintained by CIP, escort the long life cycle of customer products.

10-year+ life Renesas RZ/G2L SoM Pc
10-year+ life Renesas RZ/G2L SoM phone

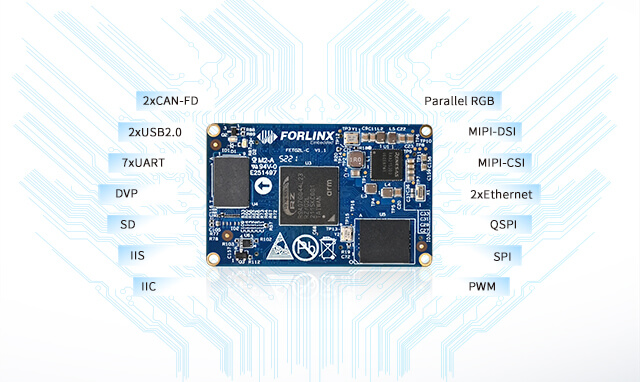

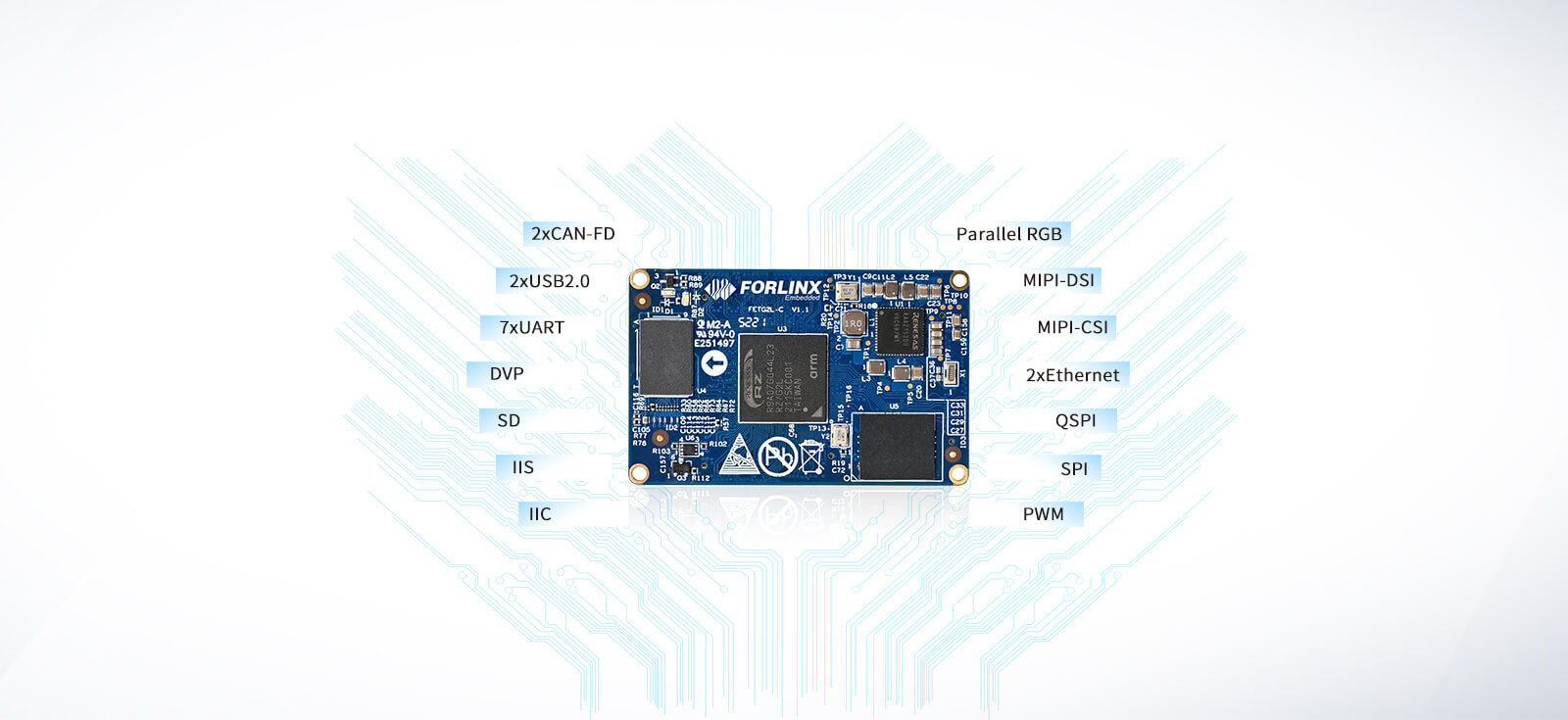

Rich Interface Resources, Wider Application Scenarios

FET-G2LD-C SoM is very ease of use and versatility with rich peripheral interface resources,
like 2 Gigabit Ethernet controllers, 2 CAN-FD, 2 USB 2.0, 7 UART, MIPI-DSI, Parallel RGB, MIPI-CSI, DVP, SD, IIS, IIC, SPI, QSPI, PWM, ADC, etc.

Rich Interface Resources FET-G2LD-C SoM Pc
Rich Interface Resources FET-G2LD-C SoM phone

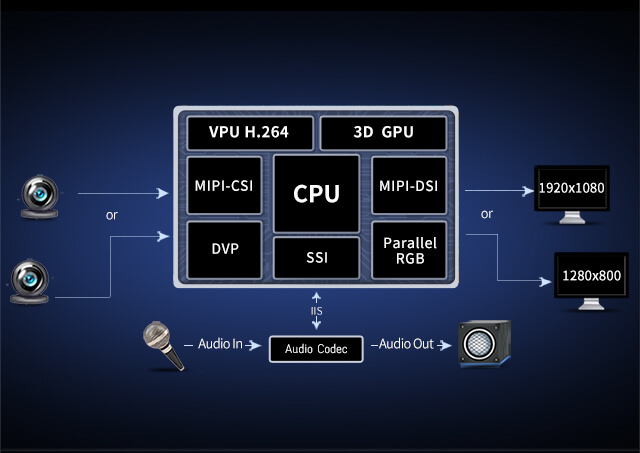

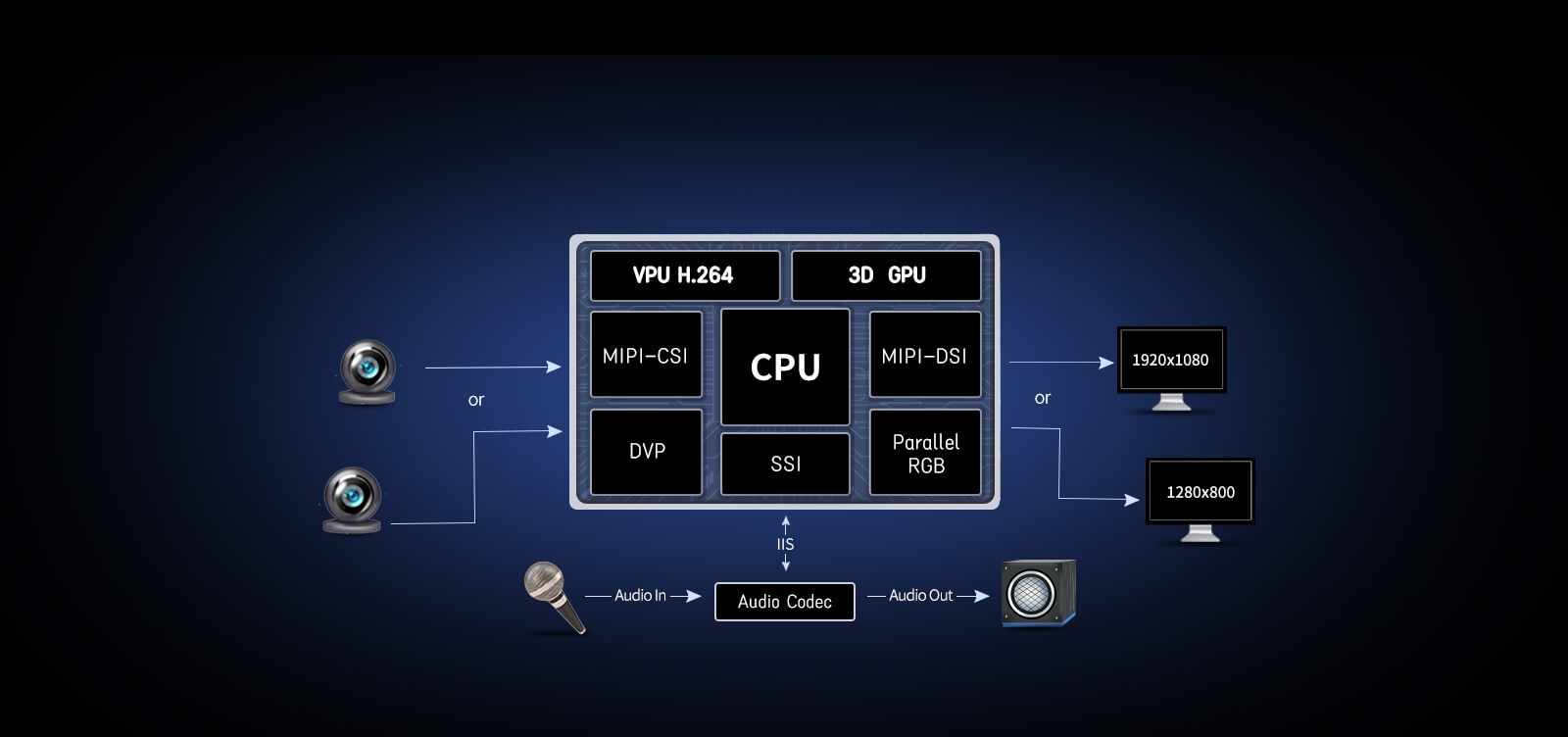

Rich Multimedia Resources

Rich display, camera and audio interface resources to meet the requirements of HMI and image acquisition. And it has a 3D GPU and video hardware
codec VPU to improve HMI experience; VPU hardware codec supports H.264 1920x1080x30fps Mali [email protected], 3D GPU supports Vulkan, OpenGL, OpenCL.

FET-G2LD-C SoM Display Interface Pc
FET-G2LD-C SoM Display Interface phone

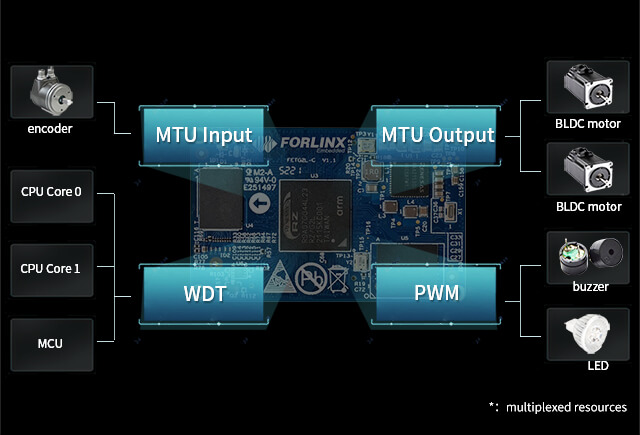

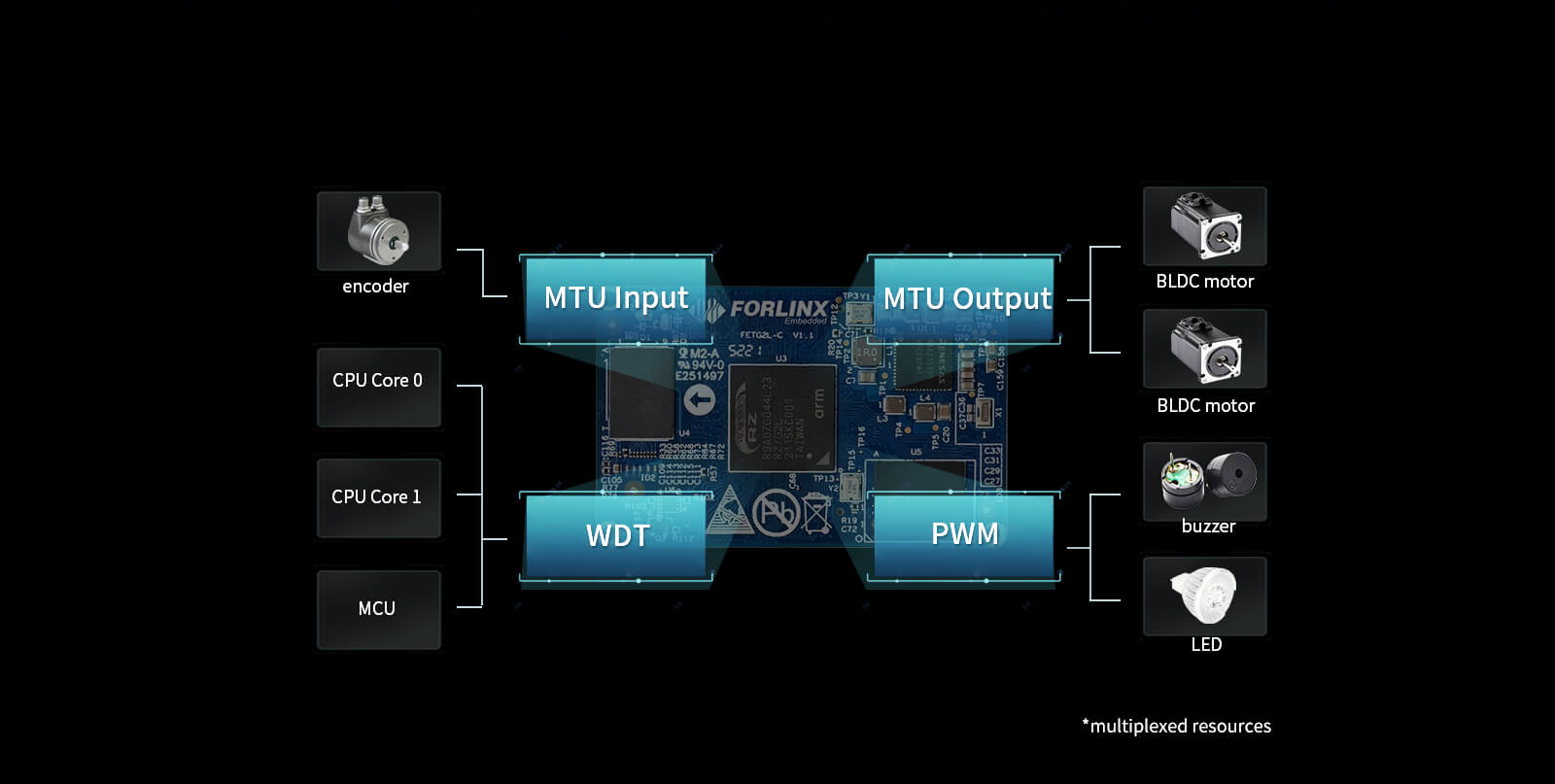

Multi-function Timer Pulse Unit, MTU3a Enchantments

Its timer resources include 1-channel 32-bit MTU3*, 8-channel 16-bit MTU3*, 8-channel 32-bit PWM*, and 3-channel watchdog*.
The integrated Multi-Function Timer Pulse Unit 3, MTU3a, consists of eight 16-bit timer channels and one 32-bit channel.
It can realize PWM complementary input and output for encoder signal input and motor control.

FET-G2LD-C Multi-function Timer Pulse Unit, MTU3a Enchantments Pc
FET-G2LD-C Multi-function Timer Pulse Unit, MTU3a Enchantments phone

Target Applications

FET-G2LD-C SoM is applicable to industry, healthcare, electric power, vehicle transportation, security, energy and chemical industry, communication, industry and so on.

FET-G2LD-C SoM target application Pc
FET-G2LD-C SoM target application phone

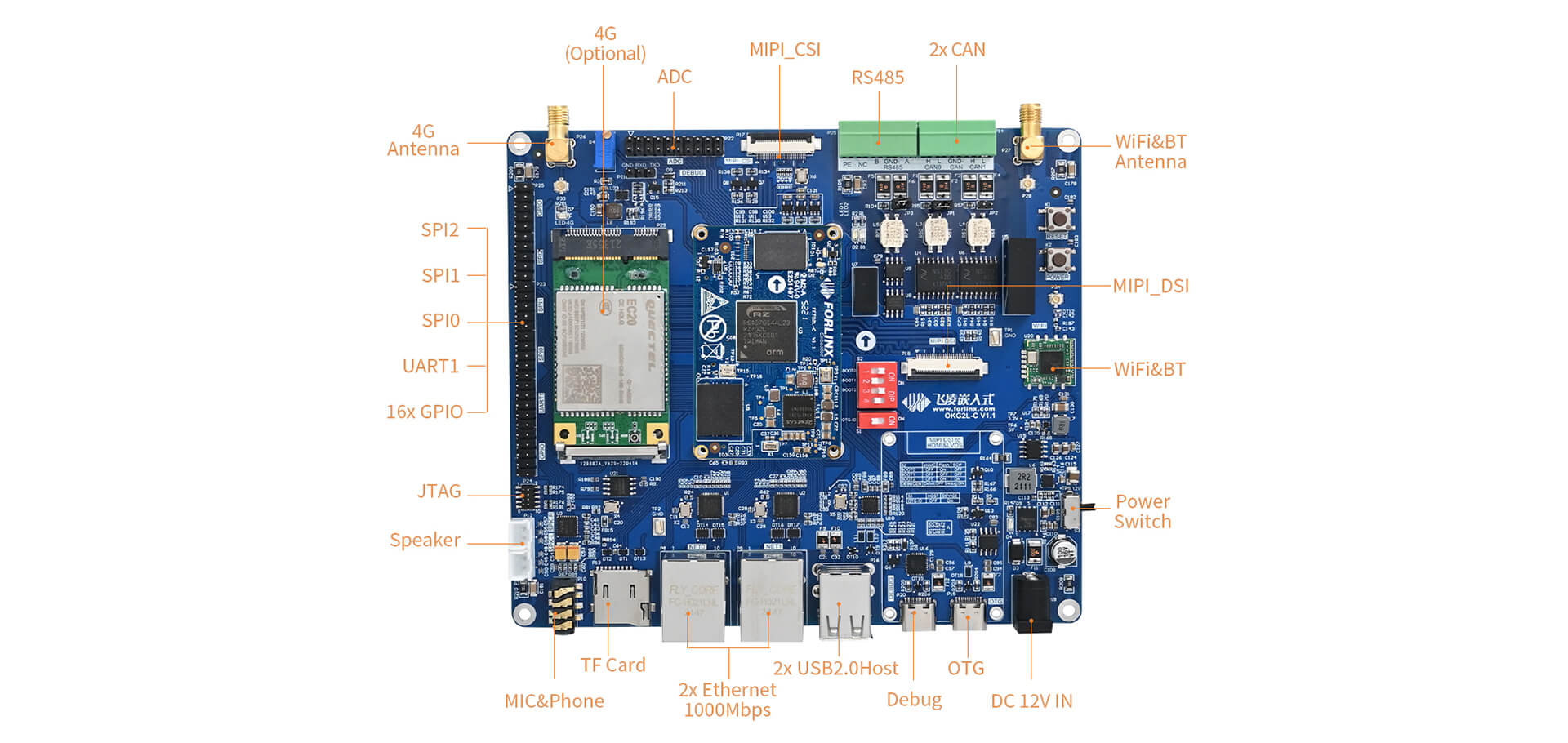

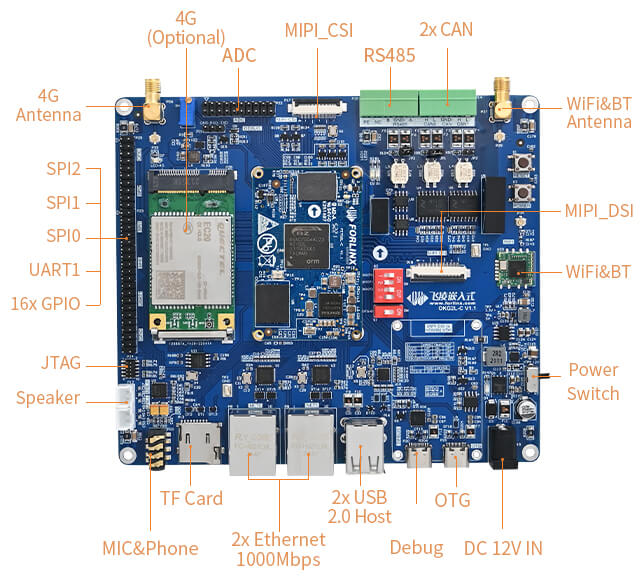

OK-G2LD-C SBC Interface

OK-G2LD-C SBC consists of FET-G2LD-C SoM and carrier board. It integrates rich functional interfaces and makes product evaluation easier.

OK-G2LD-C SBC Interface Pc
OK-G2LD-C SBC Interface phone

▊ Product Video

Single board computer demo based on Renesas RZ/G2L

▊ Spec.

FETG2LD-CSoM Basic Parameters


Renesas RZ/G2L (R9A07G044Lxx)

MPU Core: Arm [email protected], 1-core or 2-core

MCU Core: Arm [email protected], 1-core


• Arm Mali-G31

• OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0

VPU: Encoding / Decoding

• H.264 / AVC (High Profile / Main Profile / Baseline Profile)

• H.264 / MVC (Stereo High Profile)

• up to 1920 x 1080 x 30 fps


• image input up to 5M (2800×2047)

• image output up to Full HD (1920×1080)

• Support color format conversion

• RGB / ARGB / YcbCr422 / YcbCr420 / RAW(Grayscale)


QSPI NorFlash: 16MB

eMMC: 8GB / 16GB optional

Working Voltage DC 5V
Working Temperature -40~85℃
Package board to board connector(3*80pin Spacing 0.5mm, height 2mm)
Dimensions 38mm x 60mm
OS Linux4.19

FET-G2LD-C SoM Function Parameter

Interface QTY QTY

One 4-lane MIPI display serial interface, each lane supports up to 1.5 Gbps

Up to 1920 x [email protected]

Pin multiplexing interface, choose one
Parallel RGB 1 One parallel display interface, up to WXGA ([email protected])
MIPI-CSI 2 two 4-lane MIPI camera serial interfaces, 4lane up to 4000Mbps Pin multiplexing interface, choose one

Support ITU-R BT.656 (support Interlace, YcbCr422 8-bit/10-bit)

Support HD, 30 fps (YCbCr422 Interleave), 60 fps (YCbCr422 Y/CbCr separate data, binary data)

Maximum input pixel clock: 74.25MHz

Input data format: YcbCr422 8-bit / 10-bit; Binary data 16-bit.

USB HOST 1 USB 2.0 (up to 480 Mbps)
USB OTG 1 USB 2.0 (up to 480 Mbps)
QSPI 1 maximum clock frequency: 50 MHz (Quad-SPI DDR), 66 MHz (Quad-SPI SDR), 100 MHz (Octal-SPI, HyperFlash)
SD 1 1-bit / 4-bit SD bus, support default, high speed, UHS-I/SDR50, SDR104 transmission mode
Audio ≤4 Support I2S, mono, tdM mode
Ethernet ≤2

1000/100/10 Mbps


CAN FD ≤2 CAN-FD ISO 11898-1 (CD2014), up to 4Mbps
I2C ≤3

Support master mode and slave mode, support multi-master operation, support timeout detection

Support 7bit and 10bit slave address format


Supports separate 16-byte FIFO registers for transmit and receive

Support full duplex mode

Supports modem control functions (channels 0, 1 and 2 in asynchronous mode)


without FIFO

without FIFO

Support modem control function

Selectable Clock Synchronous Mode, Asynchronous Mode or Smart Card Mode

Encode and decode IrDA communication waveforms according to IrDA 1.0 (on channel 0)

SPI ≤3

Supports master mode and slave mode

Programmable bit length, clock polarity, clock phase selectable

up to 50 Mbps

MTU3 ≤9

Multi-function Timer Pulse Unit 3

Supports Toggle, PWM, Complementary PWM and Reset Synchronous PWM modes

Support dead time compensation counter function

Digital filter function supporting input capture and external count clock pins

GPT ≤8

General PWM Timer

Support counting up or down (sawtooth wave), counting up or down (triangle wave)

Independently selectable for each channel, 2 input/output pins per channel


Watchdog Timer

WDT CH0: WDT to check the operation of Cortex-A55-CPU Core0

WDT CH1: WDT to check the operation of Cortex-A55-CPU Core1

WDT CH2: WDT to check the operation of Cortex-M33 CPU


Resolution: 12-bit

Input voltage: 0V~1.8V

Conversion Time: 1us

Operation Mode: Single Scan/Continuous Scan

A/D conversion start condition:

· Software trigger

· Asynchronous trigger (support external trigger)

· Synchronous triggering (MTU and PWM timers)

JTAG 1 debug
OK-G2LD-C SBC Function Parameter
Interface QTY Spec.

The carrier board leads out 4 lane MIPI_DSI through FPC socket;

default adaptive Forlinx 7-inch MIPI screen, resolution 1024 x [email protected]

Reserve support Forlinx MIPI-DSI to LVDS & HDMI module;


Lead out through 26Pin FPC socket and 2 x 10Pin 2.0mm sockets;

Support OV5645, up to 2592X1944

USB Host 2 Two USB 2.0 extended by the hub (up to 480 Mbps)
USB OTG 1 USB2.0 lead out through USB Type-C( up to 480 Mbps)
Ethernet 2 10/100/1000Mbps, RJ-45
WiFi 1

Module: RL-UM02WBS-8723BU-V1.2

WiFi: IEEE 802.11b/g/n 2.4GHz

Bluetooth: BT V2.1/BT V3.0/BT V4.0

Bluetooth 1

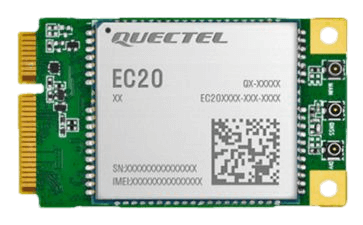

4G 1 Support 4G module EC20 by default
QSPI 1 One QSPI Flash chip on QSPI1 to store user data
TF Card 1 The carrier board leads out SD signal through TF card holder, which can mount TF Card
Audio 1

WM8960 default onboard;

Support headphone output and MIC input, integrated on one 3.5mm headphone jack;

Support two 1W8Ω speaker output, lead out through XH2.54 white terminal

CAN 2 CAN-FD with Electrical isolation
RS485 1 Automatic control of sending and receiving direction, with electrical isolation
I2C 3 to mount audio, RTC, camera and other equipment on carrier board
PWM 1 adjust backlight brightness
RTC 1 Independent RTC chip onboard. The time will be recorded by button battery when carrier board is powered off.
SCIF(UART) 1 Lead out through 2.54mm pins
SPI 3 Lead out through 2.54mm pins

Lead out through 2.54mm pins

ADC_CH4 is additionally connected to a sliding rheostat to facilitate user debugging

JTAG 1 Lead out through 1.27mm pins

▊ Accessories

Provides the modules and accessories used in Forlinx's RZ/G2L SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Optional Module
4G Module OV5645 Camera 7-inch MIPI Screen
1 1 1
Forlinx 5G Module Camera Module DVP OV5640 MIPI 7-inch MIPI Screen

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including Renesas RZ/G2L embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with OK-G2LD-C SBC

▊ How To Buy

1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment

1. Delivery: Goods will be sent out by express as requested.

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.
