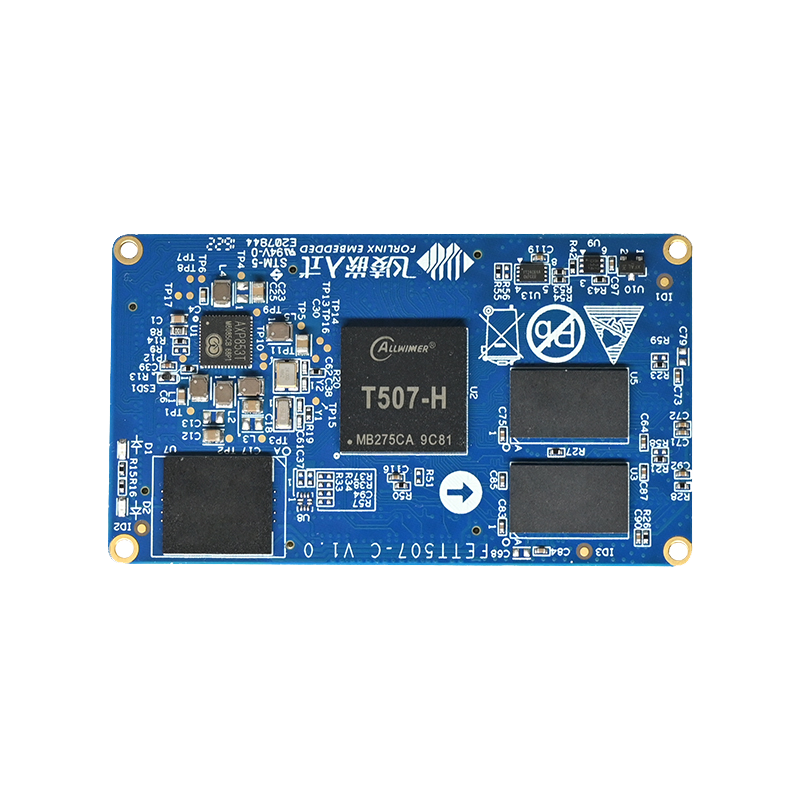

FETT507-C System on Module

CPU: Allwinner T507

Architecture: Cortex-A53

Frequency: 1.5GHz

RAM: 2GB DDR3L

ROM: 8GB eMMC

System: Linux4.9,Android10,ForlinxDesktop 18.04

Brief Message Compare

FETT507-C System on Module based on Allwinner T507

FETT507-C system on module(SoM) is based on Allwinner quad-core industrial SoC T507 belongs to Cortex-A53 architecture runs at speed up to 1.5GHz, and it integrates with G31 GPU, carries 2GB DDR3L and 8GB eMMC on-board. It supports most mainstream video and image codec forms. It has advantages of industrial grade, low power performance and plenty peripherals, can support Linux, Android and Ubuntu TBD very well, applicable for car electronics, power industry, medical, industrial control , IoT and all kinds of smart devices.

Industrial Grade SoC

FETT507-C system on module is based on T507 industrial grade SoC certified by AEC-Q100, more than 10 years of longevity.

Allwinner automative SoC T507
Allwinner automative SoC T507

Advanced Performance

FETT507-C system on module is based on Cortex-A53 featuring quad-core SoC T507 running at speed up to 1.5GHz;
Integrates with GPU G31 MP2; Carries 2GB DDR3 RAM and 8GB eMMC ROM on-board, can support Android, Linux and Ubuntu very well.

Allwinner T507
Allwinner T507

Ultra low power consumption and fanless

SoM designed based on low-power Cortex-A53 featuring SoC, CPU full-loaded consumption only 2.25W, which is applicable for fanless design, allows device can run long-term stable.

Allwinner t507
T507 low power

Various functional peripherals

T507 peripherals
t507 interface

AHD camera input

Can support AHD input converted to MIPI-CSI, can support 4 AHD camera capture.

t507 AHD camera
t507 AHD camera

Multi video output interfaces

RGB, LVDS, HDMI and CVBS output interfaces are all supported, can support dual-screen playing synchronously and asynchronously

t507 display interface
t507 display interface

4K video output

Supports HDMI 2.0a, output resolution up to 4K.

t507 4K output
t507 4K output

Supports 4K hardware codec

t507 4K codec
t507 4K codec

OS

Linux4.9+Qt5.12, Android10.0 and Ubuntu18.04 are all well supported and easy-to-go.

t507 system
t507 system

Target Applications

Applicable for car electronics, power industry, medical, industrial control, IoT and all kinds of smart devices.

t507 application
t507 application

Single Board Computer Pin Diagrams

development board based on t507 system on module
development board based on t507 system on module

▊ FDU Medical HMI


HMI for Medical

Forlinx launched FDU070K02 & FDU101K02, an HMI specially designed for medical. It supports touch with medical gloves, dual screen simultaneous display or differential display, taking into account the scene flexibility and convenience of use.

The FDU medical HMI support network, display, RS232/485, and USB, it also support communication interfaces such as CAN, 4G, and WIFI. All of them are equipped with ESD4 electrostatic protection.

Adapted to a variety of screen sizes, not limited by usage scenarios and space. It currently supports 10.1-inch screen (1280 * 800 resolution) and 7.0-inch screen (1024 * 600 resolution).



▊ Hardware Features


Overview of FETT507-C System on Module
CPU Allwinner T507
Architecture quad-core Cortex-A53
Frequency 1.5GHz
RAM 1/ 2GB DDR3L
ROM 8GB eMMC
Working Temperature 0℃~ +70℃, -40℃~ +85℃
Dimensions 40mm*70mm
Package ultra thin board-to-board connector
Voltage input 5V
OS

Linux4.9+QT5.12, Android10, ForlinxDesktop18.04 *

GPU G31 MP2 available for OpenGL ES 3.2/2.0/1.0, Vulkan1.1, OpenCL 2.0

FETT507-C System on Module Features
Peripheral QTY Spec.
TVOUT 1 CVBS output, NTSC mode and PAL mode
HMDI 1

Video:

- 2D Video up to  4K@60fps;

- 3D Video up to 4K@30fps;

Audio:

-IEC60985 L-PCM unpressed audio form, up to 192 kHz;

-IEC61937 pressed audio form, up to 1536 kHz

LCD/LVDS 1

LCD and LVDS are multiplexed;

LCD:

- RGB(DE/SYNC) up to 1920x1080@60fps;

- Serial RGB/dummy RGB up to 800x480@fps;

- i8080 up to 800x480@60fps;

- BT656 up to 1280x720@60fps or 1920x1080@30fps;

- RGB888, RGB565, RGB666;

- can support R/G/B separate Gamma correcting

LVDS:

- dual-lane up to 1920x1080@60fps;

- single-lane up to 1366x768@60fps

MIPI_CSI 1

supports image tailoring;

supports MIPI Version 1.0;

up to 1.0Gbps/Lane;

video capturing rate up to 8M@30fps or 4*1080p@25fps;

CSI_DVP 1

can support 8/10/12/16 bit DC;

supports BT656, BT601, BT1120;

supports ITU-R BT.656 TDM, up to 4*720p@30fps id DDR sampling mode;

supports progress and interlace video input;

video capturing rate up to 5M@15fps and 1080p@30fps;

pixel clock up to 148.5MHz

USB2.0 4

OTG:

- can support 1* OTG;

- High-Speed (HS, 482), Full-Speed(FS, 12Mbit/s) and Low-Speed (LS, 1.5Mbit/s) in master mode;

- High-Speed (HS, 482 Mbit/s) and Full-Speed (FS, 12Mbit/s) in slave mode

HOST:

- can support 3* host;

- can support High-Speed (HS, 482 Mbit/s),Full-Speed(FS,12Mbit/s) and Low-Speed(LS, 1.5Mbit/s) devices

SD 2

SDHC0(SD3.0):

- 4bit BUS width;

- SDR mode [email protected] IO pad;

- SDR mode [email protected] IO pad;

- DDR mode [email protected] IO padSDHC1(SDIO3.0):

- 4bit BUS width;

- SDR mode [email protected] IO pad;

- DDR mode [email protected] IO pad

RMII 1 10/100Mbps auto-negotiation
RGMII 1 10/100/1000 Mbps auto-negotiation; RGMII could be multiplexed to RMII for dual fast Ethernet expanding
UART ≤6

UART0, UART5: 2-wire, UART1, UART2, UART3, UART4: 4-wire;

Comply with 16550 UARTs;

speed up to 4Mbit/s;

can support 5~8 data bit and 1/1.5/2 stop bit;

can support RS-485/9-bit mode

TWI ≤5 standard mode(up to 100kbit/s) and fast mode(up to 400kbit/s)
SPI ≤2 3-wire/ 4-wire SPI: up to 100MHz
SCR 1 ISO/IEC 7816-3:1997(E) and EMV2000(4.0)
PWM ≤6

3 couples of PWM: PWM01 consists of PWM0 and PWM1, PWM23 consists of PWM2 and PWM3, PWM45 consists of PWM4 and PWM5;

can support pulse(configurable), circle and complementary pair output;

can support capture input;

programmable dead zone output;

built-in programmable dead zone time generator, controllable dead zone time;

three types of output waves: continuous wave; pulse wave, complementary wave;

output reference range: 0~24MHz/100MHz; duty ratio: 0%~100%;

minimum resolution: 1/65536; supports PWM output and input interrupt

JTAG ≤1
CIR 1

supports NEC data;

supports remote controller or wireless keyboard CIR;

64x8 bit FIFO for data buffer;

sampling clock up to 1MHz

GPADC 4

can support 4 general purpose ADC, 12-bit resolution;

maximum sampling rate 1MHz;

can support data comparison and interrupt;

can support DMA transactions;

signal input range: 0~1.8V;

supports three working modes: single conversion, continuous conversion burst conversion

LRADC 1

6-bit resolution

sampling rate up to 2kHz

supports hold Key and general Key

supports normal mode, continuous conduction mode and single work mode;

Power supply voltage: 1.8V

Power reference voltage: 1.35V, analog input

detected voltage range: 0〜LEVELB(maximum 1.266V)

LINEIN TBD 1 reserved, not available
LINEOUT 1

supports dynamic range controller to adjust DAC playing;

2 DAC channels:

- can support 16-bit and 20-bit sampling rates;

- 8kHz ~ 192kHz sampling rate;

- 95±2db SNR@A-weight, -80±3db THD+N, output up to 0.55Vrms1 audio output:

- one differential LINEOUTP/N or single-end LINEOUTL/R

DMIC 1

can support up to 8 digital PDM micphones;

can support sampling rate 8kHz to 48kHz

OWA 1 1* OWA sending
I2S ≤4

one built-in audio HUB;

supports 2 Digital Audio MIXER(DAM);

supports 3* I2S/PCM peripherals and 1* I2S/PCM for connecting internal HDMI;

supports left-justifying, right-justifying, standard I2S, PCM, tdM;

I2S supports 8 channels, 32-bit/192kbit sampling rate;

I2S and TMD mode up to 16 channels, 32-bit/96kbit sampling rate

▊ Accessories


Please click here to get more information about the supported modules and accessories.


Optional Module
10.1-inch LVDS Display with Capacitive Touch Panel 7.0-inch LCD Module with MIPI display Forlinx 5G Module
10.1-inch LVDS Display with Capacitive Touch Panel 7.0-inch LCD Module with MIPI display 7.0-inch TFC LCD Module with Capacitive Touch Panel

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
