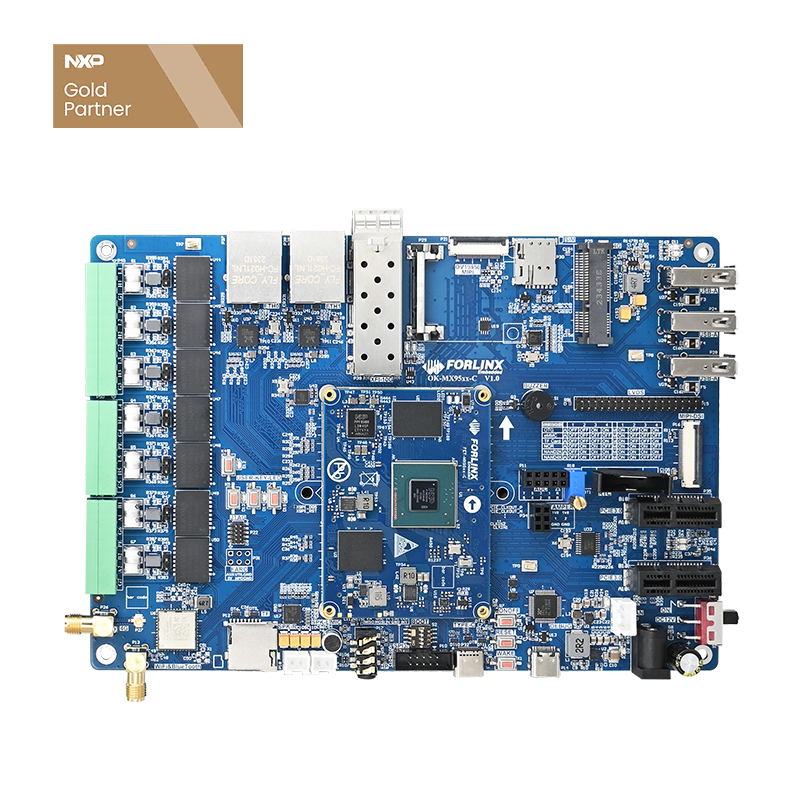

OK-MX9596-C Single Board Computer
CPU: NXP i.MX9596
Architecture: 6x [email protected] + 1x Cortex-M7@800MHz + 1xCortex-M33@333MHz
Frequency: 333MHz ，800MHz，1.8GHz
RAM: 8GB LPDDR4x
ROM: 64GB eMMC
System: Linux 6.6.3
OK-MX9596-C Single Board Computer Based on NXP i.MX95xx Processor
OK-MX9596-C single board computer(SBC) / development board features a SoM + Carrier Board split design with 320 pins. It uses four 80-pin board-to-board connectors to lead out the processor's functional pins in the most convenient way, optimizing for different functions, which simplifies user design and provides a solid basis for project evaluation and design.
OK-MX9596-C SBC
NXP New Flagship Chip
NXP i.MX95xx combines high performance application cores, independent MCU real-time domain, Energy Flex architecture, advanced security supported by EdgeLock® secure zone, and dedicated multi-sensor data processing engines (graphics, image, display, audio, and voice), to accelerate edge machine learning applications.
Safety Features
i.MX 95 series has safety features that comply with the ISO 26262 ASIL-B and IEC 61508 SIL-2 functional safety standards to support basic safety measures in automobiles and functional safety in industrial control systems.
Multicore Heterogeneous Architecture
i.MX95xx series features ARM Cortex-A55 high-performance cores along with a Cortex-M7 real-time core, delivering both high computing performance and precise real-time control.
High-performance GPU
New generation ARM Mali-G310 enhances support for high dynamic range and provides AFBC uncompressed buffer, selected ARM fixed-rate compression (AFRC), and Foveation Rendering technology to enhance augmented/virtual reality effects, with support for OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0.
High Computing Power to Empower Edge Applications
The i.MX95xx chip integrates a built-in Neural Processing Unit (NPU) with a high computing power of up to 2 TOPS, which enables excellent machine learning and deep learning capabilities, providing robust support for edge computing applications.
Rich CPU Interfaces
ISP Significantly Enhances Image Quality
The ISP technology integrated into the i.MX95xx chip supports various image sensors and is optimized for different application scenarios. Whether it's for industrial inspection, robot vision or autonomous driving applications, the i.MX95xx can provide clear and accurate image data.
High Definition Decoding and Display Enhancement
The i.MX95xx chip supports H.264 encoding & decoding and H.265 decoding with resolutions up to 4K, easily meeting the demands of playing high-definition videos. At the same time, the chip also utilizes advanced display enhancement technology, which can further improve the contrast and color saturation of the picture, giving users a more stunning visual experience.
Continuously Updated User Profiles
Broad Industry Applications
In multiple industries including industrial, medical, power, automotive transportation, environmental monitoring, smart cabins,
and IoT, the FET-MX95xx-C SoM, with its high performance, multifunctionality, and industrial-grade advantages, coupled with Forlinx's competitive pricing
and comprehensive after-sales technical support, will help your products quickly enter the market and stay ahead in the industry.
NXP iMX95 SoM&SBC Video
FET-MX9596-C System On Module and OK-MX9596-C SBC Based on NXP iMX95 Processor
▊ Hardware Features
|
FET-MX9596-C System on Module Basic Features |
|
|---|---|
|
CPU |
NXP i.MX9596 Clock: 6x Cortex-A55 @ 1.8 GHz + 1x Cortex-M7 @ 800 MHz + 1x Cortex-M33 @ 333 MHz NPU: 2 TOPS GPU: Mali-G310 (OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0) VPU:
|
|
RAM |
8GB LPDDR4X |
|
ROM |
64GB eMMC |
| Input Voltage | DC 12V |
|
Operating Temperature |
-40°C ~ +85°C |
|
Connector |
Board-to-board connector (4x 80-pin, 0.5mm pitch, Stack Height: 2.0mm) |
|
OS Support |
Linux |
|
Dimensions |
50mm x 68mm |
Notice: The currently released FET-MX9596-C System on Module uses an Alpha version chip, and some features are not yet supported. Please refer to the Bug List for details. The mass production chip version is expected to be available in Q1 2026, at which time the BSP version will also be updated from Linux 6.6 to Linux 6.12.
|
FET-MX9596-C System on Module Functional Parameters |
||
|---|---|---|
|
Peripheral |
QTY |
Specification |
|
JTAG |
1 |
4-pin JTAG for debugging |
|
UART |
Up to 8 |
Up to 5 Mbps |
|
SPI |
Up to 8 |
Master/Slave mode configurable |
|
XSPI |
Up to 1 |
Supports 2x Serial NOR/NAND Flash |
|
CAN-FD |
Up to 5 |
Compliant with ISO 11898-1 and CAN 2.0B |
|
SAI |
Up to 5 |
Synchronous Audio Interface |
|
SD Card |
1 |
Compliant with SD 3.0 |
|
SDIO |
1 |
Compliant with SDIO 3.0 |
|
ADC |
Up to 8 |
1x 12-bit, 8-channel, 1 MS/s ADC |
|
1 Gbps Ethernet |
Up to 2 |
1.8V RMII/RGMII, supports TSN |
|
10 Gbps Ethernet |
1 |
XFI, SGMII (2.5 Gbps / 1 Gbps), 10G-USXGMII, supports TSN |
|
USB 3.0 |
1 |
Configurable as Host or Device |
|
USB 2.0 |
1 |
Configurable as Host or Device |
|
PCIe |
2 |
PCIe Gen 3.0 |
|
MIPI DSI |
1 |
1x 4-lane MIPI DSI, up to 2.5 Gbps/lane; supports 4K @ 30 Hz or 3840x1440 @ 60 Hz |
|
MIPI CSI-2 |
Up to 2 |
Compatible with MIPI CSI-2 v1.2 and MIPI D-PHY v1.2 |
|
LVDS |
1 |
Up to 1080p @ 60 Hz (2x 4-lane or 1x 8-lane) |
|
I2C |
Up to 7 |
Standard I2C interface |
|
PDM |
1 |
Supports up to 8-channel microphone input |
|
SPDIF |
1 |
Sony/Philips Digital Interface |
|
PWM |
Up to 6 |
Pulse Width Modulation outputs |
|
GPIO |
Up to 111 |
General Purpose I/O |
▊ OK-MX95xx-C Carrier Board
| OK-MX9596-C Single Board Computer Features | ||
|---|---|---|
|
Peripheral Interface |
QTY |
Specification |
|
LVDS |
1 |
Dual 8-bit, up to 1080p @ 60 Hz |
|
MIPI DSI |
1 |
4-lane, up to 2.5 Gbps per lane; supports up to 4K @ 30 Hz or 3840x1440 @ 60 Hz |
|
XFI |
1 |
10 Gbps SFP cage |
|
Ethernet |
2 |
10/100/1000 Mbps adaptive, RJ45 connector |
|
Type-C (Debug) |
1 |
UART1/2/3 converted to USB for Cortex-A55/M33/M7 cores debugging |
|
Type-C (USB) |
1 |
USB Type-C, supports OTG |
|
USB Host |
3 |
Expanded via hub, USB 2.0 (up to 480 Mbps) |
|
PCIe 3.0 |
2 |
PCIe Gen 3.0 x1 slot, supports RC and EP modes |
|
MicroSD (TF) |
1 |
Compliant with SD 3.0, 4-bit |
|
MIPI CSI-2 |
1 |
Compatible with OV13850 camera module |
|
Wi-Fi & Bluetooth |
1 |
On-board AW-CM358SM, 2.4 GHz / 5 GHz dual-band Wi-Fi, Bluetooth 5.0, supports audio features 1x SDIO for Wi-Fi 1x UART for Bluetooth 1x I2S for Audio |
|
RTC |
1 |
Recommended battery model: CR2032 |
| SPI |
1 |
1x SPI (SPI3), accessible via pin header |
|
Keys |
7 |
Reset, Sleep, Power switch, and 4x User-defined keys |
|
Audio |
3 |
1x 4-pole headphone jack (with built-in HP and MIC) 1x On-board electret microphone 1x Dual-channel speaker output |
|
CAN-FD |
5 |
CAN-FD with isolated circuit, compliant with CAN 2.0B, up to 5 Mbps |
|
RS485 |
2 |
Automatic transceiver control, with isolated circuit |
|
SAR ADC |
8 |
1.8V, on-board sliding rheostat (potentiometer) |
|
4G LTE |
1 |
Mini PCIe slot, supports EC20/EC25 4G networking modules |
|
Buzzer |
1 |
Active buzzer |
|
JTAG |
1 |
For debugging |
|
QSPI Flash |
1 |
XSPI interface, 4-bit Flash |
|
eARC |
1 |
Accessible via pin header, for audio transmission |
|
Tamper |
1 |
Accessible via pin header, for tamper detection |
|
Fan |
1 |
Connector for SoM cooling fan |
|
LEDs |
4 |
User-defined LEDs |
