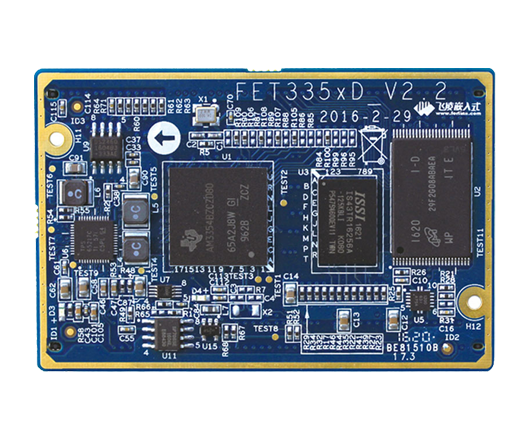

FET335xD System on Module
TI AM335x microprocessors is a simple and stable industrial development platform with main frequency up to 800MHz, operating temperature ranges from -40℃ to +85℃. Industrial interface options such as CAN, PROFIBUS, RS485 and dual gigabit Ethernets. 324 CPU pins in total, each pin and peripheral interface pins up to 8 functional configuration. 8-layer of CPU module PCB guarantees perfect electrical and interference. SMT to be used to make sure accurate connection. OK335xD base board pins out mostly industrial used interfaces with open source code. Approved by EMC/EMI testing to make it more competitive.
The FET335xD CPU Module series have three models with the same AM335x processors. For the complete AM335x product list, check out Forlinx’s AM335x System on Module product families.
Small size, easy to plug and unplug

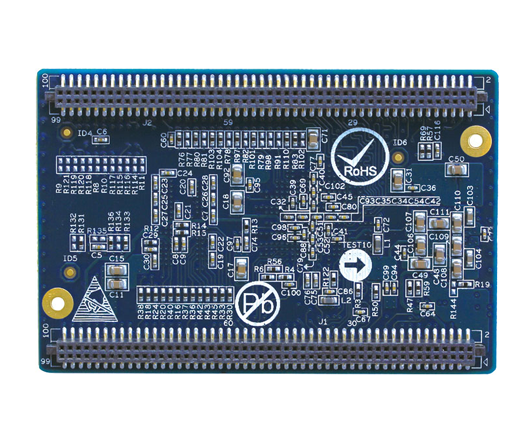

The overall size of the core board is 47*71mm, using an 8-layer PCB immersion gold process, and the connection method uses a 1.27mm pitch.
200 Pin double row anti-misplug pin connector design. Debugging, production, and maintenance are more convenient!
Industrial Grade Core Board
FET335xD core board chips are all made of industrial grade materials, and have undergone strict high and low temperature tests at -40℃~+85℃
Abundant pins, strong scalability
The core board leads to 200pin CPU pins, natively supports 6 UARTs, 2 CAN, 2 Gigabit networks, 1 LCD,
16-bit data bus, 12-bit address bus and other functions.
Support any combination of multiple communication modules
FET335xD core board supports 3G module, 4G module, GPRS module, GPS module,
WIFI module, Bluetooth module and other modules.
Real-time operating system
Support Linux RT-Preempt real-time operating system.
Support multiple mainstream operating systems
The FET335xD core board supports mainstream operating systems on the market,
Linux-RT, Linux3.2, Android2.3, Android4.2, WinCE7.0, WinCE6.0
Multiple safety certifications
OK335xD development board has passed CE FCC RoHS certification, safer and more secure.
SoM can be widely used in
industrial control , smart home, medical,
multimedia, security, automotive, finance, consumer electronics, handheld devices, display control, teaching, electricity, communications, charging piles and other fields
▊ OK335xD Evaluation Kits
To reduce your development work, we offer starter kits that can be used as a complete development platform for evaluation and application development.
OK335xD Starter Kit Includes AM335x carrier board + FET335xD SOM + all relevant accessories to test its expansibility and performance. In addition, this complete development kit is a complete package including a 7'' TFT capacitive touch screen, power supply and all necessary cables. These kits are a good demonstration of FET335xD SOM expansibility and performance.
AM335x carrier board has the most common interfaces such as USB and dual gigabit Ethernet ports. A wide variety of interfaces allows it to be used as a complete development platform or as a stand-alone end product.
▊ Hardware Features
|FET335xD System on Module Features|
|CPU||TI AM3354 Cortex-A8|
|Flash||256M SLC NandFlash(1GB optional)|
|OS||Linux3.2, Linux-RT, Android4.2/2.3, WinCE7.0, WinCE6.0, StarterWare|
|GPMC||16-0bit data bus, 12-bit address bus|
|USB OTG||2x USB HOST 2.0|
|UART/IrDA||6x UART/ IrDA|
|EEPROM||supported, for encryption|
▊ Software Features
|Flash OS Image Flashing||By SD card|
|System Compiling||one key compiling|
|USB(mouse, U-disk, etc.)||Key|
|UBI/Yaffs file system||CAN|
|LCD FrameBuffer||USB WiFi|
|Resistive touching||USB Camera|
|Kernel||Linux-3.2.0, PSP: 04.06.00.10, SDK: 05.07.00.00|
|OS Image Flashing||OS image or a single file flashed to NAND flash by SD card|
|USB(U-disk, mouse, etc.)||watchdog|
|Flash ECC verification||CAN|
|Nand Flash||SDIO WiFi|
|UBI/Yaffs file system||USB WiFi|
|SD card||USB Camera|
|LCD FrameBuffer||USB 3G|
|resistive touching||USB BlueTooth|
Command Line Testing
|BootLoader||EBOOT flashed by SD card|
|OS Image Flashing||by SD card|
|BootLaoder||EBOOT can support USB2.0 high speed download mode|
|OS Image Flashing||flash OS iamge or a single file by SD card|
|Development Environment||VS2005 and VS2008|
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(AM335x reference manual), schematic documentations to help customer start their development rapidly.
For more details on solution design with FET335xD SOM
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
