FET335xS-II System on Module

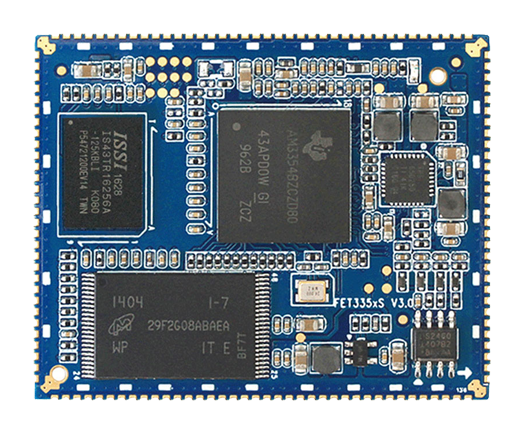

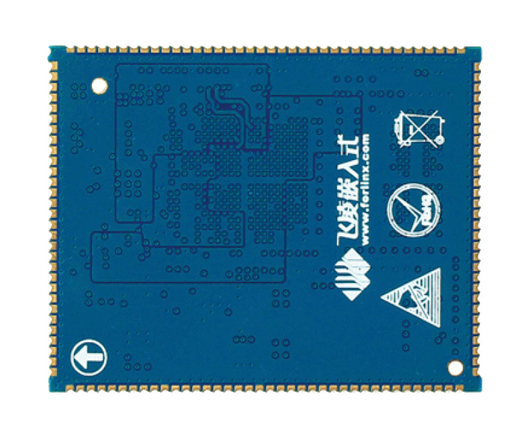

FET335xS-II system on module(SoM) is based on TI Cortex-A8 AM3354 industrial-grade processor design, running at a main frequency of 600MHz, and an industrial-grade operating temperature range of -40°C to +85°C. The core board adopts 8-layer PCB immersion gold process design to ensure reliable electrical characteristics and electromagnetic compatibility characteristics. The stamp hole connection method has the advantages of anti-vibration, anti-oxidation, anti-interference, and low cost. OK335xS-II development board has a small backplane that can be directly embedded in the product for use, providing a wealth of common interfaces such as USB, CAN, RS485, etc. OK335xS-II development platform has passed CE/FCC certification to ensure that the product runs stably and reliably in a complex industrial-grade environment.
- PowerVR SGX530 graphics processor;
- Stamp Hole Connection(136 pin, spacing 1.27mm)
- 1x IIS, 3x IIC, 6x UART, 2x CAN, 2x SPI;
- 1x USB2.0 Device, 1x USB2.0 OTG;
- Support EINT/GPIO;
- 7x ADC, JTAG, 3x PWM, 3x SD/MMC/SDIO;
- 2x 10/100/1000Mbps Ethernet;
Forlinx Embedded OK335xS-II single-board computer(SBC) has passed the CE FCC international certification, representing that Forlinx OK335xS-II industrial-grade development board (core board) complies with international safety standards and communication standards.
▊ OK335xS-II Evaluation Kits
To reduce your development work, we offer starter kits that can be used as a complete development platform for evaluation and application development.
OK335xS-II is a development kit of AM335x, consisting of a carrier board (AM335x) and a SoM (FET335xS-II). In addition, this complete development kit is a complete package including a 4.3'' resistive LCD module, power supply and all necessary cables. These kits are a good demonstration of FET335x-II SoM expansibility and performance.
AM335x carrier board has the most common interfaces such as USB and dual gigabit Ethernet ports. A wide variety of interfaces allows it to be used as a complete development platform or as a stand-alone end product.
▊ Hardware Features
|FET335xS-II System on Module Features|
|PWM||3x PWM, 1x user's definition, 1x backlight, 1x buzzer|
|USB OTG||1x USB OTG 2.0|
|USB DEVICE||1x USB DEVICE 2.0|
|Ethernet||2x Gigabit Ethernet|
|UART/IrDA||6x UART/ IrDA|
|EEPROM||supported, for encryption|
|SATA||can be expanded by USB|
▊ Software Features
|LED||Resistive touch screen|
|Flash ECC verification||Watchdog|
|UBI/Yaffs file system||AD|
|BootLoader||EBOOT flashed by SD card|
|OS Image Flashing||by TF card|
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(AM3354 reference manual), schematic documentations to help customer start their development rapidly.
For more details on solution design with AM3354 SOM
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
