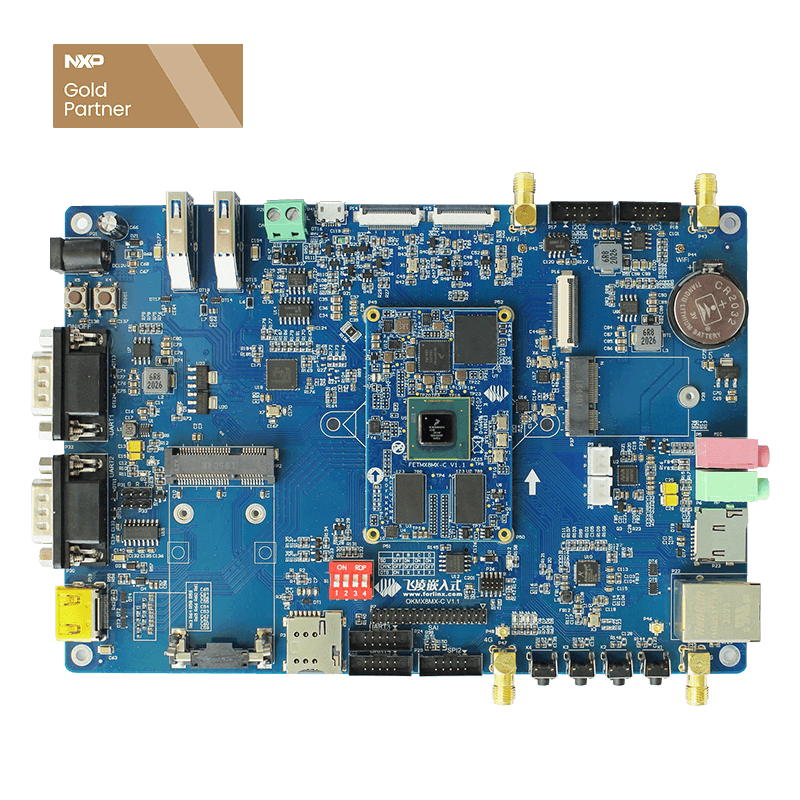

Single Board Computer OKMX8MQ-C based on i.MX8MQ
OKMX8MQ-C is a single board computer (SBC) designed based on NXP quad-core ARM Cortex-A53 featuring processor i.MX8MQ runs up to1.3GHz, carries on-board 2GB RAM, 8GB ROM, working temperature ranges from -40℃ to 85℃.
i.MX8MQ Single Board Computer Features
- 1. Advanced audio, voice and video processing performance up to 4K;
- 2. UltraHD and HDR(Dolby Vision, HDR10 and HLG), fanless, long bettary longebity;
- 3. Dual-screen planning;
- 4. MIPI-DSI(1080P) and HDMI2.0a(4K);
- 5. Vivante GC7000 Lite GPU can support OpenGL ES3.1, OpenGL3.0, Vulkan and OpenCL1.2;
- 6. Video decoding: 4Kp60 HDR(h.265, VP9), 4Kp30 (h.264), 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS/AVS+, h.263, DiVX), MJPEG - 8x8;
- 7. Video encoding(software): 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS, h.263)
- 8. Large set of peripherals that are commonly used in consumer/industrial markets including 2x MIPI-CSI, 2x USB 3.0, 2x PCIe 2.0, 4x UART and Gigabit Ethernet
Advanced performance, power efficient
SoM baed on NXP i.MX8MQ SoC running at up to 1.3GHz, carries 2GB DDR4 RAM and 8GB eMMC on-board, low power Cortex-A53 architecture and fanless designing
4K+1080P Dual-screen Play
SoM FETMX8MQ-C can support HDMI and MIPI-DSI dual-screen playing separately up to 4K. HDMI could be converted to eDP, LVDS, RGB output；MIPI-DSI could be converted to LVDS, HDMI and other display output.
H.265, VP9 low band width encoder
VP9 and H.265 decoder up to 4Kp60, video decoding efficiency 50% improved than H.264 but band width and capacity only 50% of H.264.
Large set of peripherals
Large set of peripherals that are commonly used in consumer/industrial markets including 2x MIPI-CSI, 2x USB3.0, 2x PCIe2.0,
4x UART, 1Gb Ethernet and other high speed peripherals preferable for HD camera, CCD, 5G, 4G, FPGA, SSD, PLC and high speed Ethernet peripherals connection.
Android9.0*, Linux5.4.3+ QT 5.13
Optimized 64-bit system supporting of Android 9.0 and Linux5.4.3(QT 5.13) takes better security and interactive experience.
Carrier board pin diagram
5G, edge computing, HMI, V2X RSU, fuel dispenser, PCR, MTC, medical, power industry , industry automation, smart tranportation, environment monitoring, etc.
|Overview of FETMX8MQ-C System on Module|
|Working temp width||-40℃~ +85℃|
|Package||ultra think board-to-board connector|
|OS||Linux5.4.3+QT5.13.2, Android TBD|
|FETMX8MQ-C System on Module Peripheral Source|
|USB||2||CPU has 2 PHY intergrated USB 3.0 / 2.0 controllers; can support Super-speed(5Gbit/s), high-speed(480Mbit/s),full-speed(12Mbit/s) and low-speed(1.5Mbit/s)|
|MIPI_CSI||2||each lane can support high speed mode(80Mbps – 1.5Gbps), 4lane can support [email protected]|
|MIPI_DSI||1||up to [email protected]|
|HDMI||1||HDMI 2.0a up to [email protected]|
|Ethernet||1||RGMII, carrier board carries AR8031 available for 1000M/100M/10M Ethernet auto-negotiation|
|SD||1||can support both 1-bit/4-bit SD and SDIO: SDR104 mode with 4 parallel lanes, can support SDIO device or SDXC card transmission rate up to 832 Mbps; DDR50 mode with 4 parallel lanes, can support SDIO device or SDXC card transmission rate up to 400 Mbps.|
|UART||≤4||4 UART can be configured to 5-wire serial, can support baud rate up to 4Mbit/s. One can be used as A53 debug port, one can be used as M4 debug port. Users can expand UART by USB or SPI.|
|SPI||≤3||ECSPI contains a 64 x 32 RXFIFO and a 64 x 32 TXFIFO, tranferring rate up to 52Mbit/s|
|I2C||≤3||in standard mode, it can support up to 100Kbit/s; in fast speed mode, it can support up to 400Kbit/s|
|SAI||≤5||available for I2S, AC97, TDM and Codec/DSP; 5 SAI: 1 16TX and 16 Rx SAI; 1 8 TX and 8 RX SAI; 3 SAI with 2 Tx and 2 Rx|
|PWM||≤4||16-bit increment counter; 12-bit prescaler for clock frequency deviding; can support audio and melody generating; can support configure output with high voltage valid or low voltage vaild|
|Parallel bus||1||8-bit NAND Flash, contains supporting to Raw MLC / SLC, up to 62-bit BCH ECC and ONFi3.2 compatibility; clock rate up to 100 MHz, data rate up to 200 MB / sec|
|QSPI||≤2||single data rate/ dual data rate operating mode|
|OKMX8MQ-C Single Board Computer Features|
|OTG||1||can be used for system installation|
|USB3.0||2||2x USB3.0 Type A connector expanded by USB3.0 HUB|
|MIPI_CSI||2||2 lane MIPI_CSI as FPC connectors, can support MIPI OV5640 camera module, resolution up to [email protected]|
|MIPI_DSI||1||4 lane MIPI_DSI by FPC connector, can support Forlinx 7'' MIPI display module with resolution of 1024 x [email protected]|
|HDMI||1||HDMI 2.0a, up to 4096 x [email protected]|
|Ethernet||1||10/100/1000Mbps auto-negotication, RJ45 connector|
|SSD||1||PCIE Gen2 by M.2 M-Key connector, for SSD peripheral device, compatible size: 2260、2280|
|WIFI&Bluetooth||1||PCIE Gen2 by M.2 E-Key connector, can support intel9260 WiFi& BT module|
|TF Card||1||TF Card, can support UHS-I TF card up to 104MB/s|
|4G||1||Can support Huawei Brand ME909S 4G wireless module, to use EC20, please change carrier board resistor|
|Audio||1||WM8960 chipset, 1x phone, 1x MIC, both by PJ-325C jack, can support 2x 8Ω1W Speaker output(XH2.54 connector)|
|SAI||2||2x16 Pin 2.0mm for SAI1 and SA3; SAI1 can support 8 Tx and 8 Rx, SA3 can support 1 Tx and 1 Rx|
2x5 2.0mm connectors for I2C2 and I2C3
|Nor Flash||1||QSPI mounted with one W25Q128JVSIQ Flash|
|UART||2||2 x 5 2.0mm connectors for UART3 and UART4|
|ECSPI||1||2 x 5 2.0mm connector for ECSPI2|
|CAN-FD||1||CAN-FD expanded by SPI, rate up to 4Mbps|
|RS232||2||DB9 connector, for A53 and M4 debug purpose|
|KEY||4||for users' definition|
|JTAG||1||2 x 5 2.0mm connector|
