FETMX8MM-C System on Module

CPU: NXP i.MX 8M Mini

Architecture: Heterogeneous

Frequency: 1.8GHz

RAM: 2GB DDR3

ROM: 8GB eMMC

System: Linux4.14.78+QT5.10.1,Android9.0

Datasheet Message Compare

System on Module FETMX8MM-C based on i.MX8M Mini

FETMX8MM-C system on module (SoM) is based on NXP ’s i.MX8M Mini processor with 1.8GHz Cortex A53 quad core and single Cortex M4 core. i.MX8M Mini SoC built with advanced 14LPC FinFET process technology. This cutting-edge building block is tailor made for a wide range of IoT and industrial applications, featuring 2GB DDR4, 2 x USB 2.0, powerful network connectivity options including Bluetooth and optional WiFi, PCIe 2.0 and robust multimedia features including 7 audio channels (32bits), MIPI-DSI, and 1080p encoder and decoder.

It is NXP's first embedded multicore application processor built with advanced 14LPC FinFET process technology, delivering higher speeds and energy efficiency. i.MX8M Series is commercially and industrially certified and supported by NXP's Product Life Plan for any general industrial and IoT application.

Main features of i.MX8M Mini SoM

1. Heterogeneous Multi-core Processing Architecture;

2. Quad-core Cortex-A53 core up to 1.8GHz;

3. Cortex-M4 at speeds of 400+MHz;

4. 1080p video encode and decode;

5. Display and camera interfaces;

6. Multi-channel audio and digital microphone inputs;

7. Connectivity (I2C, SAI, UART, SPI, SDIO, USB, PCIe, Gigabit Ethernet);

8. Low-power and standard DDR memory support;

9. Multiple pin-compatible product offerings;

10. support Android9.0 and Linux4.14(QT5.10);

Target applications

IP camera video surveillance

Two-way video conferencing

Visual Doorbell

Image Analysis

Audio Processing

Audio Broadcasting System.

...


Superior Performance cool experience

Based on ARM Cortex-A53 quad-core processor iMX8M [email protected] 1.8GHz,
with 2GB DDR4, high performance and powerful hashrate make system running more smoothly

Cortex-A53 i.MX8M SoM system on module
Cortex-A53 i.MX8M SoM system on module
I.MX8M SoM single board computer pc
I.MX8M SoM single board computer pc

1080p60 H.265 decode, 1080p60 H.264 encode

Reduce band width occupancy rate VP9 and H.265 decoder can support [email protected] 60Hz,
which is 50% more efficient, but bandwidth and capacity only 50% of H.264.

VP9, H.264 Pc
VP9, H.264 Pc Phone

Operating Systems: Linux4.14+Qt5.10.1, Android9.0

SoM FETMX8MM-C can support Android9.0 and Linux4.14(QT5.10)
64-bit systems, which can take users higher security and better human-machine interactive experience.

android9.0 linux4.14 QT5.10 development board Pc
android9.0 linux4.14 QT5.10 development board Pc Phone

Multiple Audio Interfaces

Support 5-ch SAI,IIS,AC97,TDM and S/DPIF digital audio interface,
suitable for Hi-fi Voice System and Speech Recognition.

IIS, AC97, TDM, SPDIF, SAI Pc
IIS, AC97, TDM, SPDIF, SAI Pc Phone

Power Optimized Design

The HMP architecture can reduce the power even more by letting the Cortex-A53 cores sleep until needed.
The Cortex-M4 can wake them up on demand.

Cortex-A53 1.6GHz Cortex-M4 Pc
Cortex-A53 1.6GHz Cortex-M4 Pc Phone

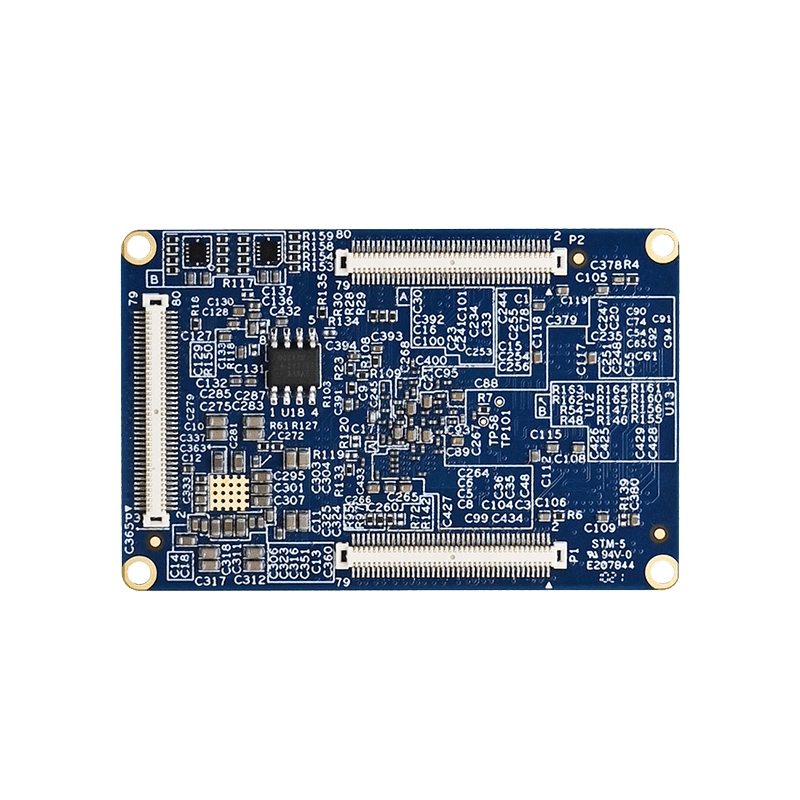

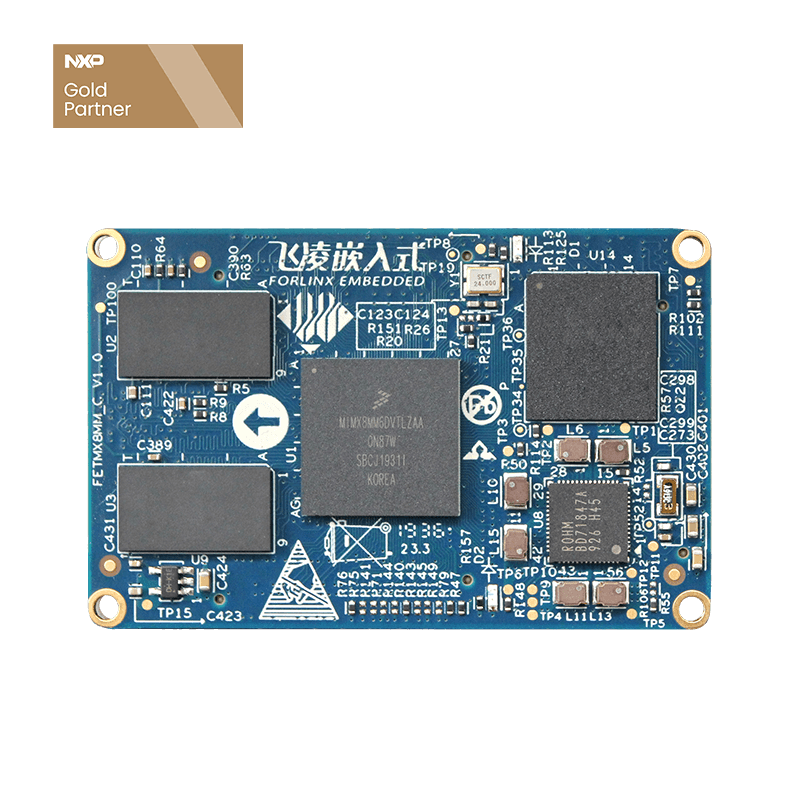

iMX8M Mini System on Module(SoM) Front and Rear Side

iMX8MM System on Module(SoM) Front and Rear Side

10 years of product longevity program

i.MX8M Mini processor's life time is more than 10 years, which ensures users of stability of product supplying.

i.mx8m single board computer development board Pc
i.mx8m single board computer development board Pc Phone

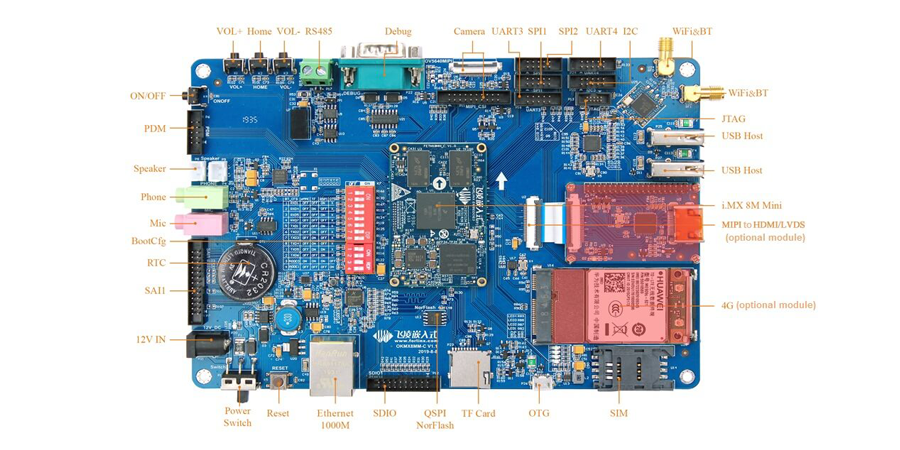

OKMX8MM-C SBC Pin Diagram

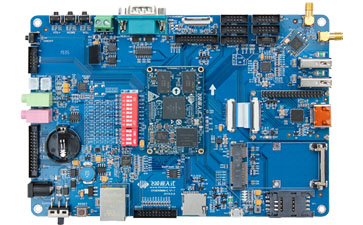

OKMX8MM-C single board computer consists of SoM FETMX8MM-C and carrier board

▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

▊ Hardware Features


Overview of FETMX8MM-C System on Module
CPU NXP i.MX 8M Mini
Architecture Quad-core Cortex-A53+ single core Cortex-M4 Main Frequency ≤1.8GHz
RAM 2GB DDR4 ROM 8GB eMMC
OS Linux4.14.78+Qt5.10.1, Android9.0 Voltage Input 5V
Package ultra thin connector(3*80pin, pitch of 0.5mm)
Working Temp Width 0℃~70℃ Dimensions 56mm×36mm


FETMX8MM-C System on Module Features
Peripherals QTY Spec.
CAMERA 1 4-lane MIPI, up to 1.5Gbps
SD/SDIO ≤2 SD, SDIO, 1.8V mode and 3.3V mode
USB 2 USB 2.0( up to 480 Mbps), both can be configured to OTG
SAI ≤5 up to 5x SAI
UART ≤4 each up to 4.0 Mbps
eCSPI ≤3 full duplex strengthened synchronous serial interface, up to 52 Mbit/s, it can be configured to host/ slave mode
IIC ≤4 320Kbps
Ethernet ≤1 10/100/1000Mbps auto-negotiation
PWM ≤4 16-bit
JTAG supported
FlexSPI 1 support single pad/dual pad/quad pad mode
Display 1 4-lane MIPI display, up to 1.5Gbps
PDM ≤1 up to 4-wire 8 channels
PCIe 1 PCIe 2.0
OKMX8MM-C Single Board Computer Features
Peripherals QTY Spec.
MIPI_DSI 1 4 data lanes, protocol V1.01r11; resolution up to WQHD(1920x1080p60, 24bpp)
MIPI_CSI 1 4 lanes; OV5640MIPI
Audio 1 1*MIC, 1*Phone, 2*Speaker
PDM 1 10-pin header with pitch of 2mm
SAI 1 26-pin header with pitch of 2mm
USB Host 2 expanded by hub, USB2.0( up to 480 Mbps)
USB OTG 1 standard micro USB connector, USB 2.0 OTG (up to 480 Mbps)
Ethernet 1 10/100/1000Mbps auto-negotiation, RJ-45 connector
Mini PCIe 1 can be mounted with 4G wireless module with mini PCIe interace, it also contains PCIe2.0 single channel
WiFi 1 Model: F23BUUM13-W2

WiFi standard: IEEE 802.11b/g/n ,2.4GHz

Bluetooth: V2.1+EDR/BT v3.0/BT v4.0

Bluetooth 1
TF Card 1 compatible with SD, SDHC and SDXC(UHS-I)
SDIO 1 20-pin header with pitch of 2mm, 8-bit
SPI 2 10-pin header with pitch of 2mm
QSPI 1 on-board 16MB QSPI NOR FLASH
PWM 1 display backlight adjusting
IIC 4 standard mode: 100kbits/s, fast speed mode: 320kbits/s
UART 1

UART3 is a 3-wire serial interface, 3.3V up to 4.0 Mbps

UART Debug 1 UART2, RS232, DB9 male connector, default baud rate is 115200 A53 Debug
1 UART4, 3.3V, by a 10-pin header with pitch of 2mm M4 Debug
RS485 1 isolated RS485, up to 500kbps
JTAG Debug 1
